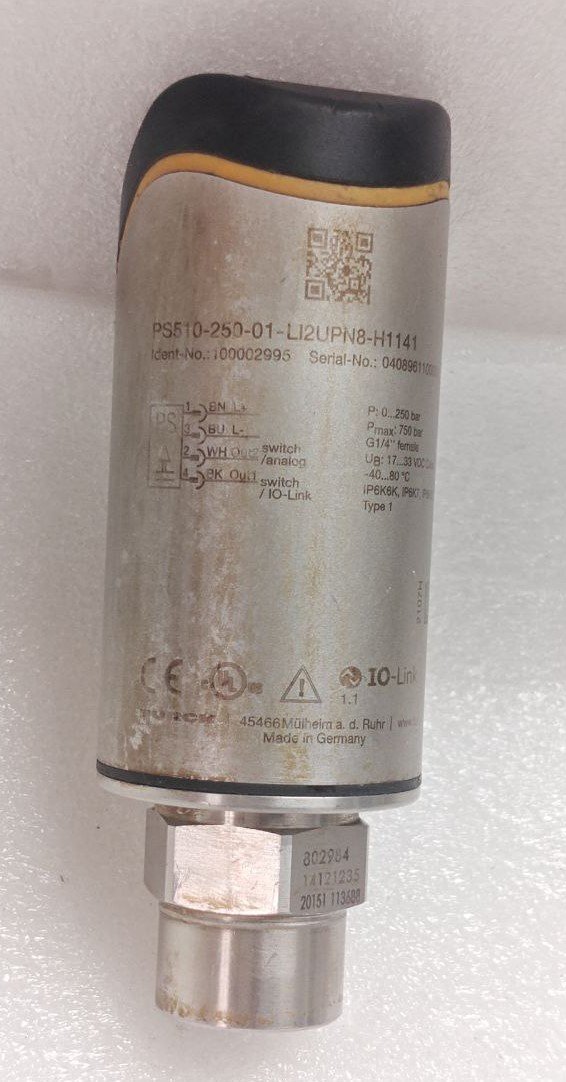

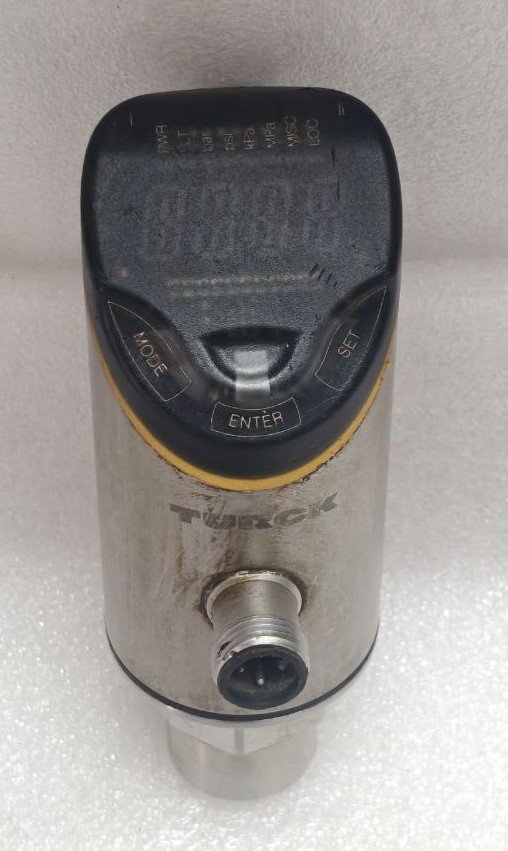

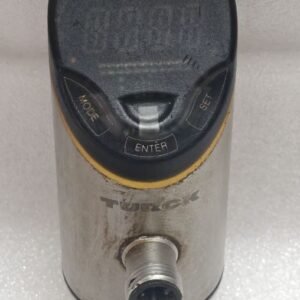

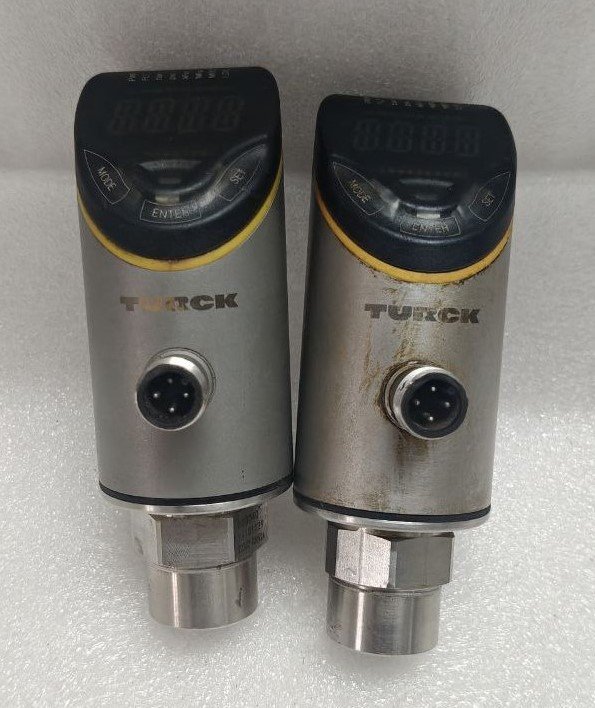

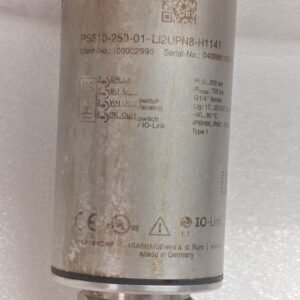

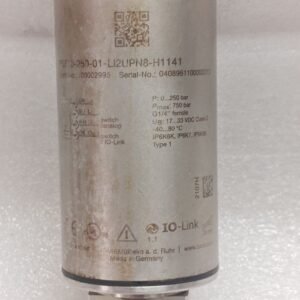

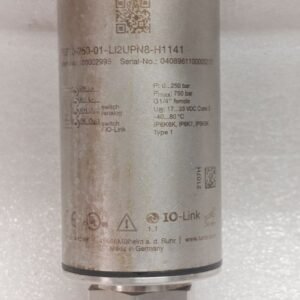

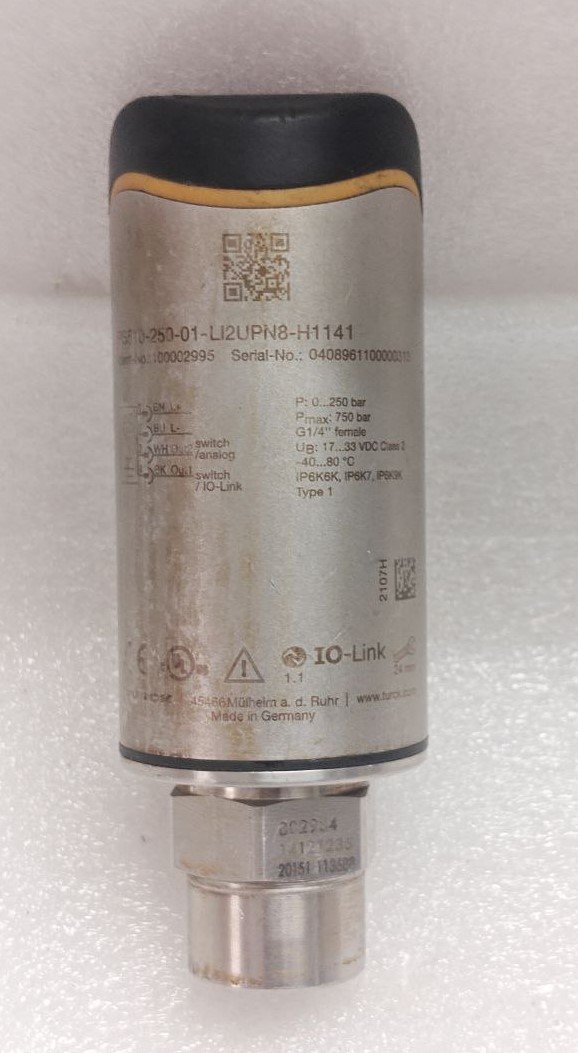

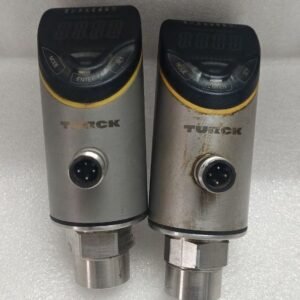

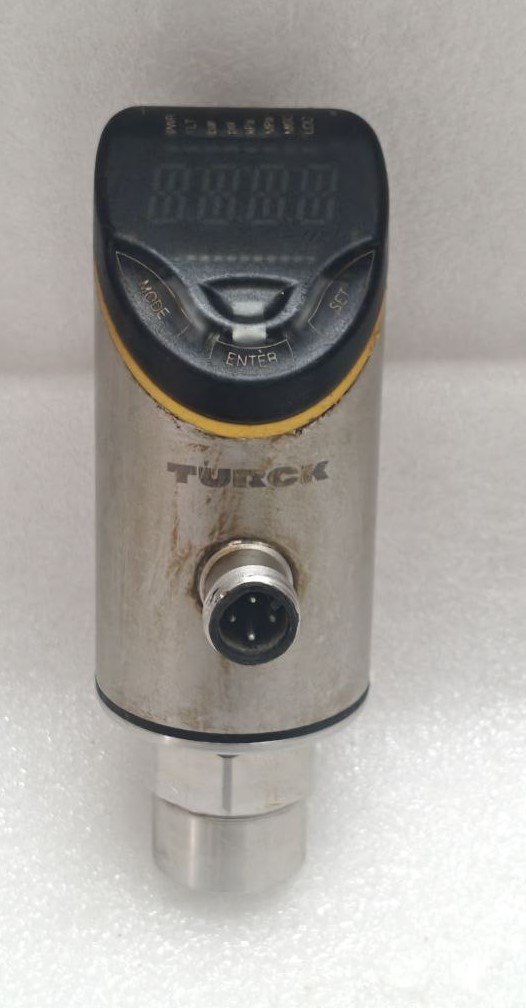

TRUCK PS510-250 -01 LI2UPN8 -H1141 TRANSMITTER 250 BAR 13:12

Product Description: TRUCK PS510-250 -01 LI2UPN8 -H1141 Pressure Transmitter

1. Core Product & Manufacturer:

• Product Line: TRUCK

• Model: PS510

• Manufacturer: Gems Sensors & Controls (a leading manufacturer of fluid sensing and control components). The “TRUCK” series is one of their well-known lines for heavy-duty vehicles and machinery.

2. Key Specifications:

• Pressure Range: 250 BAR

  • This is equivalent to approximately 3,625 psi (pounds per square inch).

• Electrical Connection: LI2UPN8

  • This code refers to a specific connector type. It is a 2-pin, M12x1 circular connector with an IP67 or IP69K rating, making it resistant to water and dust, which is critical for harsh environments.

• Electrical Output: The “-01” suffix typically indicates a 4-20 mA analog output signal. This is a robust, industry-standard signal that is resistant to electrical noise and can be transmitted over long distances.

• Process Connection: -H1141

  • This denotes the mechanical thread used to install the sensor into the hydraulic system. A common interpretation for this code is a G1/4″ (or M14x1.5) male thread. This is a standard size for many hydraulic systems.

• Media: Designed for use with hydraulic oil and other compatible fluids typical in mobile equipment.

3. Functional Summary:
This is a pressure-to-electrical transmitter. It continuously measures the fluid pressure in a hydraulic system and converts it into a proportional 4-20 mA electrical signal. This signal is then sent to a display, a PLC (Programmable Logic Controller), or a vehicle’s control unit to provide real-time pressure data for monitoring, control, or safety functions.

4. Typical Applications:
This sensor is built for rugged environments, commonly found in:

• Construction Equipment: Excavators, bulldozers, cranes, and loaders.

• Agricultural Machinery: Tractors, combines, and balers.

• Trucks & Logistics: Refuse trucks, dump trucks, and forklifts.

• Industrial Machinery: Presses, plastic injection molding machines, and other hydraulic-powered equipment.

• Monitoring hydraulic pressure in systems like braking, steering, implement control, and transmission.

5. Key Features & Benefits:

• Rugged Construction: Built to withstand the high vibration, shock, and pulsating pressures common in mobile hydraulics.

• High Pressure Rating: The 250 BAR rating makes it suitable for high-pressure hydraulic circuits.

• Sealed Connector (IP67/IP69K): Protects the electrical connection from moisture, dirt, and high-pressure washdowns.

• Stainless Steel Wetted Parts: Provides excellent corrosion resistance and compatibility with hydraulic fluids.

• High Accuracy & Reliability: Provides precise and dependable readings for critical system control.
