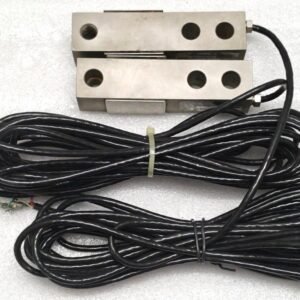

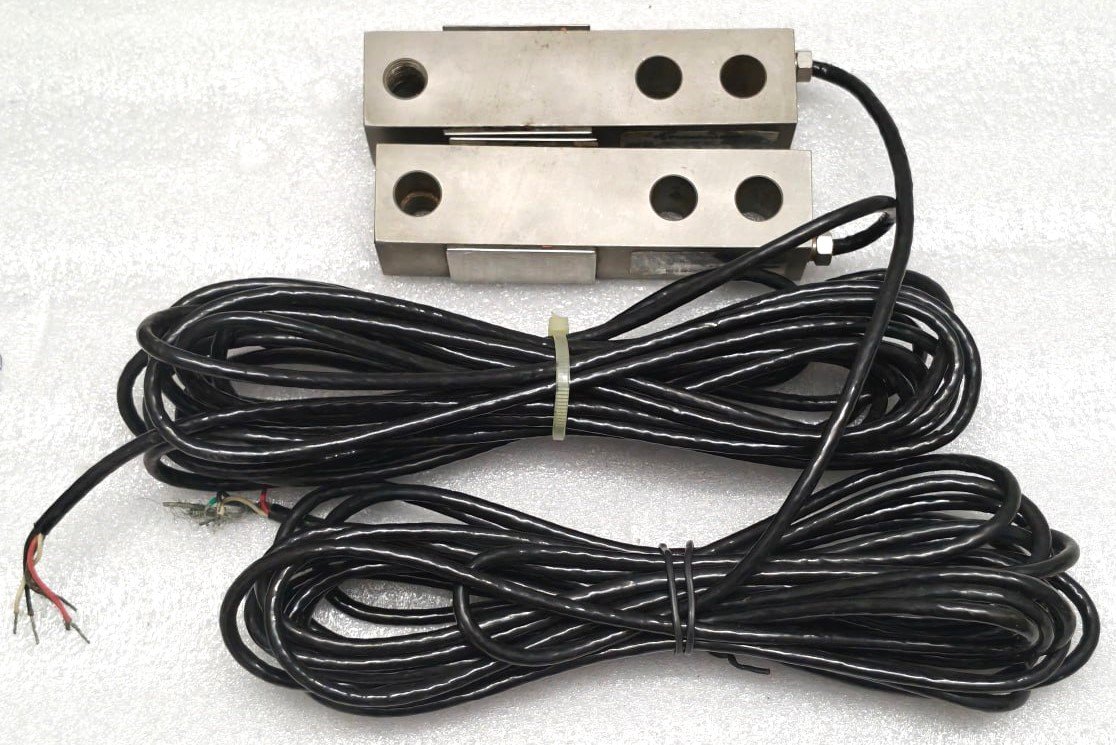

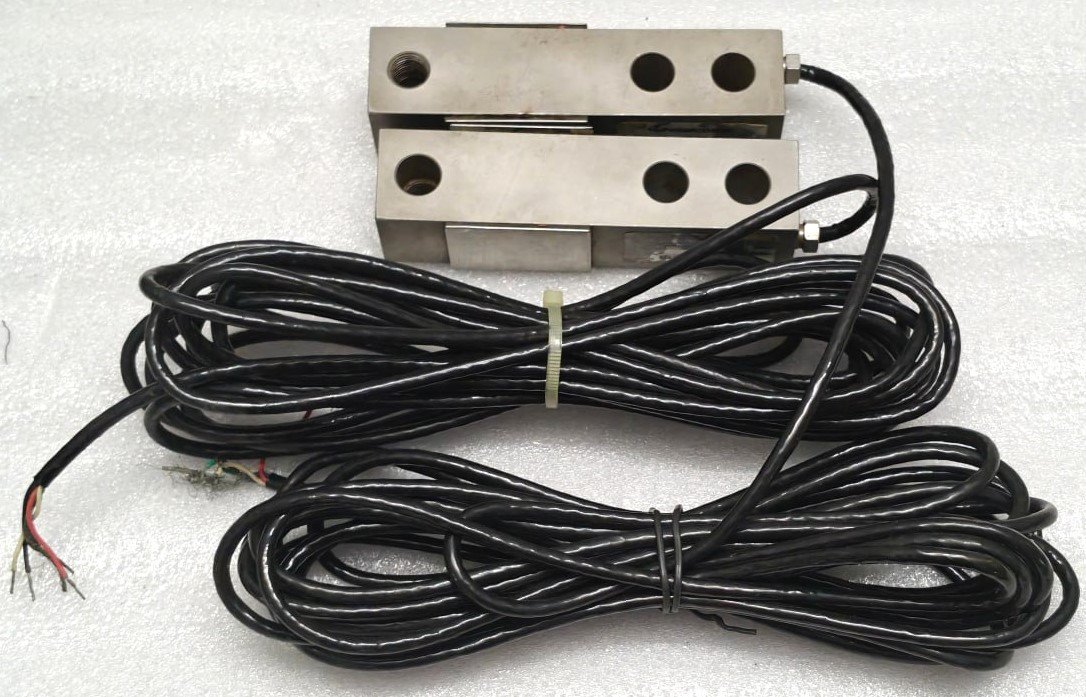

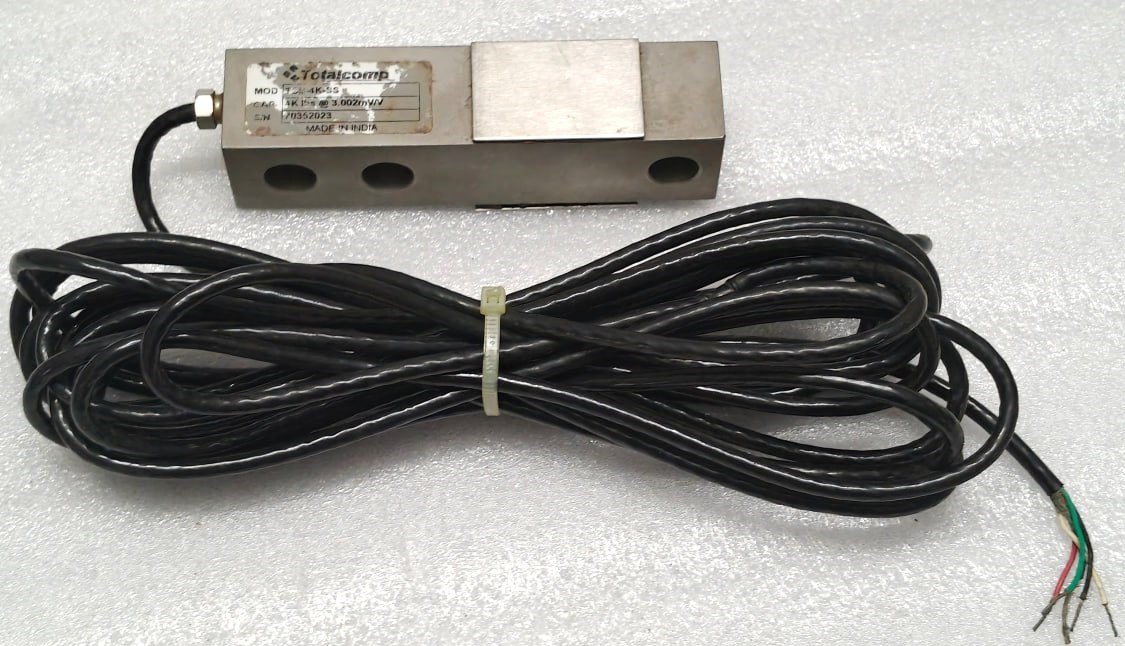

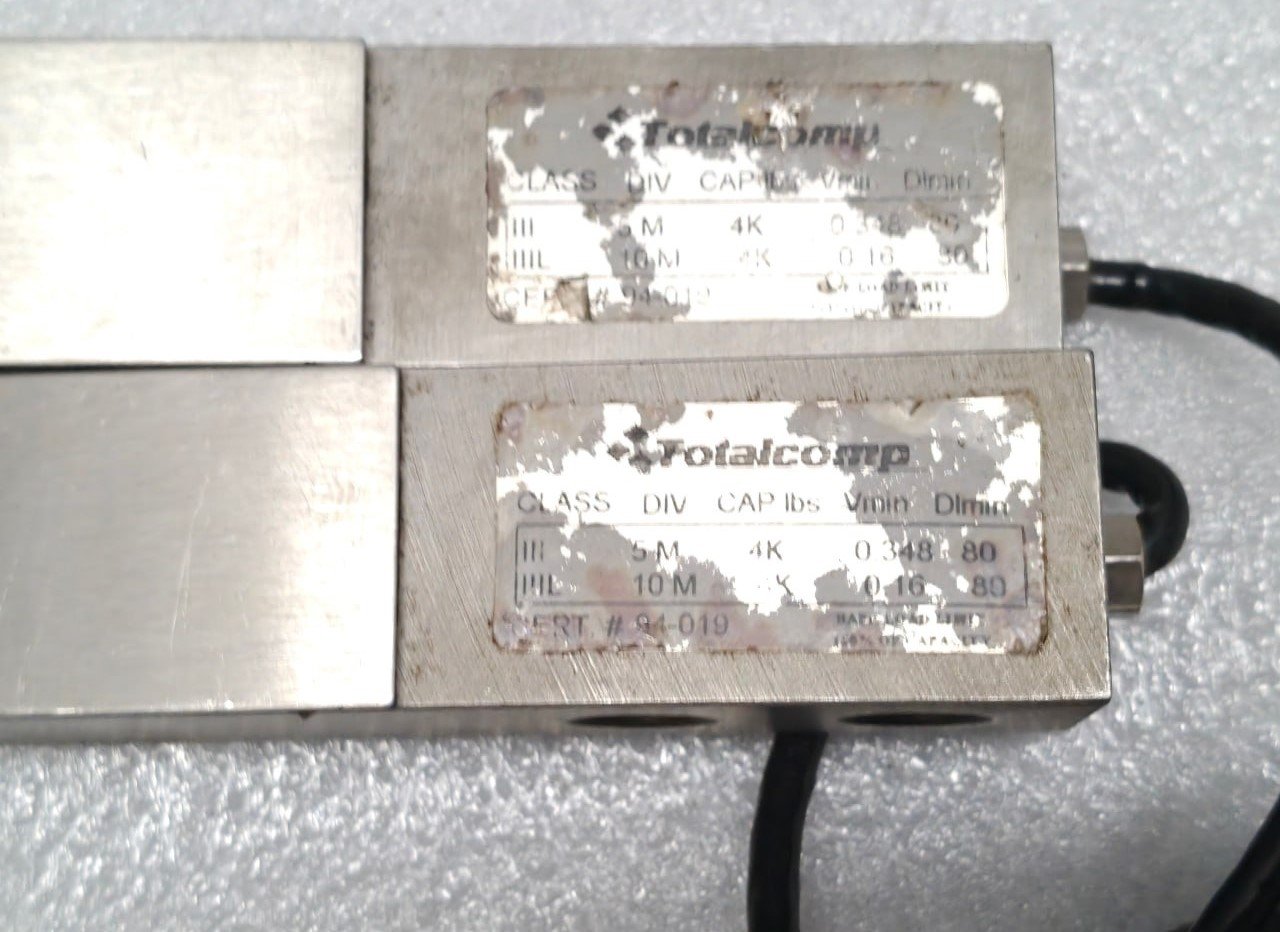

TOTALCOMP TSB-4K-SS SINGLE ENDED BEAM LOAD CELL, 4000LP, NTEP

TOTALCOMP TSB-4K-SS SINGLE ENDED BEAM LOAD CELL, 4000LP, NTEP

The TOTALCOMP TSB-4K-SS is a robust, stainless steel single-ended beam load cell engineered for superior accuracy and durability in commercial weighing applications. With an NTEP Certificate of Conformance (CC) and a 4000 lb (4K) capacity, this load cell is the ideal, reliable sensing component for building NTEP legal-for-trade bench scales, floor scales, and portable platforms.

Primary Features & Benefits:

• NTEP Certified (Legal for Trade): Approved for use in commercial transactions where weight determines price, ensuring compliance in retail, industrial, and agricultural settings.

• Heavy-Duty 4000 lb Capacity: Designed to handle significant loads in rugged environments, perfect for pallet scales, drum fillers, and industrial process control.

• All-Welded Stainless Steel Construction: Provides exceptional resistance to corrosion, moisture, and environmental contaminants, guaranteeing long-term reliability and reduced maintenance.

• Single-Ended Shear Beam Design: Offers excellent value and performance with good resistance to off-center loading, simplifying installation in scale platforms.

• Hermetically Sealed (IP67 Rating): Effectively protected against dust ingress and temporary immersion in water, making it suitable for washdown and outdoor applications.

• Low Profile & Compact: Allows for easy integration into space-constrained scale designs without sacrificing strength or accuracy.

• 4-Wire / 6-Wire Versatility: Compatible with a wide range of weight indicators and instrumentation for flexible system design.

Technical Specifications at a Glance:

• Model: TSB-4K-SS

• Capacity: 4000 lbs

• SN: 70352023

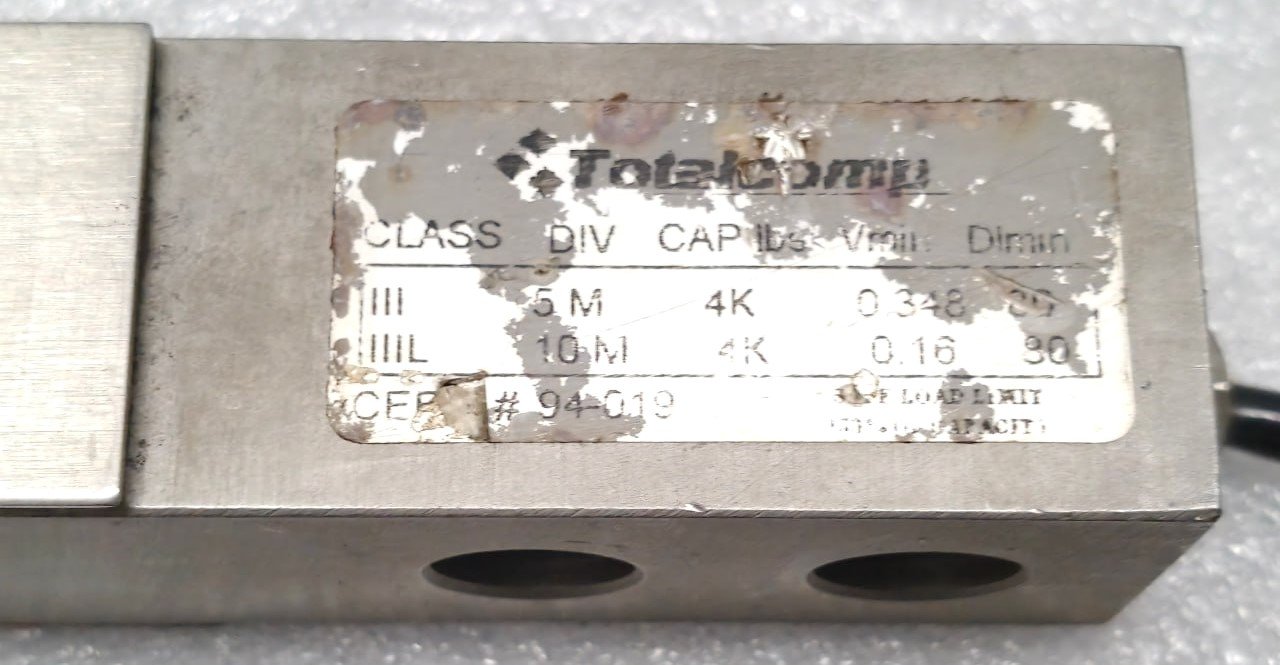

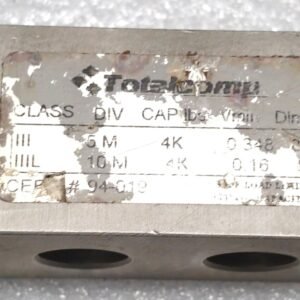

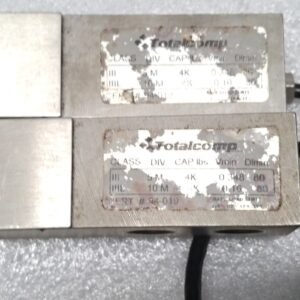

• Accuracy Class: NTEP IIIL / OIML R60 C3

• Output: 2.0 mV/V nominal

• Excitation: 10-15 VDC recommended

• Material: Stainless Steel (SS)

• Sealing: IP67 Hermetically Sealed

• Cable: High-flex, shielded cable standard

• Mounting: Single-ended, with tapped holes for easy installation

Typical Applications:

• NTEP Legal-for-Trade Bench Scales

• Industrial Floor Scales & Platform Scales

• Portable Wheelchair & Livestock Scales

• Batching and Filling Systems

• Tank and Hopper Weighing

• Marine and Washdown Environments
