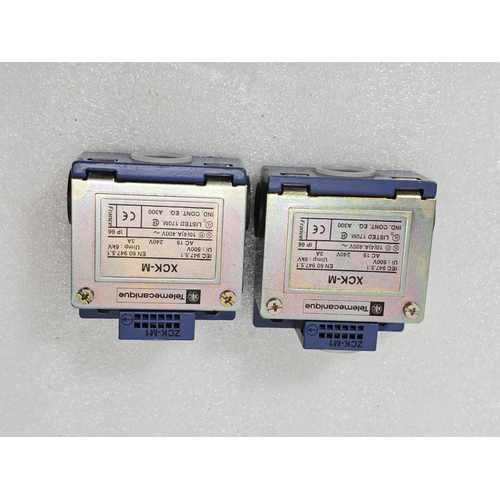

- BRAND: TELEMECANIQUE
- MODEL: XCK-M
- POSITION SWITCH
- LIMIT SWITCH
- Ui: 500V
- EN 60 947.5.1
- Uimp: 6KV
- AC15, 240V, 3A
- IP66
- 10(4)A.400V
- ZCK-M1
- MADE IN FRANCE
The Telemecanique XCK-M is a robust and versatile mechanical limit switch designed for precise position detection and control in industrial automation applications. It is part of the renowned Telemecanique (now Schneider Electric) XCK family, known for its reliability and durability in harsh environments.
Key Product Identification from Your Query:
-
Model: XCK-M
-
Alternate/Related Model: ZCK-M1 (likely a specific variant or actuator type within the XCK-M series)
-
Product Type: Position Switch, Limit Switch
-
Standard: EN 60 947-5-1 – This is the European standard for low-voltage switchgear and controlgear, specifically for control circuit devices and switching elements.
-
Certification: 5.1 Listed – This indicates the product has been tested and listed by a recognized certification body (like UL for the North American market) for specific performance and safety criteria.
Detailed Product Description
1. Primary Function
The XCK-M is used to detect the presence or position of a machine part by physically making or breaking an electrical circuit when the part actuates its lever. It is a fundamental component for providing safety interlocks, sequencing operations, and defining end-of-travel limits for moving parts like crane bridges, conveyor systems, machine tools, and automated doors.
2. Key Features and Design
-
Robust Enclosure: Typically features a metal (e.g., zinc die-cast) or high-grade plastic housing that provides high mechanical strength and impact resistance.
-
Sealed Construction: Offers a high degree of protection against the ingress of dust and moisture, commonly rated at IP65 or higher. This makes it suitable for use in wet, oily, or dusty industrial environments.
-
Modular Design: Often consists of a base (or body) housing the electrical contacts and a separate, interchangeable actuator head. This allows for flexibility in configuring the switch for different applications.
-
Variety of Actuators (like ZCK-M1): The “ZCK-M1” suffix refers to a specific type of actuator. The XCK-M series is available with a wide range of actuators, including:
-
Roller lever (standard, maintained contact)
-
Fork lever
-
Push-rod
-
Wobble stick
-
Spring-return levers
-
-
Electrical Specifications:
-
Contact Configuration: Typically available in various configurations, most commonly as a 1 NO + 1 NC (One Normally Open + One Normally Closed) snap-action switch.
-
Current Rating: Designed for control circuit voltages and currents, common ratings are up to 10A at 600V AC or similar.
-
3. Technical Standards & Certifications
-
EN 60 947-5-1: Compliance with this European harmonized standard ensures the product meets essential safety and performance requirements for the EU market.
-
5.1 Listed: This is a certification mark (often from UL – Underwriters Laboratories) indicating the product has been evaluated for safety. This is crucial for selling and using the component in markets like North America.
4. SEO-Optimized Product Description Summary
Title: Telemecanique XCK-M Limit Switch – EN 60 947-5-1 Certified, IP65 Rated
Meta Description: Buy the reliable Telemecanique XCK-M mechanical position limit switch. Features a robust enclosure, IP65 rating for dust/water resistance, and 1NO/1NC contacts. Ideal for industrial automation, machine control, and safety interlocks. UL Listed and compliant with EN 60 947-5-1.
Keywords: Telemecanique XCK-M, Limit Switch, Position Switch, ZCK-M1, EN 60947-5-1, UL Listed, IP65, Schneider Electric, Mechanical Limit Switch, NO NC Contact, Industrial Automation, Machine Tool Switch, Actuator Lever.
5. Common Applications
-
Machine Tools
-
Material Handling Systems (Conveyors, Cranes)
-
Packaging Machinery
-
Automotive Assembly Lines
-
Door and Gate Control Systems
-
Textile Machinery
Disclaimer: For precise technical specifications, wiring diagrams, and dimensional drawings, it is always best to consult the official Schneider Electric datasheet for the specific XCK-M model and actuator variant (e.g., ZCK-M1) you require.
