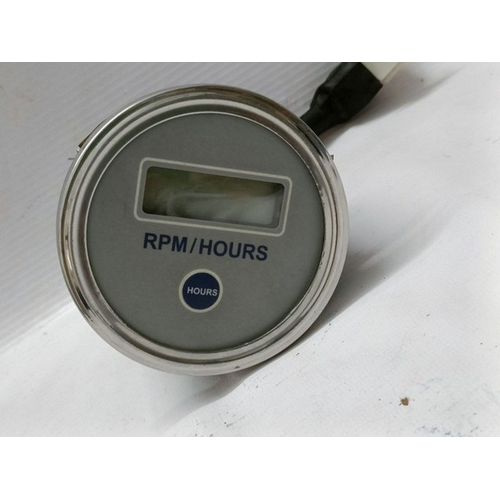

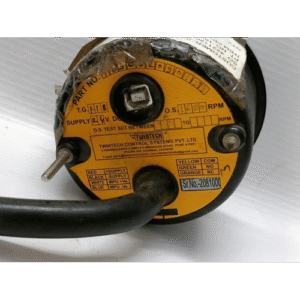

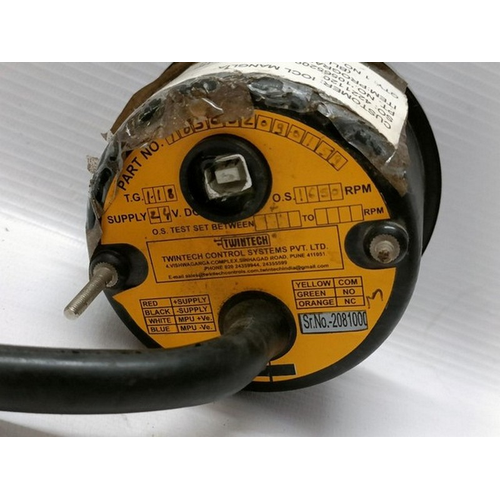

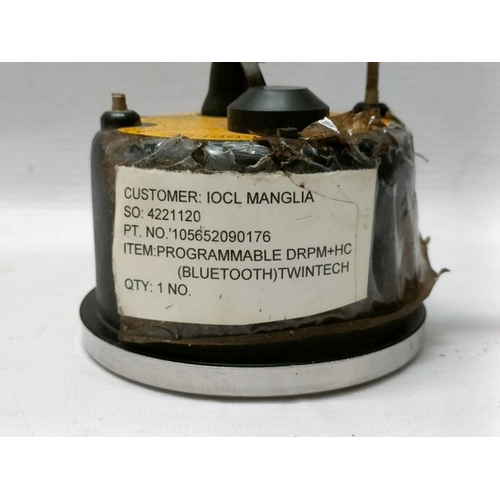

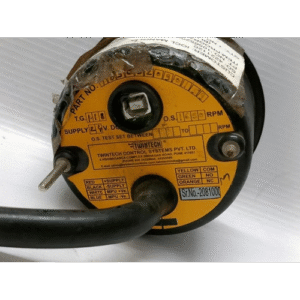

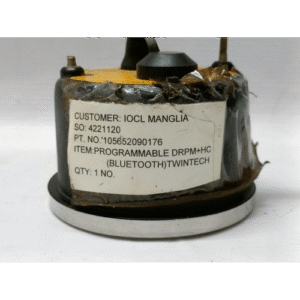

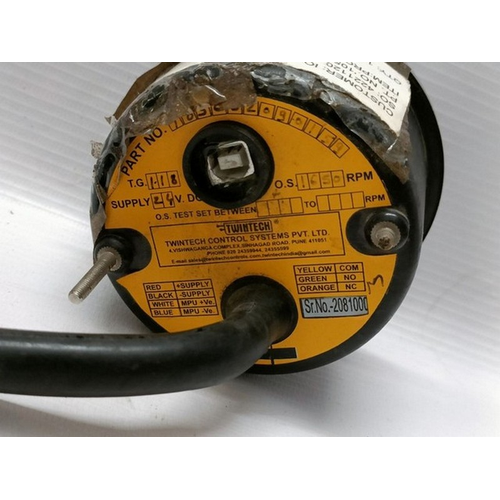

TECHO METER – Digital Hour Meter for Engines & Machinery | 4/5 Digit LCD Display | 12-240V AC/DC | by Twintech Controls

Accurately Track Equipment Runtime with the Twintech TECHO METER Digital Hour Meter

The TECHO METER from Twintech Control Systems is a high-precision, universal digital hour meter designed for reliable runtime tracking of industrial engines and machinery. This essential tool helps you monitor equipment usage, schedule proactive maintenance, and prevent costly downtime. Whether you need to track hours for a generator, water pump, diesel engine, or compressor, the TECHO METER provides accurate, dependable data to optimize your operational efficiency and extend the lifespan of your valuable assets.

(Key Features & Benefits – Use bullet points for scannability)

• Universal Voltage Compatibility: Works with a wide range of power sources from 12V to 240V, AC or DC. This versatility makes it suitable for virtually any application, from automotive to heavy industrial equipment.

• High-Visibility Display: Features a clear 4 or 5-digit LCD screen that is easy to read even in low-light conditions, ensuring operational data is always accessible.

• Robust & Durable Construction: Built with a rugged housing that offers excellent resistance to dust, moisture, and vibrations, making it ideal for harsh industrial environments.

• Easy Installation & Setup: A simple two-wire connection allows for quick and hassle-free installation. No complex programming is required; it starts counting as soon as power is applied.

• Precision Timekeeping: Equipped with a highly accurate internal crystal oscillator to ensure precise hour recording for reliable maintenance scheduling.

• Maintenance Scheduling: By tracking total running hours, the TECHO METER is critical for planning timely oil changes, filter replacements, and overall equipment servicing, saving on repair costs.

(Technical Specifications – Use a table if possible on your website)

• Model: TECHO METER (Specify model number if applicable, e.g., TM-HM50)

• Display: 4 or 5 Digit LCD

• Operating Voltage: 12-240V AC/DC (Wide Range)

• Power Consumption: Very Low (< 2W)

• Digits: Counts up to 9999.9 or 99999 hours

• Housing Material: Engineering Plastic (ABS or Polycarbonate)

• Protection Rating: IP Rating (e.g., IP54 for dust and water resistance)

• Mounting: Panel Mount with a standard cutout

• Operating Temperature: -10°C to +60°C

(Applications – Who is it for?)
The TECHO METER is the ideal solution for monitoring runtime in:

• Diesel Generators & Gensets

• Industrial Pumps (Water Pumps, Submersible Pumps)

• Construction Equipment (Excavators, Compactors)

• Agricultural Machinery (Tractors, Harvesters)

• Marine Engines (Boats, Yachts)

• Air Compressors

• HVAC Systems
