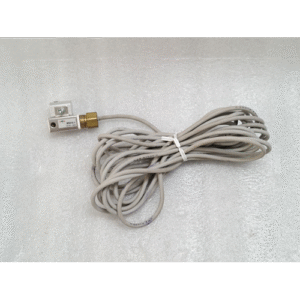

Taiyo WS215 – 1 Hydraulic Cylinder Sensor, 10-30 V DC 2956 WS 215 – 1 #2
The Taiyo WS215-1 is a robust and reliable hydraulic cylinder sensor designed for accurate and non-contact position detection in demanding industrial environments. This self-contained, magnetostrictive linear displacement sensor is engineered to be integrated directly into hydraulic cylinders, providing real-time feedback on piston rod position for precise motion control.
Its 10-30V DC operating range and durable construction make it an ideal solution for a wide array of applications in mobile hydraulics, industrial machinery, and factory automation.
Key Features & Benefits
-
Integrated Hydraulic Cylinder Design:Â Specifically built for seamless installation inside hydraulic cylinder glands, saving space and protecting the sensor from external damage.
-
Magnetostrictive Technology:Â Offers non-contact, high-repeatability measurement without physical wear, ensuring long-term accuracy and reliability.
-
Rugged & Durable Construction:Â Built to withstand high pressure, shock, vibration, and contaminated hydraulic fluid commonly found in harsh industrial and mobile equipment applications.
-
Wide Operating Voltage (10-30V DC):Â Provides flexibility for integration with various machine control systems without the need for a dedicated power supply.
-
Analog Voltage Output (Standard):Â Delivers a smooth, continuous voltage signal (typically 0-5V or 0-10V) that is easily interfaced with PLCs, controllers, and readout devices.
-
High Accuracy and Repeatability:Â Ensures precise positioning of the hydraulic piston, which is critical for automation, pressing, and leveling operations.
-
Long Service Life:Â The non-contact sensing principle eliminates mechanical wear, leading to a significantly longer operational life compared to potentiometric sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Taiyo WS215-1 |
| Product Type | Hydraulic Cylinder Sensor (Magnetostrictive) |
| Operating Voltage | 10 – 30 V DC |
| Output Signal | Analog Voltage (e.g., 0-5V or 0-10V). Note: Confirm specific variant. |
| Stroke Length | Varies by model. The “2956” may indicate a specific stroke. (e.g., 50mm, 100mm, etc.) |
| Linearity | High-grade linearity (typically < ±0.05% of full scale) |
| Repeatability | Excellent (typically < 0.001 mm) |
| Operating Temperature | Designed to operate reliably within standard hydraulic system temperature ranges. |
| Ingress Protection | High IP rating suitable for hydraulic oil environments (e.g., IP67 equivalent). |
| Interface | Electrical connection via a rugged, sealed connector or cable outlet. |
Typical Applications
The Taiyo WS215-1 is perfect for any application requiring precise feedback from a hydraulic actuator:
-
Mobile Machinery:Â Excavator arm positioning, crane boom angle control, grader blade leveling, telehandler extension control.
-
Industrial Presses:Â Precise depth control and position monitoring in molding and stamping presses.
-
Plastic Injection Molding Machines:Â For accurate control of the injection unit and mold movement.
-
Steel Mill Equipment:Â Position feedback in rollers, manipulators, and shears.
-
Test Stands & Automation:Â Providing closed-loop control for automated hydraulic systems.
