Product Description: TAIE FU86-701000 Digital PID Controller for Motorized Valves
The TAIE FU86-701000 is a versatile and high-precision digital PID controller designed for the precise regulation of motorized control valves in industrial heating, cooling, and process applications. Engineered for reliability and ease of use, this controller converts a standard motorized valve into a smart, modulating control unit, ensuring optimal temperature stability and energy efficiency.
With its clear digital display, intuitive setup, and robust power supply (85-265V AC), the FU86-701000 is the ideal solution for HVAC systems, industrial machinery, environmental chambers, and any application requiring accurate and stable process temperature control.
Key Features & Benefits
-
Advanced PID Control Algorithm:Â Provides exceptional temperature stability by automatically calculating the optimal control response (Proportional, Integral, Derivative). This minimizes overshoot and hunting, leading to smoother operation, reduced wear on the valve motor, and significant energy savings.
-
Universal Power Supply (85-265V AC, 50/60Hz):Â Offers unparalleled installation flexibility. The same unit can be deployed worldwide without worrying about local voltage variations, simplifying inventory and procurement.
-
High-Capacity Relay Output (6VA):Â The built-in relay is specifically rated to directly drive the coils of common motorized valves (like the Siemens SQX22 series), eliminating the need for an external power pack or amplifier in most applications.
-

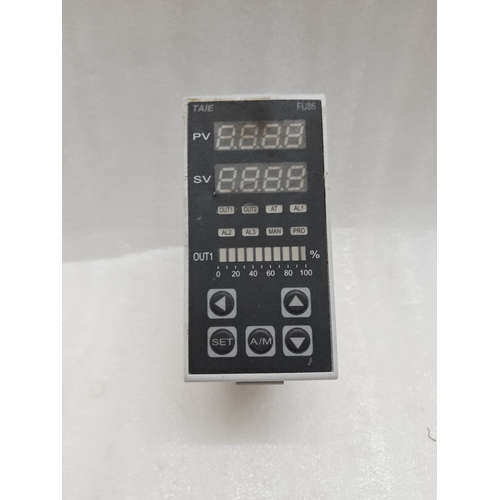

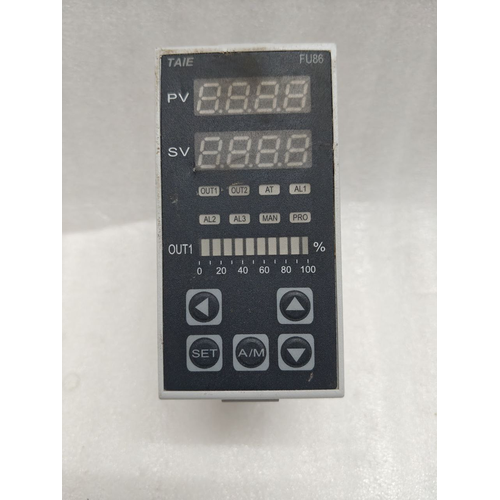

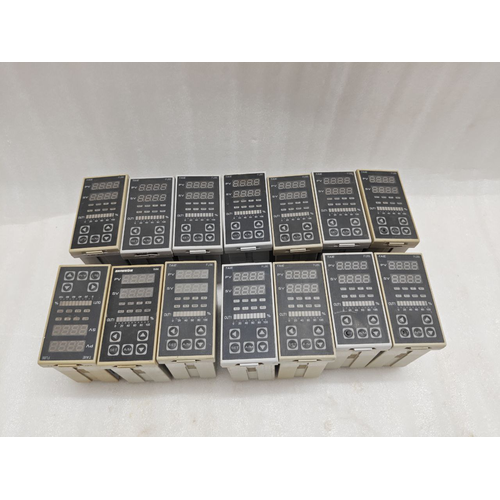

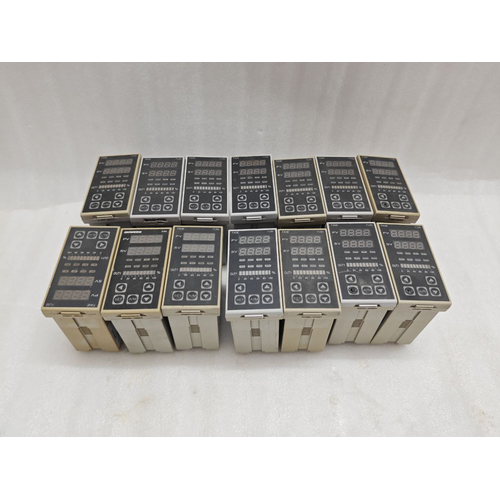

Large, Dual LED Display: Simultaneously shows the real-time Process Value (PV) and the desired Set Value (SV) for at-a-glance monitoring. The bright LEDs ensure clear visibility in various lighting conditions.
-

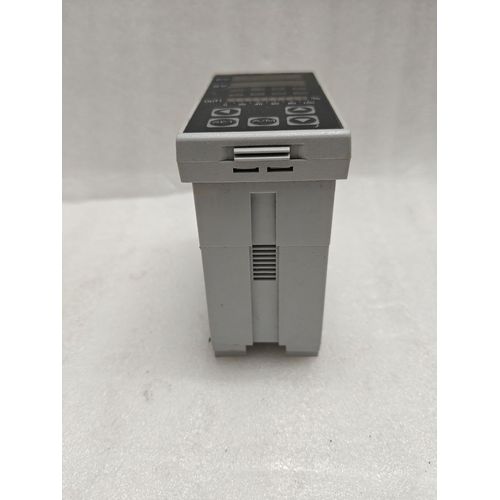

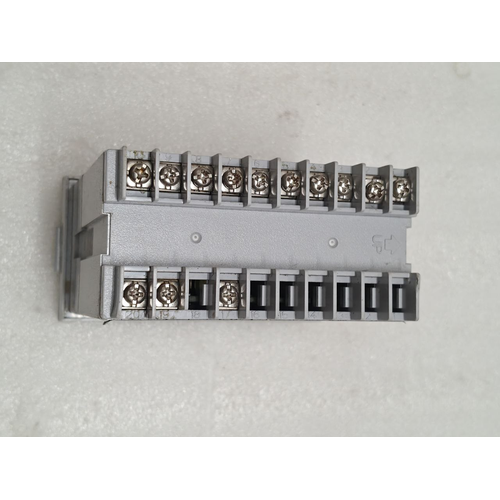

Rugged and Reliable Design:Â Built with industrial-grade components to ensure long-term performance in demanding environments. The compact, DIN-rail mountable case allows for easy integration into control panels.
-
Easy Configuration & Calibration:Â User-friendly parameter setting mode allows technicians to quickly configure input types, control parameters, and output behavior to match the specific requirements of the system.

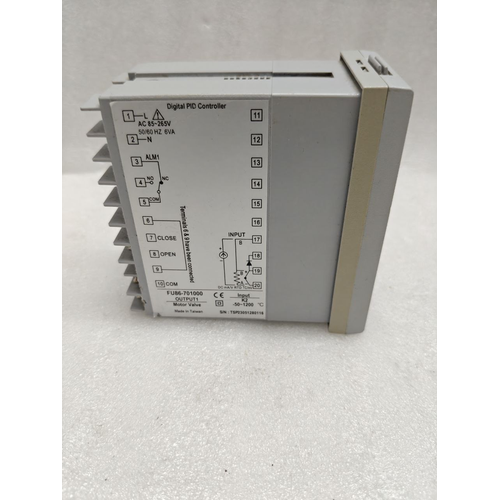

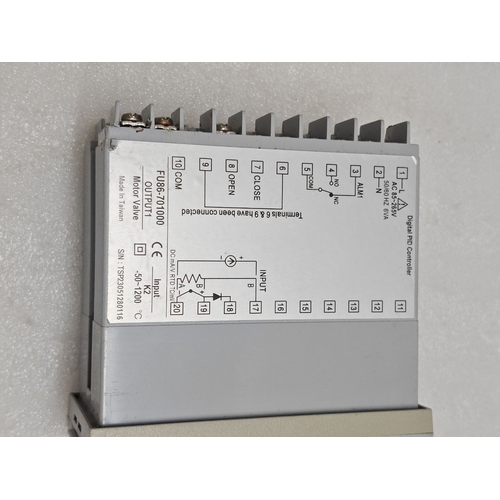

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TAIE FU86-701000 |
| Input Power | 85 ~ 265V AC, 50/60Hz |
| Power Consumption | ≤ 6VA |
| Input Signal | Pt100, Ni100, K, J, E, T, S, R, N, Pt100.0, Wre3-25 (User Selectable) |
| Output Signal | Relay Output (6VA) for Motor Valve Control |
| Control Action | PID (Proportional, Integral, Derivative) |
| Display | Dual 4-digit LED (Red) for PV and SV |
| Accuracy | ±0.5% FS ±1 digit |
| Ambient Temperature | 0 ~ 55°C (32 ~ 131°F) |
| Mounting | Standard DIN Rail (35mm) |
| Key Applications | HVAC Systems, Industrial Process Control, Heater/Cooler Control, Environmental Test Chambers, Water Temperature Regulation |
Common Applications
This controller is perfectly suited for use with motorized valves in systems such as:
-
HVAC:Â Control of heating and cooling coils in Air Handling Units (AHUs), fan coils, and VAV systems.
-
Industrial Process Control:Â Regulating temperature in tanks, reactors, and process lines.
-
Energy Management:Â Optimizing hot and chilled water flow in district heating and cooling systems.
-
Laboratory & Testing Equipment:Â Maintaining precise temperatures in ovens, incubators, and environmental chambers.
Why Choose the TAIE FU86-701000?
The TAIE FU86-701000 replaces complex and outdated control setups with a single, intelligent unit. It enhances system performance by providing precise modulation, protects your motorized valve from excessive cycling, and reduces overall energy consumption. Its universal design and ease of use make it a cost-effective and reliable choice for both new installations and retrofits.
