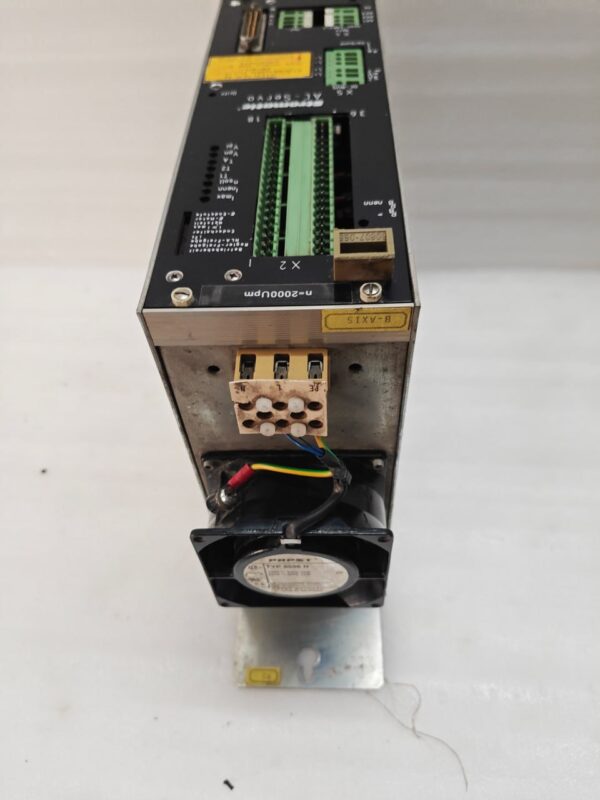

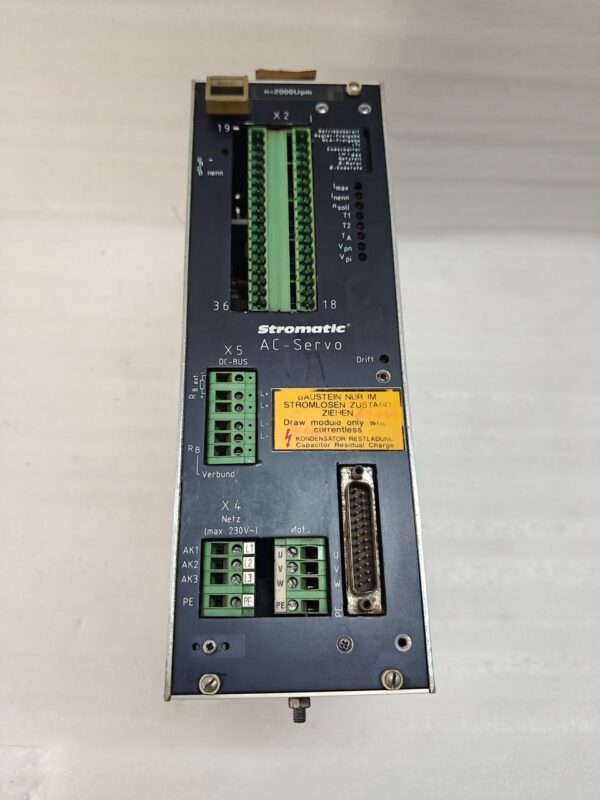

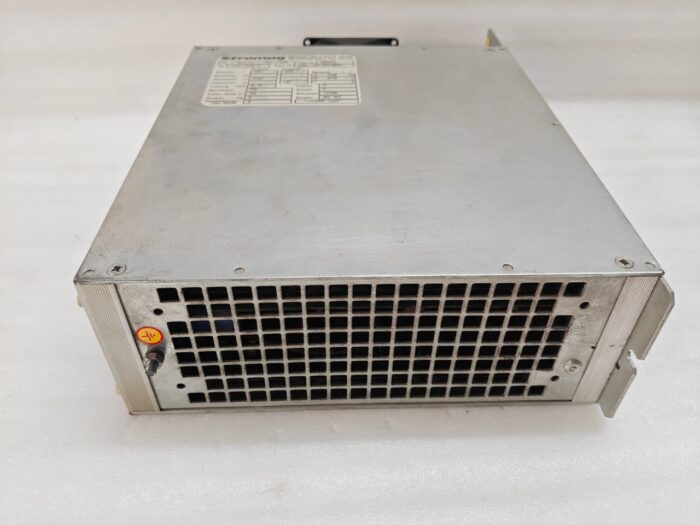

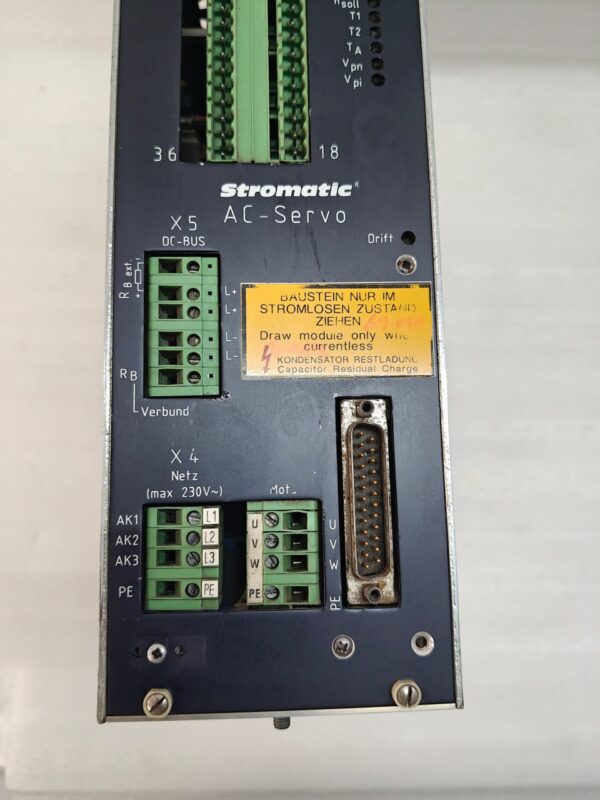

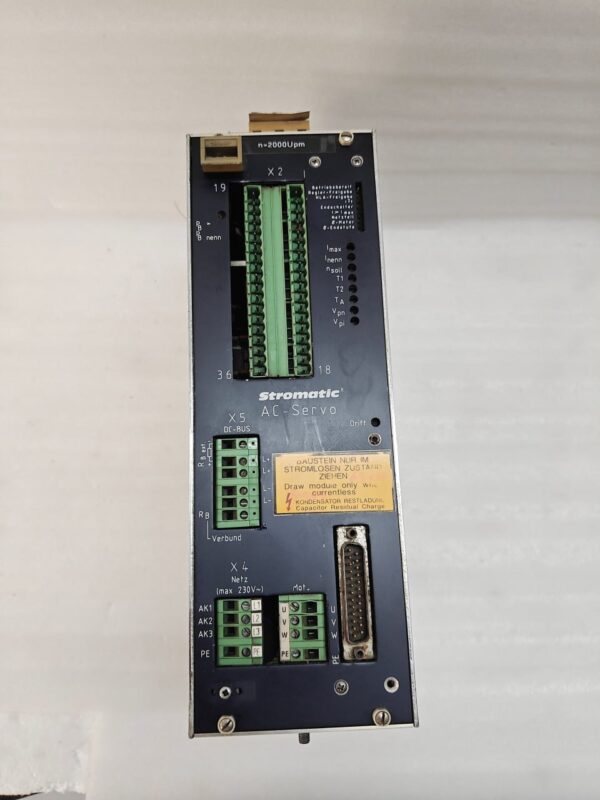

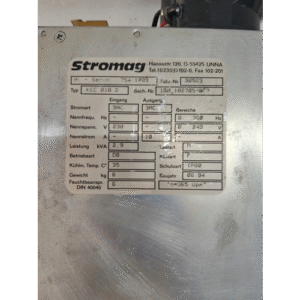

STORMAG AC SERVO DRIVE D-59425Â B-AXIS 2000U Pm
- D-59425

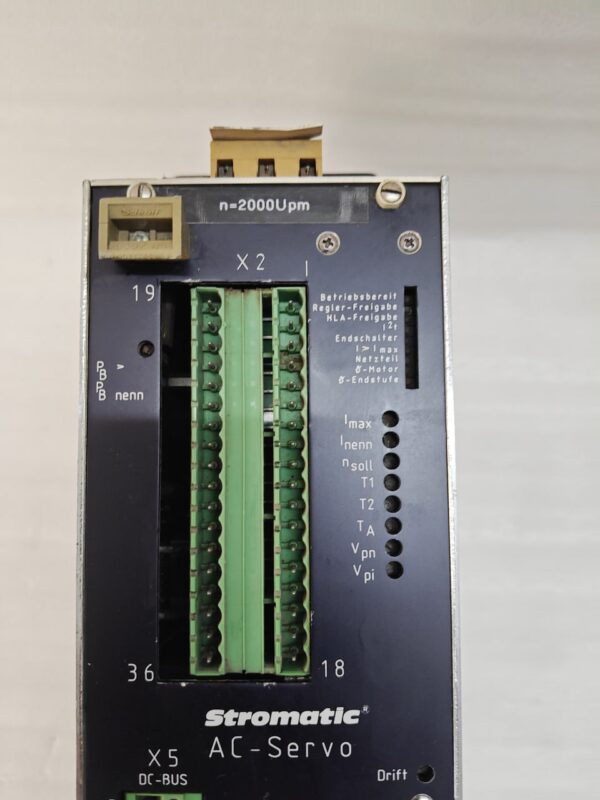

- N: 2000 UPm
- B-AXIS

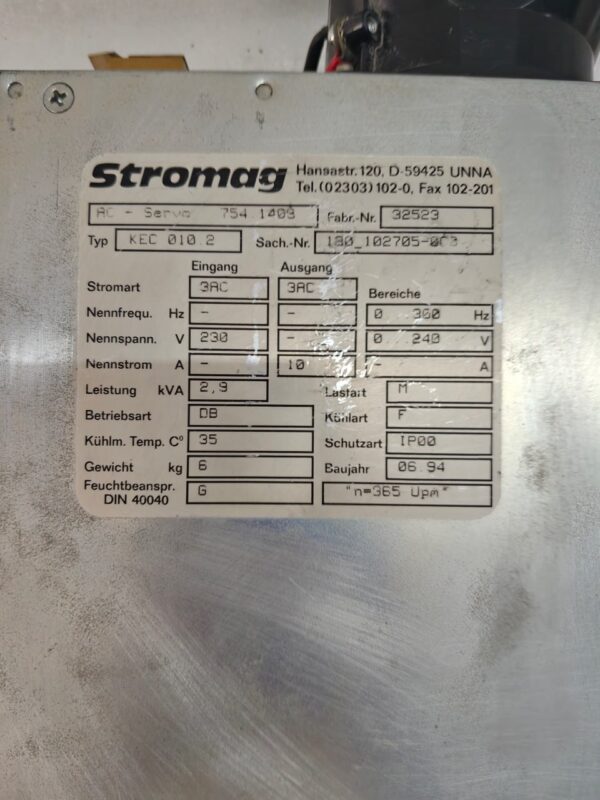

- FABR NO: 32523
- TYPE: KEC 010.2

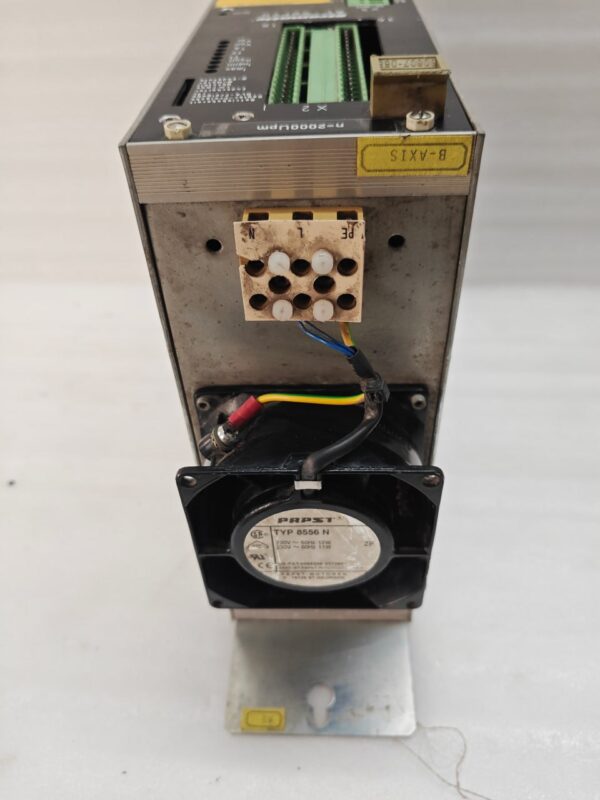

- TYP 8556 N
- 220V- 50 HZ, 12W
- 230V- 60 HZ, 11W
- SERIES NO: 180-102705-003Â
The STORMAG AC SERVO DRIVE D-59425, also identified by the part number 7541403 and the series designation 2000U Pm, is a high-performance digital servo drive designed to control synchronous (Pm) servo motors. It is a component from the STORMAG brand, which is known for its industrial motion control solutions, often used in demanding automation applications requiring precise speed, torque, and position control.
This drive is typically part of a complete servo system, working in conjunction with a matching STORMAG servo motor and a higher-level machine controller.
Key Features & Technical Specifications
| Feature/Specification | Description |
|---|---|
| Model | STORMAG D-59425 |
| Product Line | 2000U Series |
| Other ID | 7541403 |
| Drive Type | Digital AC Servo Drive |
| Motor Control | Permanent Magnet (Pm) Synchronous Servo Motors |
| Control Modes | Typically supports Torque, Speed, and Position control modes. |
| Communication Interface | Likely features standard industrial feedback (e.g., EnDat, Hiperface) for the motor and a command interface like analog ±10V, pulse/dir, or fieldbus (e.g., PROFIBUS, CANopen). (Note: Exact interface depends on the specific variant.) |
| Input Power | Designed for a standard 3-phase AC supply (e.g., 200-240VAC or 380-480VAC). Crucial to verify the nameplate rating. |
| Programming & Setup | Parameters are configurable via a built-in keypad and display or dedicated software, allowing for tuning to specific motor and mechanical load characteristics. |
| Protection Features | Includes comprehensive protection against overcurrent, overvoltage, undervoltage, overload, short-circuit, and overheating to ensure operational safety and longevity. |
| Regulation | Features a high-performance digital signal processor (DSP) for fast and stable current (torque) loop control, ensuring dynamic response and accuracy. |
| Typical Form Factor | Industrial, chassis-mounted design for installation in a control cabinet. |
Application Examples
This servo drive is engineered for applications that demand high dynamic response, precision, and reliability. Common uses include:
-
Packaging Machinery:Â For precise filling, capping, and labeling.
-
Machine Tools:Â Controlling axes for milling, turning, and grinding.
-
Material Handling:Â In robotic arms, pick-and-place systems, and conveyor indexing.
-
Printing and Converting Equipment:Â For accurate web tension and registration control.
-
Automated Assembly:Â Where precise positioning and repeatability are critical.
