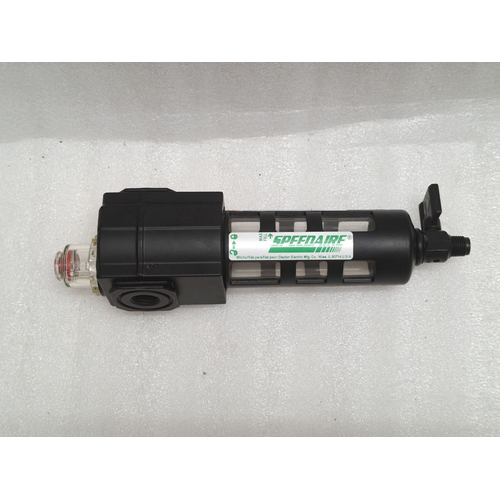

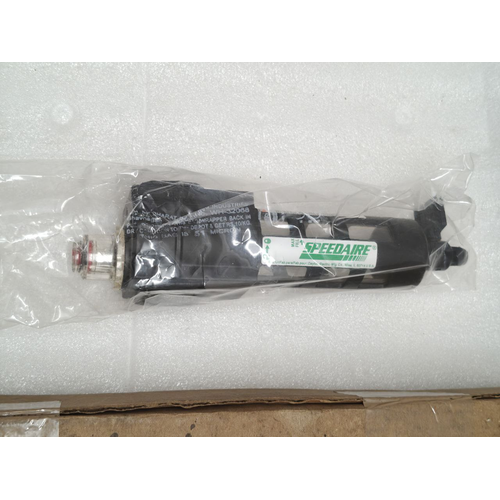

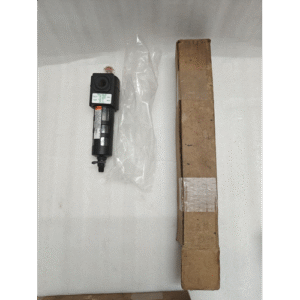

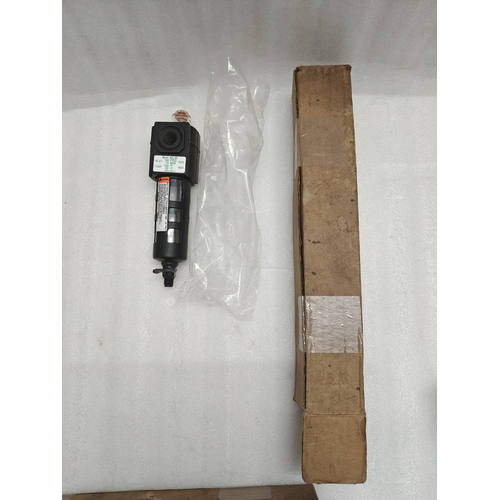

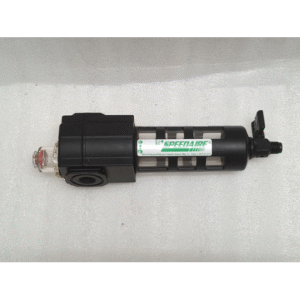

SPEEDAIRE COMPRESSED AIR LUBRICATOR: MICRO MIST, 1/4 IN NPT, 50 CFM, 150 PSI MAX OP PRESSURE, ZINC 15:29

• SPEEDAIRE COMRESSED AIR LUBRICATOR
• MICRO MIST
• 1/4 IN NPT
• 50 CFM

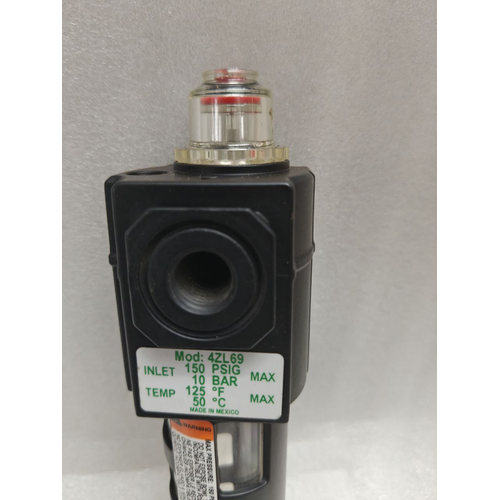

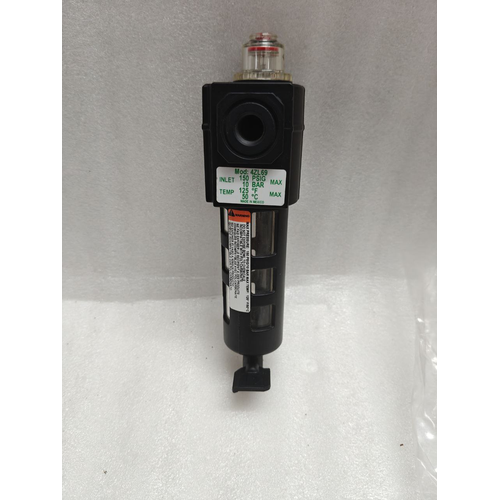

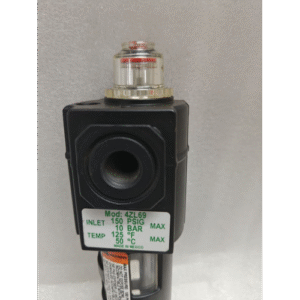

• MODEL: 4ZL69
• INLET: 150 PSIG, 10BAR MAX
• TEMP: 125 F, 50C MAX
• MADE IN MEXICO
• MAX PRESSURE: 150 PSI MAX

The Speedaire Micro Mist Compressed Air Lubricator is an essential component for protecting your pneumatic tools and equipment. Designed for efficiency and durability, this lubricator injects a fine, controlled mist of oil into the air stream, ensuring that all moving parts within your pneumatic system are properly lubricated. This reduces friction, minimizes wear, prevents corrosion, and significantly extends the service life of your valuable tools like nailers, impacts, drills, and cylinders. Its compact “Micro Mist” design provides excellent lubrication with minimal oil consumption, making it a cost-effective and reliable choice for maintenance shops, automotive garages, and industrial applications.

Key Features & Benefits

• Micro Mist Technology: Generates an extremely fine oil aerosol for superior lubrication delivery. This ensures oil reaches all critical components without pooling or clogging, while also reducing overall oil usage.

• Robust Zinc Construction: The body is made from durable, corrosion-resistant zinc alloy, providing long-lasting performance and reliability in demanding workshop environments.

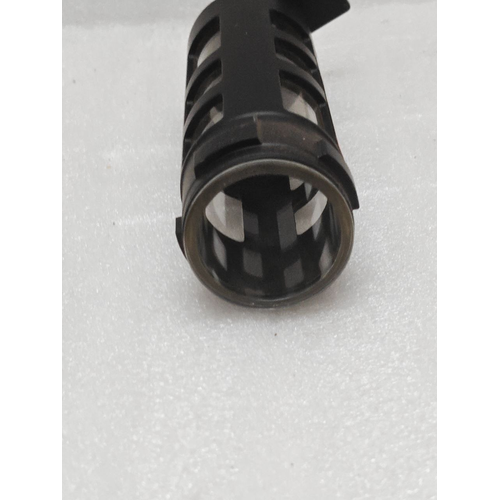

• Easy-Fill, Translucent Bowl: Features a clear polycarbonate bowl that allows for quick, at-a-glance monitoring of oil levels without interrupting your work. The easy-fill design simplifies the process of adding oil.

• Automatic Drip Feed: Maintains a consistent and optimal lubrication level automatically, ensuring your tools are protected as long as the air is flowing.

• Manual Adjustment Valve: Allows you to precisely control the oil feed rate (drops per minute) to match the specific requirements of your connected tools and the air consumption.

• Relief Button for Safe Servicing: Includes a pressure relief button to safely depressurize the unit before disassembly for refilling or maintenance, enhancing user safety.

Technical Specifications

• Model Type: Micro Mist Lubricator

• Port Size: 1/4 Inch National Pipe Taper (NPT)

• Maximum Operating Pressure: 150 PSI

• Flow Capacity: 50 CFM (Cubic Feet per Minute)

• Body Material: Zinc Alloy

• Bowl Material: Polycarbonate (Translucent)

• Function: Injects a fine oil mist into a compressed air line to lubricate pneumatic tools and components.

Applications

This lubricator is ideal for use in any compressed air system that powers:

• Pneumatic Impact Wrenches

• Air Ratchets and Drills

• Nail Guns and Staplers

• Pneumatic Grinders and Sanders

• Air Cylinders and Valves

• Spray Guns and other air-operated machinery
