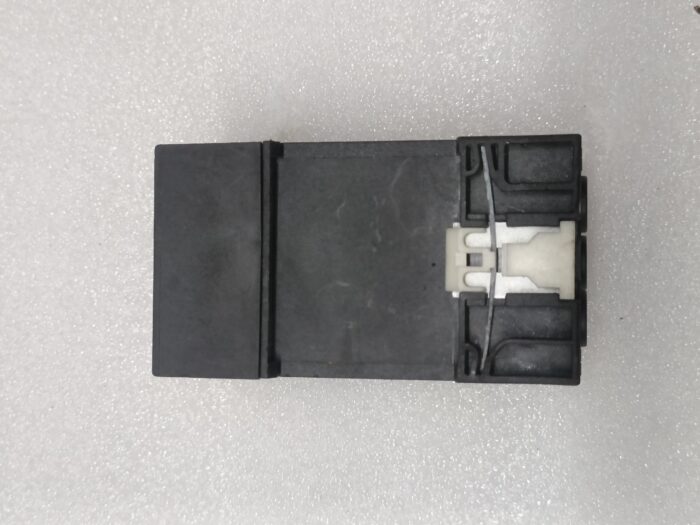

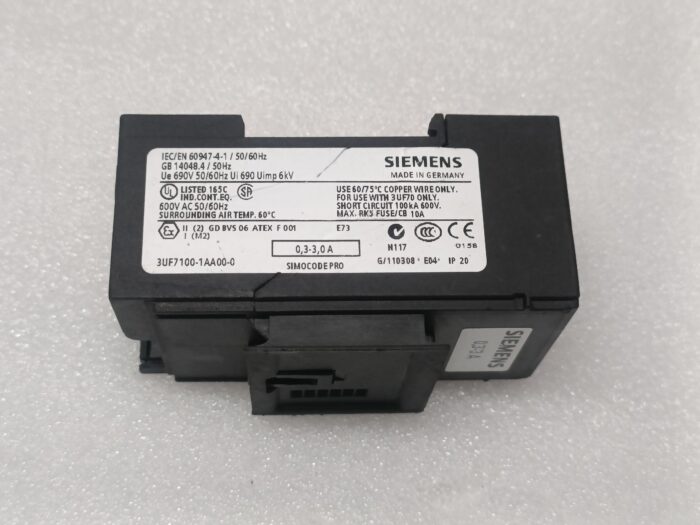

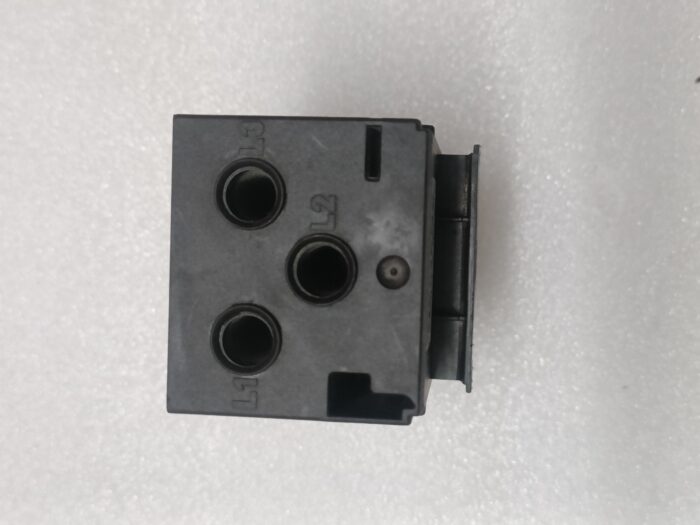

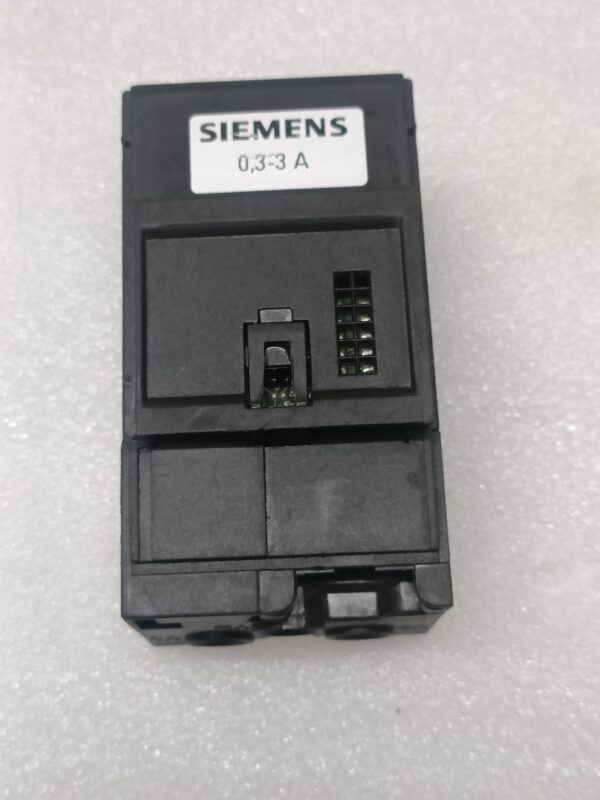

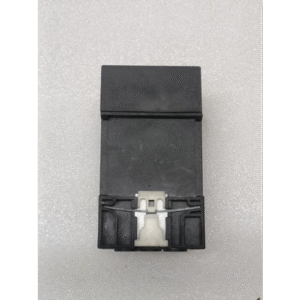

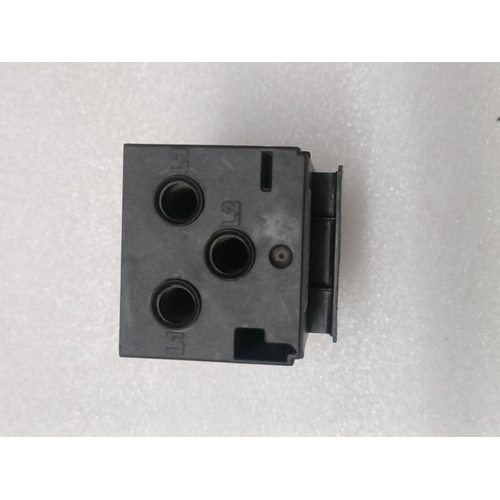

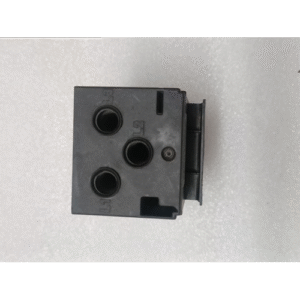

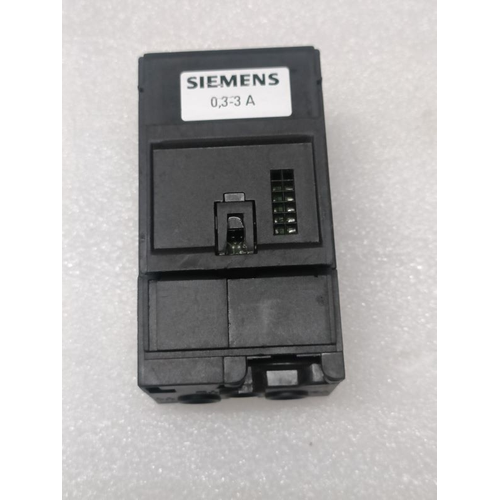

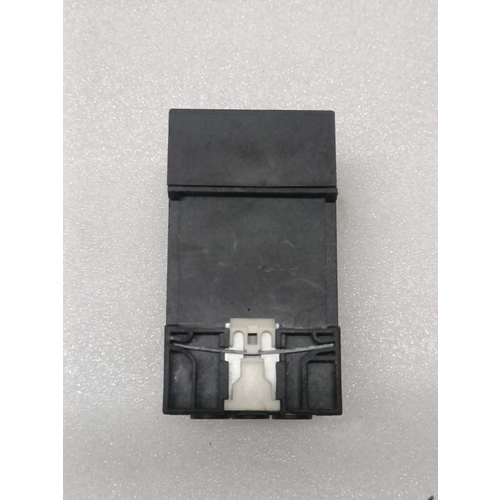

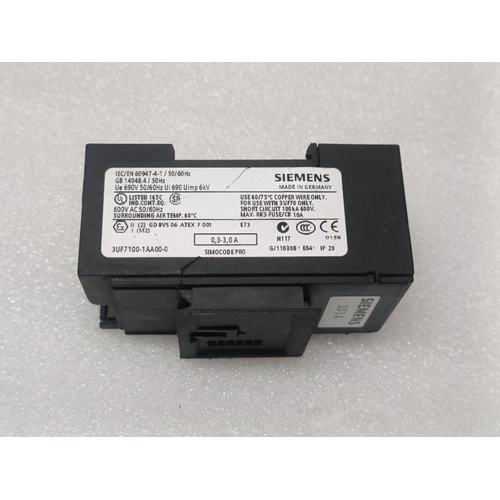

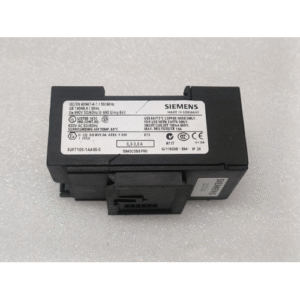

Siemens 3UF7100-1AA00-0 Current Measuring Module Simocode Pro,0.33A

Siemens 3UF7100-1AA00-0 Current Measuring Module Simocode Pro,0.33A

The Siemens 3UF7100-1AA00-0 is a fundamental component of the advanced Simocode Pro motor management system. This specific variant is a current measuring module designed for a rated operational current of 0.33A. It serves as the intelligent core for monitoring and protecting low-power motors in industrial applications, integrating multiple functions into a single, compact device to replace traditional discrete components.

By providing comprehensive motor data and diagnostics directly to control systems like SIMATIC S7 via PROFIBUS DP, this module significantly enhances operational efficiency, reduces downtime, and simplifies troubleshooting.

Key Features & Benefits

• Comprehensive Motor Protection: Integrates essential protection functions including overload protection, phase failure protection, blocked motor protection, and jammed rotor detection. This prevents motor damage and extends its service life.

• Precise Current Monitoring: The 0.33A current measuring module allows for accurate monitoring of motor current, enabling the detection of abnormal operating conditions such as undercurrent or overcurrent.

• Intelligent Control & Monitoring: Offers extensive control capabilities with digital and analog inputs/outputs. Monitors parameters like thermal capacity utilization, motor current, and operating hours.

• Advanced Diagnostics: Detailed fault memory and status information help maintenance teams quickly identify and resolve issues, minimizing machine downtime.

• Seamless PROFIBUS DP Integration: Easily integrates into automated systems for centralized control and monitoring, enabling communication with PLCs like Siemens SIMATIC.

• Space-Saving Design: Replaces an array of individual components (contactors, overload relays, timers), saving valuable space in control panels and reducing wiring complexity.

Technical Specifications

• Article Number: 3UF7100-1AA00-0

• Product Family: Simocode Pro V

• Device Type: Current Measuring Module

• Rated Operational Current Ie: 0.33 A

• Rated Supply Voltage: 24 – 240 V AC/DC

• Fieldbus Communication: PROFIBUS DP

• Protection Functions: Overload, Phase Imbalance, Locked Rotor, Jam Detection, Earth Fault (with external sensor)

• Control Functions: 4 Digital Inputs, 2 Digital Outputs (configurable)

Common Applications

The Siemens 3UF7100-1AA00-0 is ideal for a wide range of industrial applications requiring reliable motor management, including:

• Pump Control Systems (Dry-run protection, overload monitoring)

• Fan and Ventilation Systems

• Conveyor Belts (Jam detection, sequence control)

• Compressors

• Mixers and Agitators

• Packaging Machinery
