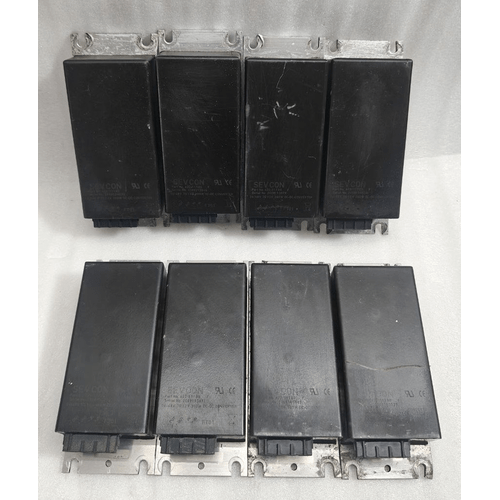

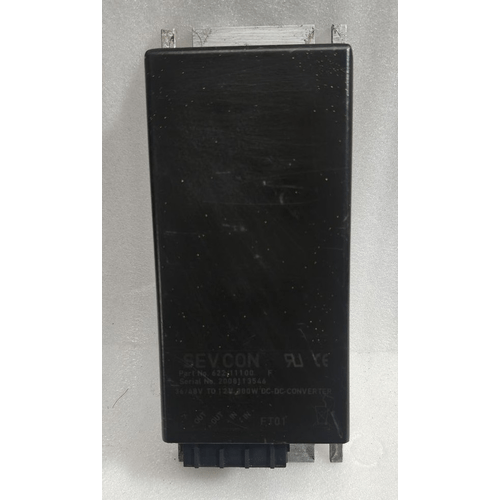

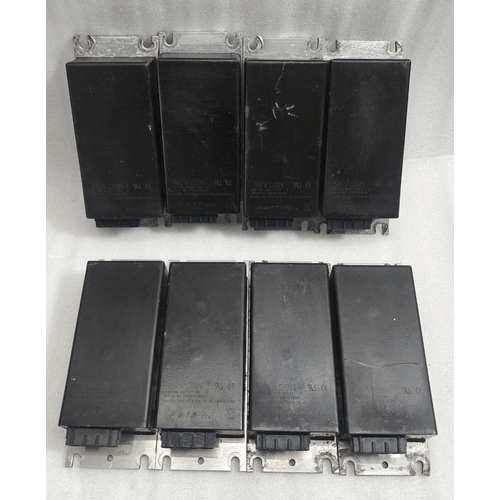

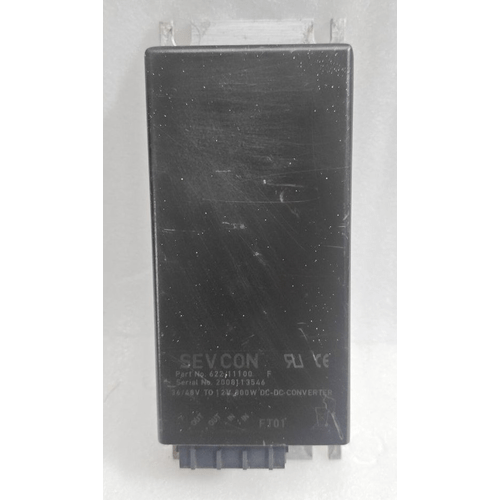

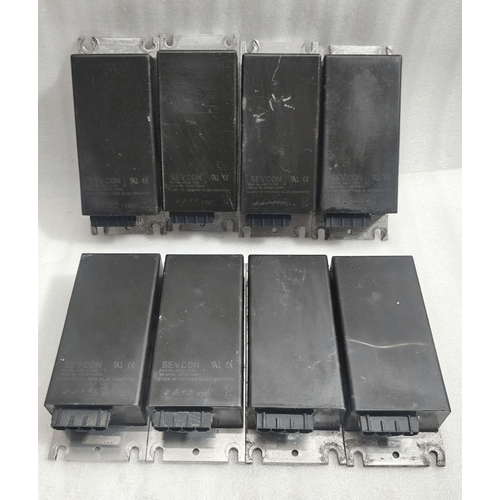

The Sevcon (now part of BorgWarner) 622/11100 F is a robust DC-DC converter that efficiently steps down a high voltage DC input (from a 36V or 48V battery system) to a stable 12V output. With a continuous power rating of 300 watts, it is designed to power 12V accessories, control systems, lighting, and instrumentation in electric and hybrid vehicles, industrial machinery, and other mobile equipment.
The “FT01” in the part number is a common Sevcon designation for this family of converters.
Key Features
-
High Efficiency:Â Minimizes energy loss and heat generation, which is critical for battery-powered vehicles.
-
Wide Input Voltage Range:Â Can handle the typical voltage fluctuations of 36V and 48V battery systems, including during charging and discharging.
-
Stable 12V Output:Â Provides a clean and regulated 12V supply, essential for sensitive electronic equipment.
-
High Power Output:Â 300W (25A) capacity to run multiple accessories simultaneously.
-
Robust Construction:Â Built to withstand the vibrations, shocks, and environmental conditions found in mobile and industrial applications.
-
Thermal Protection:Â Includes built-in safeguards to prevent damage from overheating.
-
Water and Dust Resistance (IP Rating): Many models in this series are sealed to a high IP rating (e.g., IP67), making them suitable for harsh environments. (Note: Confirm the specific IP rating for this exact model number from the datasheet).
-
Isolated Output:Â The output is typically electrically isolated from the input, enhancing safety and reducing noise.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Manufacturer | Sevcon / BorgWarner | Sevcon was acquired by BorgWarner. |

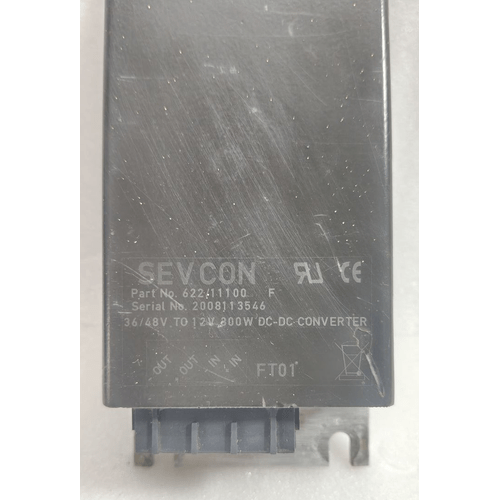

| Model Number | 622/11100 F | |
| Type | DC-DC Converter | Step-Down (Buck) Converter |
| Input Voltage (Nominal) | 36V or 48V | Must be selected or is auto-ranging. |
| Input Voltage Range | ~30V to 60V (Typical) | Please consult the official datasheet for the exact range for the 36V or 48V variant. |
| Output Voltage | 12V DC | Regulated and stable. |
| Continuous Output Power | 300 Watts | |
| Continuous Output Current | 25 Amps | (Calculated: 300W / 12V = 25A) |
| Efficiency | >90% (Typical) | Highly efficient, reducing thermal load. |
| Cooling Method | Natural Convection / Heatsink | Metal case acts as a heatsink. |
| Isolation | Yes (Typical) | Galvanic isolation between input and output. |
| Protection Features | Over-temperature, Over-current, Short-circuit | |

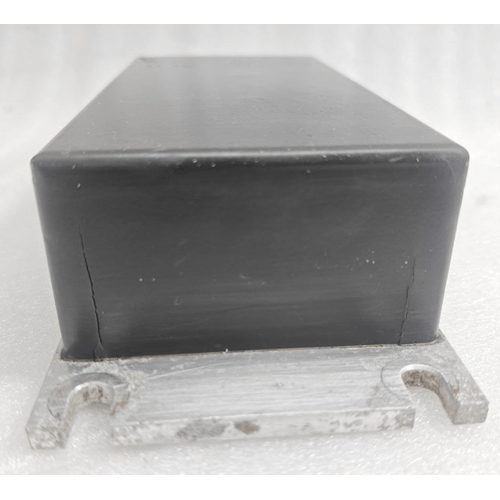

| Housing | Metal Case (Aluminum) | Rugged design for mechanical strength and heat dissipation. |

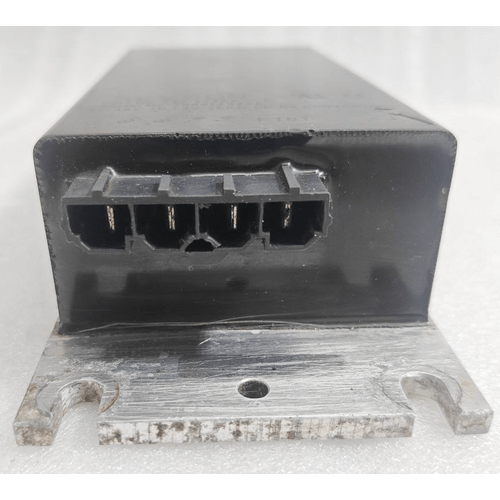

| Connectors | FT01 Series | Specific screw terminal or multipin connector. |
| Weight | ~0.5 – 1.0 kg (approx.) | |
| Typical Applications | Electric Vehicles (EVs), Forklifts, Golf Carts, Utility Vehicles, Industrial Mobile Equipment, Marine Systems. |
Important Notes and How to Use
-
Confirm Input Voltage: It is crucial to verify whether your specific unit (622/11100 F) is configured for a 36V or a 48V nominal input. Applying the wrong input voltage can destroy the unit.
-
Datasheet is Essential: The above specifications are general for this model series. Always obtain the official Sevcon/BorgWarner datasheet for the 622/11100 F for absolute certainty on wiring, input range, derating curves, and exact dimensions before installation.
-
Adequate Cooling:Â Ensure the converter is mounted on a flat surface to allow for proper heat dissipation. Do not operate it at or near its full 300W rating in a confined space without adequate airflow.
-
Wiring:Â Use appropriately sized wires for the high current (25A+ on the 12V output side) to prevent voltage drop and overheating. Always fuse both the input and output lines according to the manufacturer’s recommendations.
Where to Find More Information
-
BorgWarner Official Website:Â Search for legacy Sevcon products or contact their technical support.
-
Industrial and EV Parts Distributors:Â Suppliers that specialize in Sevcon, Curtis, and other motor controller parts often have access to datasheets.
-
Online Manuals Libraries:Â Sites like Scribd or manualslib sometimes have user manuals for these types of industrial products.
