- Commercial Series                       IEC309 Series
- Brief description                         MOBILE PLUG
- Installation type                         PORTABLE
- Rated current                           63A
- Poly                                    3P+N+T
- Time Reference                          6h
- Rated voltage                            346-415V
- Frequency of use                         50HZ TO 60HZ
- Color                               RED
- Material                             THERMOPLASTIC
- IP protection rating                    IP66/IP67
- Clamps                             Screw terminals
- Contact material                      CuZn (brass)

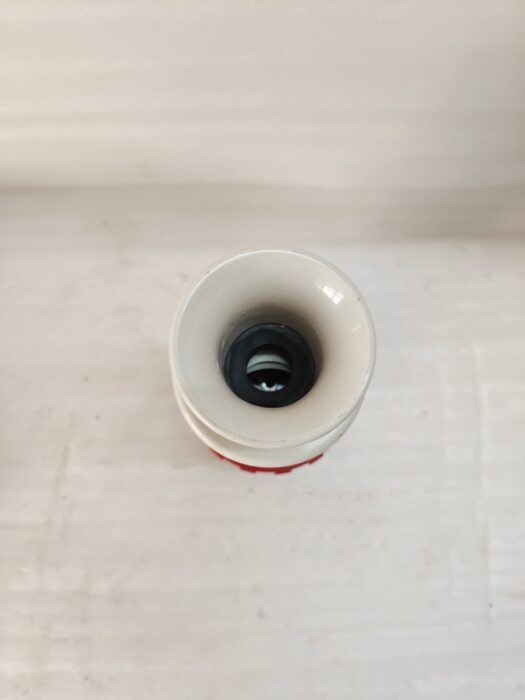

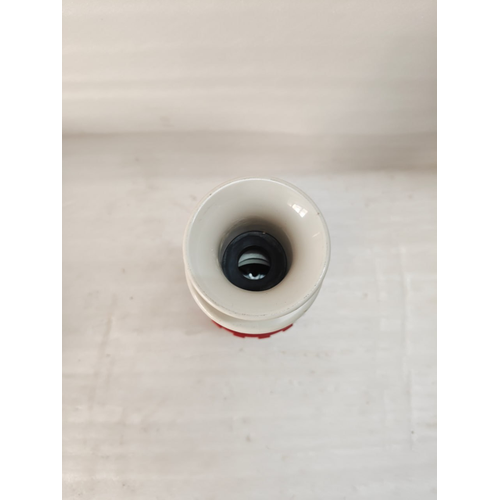

- Cable output                         PG36

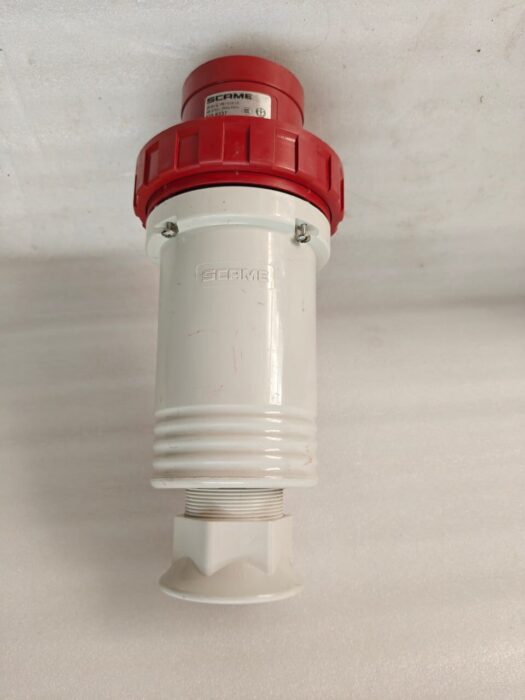

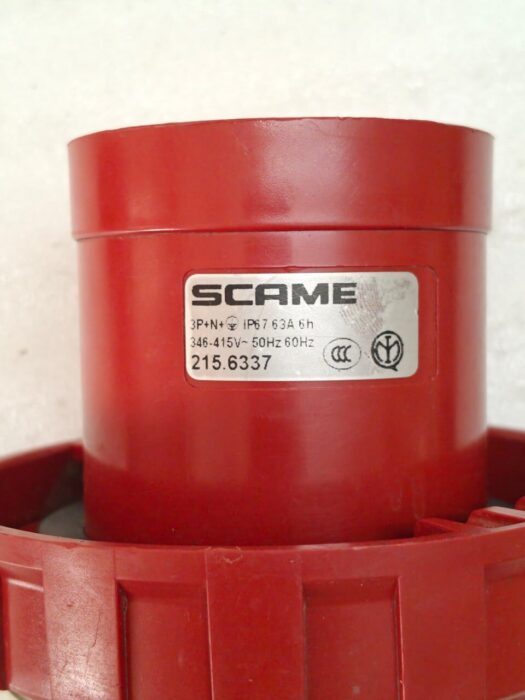

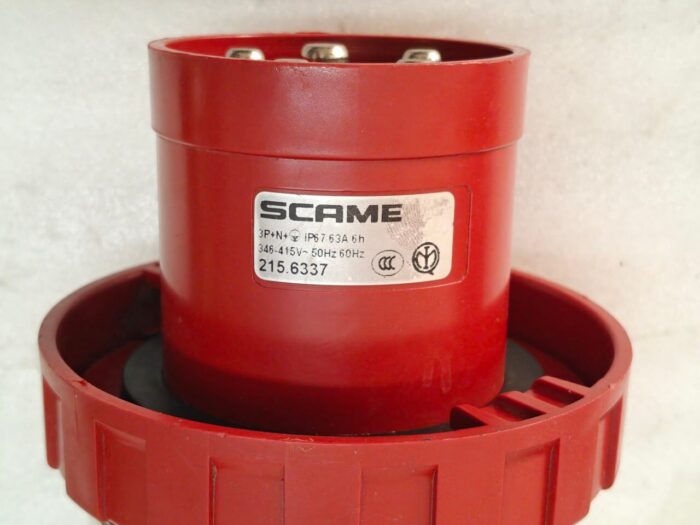

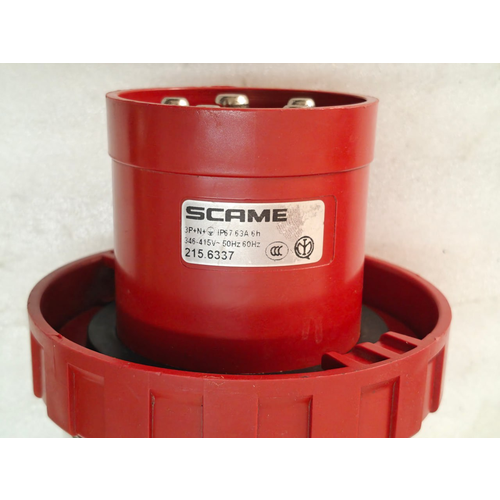

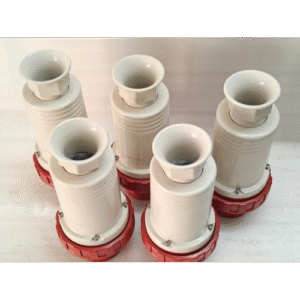

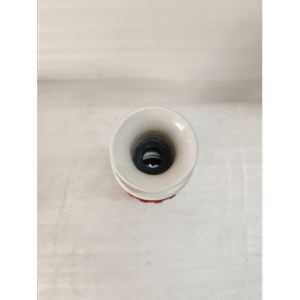

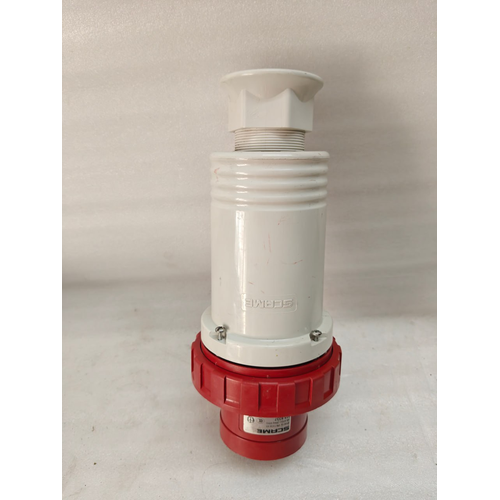

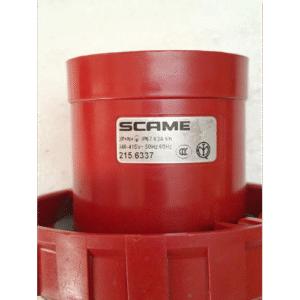

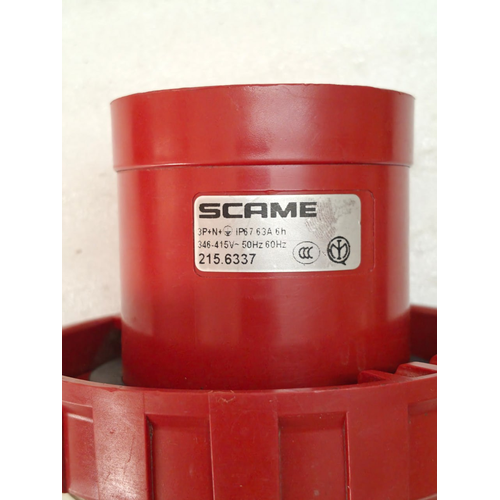

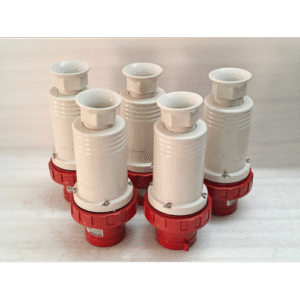

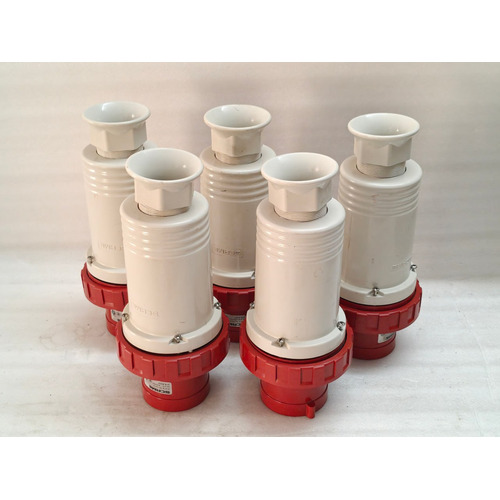

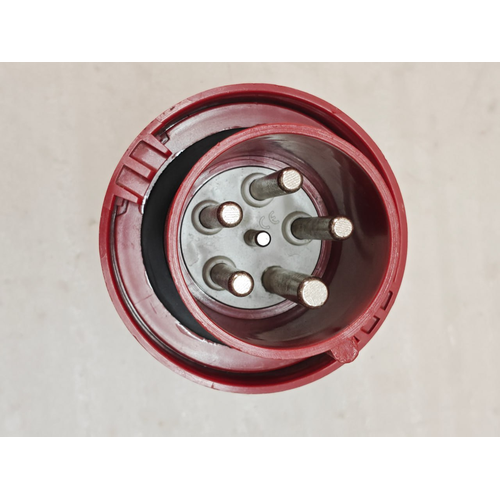

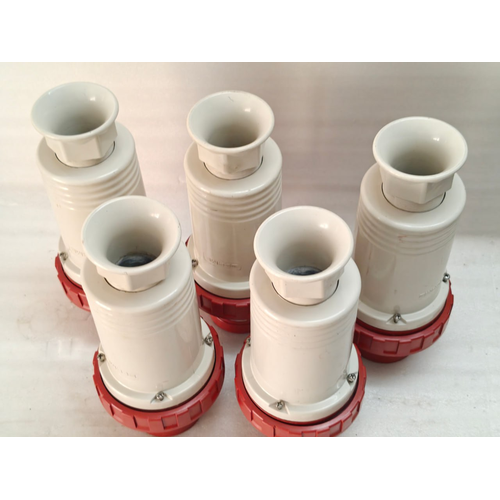

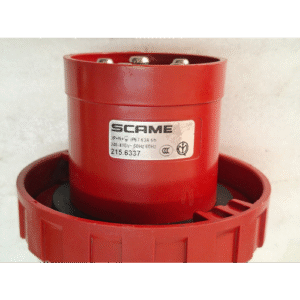

The SCAME code 215.6337 is a 63 Ampere, 3-Pole + Neutral + Earth (3P+N+E) industrial plug. It is part of the “SERIE O” (Series O) line, known for its robust construction, screw terminal connections, and compliance with international safety standards (IEC 60309). It is designed to mate with corresponding industrial sockets of the same configuration and rating.
Detailed Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer / Brand | SCAME |
| Manufacturer Code | 215.6337 |
| Rated Current | 63 AÂ (Amperes) |
| Poles & Configuration | 3P + N + EÂ (3 Phases + Neutral + Earth) |
| Rated Voltage | 346 – 415 VÂ (Suitable for common 400V systems) |
| Rated Frequency | 50 Hz / 60 Hz (Suitable for global use) |
| Color | REDÂ (Standard color for 380-415V systems) |
| Protection Degree | IP44Â (Protected against solid objects >1mm and water splashes from all directions) |
| Terminal Type | SCREW TERMINALSÂ (Provides a secure, reliable connection for large cable conductors) |

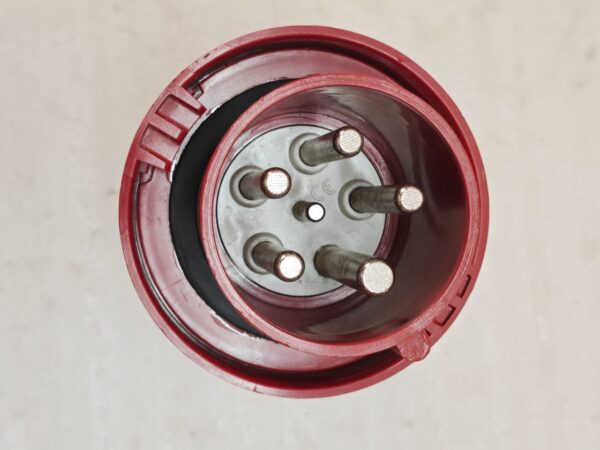

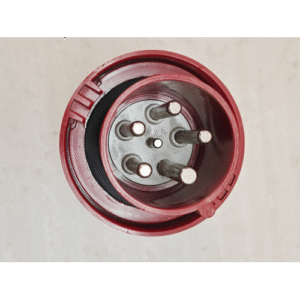

| Key Position | 6 h (The key and guide are at the 6 o’clock position, ensuring it only mates with compatible 415V sockets) |
| Standard / Compliance | IEC 60309-1 / IEC 60309-2Â (International standard for industrial plugs and sockets) |
| Product Line | SEO (SERIE O)Â – SCAME’s established range of industrial connectors. |
Key Features & Benefits
-
Heavy-Duty Construction:Â Built to withstand the rigors of industrial use, including impacts, oils, and UV radiation (depending on material).
-
Screw Terminal Connection:Â Ensures a secure, high-integrity connection for the large cables required for 63A applications, minimizing the risk of loosening and overheating.
-
High Degree of Protection (IP44):Â Offers good resistance against dust and water ingress, making it suitable for use in workshops, construction sites, and outdoor industrial settings.
-
Clear Voltage Identification: The Red color and 6 o’clock key position provide visual and mechanical safety, preventing accidental connection to incompatible power supplies (e.g., 230V systems).
-
Global Frequency Compatibility:Â The 50/60 Hz rating makes it versatile for use in different geographical regions with 400V systems.
Typical Applications
This plug is used to connect heavy machinery and equipment to a 400V three-phase power supply. Common applications include:
-
Industrial manufacturing equipment
-
Large welding machines
-
Construction site power distribution units
-
High-power compressors and pumps
-
Stage and event power systems
-
Agricultural machinery
Compatible Mating Connector
This plug is designed to connect to a corresponding SCAME Industrial Socket (Receptacle) or Appliance Inlet with the same specifications:
-
63A
-
3P+N+E
-
400V (346-415V)
-
6h key position
