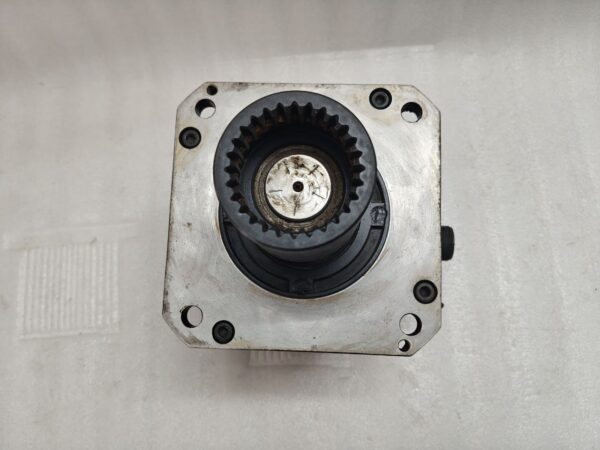

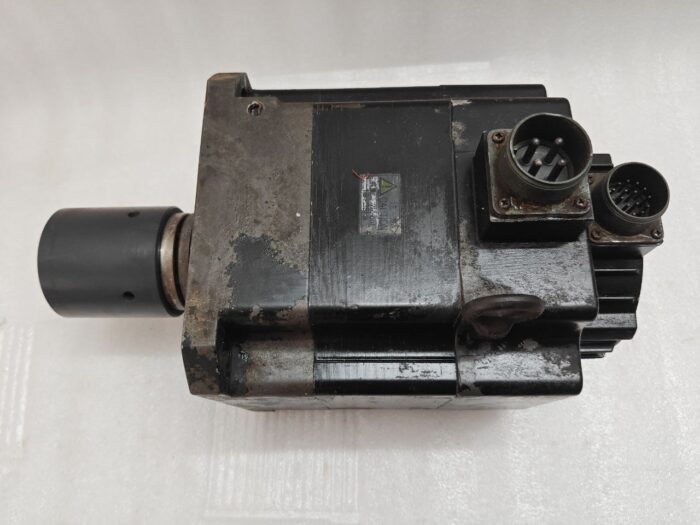

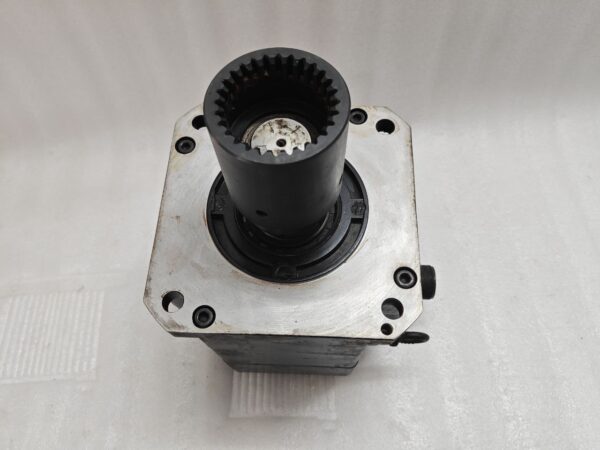

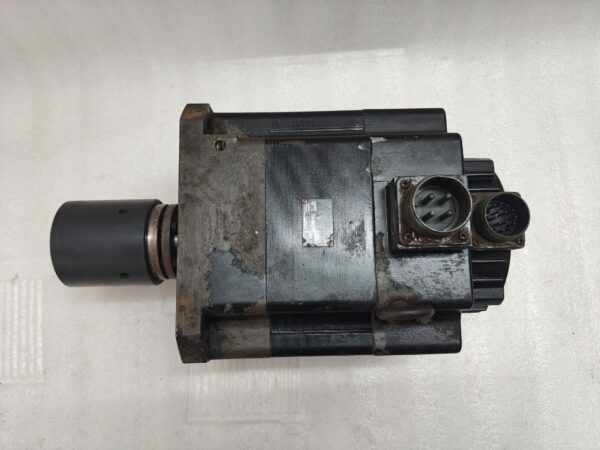

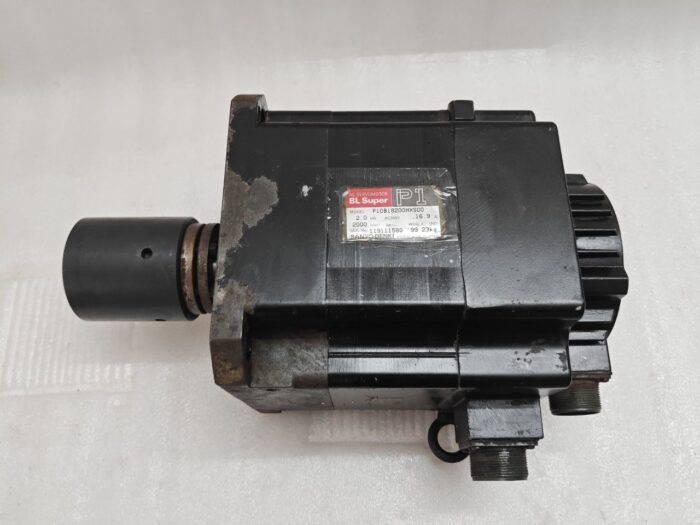

SANYO DENKI BL SUPER P16B18200HXS00 2.0KW AC200V 16.9A AC SERVO MOTOR IP67
- SANYO DENKI
- SERVO MOTOR

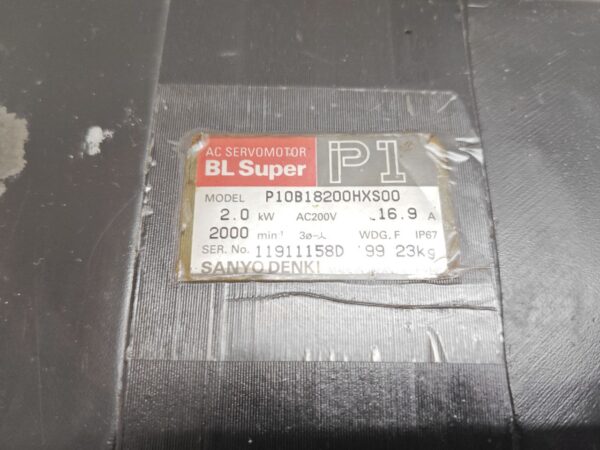

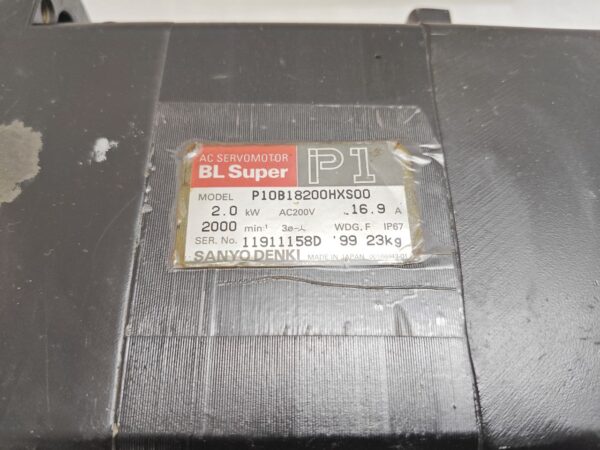

- MODEL: P16B18200HXS00
- 2.0KW, 2000 MIN
- 16.9A, AC200V
- IP67
- SER NO: 11911158D
- WEIGHT: 99.23KG
- 00186943-01
- MADE IN JAPAN
The SANYO DENKI BL SUPER P16B18200HXS00 is a high-performance, 2.0 kW AC servo motor designed for industrial automation applications requiring precise motion control, high torque, and robust environmental protection. It is part of SANYO DENKI’s renowned “BL SUPER” series, known for its reliability and performance.
Key Product Identification:
-
Model:Â BL SUPER P16B18200HXS00
-
Power Rating:Â 2.0 kW
-
Voltage:Â AC 200 V
-
Current:Â 16.9 A
-
Protection Class:Â IP67
Detailed Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Series | BL SUPER | Sanyo Denki’s high-performance servo line. |
| Output Power | 2.0 kW (2000 W) | Rated continuous output. |
| Rated Torque | 9.55 N·m | The torque the motor can produce continuously. |
| Rated Speed | 2000 rpm | Speed at which rated torque/power is delivered. |
| Rated Current | 16.9 A | Current draw at rated torque and speed. |
| Voltage | AC 200 V | Standard industrial 3-phase AC voltage. |
| Peak Torque | 28.6 N·m | Maximum short-term torque for acceleration/deceleration. |
| Max Speed | 3000 rpm | The absolute maximum safe operating speed. |
| Encoder | 24-bit High Resolution (Absolute) | Provides extremely precise position feedback. Essential for closed-loop control. |
| Protection Class | IP67 | Dust-tight and protected against immersion in water (up to 1m for 30 mins). |
| Frame Size | 150 mm | Standard motor frame dimension. |
| Keyway | Standard | For securely attaching the motor to a pulley or coupling. |
| Brake | Optional (Not standard) | The “X” in the model number indicates a customizable option. A holding brake is often added for safety. |
| Shaft | Straight Keyway Shaft | |
| Connector | MS (Military Standard) type | Robust, circular connector for power and feedback. |
| Bearing | Double-shielded ball bearings | Designed for long life and high load capacity. |
| Insulation Class | Class F (155°C) | High thermal endurance for demanding duty cycles. |
Key Features & Benefits
-
High Power & Torque Density (2.0 kW):
-
Delivers substantial power in a compact frame size, making it suitable for applications requiring high acceleration and dynamic performance.
-
-
IP67 Environmental Protection:
-
Completely Dust Proof:Â Ideal for dirty environments like woodworking, metal cutting, and packaging.
-
Waterproof:Â Can withstand wash-downs, making it perfect for food & beverage, pharmaceutical, and other wet industrial environments.
-
-
24-bit Absolute Encoder:
-
Provides exceptional positioning accuracy and resolution.
-
Absolute System:Â The motor knows its position immediately upon power-up, eliminating the need for a homing routine after every power cycle, which increases machine efficiency.
-
-
High Responsiveness:
-
The BL SUPER series is designed for high gain setting, allowing for very stiff servo operation, which minimizes following error and improves contouring accuracy in CNC and robotics applications.
-
-
High Reliability:
-
Built with high-quality components, including double-shielded bearings and Class F insulation, ensuring long service life even in harsh conditions and under continuous operation.
-
Typical Applications
This motor is designed for demanding industrial automation tasks, including:
-
Industrial Robots:Â Articulated arm, SCARA, and delta robots.
-
Machine Tool:Â CNC lathes, milling machines, grinding machines.
-
Packaging Machinery:Â High-speed filling, capping, and labeling machines.
-
Semiconductor Manufacturing:Â Wafer handling, wire bonding, precision positioning stages.
-
Automated Assembly:Â Precision pick-and-place, screwing, and press-fitting systems.
-
Food & Beverage Processing:Â Wash-down compatible machinery for conveyors and fillers
