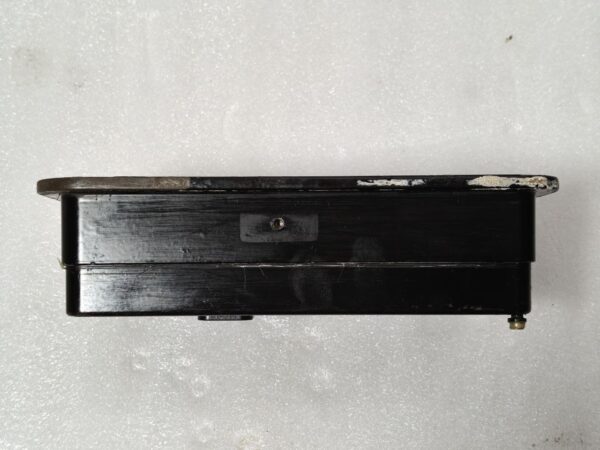

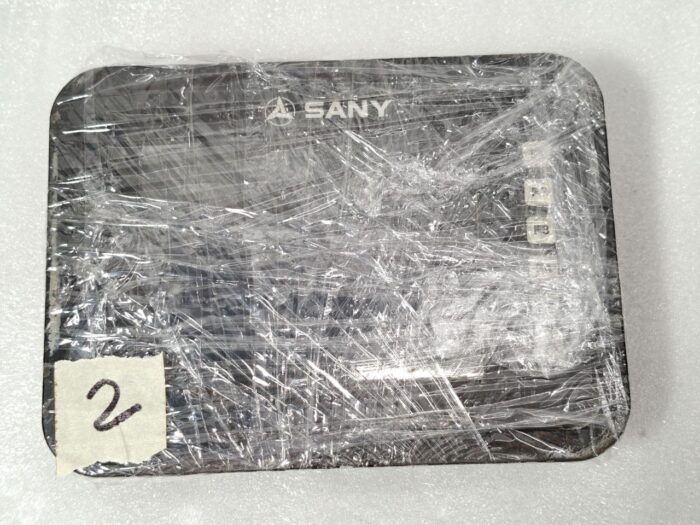

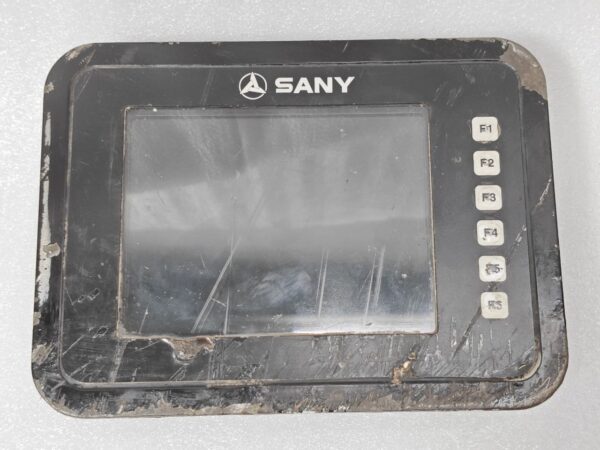

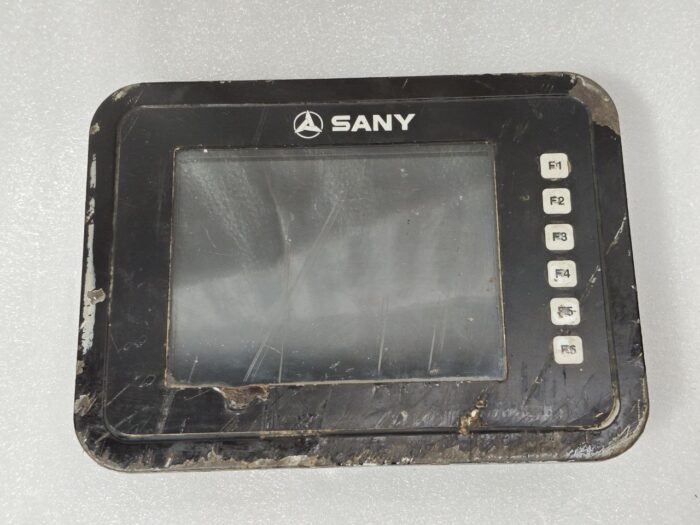

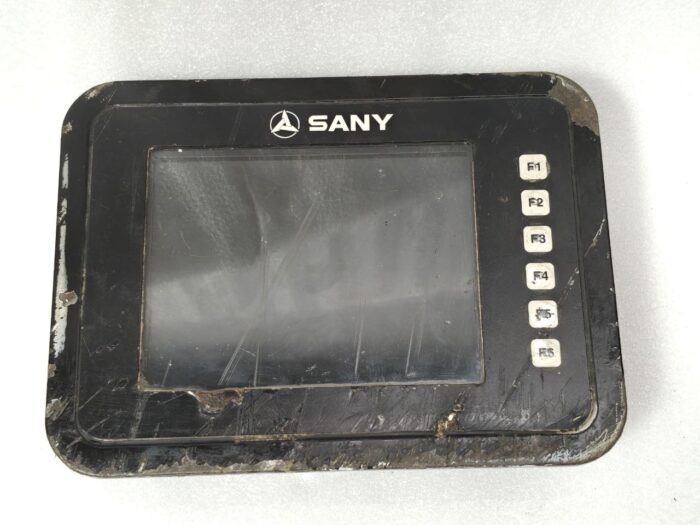

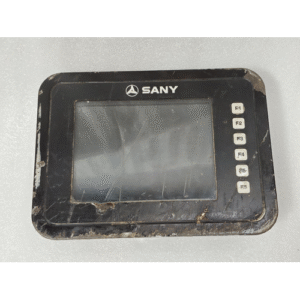

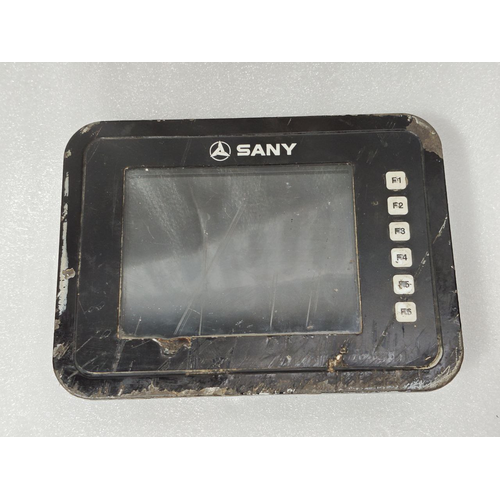

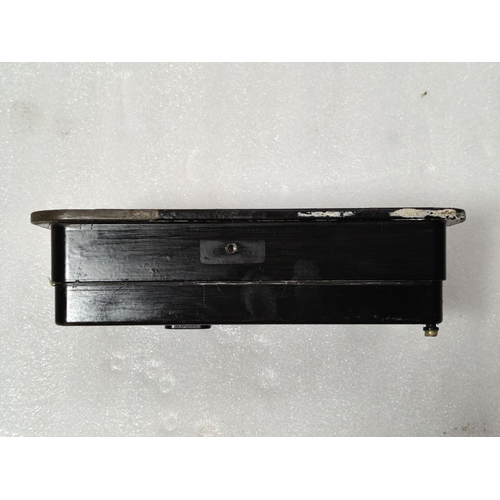

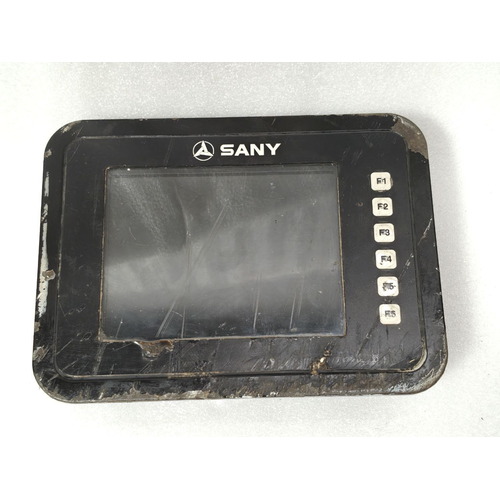

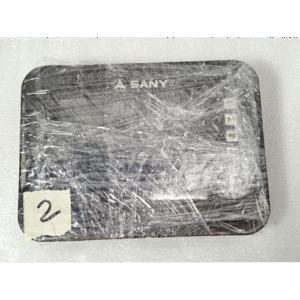

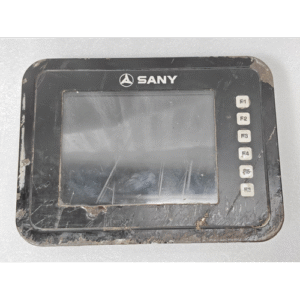

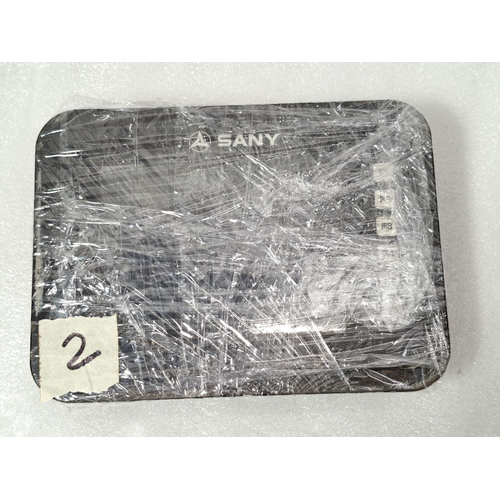

Sany SYCD-1121 Communication Display 350310040793 HV19 SV22

Sany SYCD-1121 Communication Display 350310040793 HV19 SV22

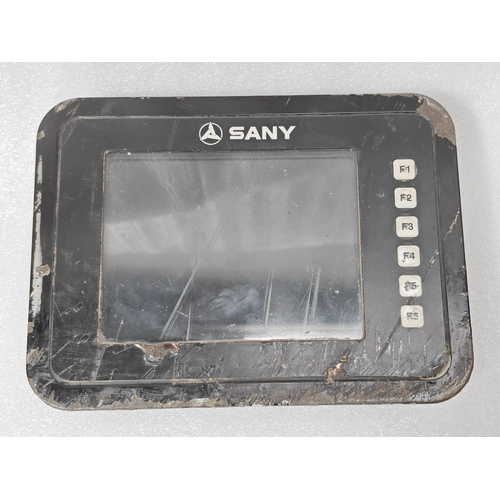

The SANY SYCD-1121 is a robust and high-performance communication display unit designed specifically for integration with SANY heavy machinery, such as excavators, cranes, and other construction equipment. This display serves as the primary human-machine interface (HMI), providing the operator with critical machine data, diagnostic information, and control functions in a clear, intuitive, and reliable package.

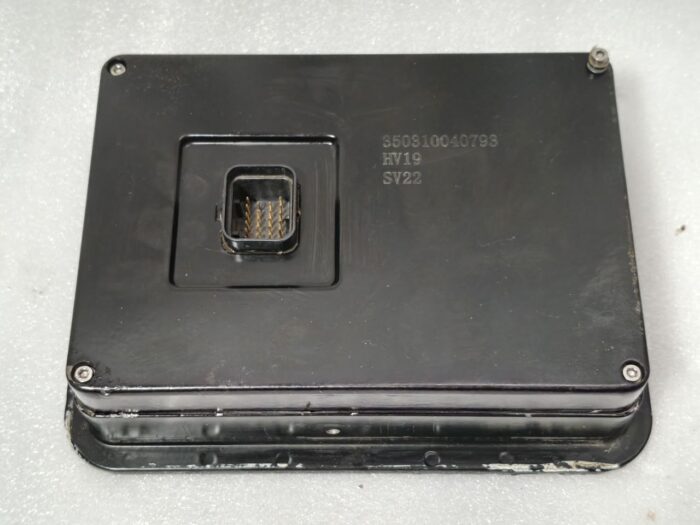

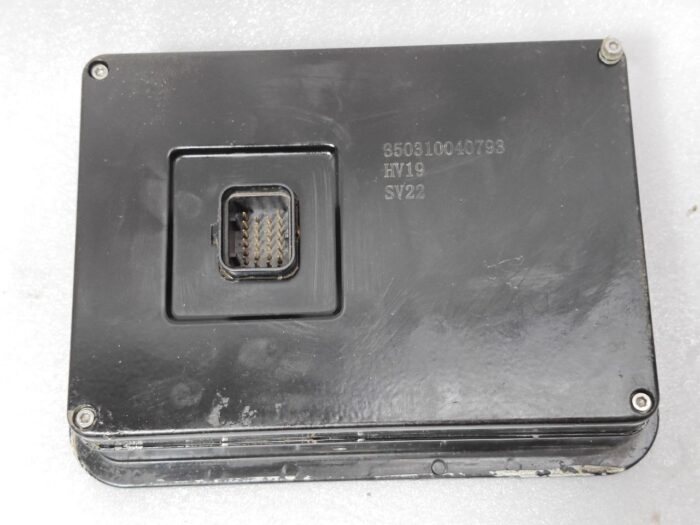

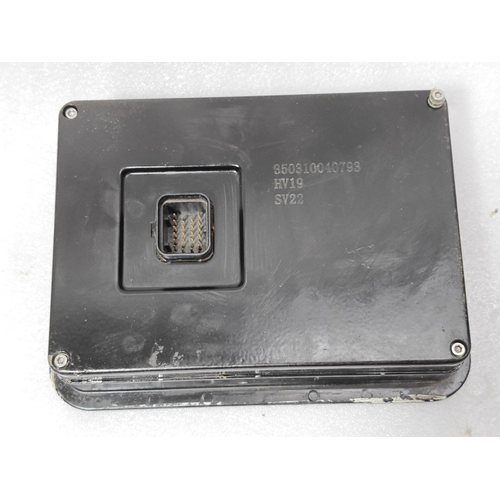

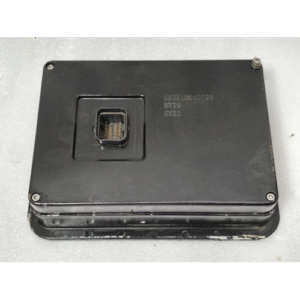

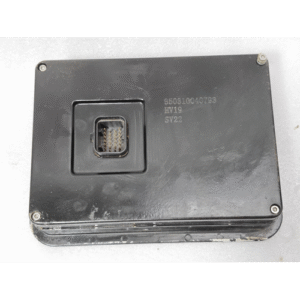

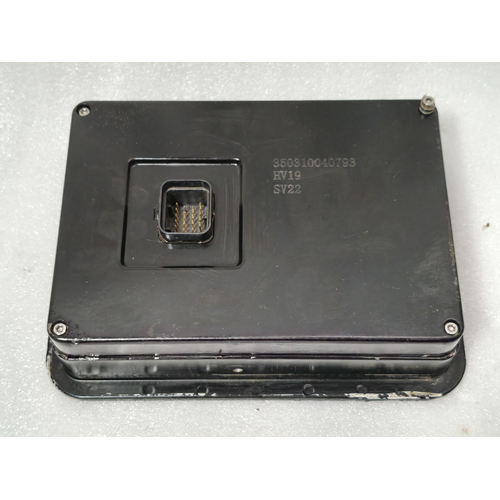

Part Number / Serial Identification:

• Model: SYCD-1121

• HV (Hardware Version): 19

• SV (Software Version): 22

• Additional Code: 350310040793 (Likely a specific factory part or serial number)

Key Features

• High-Resolution TFT LCD Display: Features a bright, sunlight-readable screen that provides excellent visibility in all lighting conditions, ensuring crucial data is always clear.

• Intuitive Graphical User Interface (GUI): Presents complex machine information through easy-to-understand icons, gauges, and menus, reducing operator learning time and minimizing errors.

• Real-Time Data Monitoring: Displays essential parameters such as engine RPM, coolant temperature, fuel level, hydraulic pressure, and system voltages at a glance.

• Advanced Diagnostic Capabilities: Reads and displays diagnostic trouble codes (DTCs), enabling quick fault identification and troubleshooting to minimize machine downtime.

• Machine Configuration & Settings: Allows authorized personnel to access and adjust certain machine parameters and settings directly from the cab.

• Durability & Reliability: Built to withstand the harsh environments of construction sites, it is designed to be resistant to vibration, dust, moisture, and extreme temperatures.

• Seamless CAN Bus Integration: Communicates efficiently with the machine’s main electronic control units (ECUs) via the industry-standard CAN bus protocol, ensuring reliable data exchange.

Technical Specifications (Generalized)

Primary Functions

1. Operational Dashboard: Acts as the primary instrument cluster, showing speed, hours, fuel consumption, and other vital stats.

2. Implement Control Interface: Provides the interface for controlling and monitoring the specific functions of the attached machinery (e.g., excavator arm functions, crane load moments).

3. Service and Maintenance Hub: Tracks service intervals, displays maintenance reminders, and provides access to the diagnostic code library.

4. Safety System Display: Integrates with the machine’s safety systems, providing alerts for critical issues like high temperature, low pressure, or overload conditions.
