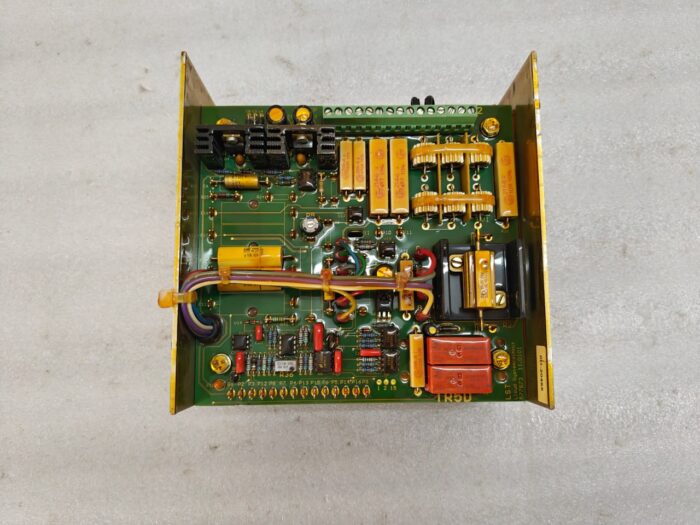

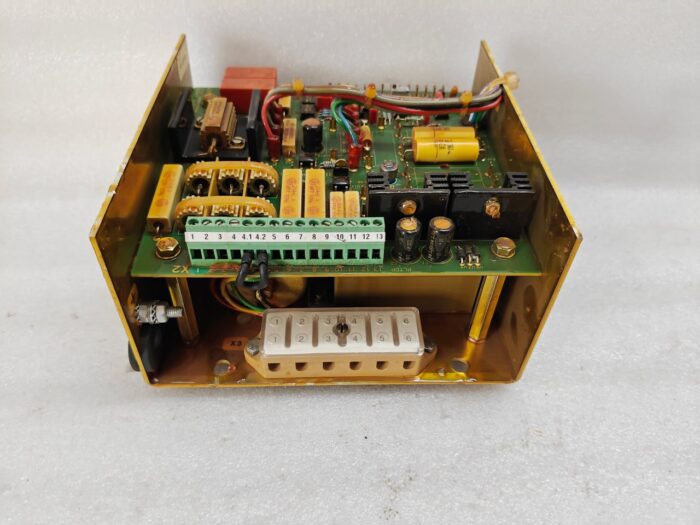

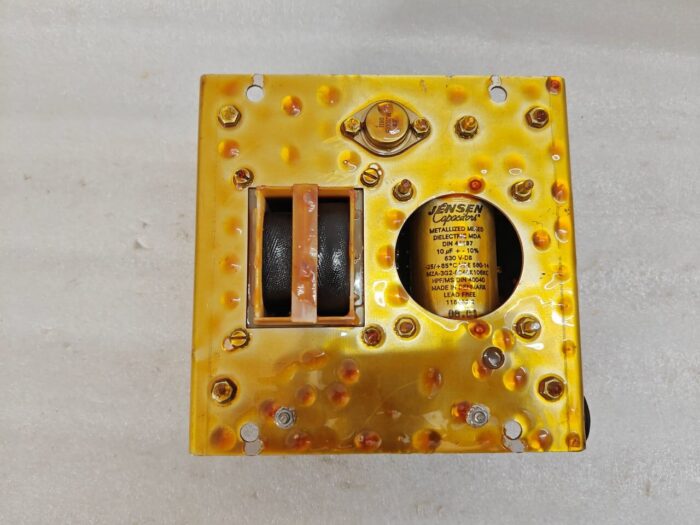

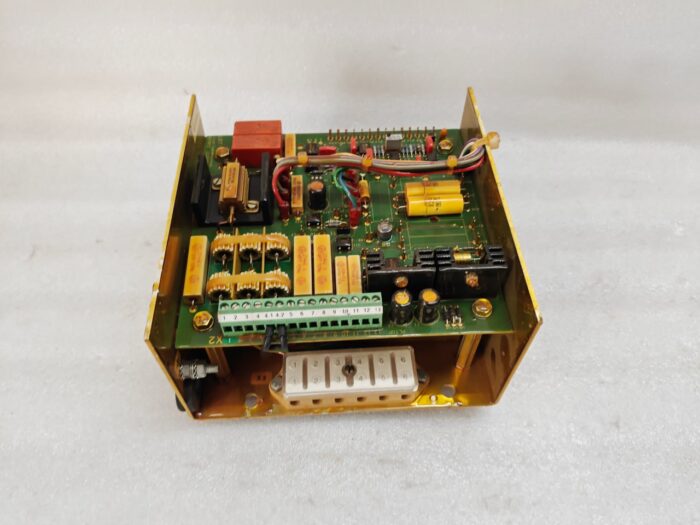

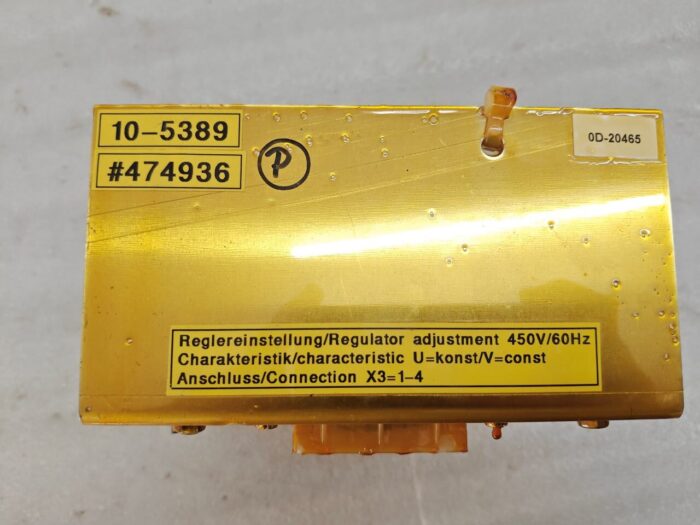

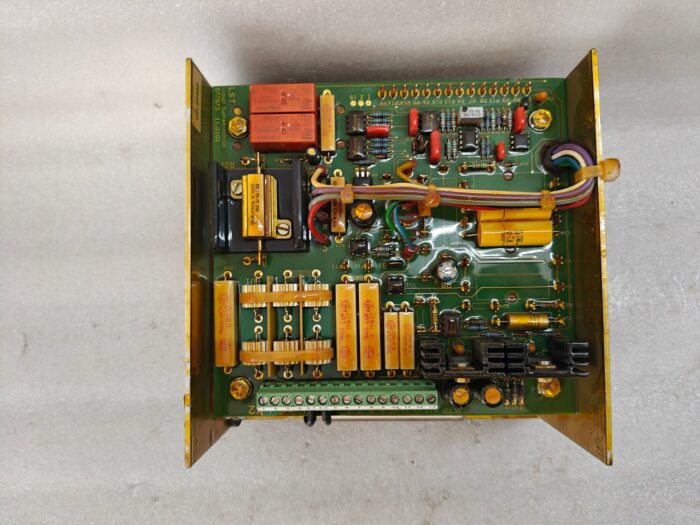

Sam Electronics B9803042 Power Supply Board 450V/50Hz

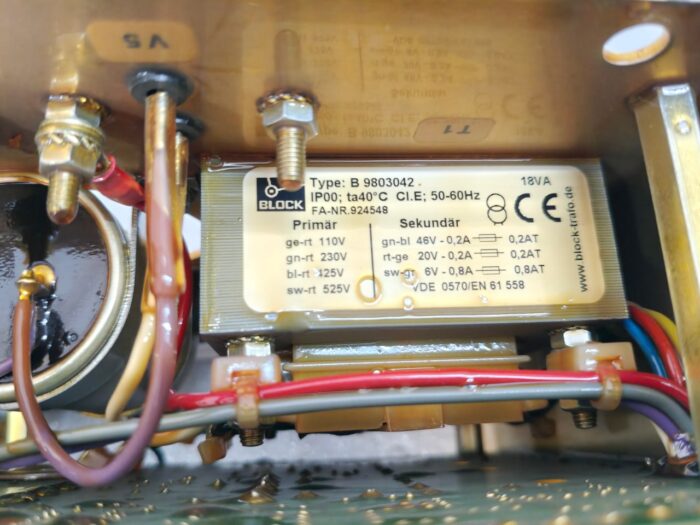

• SAM ELECTRONICS B 9803042
• IP00
• TA40 C
• CI.E
• 50/60 HZ
• FA-NR.924548
• VDE 0570/EN61558
• LST, 577873, 11.0101
• TR5D

The Sam Electronics B9803042 is a robust and reliable switch-mode power supply (SMPS) board designed to provide stable and efficient power conversion for a range of electronic equipment. With an input rating of 450V 50Hz, this board is engineered for regions with specific high-voltage mains power requirements, ensuring compatibility and safety.

This board is a direct replacement component, commonly used to restore functionality to devices where the original power supply has failed.

Key Features

• High Input Voltage: Designed for AC input voltages up to 450V.

• Standard Frequency: Optimized for 50Hz mains power frequency, common in many countries worldwide.

• Stable Output: Provides multiple, well-regulated DC voltage outputs (e.g., +5V, +12V, +24V, etc.) to power various circuits and components.

• Robust Construction: Features a high-quality PCB with durable components, including large heat sinks for efficient thermal management and long-term reliability.

• Protection Circuits: Typically includes built-in protection features such as over-voltage protection (OVP), over-current protection (OCP), and short-circuit protection to safeguard both the power supply and the host device.

• Direct Replacement: Form-fit-function replacement for the original B9803042 board, ensuring easy installation and compatibility.

Technical Specifications

Common Applications

This power supply board is typically used as a critical component in larger electronic systems. Common applications include:

• Professional Audio/Video Equipment: Amplifiers, Mixing Consoles, Studio Equipment.

• Industrial Control Systems: PLC racks, Automation controllers.

• Test and Measurement Equipment.

• Broadcast and Communications Gear.
