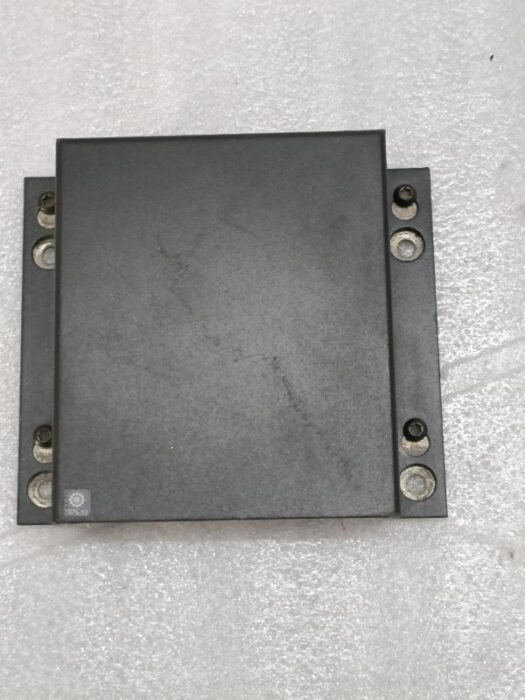

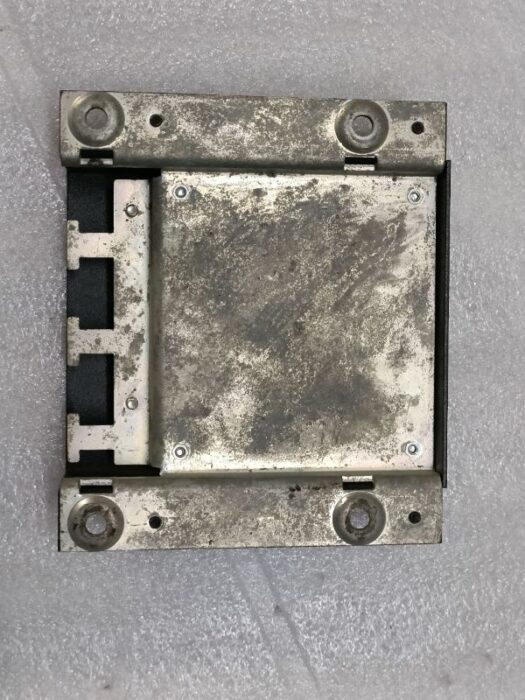

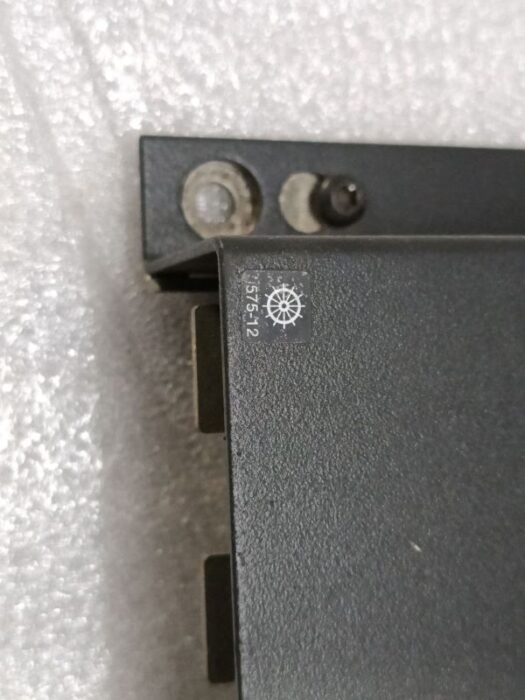

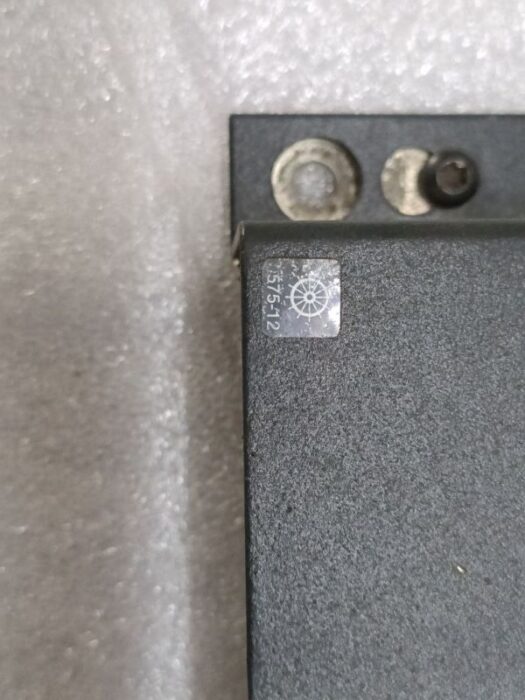

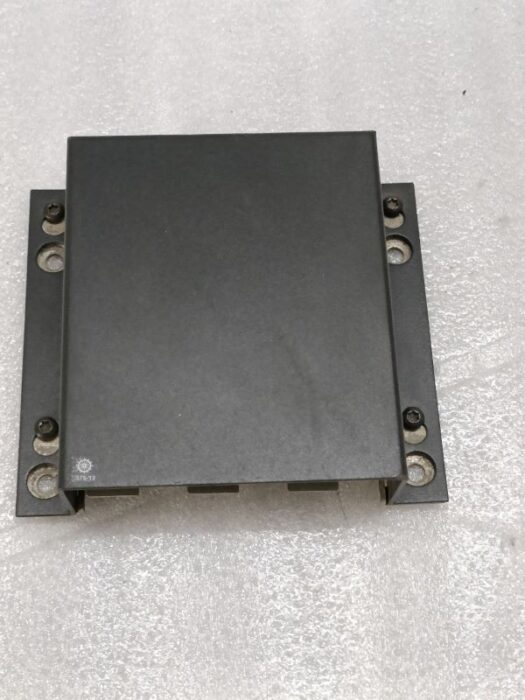

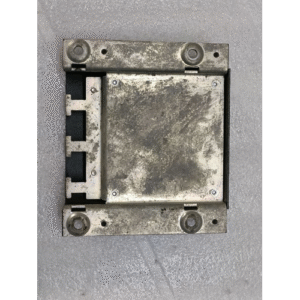

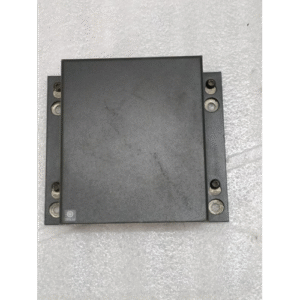

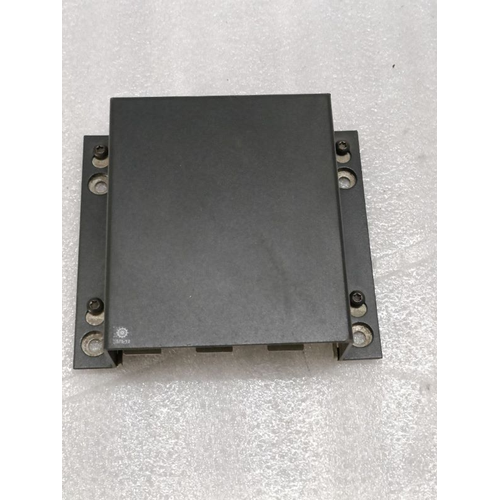

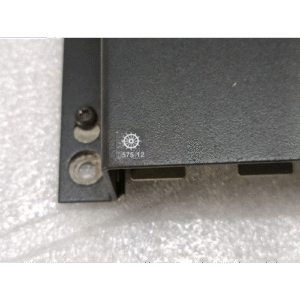

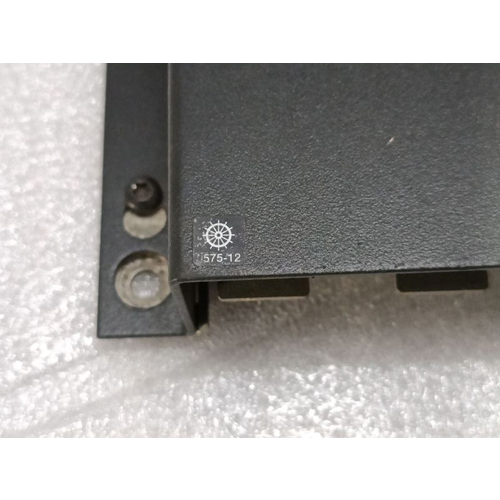

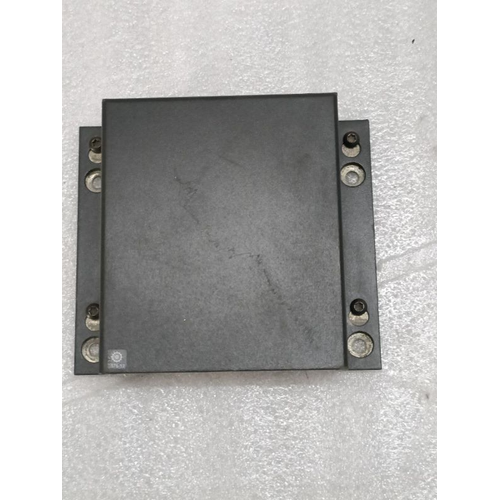

SAILOR 6208 Remote Control Unit Connection Box 406208A

The SAILOR 6208 Remote Control Unit Connection Box is a critical interface component within Thrane & Thrane (now Cobham SATCOM) Sailor FleetBroadband and other Sailor terminal systems. It acts as the central wiring hub, enabling the connection and operation of remote control units, telephones, and other peripherals to the main satellite terminal.

Primary Function

The main purpose of the 6208 Connection Box is to provide a standardized and centralized connection point between the SAILOR FleetBroadband Terminal (e.g., SAILOR 500, 600, 250, 150) and one or more SAILOR 6200/6300 Series Remote Control Units (RCUs), as well as handset telephones.

It simplifies installation, reduces wiring complexity, and provides necessary power and signal conversion for the remote units.

Key Features

1. Centralized Interface: Serves as the single point for connecting multiple remote units to a single terminal.

2. Multi-RCU Support: Allows for the connection of several RCUs (e.g., SAILOR 6200, 6300) in different locations on the vessel, such as the bridge, captain’s cabin, and conference room.

3. Telephone Handset Ports: Features standard RJ-11 ports for connecting analog handset telephones, enabling direct voice calls through the satellite terminal.

4. Signal Conversion & Repeater: It regenerates and amplifies the data signals, ensuring reliable communication over longer cable runs between the terminal and the remote control units.

5. Power Distribution: Provides power to the connected Remote Control Units, eliminating the need for separate power supplies at each RCU location.

6. Robust Marine Design: Built to withstand the harsh marine environment, typically featuring a rugged metal enclosure and corrosion-resistant components.

7. Simplified Installation: Clearly labeled terminals and ports make the wiring process straightforward for marine electricians.

Typical Applications & System Integration

The 6208 Connection Box is an essential part of a complete SAILOR FleetBroadband system. A typical setup would be:

• Main Unit: SAILOR FleetBroadband 250/500/600 Terminal.

• Interface: SAILOR 6208 Connection Box (406208A).

• Control Units: One or more SAILOR 6200/6300 RCUs (e.g., 6203, 6206, 6300).

• Peripherals: Analog telephone handsets.

Data Flow:
The RCUs and telephones are connected to the 6208 Connection Box. The box itself is then connected to the main FleetBroadband terminal via a single multi-core cable. All user commands from the RCUs and voice signals from the telephones are routed through the 6208 box to the terminal.

Connections and Ports (Typical)

• Terminal Port (to FB Terminal): A multi-pin terminal block or connector for the cable running to the main satellite terminal.

• RCU Ports (to Remote Units): Multiple terminal blocks or ports for connecting the cables to the various SAILOR 6200/6300 series RCUs.

• Telephone Ports (POTS): Two or more standard RJ-11 jacks for connecting analog telephone handsets.

• Power Input: A connection for receiving power, often from the main terminal or a separate marine DC source.

Part Number Clarification

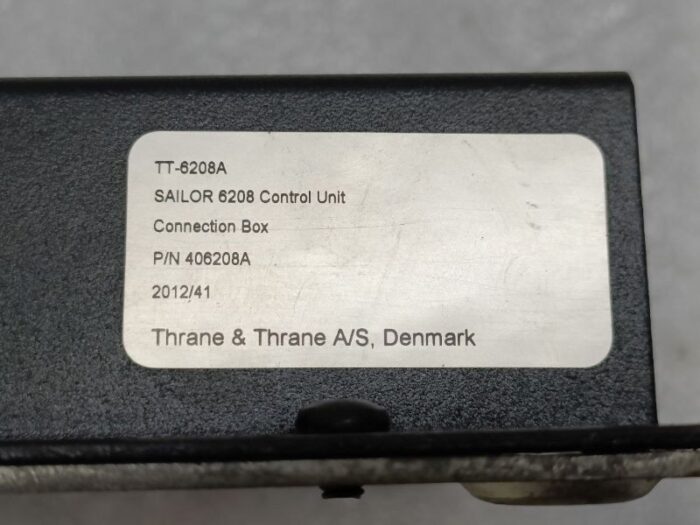

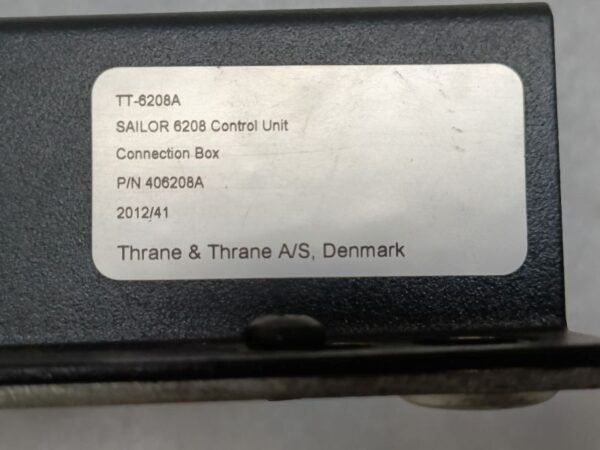

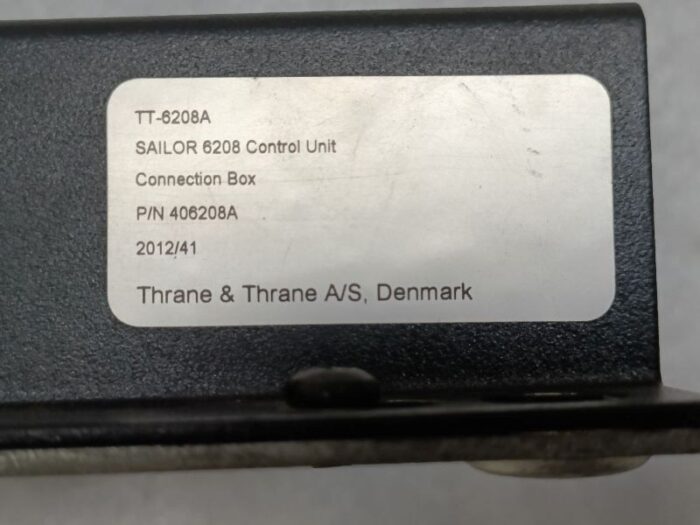

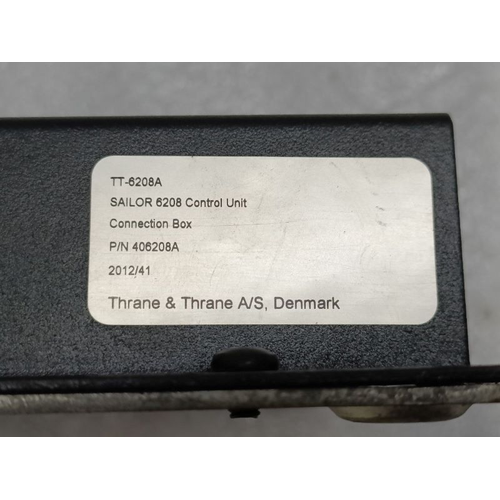

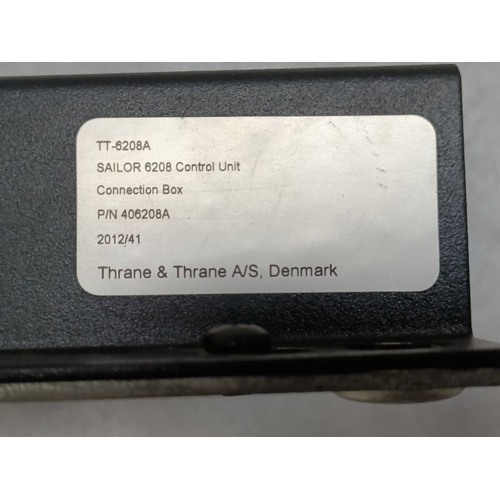

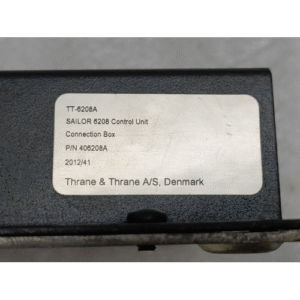

• 406208A: This is the specific manufacturer part number for the SAILOR 6208 Remote Control Unit Connection Box. It is the essential identifier for ordering the correct unit.

• SEO Product Description: From an SEO perspective, this product would be found using keywords such as: “Sailor 6208 Box,” “FleetBroadband Interface Unit,” “RCU Connection Box,” “Sailor 406208A,” “Satcom Junction Box,” and “Marine Satellite Telephone Adapter.”
