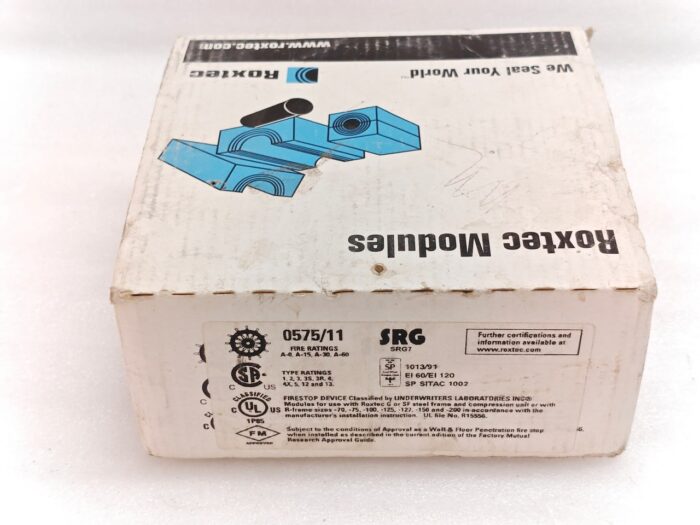

• ROXTEC MODULE
• RM 60

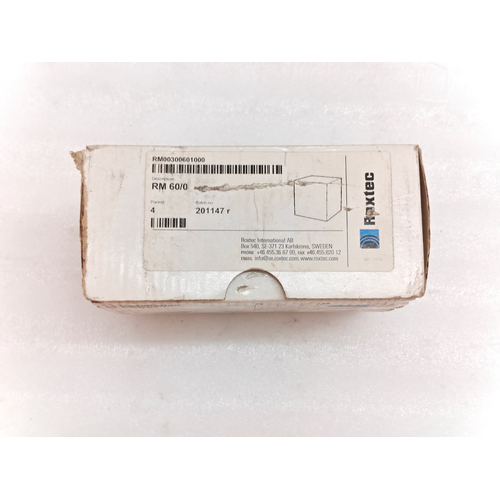

• BATCH NO: 201147 r
• MANUFACTURER: ROXTEC INTERNATIONAL AB, SWEDEN
• 0575/11
• FIRE RATINGS: A-0,A-15,A-30,A-60
• TYPE RATINGS: 1,2,3S,3R,4,4X,5,12 AND 13
• SRG-SRG7
• 1013/91
• E1 60/E1 120
• SP SITAC 1002
• RM00300601000

The ROXTEC RM 60/0/ MULTIDIAMETER SRG7 0575/11 SEO is a multi-diameter cable and pipe transit module designed for sealing penetrations in walls and floors. It is part of Roxtec’s renowned “M” frame system, which allows for a modular and highly flexible sealing solution for multiple cables or pipes of varying sizes within a single opening.

Product Code Breakdown

Understanding the product code is key to knowing exactly what this item is:

• RM: Roxtec Module. This indicates it is a sealing module, not a frame.

• 60: The module width is 60 mm.

• 0: The module height is 0 mm. This is a special value indicating it is a “filler” or “blank” module used to occupy space in the frame when not all of it is filled with cables/pipes. It maintains the compression on adjacent sealing modules.

• MULTIDIAMETER: This specifies the type of sealing layers used inside the module. Multidiameter layers are flexible rubber diaphragms that can be easily cut to fit a wide range of cable or pipe diameters.

• SRG7: This refers to the specific material and fire rating.

  • Material: Halogen-free, elastomeric compound.

  • Fire Rating: Provides integrity against fire and water (when compressed in a Roxtec frame) for up to 2 hours (E120) according to international standards. It is also resistant to aging, UV light, and various chemicals.

• 0575/11: This is a Roxtec internal identification code related to the specific design, layer configuration, and production batch.

• SEO: This stands for Seal Entry Opening. It indicates that the module comes with pre-installed, removable rubber plugs in the multidiameter layers. These plugs are used to seal unused holes, ensuring the entire penetration remains sealed even before all cables are installed.

Function and Purpose

The primary function of this module is to create a safe, sealed, and protected penetration in concrete or steel structures. When multiple RM modules are assembled side-by-side within a Roxtec “M” frame, they form a complete transit sealing system that:

1. Prevents the spread of fire, gas, and water from one compartment to another, ensuring compartmentalization (fire integrity and watertightness).

2. Provides protection against electromagnetic interference (EMI), vibration, dust, and rodents.

3. Offers mechanical strain relief for cables and pipes.

The specific “0” height of this module means it is used as a spacer or filler to take up unused space within the frame, ensuring all other sealing modules are properly compressed and locked in place.

Key Features

• Modular Design: Can be combined with other Roxtec M-frame modules of different sizes and types to create a custom-fit seal for any penetration layout.

• Halogen-Free & Low Smoke: The SRG7 material does not produce corrosive or toxic halogen gases when exposed to fire, making it safer for people and equipment.

• Excellent Fire Performance: Certified for up to 2 hours of fire integrity.

• Watertight Seal: When properly installed and compressed in a frame, it provides an effective barrier against water pressure.

• SEO (Sealed Entry Opening): The pre-installed plugs allow for a sealed system even during construction, before all cables are pulled through. Plugs are easily removed when a new cable is added.

• Flexibility: The multidiameter layers can be easily adapted on-site to accommodate a wide range of cable or pipe diameters without needing specialized tools.

Typical Applications

This module is used in industries and applications where safety, reliability, and flexibility are critical:

• Marine & Offshore: Ship bulkheads and decks.

• Oil & Gas: Platforms, refineries, and petrochemical plants.

• Power Generation: Nuclear, wind, and conventional power plants.

• Infrastructure: Tunnels, rail, and metro systems.

• Industrial & Commercial Buildings: Data centers, hospitals, and high-rise buildings.
