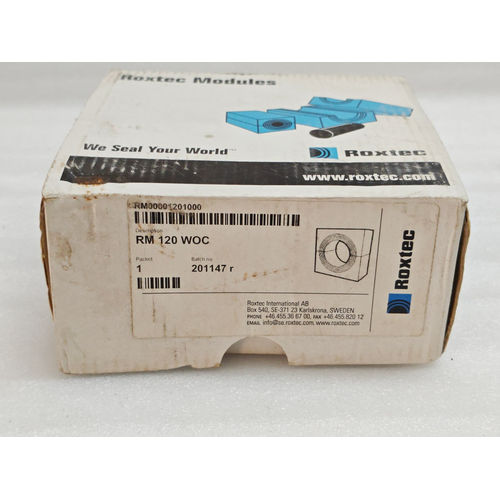

ROXTEC MODULE RM 120 WOC MULTIDIAMETER RM0000120100 17:44

• ROXTEC MODULE

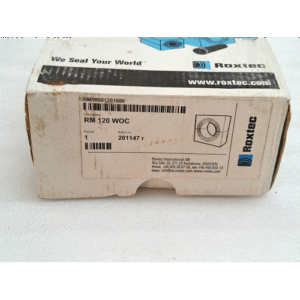

• RM 120 WOC
• BATCH NO: 201147 r
• MANUFACTURER: ROXTEC INTERNATIONAL AB, SWEDEN
• 0575/11

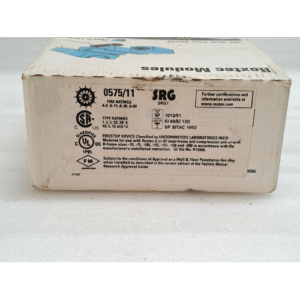

• FIRE RATINGS: A-0,A-15,A-30,A-60
• TYPE RATINGS: 1,2,3S,3R,4,4X,5,12 AND 13
• SRG-SRG7
• 1013/91
• E1 60/E1 120
• SP SITAC 1002
• RM00001201000
• 2PAP000020110 V8/1111
• UL FILE NO: R15556

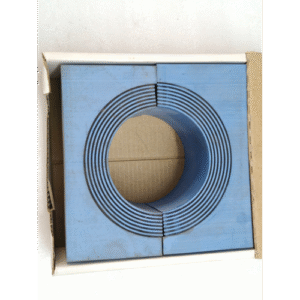

The ROXTEC Module RM 120 WOC Multidiameter (Article No: RM0000120100) is a highly versatile and robust sealing module designed for the safe and reliable penetration of multiple cables, pipes, or tubes through walls, floors, and bulkheads. Its unique “Multidiameter” design allows a single module to accommodate a wide range of diameters, significantly reducing inventory complexity.

This module is part of the proven ROXTEC RMS sealing system, renowned for its exceptional performance in the most challenging environments.

Key Features & Benefits

• WOC (Water, Oil, Chemical Resistant): The sealing elastomers are specifically formulated to withstand prolonged exposure to water, oils, greases, and a wide range of chemicals, ensuring long-term integrity and performance.

• Multidiameter Design: A single module can be used for various cable or pipe diameters within its specified range, offering unparalleled flexibility and reducing the need for multiple module types on site.

• Exceptional Sealing Performance: Provides a high degree of ingress protection, typically up to IP68 (submersible), preventing the passage of water, dust, and gases.

• Fire & Gas Tightness: Offers certified fire resistance (up to EI 120 and higher, depending on the total frame assembly), preventing the spread of fire, smoke, and hazardous gases through openings.

• EMI Protection: Optional metal layers can be integrated to provide effective Electromagnetic Interference (EMI) shielding, protecting sensitive electronic equipment.

• Vibration & Mechanical Stress Resistance: The design compensates for vibration, thermal expansion, and contraction of cables and pipes, preventing damage and maintaining seal integrity.

• Easy Installation & Re-entry: The modular system is simple to install and allows for easy addition, removal, or replacement of cables without damaging the seal, making it future-proof.

Technical Specifications

• Product Type: Sealing Module

• System: ROXTEC RMS

• Article Number: RM0000120100

• Frame Profile: 120 mm

• Elastomer Type: WOC (Resistant to Water, Oil, Chemicals)

• Design: Multidiameter

• Color: Typically Black

Typical Applications

The RM 120 WOC module is engineered for demanding applications across various industries:

• Offshore & Marine: Platform bulkheads, ship decks, engine rooms.

• Industrial Manufacturing: Chemical plants, food & beverage processing, water treatment facilities.

• Energy & Power: Substations, power generation plants (including nuclear), renewable energy sites (wind, solar).

• Infrastructure: Tunnels, rail and metro systems, data centers, wastewater plants.

• Oil & Gas: Refineries, pipelines, onshore and offshore drilling rigs.
