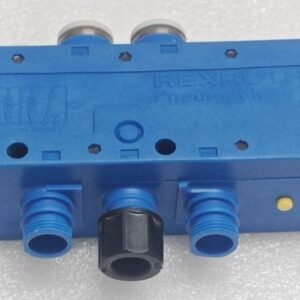

The Rexroth S72 748 0670 7290 is a 5/2-way single solenoid pilot-operated valve. The “5/2” means it has five ports and two switching positions. It is a monostable valve, meaning it has one stable position and returns to it automatically when the electrical signal is removed (spring return).
It is designed for use in industrial pneumatic systems to control the direction of compressed air to actuators like cylinders or rotary actuators.
Key Features & Specifications
Here is a breakdown of the part number and its corresponding features:
-
S72 748 0670 7290: This is the specific item number for the complete valve assembly.
-
24VDC: This specifies the operating voltage of the solenoid coil.
Technical Specifications:
| Feature | Specification |
|---|---|
| Function | 5/2-way, Single Solenoid, Pilot-Operated |
| Actuation Type | Monostable (Spring Return) |
| Operator Type | Solenoid (with pilot operation for low power consumption) |
| Voltage | 24 VDC (Standard industrial control voltage) |
| Port Size | Typically G1/4″ or G1/8″ (This should be verified from the datasheet, but G1/4″ is very common for this series). |
| Operating Pressure Range | Approx. 1.5 bar to 10 bar (21 to 145 PSI) – Confirm with official datasheet |
| Standard | Conforms to ISO 5599/1 (Interface dimensions for mounting and porting) |
| Mounting Type | Sub-base or Manifold mounting (ISO 5599/1 footprint) |
| Coil Connection | Standard DIN 43650 Form A connector with LED indicator |
| Housing Material | Typically robust, self-extinguishing plastic (e.g., PA) |
| Seals | Nitrile Rubber (NBR) – Standard for general industrial use. |
