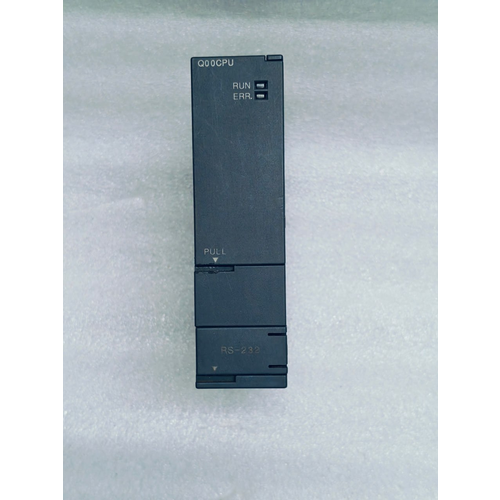

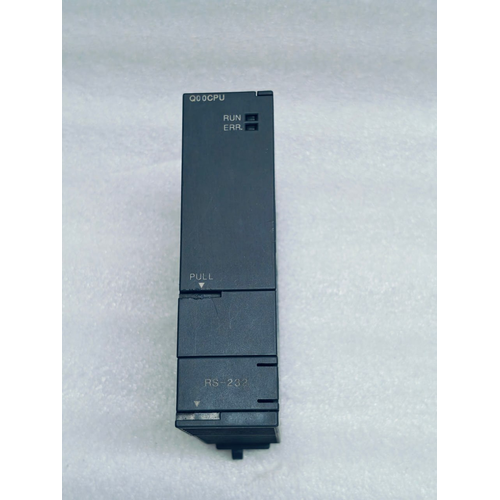

Q00CPU MITSUBISHI CPU UNIT MODEL MELSE-Q JAPAN 8KSTEP
- BRAND: MITSUBISHI
- CPU UNIT MODEL
- MELSEC Q
- MODEL: Q00CPU
- MAX: 8Kstep

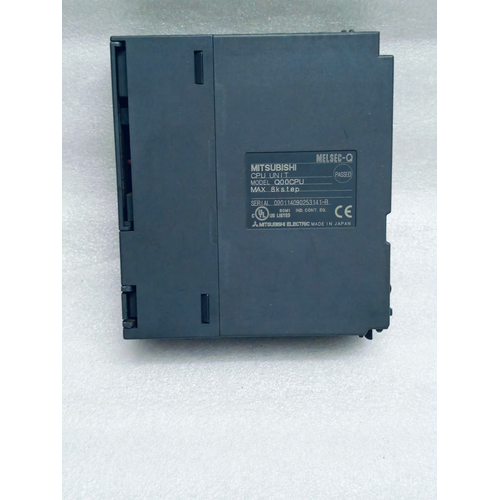

- SERIAL: 090114090253141-B
- MITSUBISHI ELECTRIC
- MADE IN JAPAN
The Mitsubishi Electric MELSEC-Q Q00CPU is a compact, entry-level model from the high-performance MELSEC-Q series of Programmable Logic Controllers (PLCs). Designed for small to medium-scale automation applications, it provides a cost-effective yet powerful and reliable control solution. Its “JAPAN” marking indicates its manufacturing origin, ensuring high quality standards.
Key Selling Point:Â A fundamental, no-frills CPU that delivers the core robustness and compatibility of the MELSEC-Q series for basic automation tasks.
Detailed Technical Specifications
| Feature | Specification |
|---|---|
| Model | MELSEC-Q Q00CPU |
| Program Capacity | 8 Ksteps |
| I/O Points | 1,024 points (Max. with extension) |
| Program Memory | 64 KB (Internal, for program and device comments) |
| Processing Speed | 0.10 µs per basic instruction (LD) |
| Device Memory | –Â Data Register (D):Â 8,192 points –Â Link Register (W):Â 8,192 points –Â Latch Relay (L):Â 4,096 points –Â Timer/Counter (T/C):Â 1,024 points each |
| Built-in Interfaces | –Â Port 1:Â RS-232 (for programming tool connection) –Â Port 2:Â RS-232 (for peripheral connection) |
| Extension Capability | Can be connected to a single main base unit (Q33B, Q35B, or Q38B). |
| Battery (for memory backup) | Q6BAT (Standard) |
Key Features & Capabilities
-
Compact and Integrated Design:Â As a standalone CPU, it requires a main base unit to house both the CPU and the required I/O modules, allowing for a tailored system configuration.
-
Sufficient Performance for Basic Applications: With an 8K-step program capacity and a fast 0.10 µs instruction processing speed, it is well-suited for:
-
Simple machine control
-
Packaging machinery
-
Small-scale material handling systems
-
Standalone process stations
-
-
High System Expandability:Â Despite being an entry-level model, it belongs to the MELSEC-Q family. This allows you to use a wide range of Mitsubishi’s extensive I/O modules, special function modules (analog, temperature, positioning), and network modules (CC-Link, Ethernet) on the same base, providing future-proofing.
-
Robust and Reliable:Â Built to industrial standards, it offers high noise immunity and stable operation in demanding industrial environments.
-
Standard Programming Environment: Programmed using Mitsubishi’s GX Works2 or the older GX Developer software, which offers programming languages like Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD).
