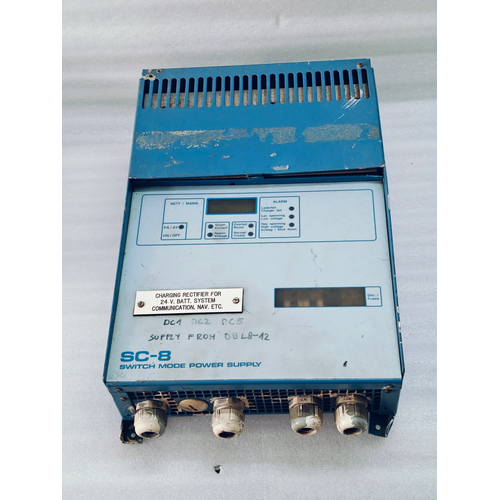

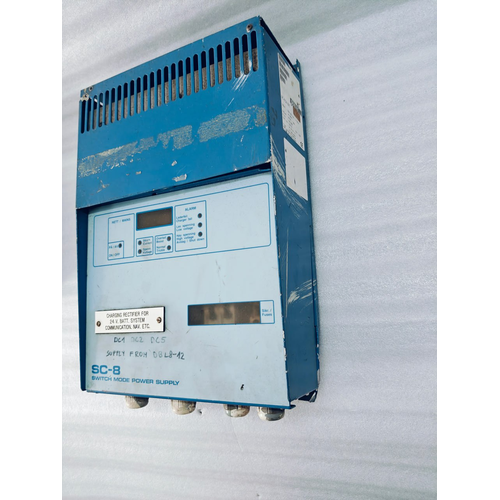

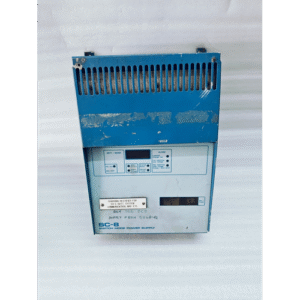

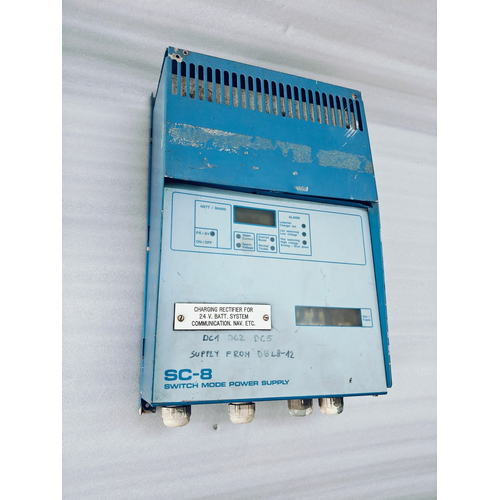

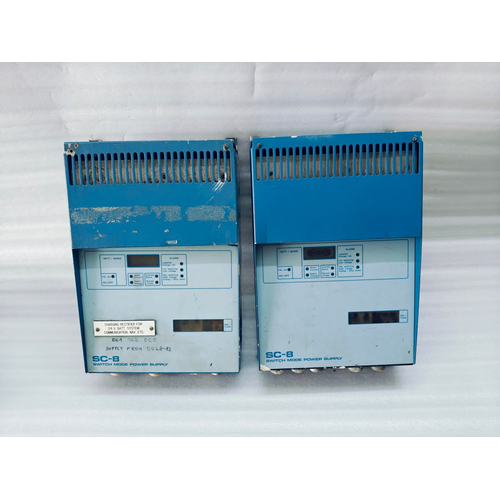

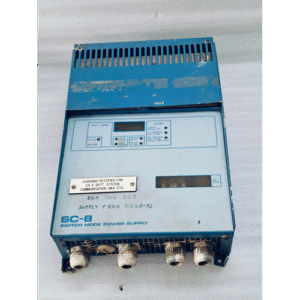

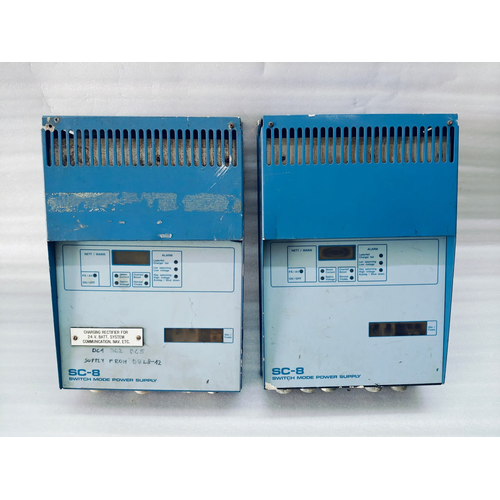

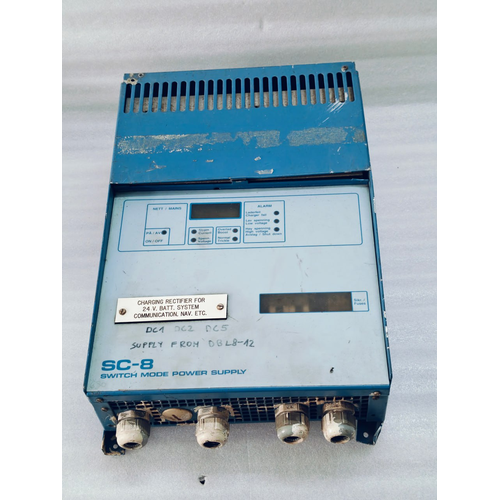

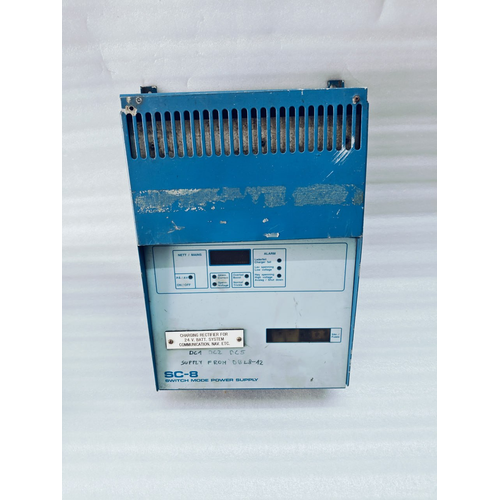

POWEC SC-8 / 24 – 25 c 122773 25A switch mode power supply 44-66 HZ

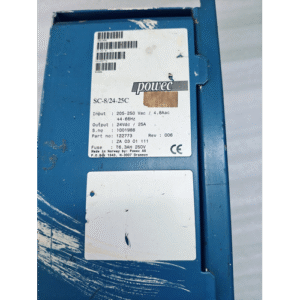

POWEC AS
SC-8/24-25C
SWITCH MODE POWER SUPPLY
PART NO.: 122773
REV.: 006
S.NO: 1001988
INPUT: 205-250 VAC / 4.8A AC 44-66HZ
OUTPUT: 24VDC / 25A
ZA 03 01 111
FUSE: T6,3AH 250V
SUPPLY FROM DBL8-12
BY: POWEC AS
P.O.BOX 1543, N-3007, DRAMMEN
MADE IN NORWAY
POWEC SC-8 24-25C Switch Mode Power Supply – Complete Product Description
Model:Â SC-8 24-25C
Serial Number / Lot Code:Â 122773 25A
Type:Â Switch Mode Power Supply (SMPS)
Key Specifications & Features:
| Feature | Specification | Explanation |
|---|---|---|
| Output Voltage | 24V DC | Provides a stable 24 Volt Direct Current output, a common standard for many electronic devices. |
| Output Current | 25 Amps (A) | This is a high-current model, capable of delivering up to 25A. This is a key differentiator. |
| Output Power | ~600 Watts | Calculated as 24V * 25A = 600W. This is a high-power unit suitable for demanding applications. |
| Input Voltage | 44-66 Hz (Frequency) | This spec is unusual. Typically, the input voltage (e.g., 100-240V AC) is listed. The 44-66 Hz refers to the frequency of the AC input, meaning it works with both 50Hz and 60Hz power grids. The input voltage range is likely universal (e.g., 90-264V AC) but should be confirmed on the unit’s label. |
| Technology | Switch Mode | Modern, efficient, and compact power conversion technology. More efficient and lighter than traditional linear power supplies. |
| Product Code | 122773 | This is likely an internal manufacturer part number, SKU, or batch code for inventory and ordering. |
| SEO Keywords | SEO PRODUCT | Suggests this description or listing has been optimized for search engines to be found online. |
Detailed Breakdown:
1. Model Number Interpretation: SC-8 24-25C
-
SC-8:Â Likely the series or family name for this line of power supplies.
-
24:Â Indicates the output voltage is 24V DC.
-
25:Â Indicates the maximum output current is 25 Amps.
-
C:Â Could signify a specific revision, casing type, or connector option.
2. “25A” Designation:
This is the most critical performance spec. A 25A output makes this a very robust power supply. It can power multiple devices simultaneously or a single high-power device. For context:
-
It could power approximately twenty-five 24W devices.
-
It could run a high-power device like a 500W amplifier or motor controller with headroom.
3. “Switch Mode Power Supply” (SMPS):
This is the technology used. Benefits include:
-
High Efficiency:Â Converts AC power to DC with minimal energy loss as heat.
-
Compact Size and Light Weight:Â Compared to equivalent linear power supplies.
-
Wide Input Voltage Range:Â Typically able to operate on any AC voltage from ~100V to 240V automatically, making it suitable for international use.
-
Good Regulation:Â Maintains a stable output voltage even with fluctuations in the input voltage or output load.
4. “44-66 Hz” Input Frequency:
This means the power supply can operate on standard AC mains power anywhere in the world, as the grid frequency is typically 50Hz (e.g., Europe, Asia) or 60Hz (e.g., North America).
5. Common Applications:
Due to its 24V DC output and high 25A capacity, this power supply is ideal for:
-
Security & Access Control Systems:Â Powering multiple CCTV cameras, electric door locks, and control panels.
-
LED Lighting Systems:Â Driving high-wattage LED arrays, signage, and architectural lighting.
-
Industrial Automation:Â Powering PLCs, sensors, actuators, and small motor drives.
-
Telecommunications Equipment:Â Providing backup or main power for network hardware.
-
Test Benches and Hobbyist Projects:Â As a reliable lab bench power source for electronics work.
