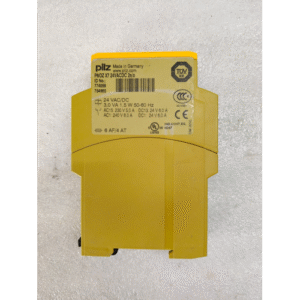

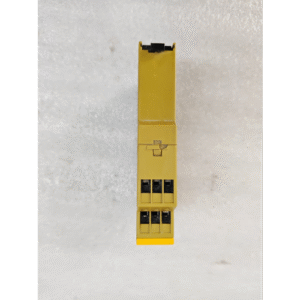

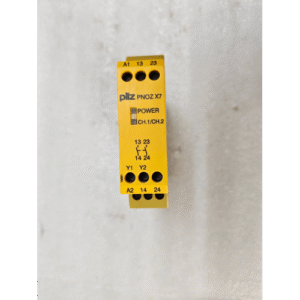

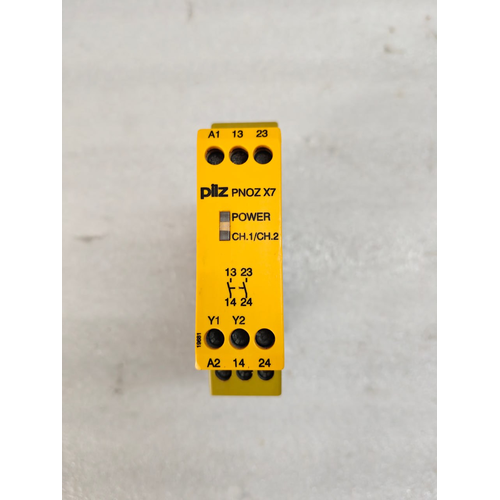

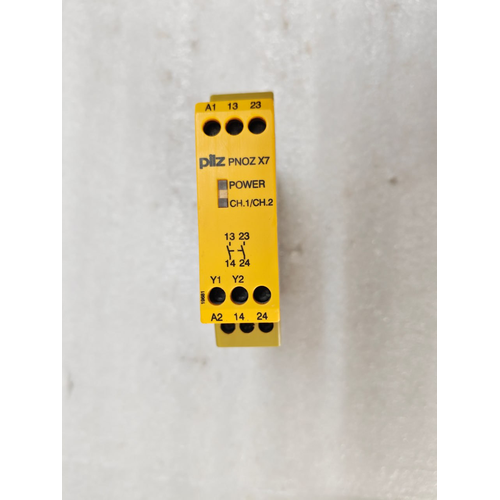

PILZ PNOZ X7 24VACDC 2n/0 774059 754965 Safety Relay Module 13:21

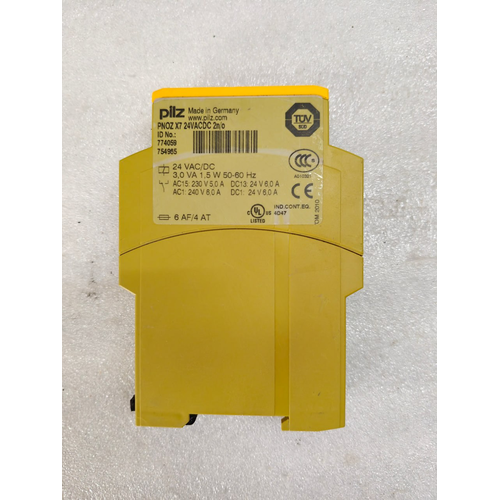

• BRAND: PILZ
• MPN: PNOZ X7 24 VACDC 2n/0
• ID NO: 774059 754965
• 24 VAC/DC
• 3.0 VA, 1.5W 50/60 HZ
• AC15: 230V 5.0A
• AC1:   240V 6.0A
• DC13: 24V 6.0A
• DC1:   24V 6.0A
• 6AF/4AT
• MADE IN GERMANY

Product Overview

The PILZ PNOZ X7 is a compact, versatile safety relay designed to monitor safety functions in machinery and industrial automation. As a core component of a safety circuit, it ensures that your equipment operates safely, protecting both personnel and machinery. This module is known for its reliability, ease of installation, and broad application range.

With a universal 24V AC/DC supply voltage and two safety-related normally open (NO) contacts, the PNOZ X7 is the ideal solution for a wide array of standard safety applications.

Key Features & Benefits:

• Universal Power Supply: Operates on 24V AC or DC, providing flexibility for various control cabinet designs.

• Two Safety Outputs: Features 2 Normally Open (NO) contacts (2n/o) for controlling safety-critical functions. These are force-guided contacts for maximum reliability.

• Compact Design: Saves valuable space in the control cabinet (22.5mm width).

• Versatile Monitoring: Perfect for monitoring Single-Channel and Dual-Channel safety devices with and without cross-circuit detection.

• LED Status Indication: Clear visual feedback on power, input, and output status for easy troubleshooting and diagnostics.

• High Safety Rating: Complies with major international standards, including EN 60947-5-1, EN 60204-1, and is CE marked.

• Trusted Brand: PILZ is a global leader in safety automation, guaranteeing quality and reliability.

Technical Specifications:

• Part Number: 774059 (Common order number)

• Alternative Part Number: 754965

• Supply Voltage: 24 V AC / 24 V DC

• Safety Outputs: 2 NO (Normally Open)

• Auxiliary Output: 1 NC (Normally Closed)

• Max. Switching Capacity: 6 A / 250 V AC

• Width: 22.5 mm

• Safety Category: According to EN 60947-5-1

Typical Applications:

The PNOZ X7 safety relay is used to monitor safety devices such as:

• Emergency Stop (E-Stop) Buttons

• Safety Interlock Switches (on guards and doors)

• Two-Hand Control Stations

• Light Curtains and Safety Mats

• Pressure-Sensitive Mats
