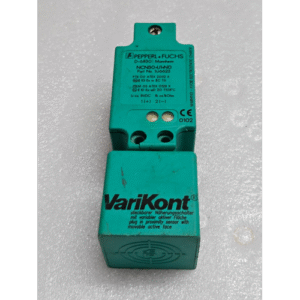

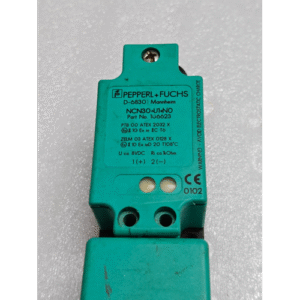

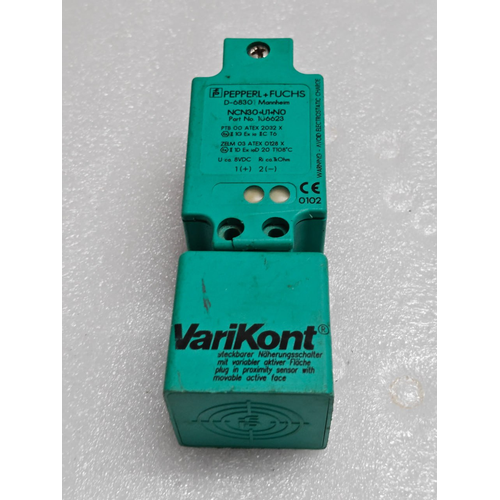

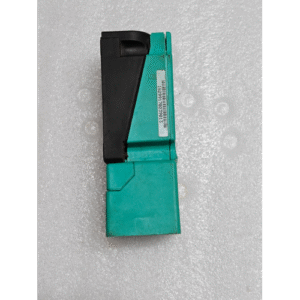

PEPPERL+FUCHS NCN30+U1+N0 D68301 MANNHEIM VARIKONT INDUCTIVE SENSOR 106623
- BRAND: PEPPERL+FUCHS
- MODEL: NCN30+U1+N0 D68301
- MANNHEIM VARIKONT
- INDUCTIVE SENSOR
- PART NO: 106623
- PTB 00 Atex 2032 X
- ll 1G Ex ia llC T6
- ZELM 03 Atex 0128 X
- ll 1D Ex iaD 20
- T108 C
- Uca: 8VDC
- Ri ca: 1kohm
- 18299170239013
The PEPPERL+FUCHS NCN30+U1+N0 is a robust and reliable inductive proximity sensor designed for demanding industrial automation applications. Part of the globally recognized VARIKONT series, this sensor is engineered in Mannheim, Germany, to the highest quality standards, ensuring long-term performance and durability in harsh environments.
This model is specifically configured for easy integration into modern PLC-based control systems, offering a long 30mm sensing distance to detect metallic objects without physical contact.
Key Features & Benefits:
-
Long Sensing Range: A generous 30mm (1.18″) switching distance allows for flexible mounting and detection of larger or misaligned metal targets.
-
4-Wire DC PNP (Sourcing) Output: Features both a Normally Open (NO) signal and a separate complementary Normally Closed (NC) signal output. This provides maximum wiring flexibility, allowing you to choose the logic that best fits your control system.
-
M30 x 1.5 Threaded Metal Housing:Â A standard industrial form factor that is easy to install and provides excellent mechanical strength and resistance to impact.
-
LED Status Indicator:Â A bright LED clearly displays the sensor’s operating status (power and switching state) for quick diagnostics and commissioning.
-
Short-Circuit and Reverse Polarity Protection:Â Built-in electronic protection safeguards the sensor from accidental wiring errors and potential damage from output short-circuits, minimizing downtime.
-
High Switching Frequency:Â Capable of detecting fast-moving objects, making it suitable for high-speed counting and positioning tasks.
-
IP67 Degree of Protection:Â Rated dust-tight and protected against temporary immersion in water, making it ideal for use in wet and dirty conditions commonly found in manufacturing and processing plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Pepperl+Fuchs / VARIKONT |
| Order Code / Part Number | NCN30+U1+N0 |
| Article Number | 106623 |
| Sensor Type | Inductive Proximity Sensor |
| Output Type | 4-Wire, DC PNP |
| Switch Function | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Sensing Range | 30 mm |
| Housing Material | Nickel-plated brass |
| Housing Size | M30 x 1.5 |
| Connection | 2m PVC Cable (PUR option likely available) |
| Supply Voltage | 10…30 V DC |
| Rated Operating Current | ≤ 200 mA |
| Protection Class | IP67 |
| Features | Short-Circuit Protected, Reverse Polarity Protection, LED Indicator |
Applications
This sensor is a versatile component used across various industries for:
-
Position Detection:Â Verifying the presence or absence of metal parts in machinery.
-
End-of-Stroke Sensing:Â Detecting the position of cylinders and actuators.
-
Counting and Sorting:Â Counting metal objects on conveyor belts.
-
Machine Tooling:Â Tool presence detection and pallet positioning.
-
Automation Systems:Â General-purpose object detection in assembly and packaging lines.
