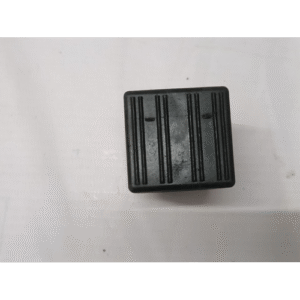

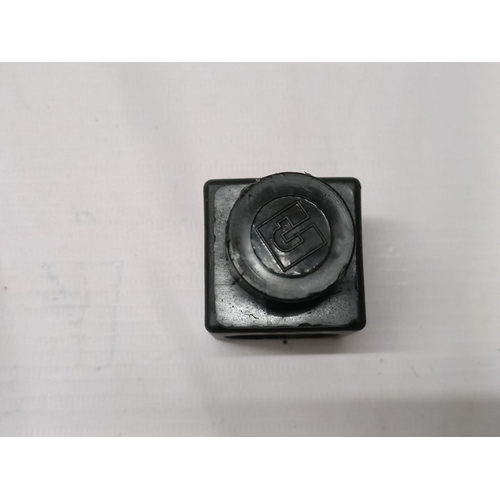

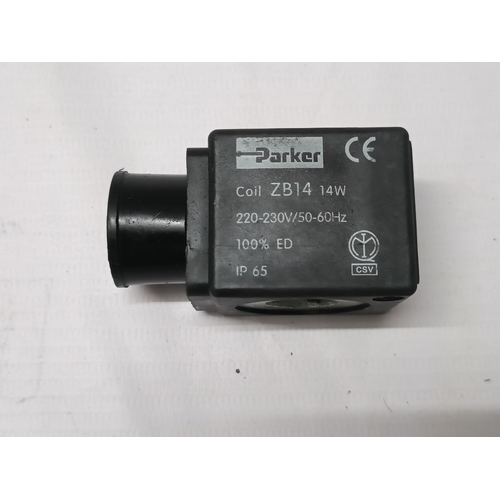

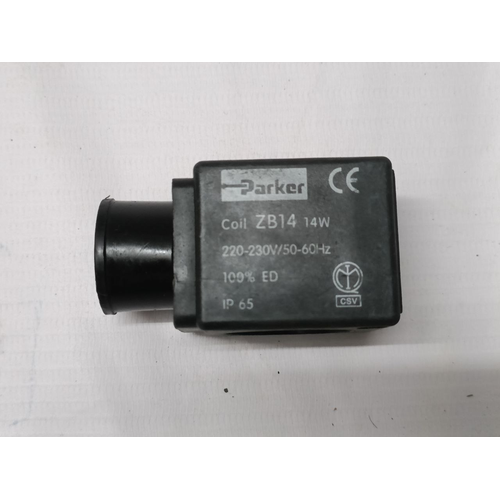

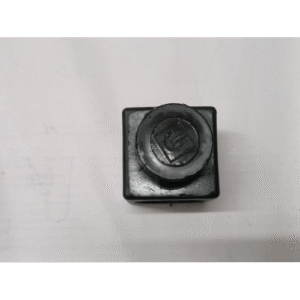

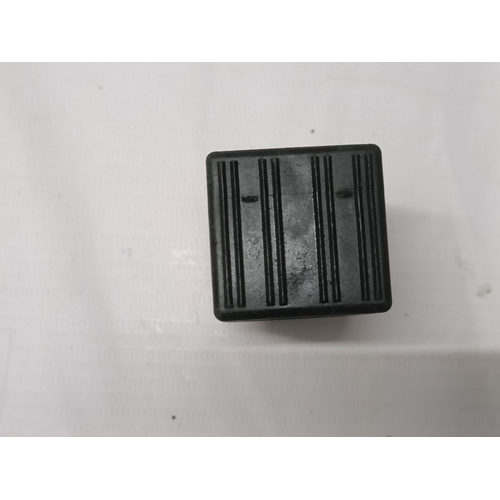

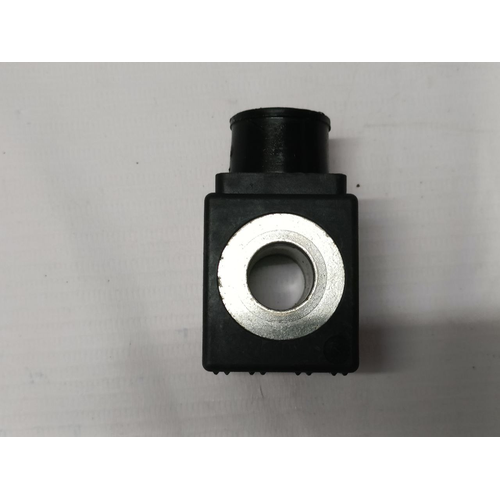

Product Description: PARKER Solenoid Coil (ZB14 Series)
This is a high-performance, interchangeable solenoid coil designed specifically for Parker ZB14 series solenoid valves. It is engineered to convert electrical energy into a magnetic field, which actuates the valve to start, stop, or regulate the flow of air, water, oil, or other neutral media in a fluid power system.
Key Features & Benefits:
-
Universal Compatibility:Â Designed as a direct replacement and accessory for Parker ZB14 base model solenoid valves, ensuring perfect fit and optimal performance.
-
Rugged Construction:Â Features a molded, encapsulated coil that is resistant to moisture, dust, oil, and mechanical impact. This robust design ensures long-term reliability in harsh industrial environments.
-
High Efficiency:Â Operates at 14W power consumption, providing a strong magnetic force while maintaining energy efficiency.
-
Continuous Duty (100% ED):Â Rated for 100% duty cycle, meaning it can be energized continuously without overheating or damage, making it suitable for demanding applications.
-
Environmental Protection:Â IP65 rating provides excellent protection against dust ingress and low-pressure water jets from any direction, allowing for use in wash-down areas or dusty conditions.
-
Thermal Protection:Â Many models include a built-in thermal overload protector (PTC) that automatically cuts power in case of overheating, preventing coil burnout and enhancing safety.
-
Standardized Connector:Â Typically comes with a DIN 43650 Form A (2-pin) connector, which is an industry standard for easy and secure electrical connection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Parker Hannifin |
| Compatible Valve Series | Parker ZB14 |
| Supply Voltage | 220V AC (50/60 Hz) –Â Confirm specific AC/DC and frequency |
| Power Consumption | 14 Watts |
| Duty Cycle | 100% (Continuous) |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP65 (Dust-tight and protected against water jets) |
| Enclosure Material | Molded Plastic (Typically Polyamide / Nylon) |
| Electrical Connection | DIN 43650 Form A (2-pin), standard |
| Optional Features | LED Indicator, Manual Override, Overload Protector (PTC) |
Intended Use & Applications
This coil is ideal for actuating Parker ZB14 solenoid valves in a wide range of industrial applications, including:
-
Industrial Automation:Â Machine tools, packaging machinery, assembly lines.
-
Process Control:Â Water treatment, chemical processing, food and beverage production.
-
Mobile Equipment:Â Control systems on agricultural, construction, and material handling machinery.
-
General Pneumatics & Hydraulics:Â For controlling cylinders, actuators, and motors.
