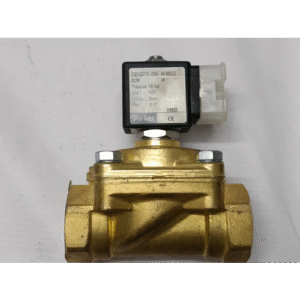

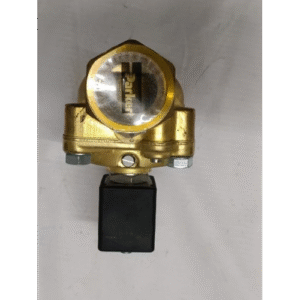

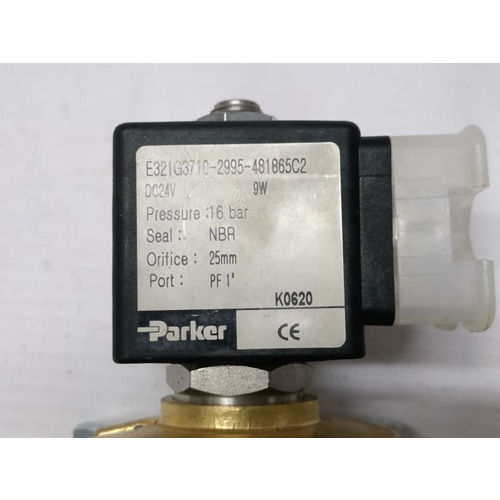

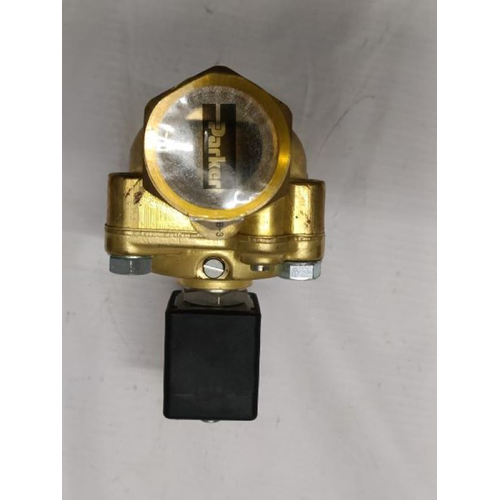

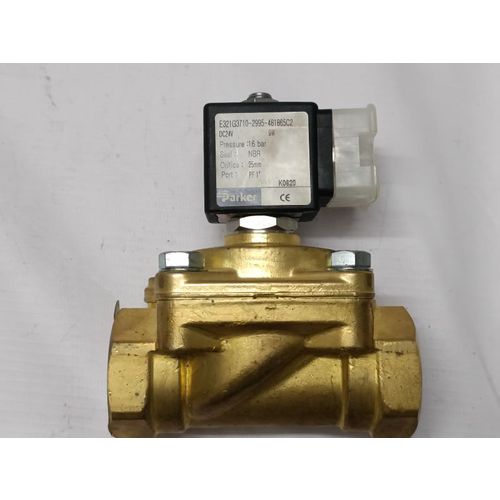

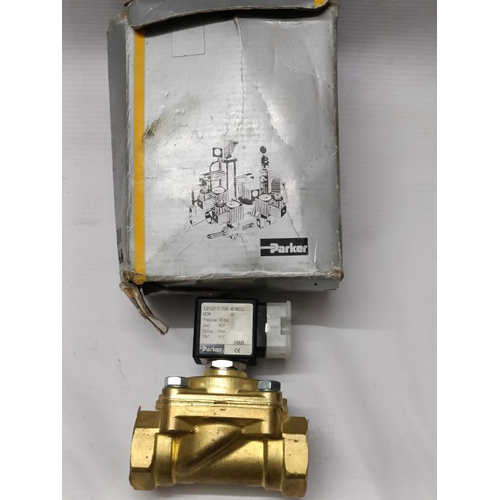

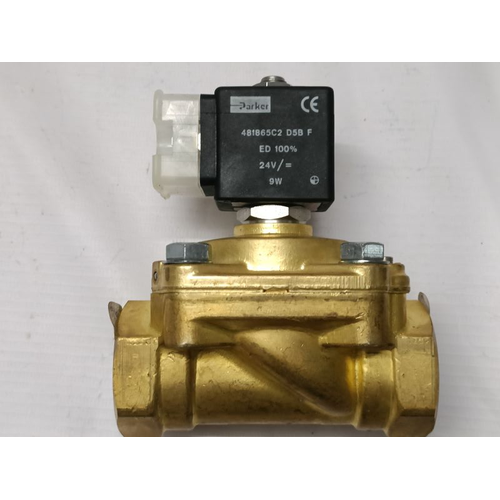

Parker 2-Way Normally Closed, 1″ Solenoid Valves | #E321G3710-2995-481865C2

• Body Material: Brass
• Voltage (V): 24VDC
• Power (Watts): 8
• Orifice 1 Size (mm): 25
• Coil Type: Coil with screw terminal, 40 mm
• Flow Factor 1 (l/min): 180
• Seal Material: NBR
• Product Series: General Purpose Solenoid Valves
• Valve Type: 2-Way
• Function: Normally Closed
• Port Size: 1 inch
• Input Voltage: 24VDC
• Body Material: Brass
• Seal Material: NBR
• Orifice 1 Size: 25 mm
• Flow Coefficient 1: 10.8 m3/hour, 180 L/min
• Power Consumption: 8 W
• Coil Type: Coil with screw terminal, 40 mm
• Maximum Pressure Differential: 16 bar
• Minimum Pressure Differential: 0.3 bar
• Number of Ports: 2
• Actuation Type: Pilot Operated
• Media: Fluids Air, Fluids Oil
• Port Type: BSP
• Orifice 2 Size: n/a
• Flow Coefficient 2: n/a
• Minimum Fluid Temperature: n/a
• Maximum Fluid Temperature: n/a
• Coil Specifications Met: IP44

Parker 2-Way Normally Closed Solenoid Valve (E321G3710-2995-481865C2)

Ensure precise and reliable fluid control in your industrial applications with the Parker E321G3710 Solenoid Valve. This high-quality, 2-way, normally closed valve is engineered for durability and consistent performance, making it a trusted component for automation, process control, and OEM machinery.

Engineered with a robust brass body and a versatile, energy-efficient solenoid, this valve provides secure shut-off for a wide range of media. When de-energized, the valve remains securely closed, preventing flow and ensuring system safety.

Key Features & Benefits:

• 2-Way, Normally Closed (NC) Operation: The default closed position ensures flow is blocked when the solenoid is not powered, enhancing system safety. Energizing the coil opens the valve to allow media through.

• Robust Brass Construction: The brass body offers excellent corrosion resistance and durability for demanding industrial environments, ensuring a long service life.

• Versatile Media Compatibility: Designed to handle a wide range of media including Compressed Air, Water, Light Hydraulic Oils, and Inert Gases.

• Wide Voltage Range: Available in multiple coil voltages (e.g., 12V DC, 24V DC/AC, 120V AC, 240V AC) to fit your specific control cabinet requirements. (Check product code for specific voltage).

• Standard 1/4″ NPT Ports: Easy integration into existing pneumatic and fluidic systems with common North American piping standards.

• Compact and Efficient Design: Saves space in control panels and machinery while providing powerful and reliable actuation.

• Parker Reliability: Backed by Parker Hannifin’s global reputation for quality, precision, and performance in motion and control technologies.

Technical Specifications:

• Manufacturer: Parker

• Model: E321G3710-2995-481865C2

• Type: 2-Way, Single Solenoid

• Operation: Normally Closed

• Body Material: Brass

• Seal Material: NBR (Nitrile Rubber)

• Orifice Size: Refer to manufacturer datasheet for specific CV value.

• Port Size: 1/4″ NPT (F)

• Voltage: Varies by specific code (e.g., 12 VDC, 24 VDC, 120 VAC, 240 VAC). Please verify the suffix in the full part number.

• Pressure Range: 0 to 150 PSI (Consult datasheet for media-specific ratings)

• Temperature Range: -20°F to +180°F (-29°C to +82°C)

Common Applications:

This versatile solenoid valve is ideal for use in:

• Industrial Automation Systems

• Pneumatic Control Circuits

• Water Dispensing and Irrigation Systems

• Lubrication Systems

• Medical and Dental Equipment

• Packaging Machinery

• OEM Manufacturing Equipment

Why Choose This Parker Solenoid Valve?

The Parker E321G3710 series represents the perfect balance of performance, reliability, and value. It is designed to meet the rigorous demands of daily industrial use, minimizing downtime and maintenance costs.
