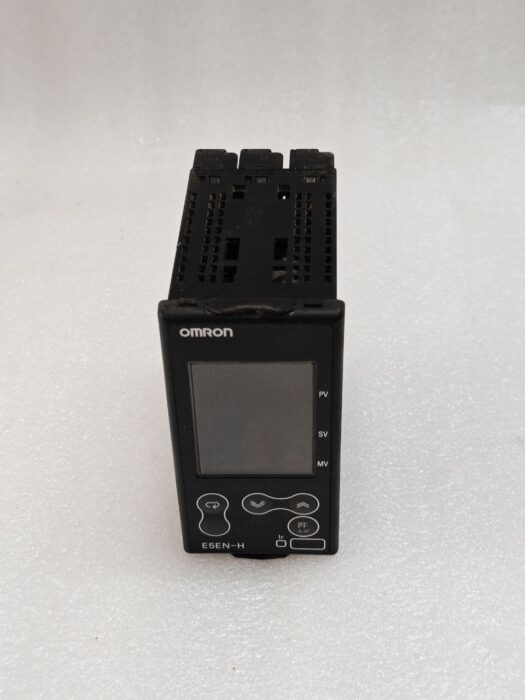

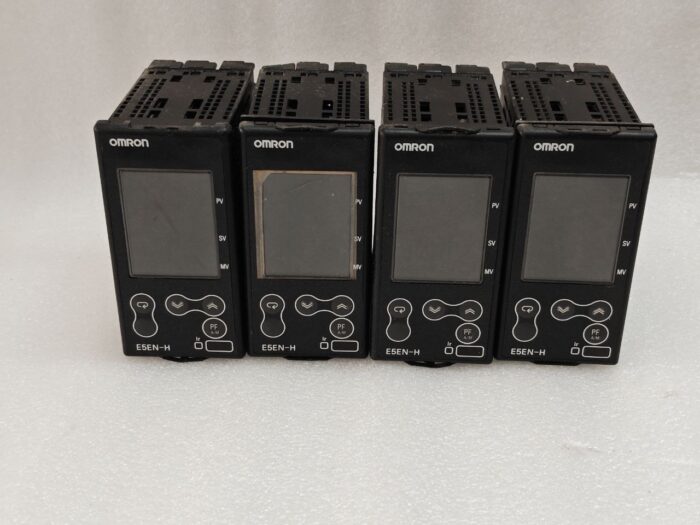

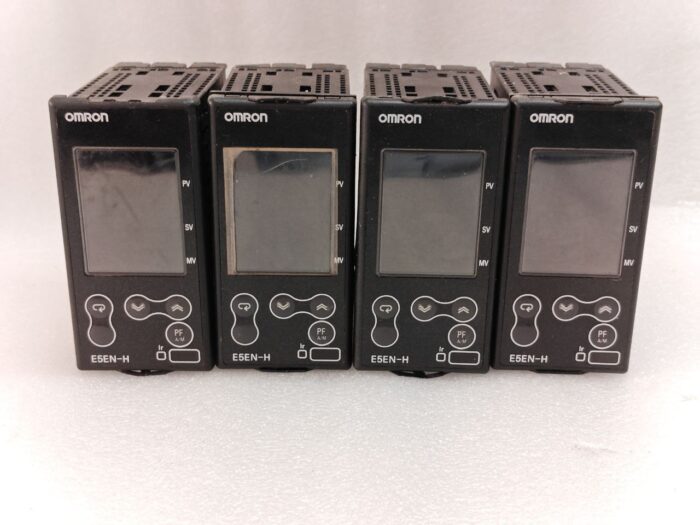

Omron E5EN-HAA2HH03B – FLK DIGITAL CONTROLLER N1875 L NO 2184MR 12:29
$179.99
4 in stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
Omron E5EN-HAA2HH03B – FLK DIGITAL CONTROLLER N1875 L NO 2184MR
| Power supply voltage | No D in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC | |
|---|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage | |
| Power consumption | 100 to 240 VAC: 12 VA 24 VAC/VDC: 8.5 VA (24 VAC)/5.5 W (24 VDC) | |
| Sensor input | Any of the following can be selected. Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V | |
| Input impedance | Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N.) | |
| Control method | ON/OFF control or 2-PID control (with auto-tuning) | |
| Control output | Relay output | Output Unit (Install the Output Unit (sold separately).) |
| Voltage output (for driving SSR) | ||
| Current output | ||
| Linear voltage output | ||
| Relay output for position- proportional control | Relay output: Open and close: SPST-NO, 250 VAC, 1 A (including in-rush current), electrical life: 100,000 operations min. Potentiometer input: Must be between 100 Ω and 2.5 kΩ for maximum open position. | |
| Auxiliary output | Number of outputs | 2 or 3 max. |
| Output specifications | Relay output: SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA | |
| Event input | Number of outputs | 2 or 4 (with an E53-AKB) |
| External contact input specifications | Contact input: ON: 1 kΩ max., OFF: 100 kΩ min. | |
| Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. | ||
| Current flow: Approx. 7 mA per contact | ||
| Logic operations | Number of operations | 8 max. |
| Operations | • Logic operation: Any of the following four patterns can be selected. The input status may be inverted. (A and B) or (C and D), (A or C) and (B or D), A or B or C or D, A and B and C and D (A, B, C, and D are four inputs.) • Delay: ON delay or OFF delay for the results of the logic operation given above. Setting time: 0 to 9999 s or 0 to 9999 min • Output inversion: Possible | |
| Output | One work bit per operation | |
| Work bit assignment | Any of The following can be assigned to up to eight work bits (logic operation results): Event input operations, auxiliary outputs, or control outputs. | |
| Transfer outputs | Number of outputs | 1 max. (Depends on model. Models with transfer output (F in model number) |
| Output specifications | Current output: 4 to 20 mA DC, Load: 600 Ω max., Resolution at 4 to 20 mA: Approx. 10,000 | |
| RSP input | Number of inputs | 1 |
| Signal type | Current input: 4 to 20 mA (input impedance: 150 Ω ±10%) | |
| Analog input scaling | Scaling of signal to engineering units (EU) -19,999 to 30,000 (display: 30,000 max.) | |
| Accuracy | (±0.2% of FS) ±1 digit max. | |
| Input sampling period | 60 ms | |
| Setting method | Set digitally using keys on the front panel or by using the RSP input. | |
| Indication method | 11-segment digital display and individual indicators (7-segments displays also possible) Character height: E5AN-H: PV: 15.8 mm, SV: 9.5 mm, MV: 6.8 mm; E5EN-H: PV: 11.8 mm, SV: 8.1 mm, MV: 5.8 mm Content of 3-level display: PV/SV/MV, PV/SV/Bank No., or soak time remain Number of digits: 5 for PV and SV, 4 for MV | |
| Bank switching | Supported (number of banks: 8) Local SP, alarm settings, PID sets (PID constants, MV upper limit, MV lower limit, etc.) | |
| Other functions | Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout detection, 40% AT, 100% AT, MV limiter, input digital filter, self-tuning, temperature input shift, run/stop, protection functions, control output ON/OFF counter, extraction of square root, MV change rate limit, PV/SV status display, logic operations, automatic cooling coefficient adjustment | |
| Ambient operating temperature | -10 to 55°C (with no condensation or icing), for 3-year warranty: -10 to 50°C | |
| Ambient operating humidity | 25% to 85% | |
| Storage temperature | -25 to 65°C (with no condensation or icing) | |
PROCESS CONTROL EQUIPMENT 3NRS
LOT NO – 2184MR
MANUFACTURER – OMRON CORPORATION
MADE IN CHINA
Additional information
| Product Conditioned | USED |
|---|---|
| BRAND | Omron |
| MODEL | E5EN-HAA2HH03B FLK |
| MPN | E5EN-HAA2HH03B FLK |
| TYPE | Microprocessor Controller |
| Country/Region of Manufacture | China |
Brand
OMRON
