OMRON E5EC-RR2ADM-804 TEMPERATURE DIGITAL CONTROLLER 50/60HZ, 8.3A 10:58

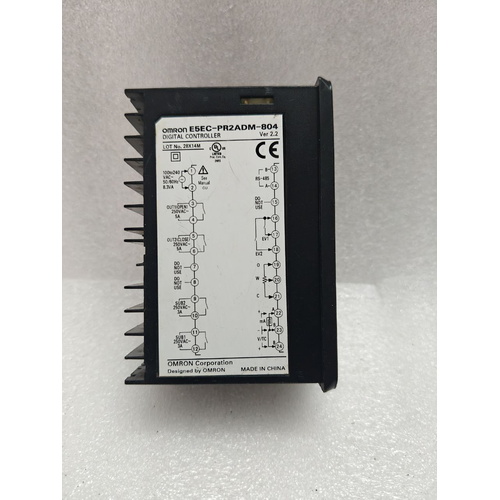

• OMRON DIGITAL CONTROLLER
• BRAND: OMRON
• MODEL NO: E5EC-PR2ADM-804
• VERSION: 2.2
• 100 TO 240 VAC, 50/60HZ, 8.3VA
• LOT NO: 28X14M
• MANUFACTURER: OMRON CORPORATION
• DESIGN BY OMRON
• MADE IN CHINA

The Omron E5EC-RR2ADM-804 is a high-performance, 1/16 DIN digital temperature controller designed for exceptional accuracy and reliability. Engineered by Omron, a global leader in industrial automation, this controller is the ideal solution for a wide range of heating, cooling, and process control applications.

With its universal 100-240VAC power supply and a robust 8.3A relay output, it can directly control significant electrical loads like heaters, solenoids, and small motors. The clear, easy-to-read display and intuitive operation make setup and monitoring straightforward, reducing downtime and improving process efficiency.

Key Features & Benefits:

• High Accuracy & Advanced Control: Features advanced PID control with auto-tuning and adaptive control (AT/ATC) to maintain your desired setpoint with minimal deviation, ensuring consistent product quality and energy savings.

• Universal Power Supply (100-240VAC, 50/60Hz): Can be installed in virtually any location without the need for a separate power transformer, simplifying inventory and global deployment.

• High-Capacity Relay Output (8.3A): The built-in SPDT relay is powerful enough to directly switch heaters and other loads up to 8.3A at 250VAC, eliminating the need for an external contactor in many applications.

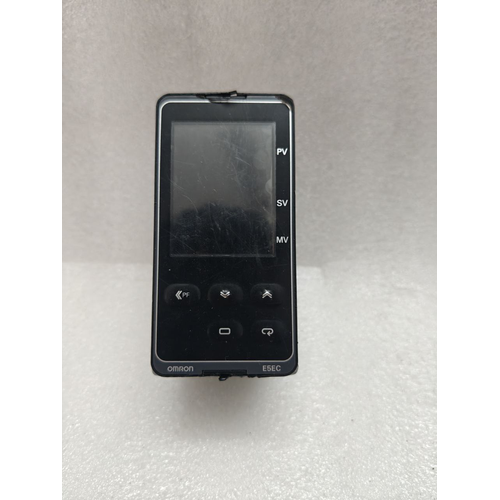

• Dual Digital Display: The large, bright LED display shows both the Process Value (PV) and Setpoint Value (SV) simultaneously, providing at-a-glance status monitoring.

• Ramp/Soak Functionality: Program complex multi-segment temperature profiles for processes like heat treatment, plastic molding, or environmental chambers, enabling automated and repeatable cycles.

• R-SENS Input: Compatible with a wide range of thermocouple (R, S, B, K, J, E, T, L, U, N, PLII, W5Re/W26Re) and RTD (Pt100, JPt100) sensors, offering maximum flexibility.

• Compact 1/16 DIN Form Factor: Saves valuable panel space while delivering the functionality of much larger units.

• CE Certified: Meets European safety, health, and environmental requirements.

Technical Specifications at a Glance:

• Model: E5EC-RR2ADM-804

• Power Supply: 100 to 240 VAC, 50/60 Hz

• Output Type: Relay (SPDT)

• Output Capacity: 8.3A @ 250VAC (Resistive Load)

• Input Type: R-SENS (Thermocouple R/S/B/K/J/E/T/L/U/N/PLII/WRe5-26 & RTD Pt100/JPt100)

• Control Method: PID with Auto-Tuning (AT) and Adaptive Control (ATC)

• Display: Dual 4-digit LED (PV & SV)

• Panel Cutout: 45.8mm x 45.8mm (1/16 DIN)

• Key Features: Ramp/Soak, Heater Break Alarm, Event Input, Communication Options (via optional module)

Common Applications:

• Industrial Ovens & Furnaces

• Plastic Processing Machinery (Injection Molding, Extruders)

• Packaging Machinery

• Food Processing and Cooking Equipment

• Environmental Test Chambers

• Semiconductor Manufacturing Equipment

• Water Temperature Control Systems
