Printing Method Serial Impact Dot Matrix Method
Print Head 24 Pin
Dot Wire Diameter 0.2 mm
Print Direction Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution Max. 360(H) x 360(V) dpi
Print Speed Utility : 260 cps, Letter Quality : 87 cps
Line Feed Pitch 4.23mm (1/6 “), 3.18mm (1/8 “), n x 0.42mm(n/60 “) (n=0-127), n x 0.35mm(n/72 “) (n=1-85), n x 0.14mm(n/180 “) (n=0-255), n x 0.12mm(n/216 “) (n=0-255), n x 0.07mm(n/360 “) (n=0-255)
Feed Speed 4.5 inches per second
Feed Rate 4.23mm(1/6”) line feed: Approx. 46 milliseconds
Paper Route Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand
Character Pitch Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width 80 characters/line at ANK 10 cpi
Interface IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)
Emulation ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation
Supported OS (Click here for latest OS) Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer Max. 128KB
Resident Font Utility, LQ Gothic, LQ Roman, LQ Courier, LQ Swiss, LQ Prestige, LQ Orator, LQ Swiss Bold, Scalable Roman, Scalable Courier, Scalable Swiss
Font Style Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
1-D Barcode UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
Paper Type Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment Manual
Paper Size Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Single part paper: Width 99.1-216.0mm x Length 99.1-356.0mm
Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight Continuous paper : 45 – 90 gsm
Single part paper : 45 – 90 gsm
Multi part paper : 35 – 40 gsm
Copy Capability Normal print mode: original + 4sheets(Total Thickness < 0.36mm)
Dimensions(WxDxH) 398 x 345 x 147 mm
Operating Environment Operating: 5 – 35 °C, 20 – 80 %RH
Storage: -10 – 50 °C, 5 – 95 %RH
No condensation

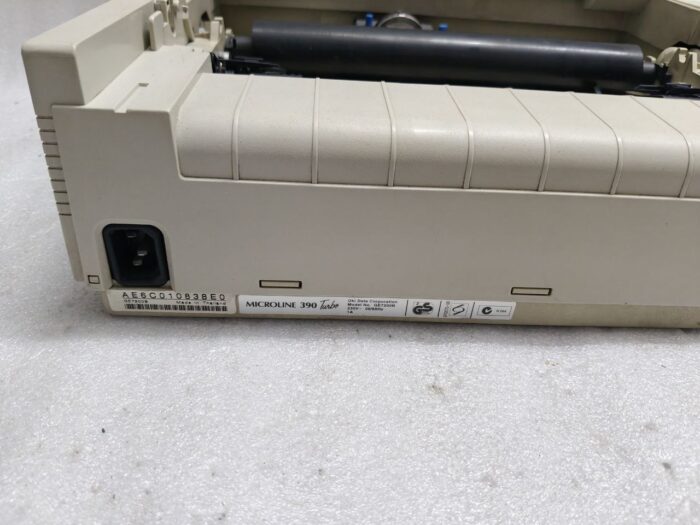

Power Source Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 35W)
Power Save: < 1.7W
Noise Level Operating :Approx. 57 dBA

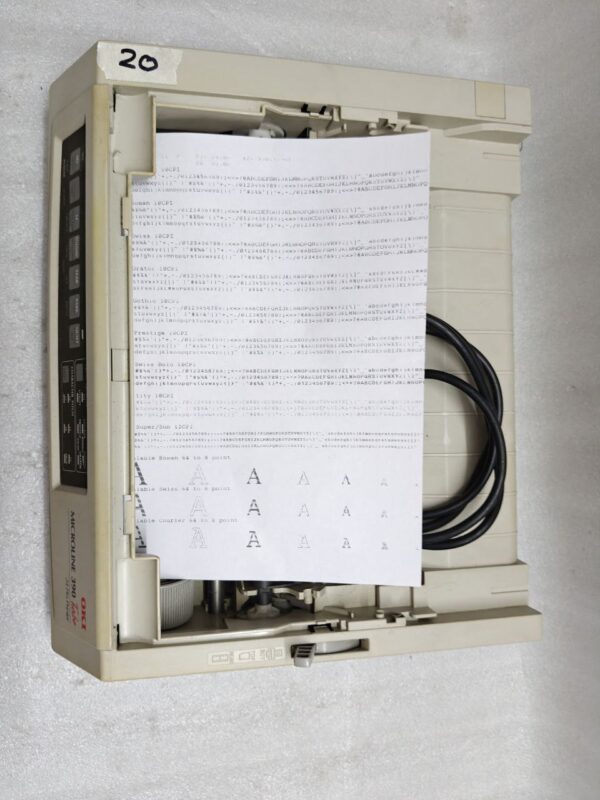

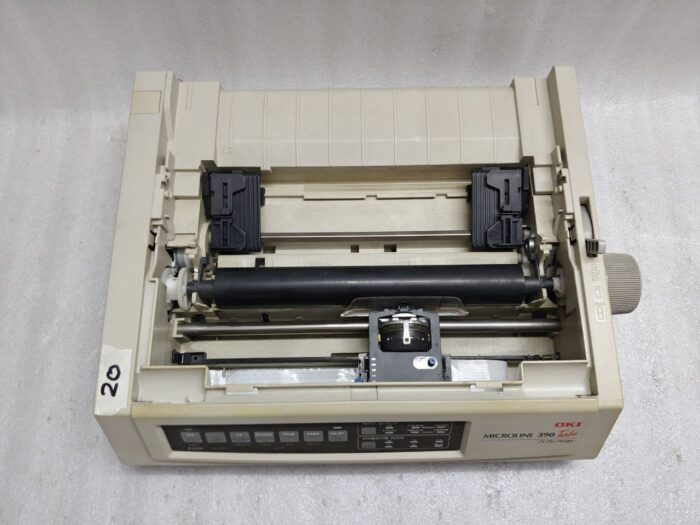

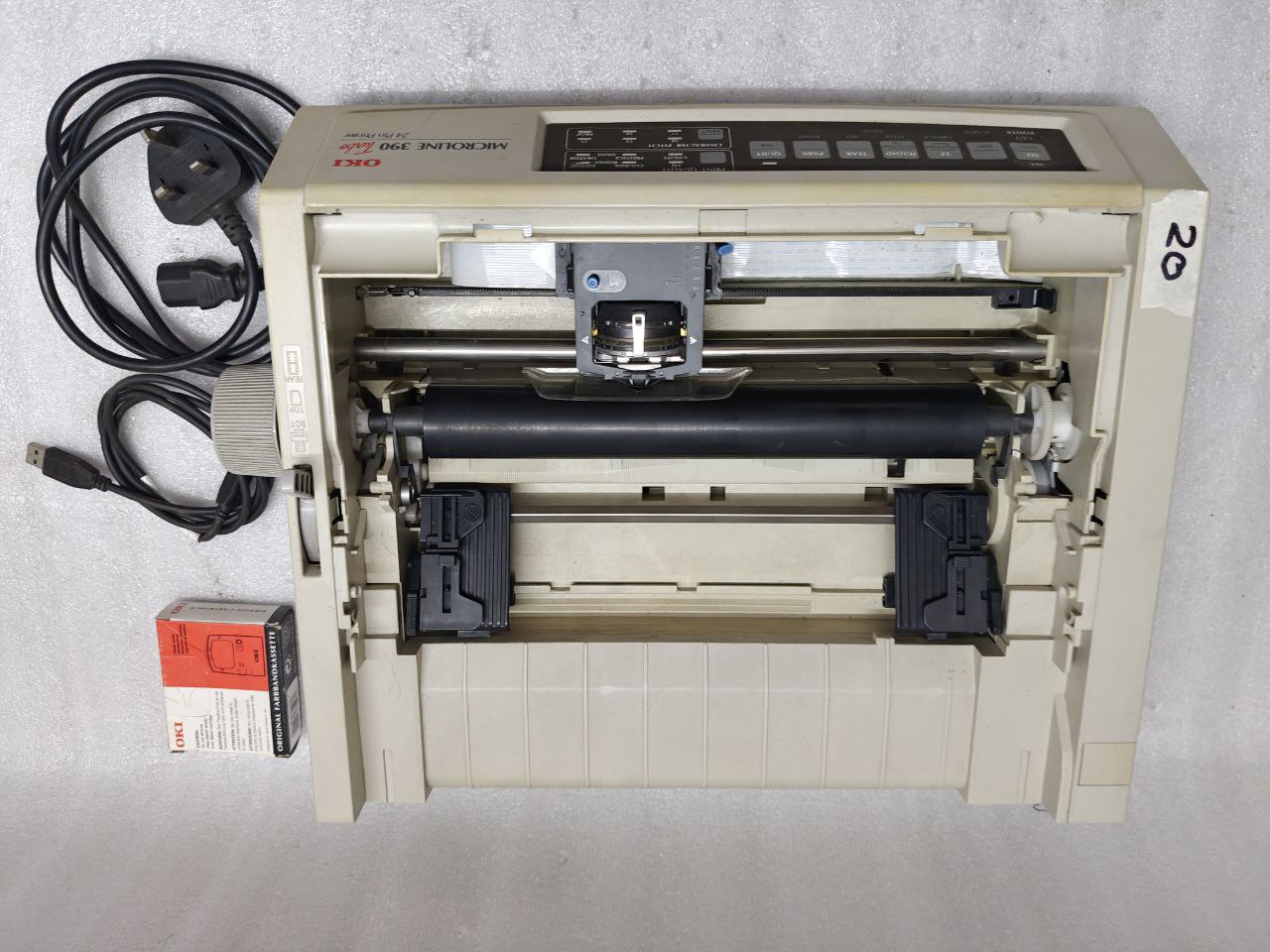

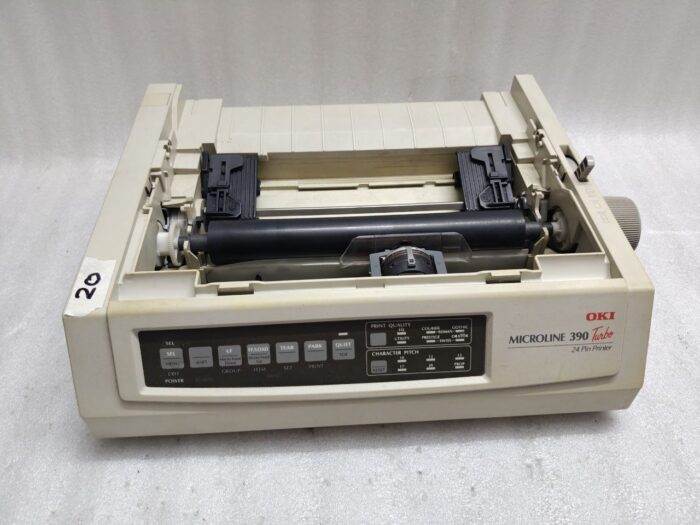

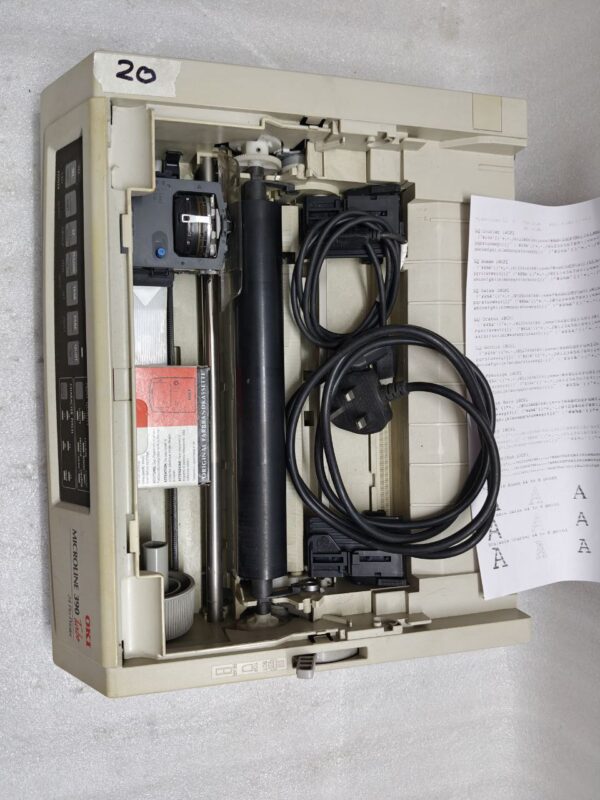

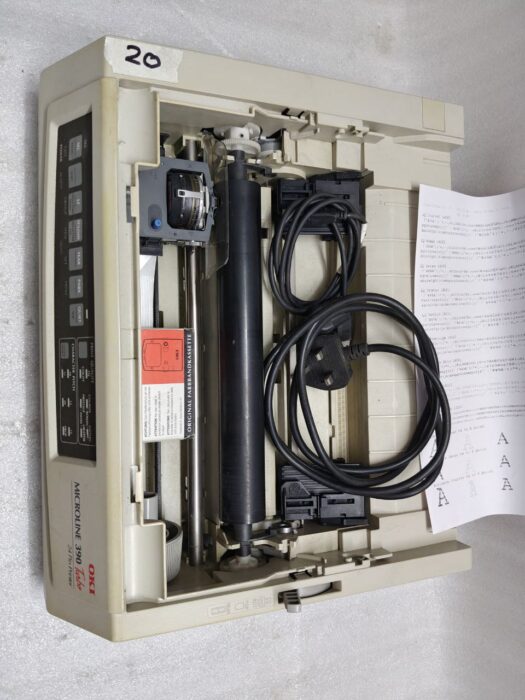

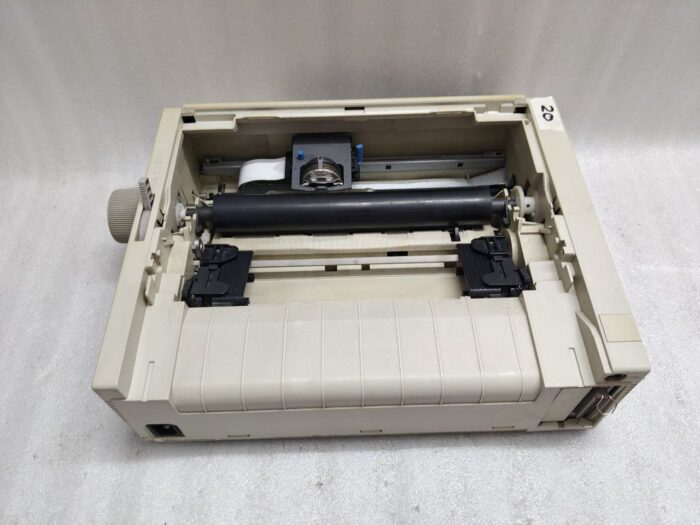

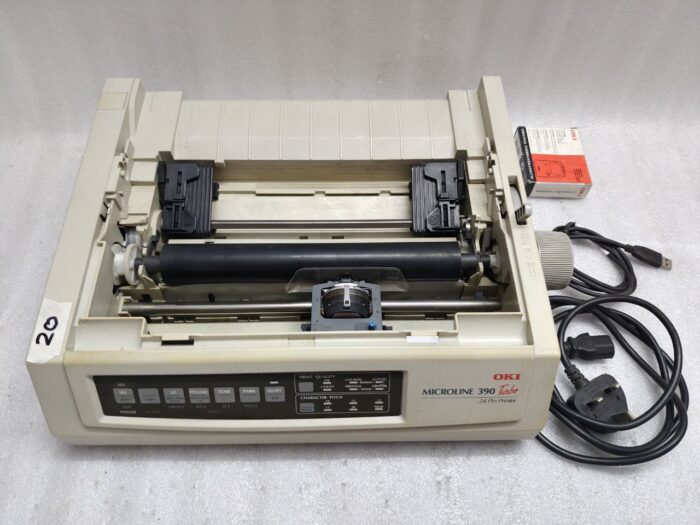

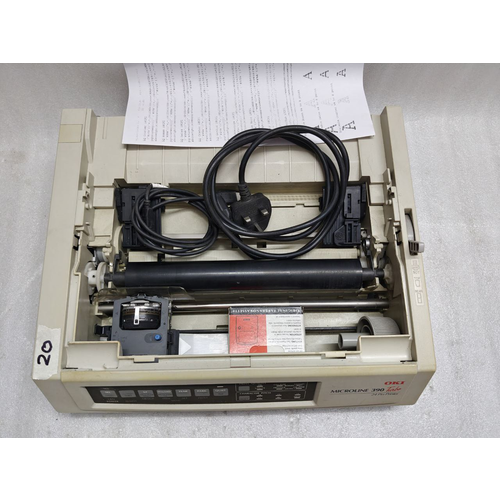

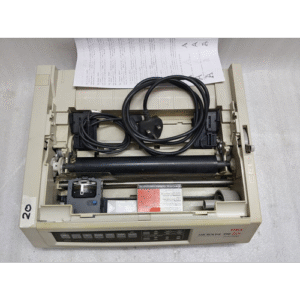

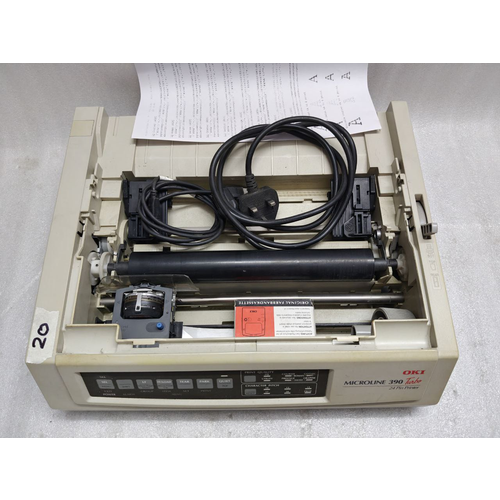

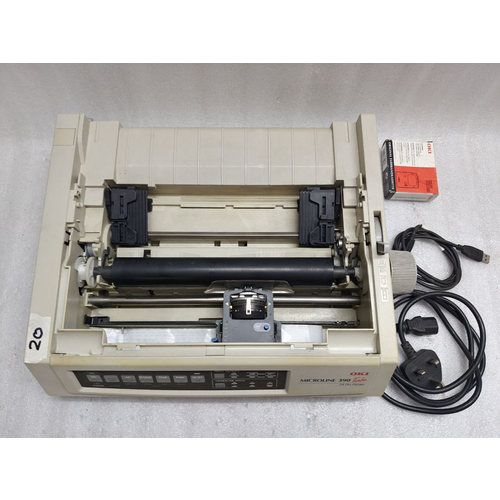

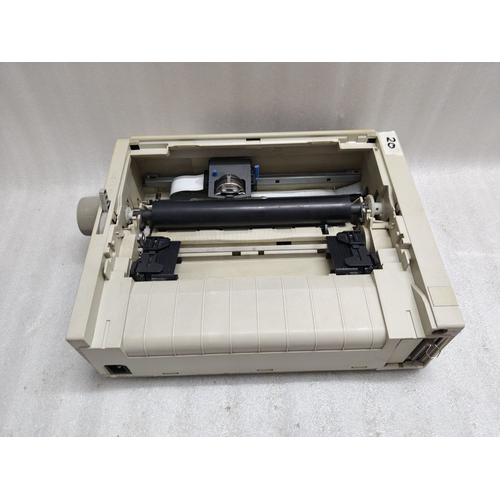

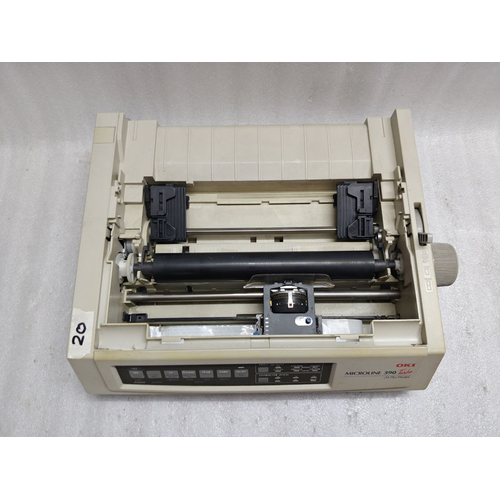

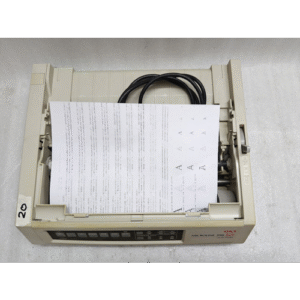

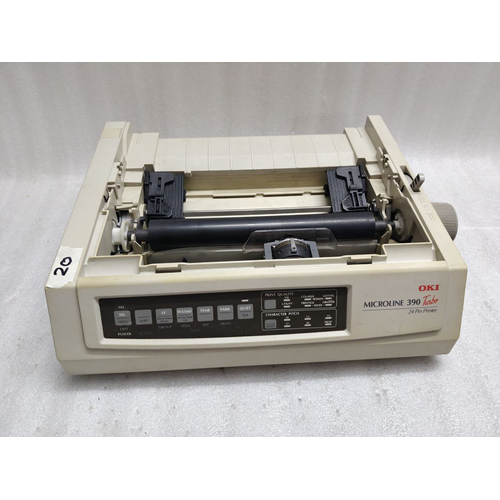

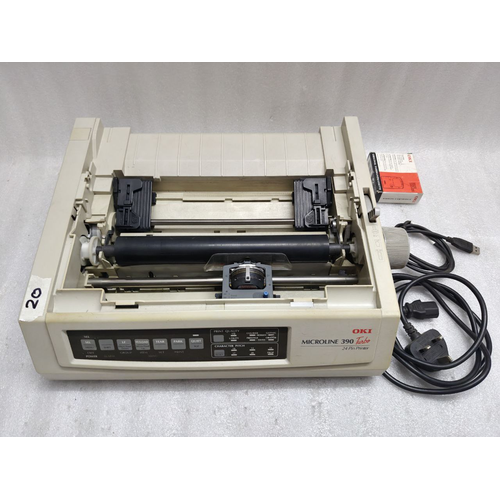

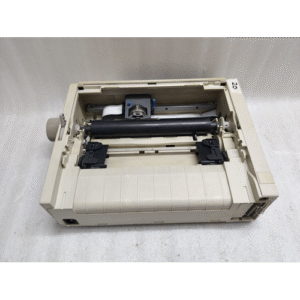

The Oki MICROLINE 390 TURBO is a robust and reliable 24-pin dot matrix printer built for heavy-duty business applications. Operating on 220V, it delivers exceptional performance for printing multi-part forms, invoices, shipping labels, and continuous stationery. Renowned for its durability and low cost-of-operation, the 390 TURBO is the perfect workhorse for logistics, warehousing, manufacturing, and accounting departments where reliability and carbon-copy printing are essential.
Key Features & Benefits
-
High-Speed, High-Volume Printing: The “TURBO” name isn’t just for show. This printer handles large print jobs efficiently, significantly reducing wait times and boosting office productivity.
-
Superior Print Quality: Featuring a 24-pin print head, it produces sharper, denser, and more legible characters compared to 9-pin models, making even fine text on documents easy to read.
-
Perfect for Multi-Part Forms: Effortlessly prints through 1 original + up to 5 carbon copies, making it indispensable for invoices, purchase orders, delivery notes, and other business forms requiring duplicates.
-
Exceptional Reliability & Durability: Oki is renowned for building printers that last. The MICROLINE 390 TURBO is engineered for a long service life in demanding environments, minimizing downtime.
-
Low Cost of Operation: Uses long-lasting, low-cost ribbon cartridges, providing a very low cost-per-page, which is crucial for high-volume printing tasks.
-
Versatile Paper Handling: Supports tractor-fed continuous paper, single-sheet feeding, and various form sizes, offering flexibility for a wide range of business documents.
-

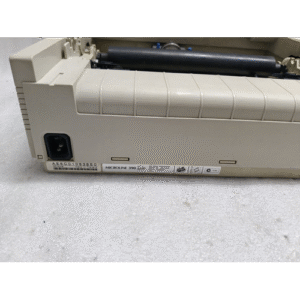

220V Operation: Designed for regions with 220V power standards, ensuring safe and optimal performance without the need for a voltage converter.
