Printing Method Serial Impact Dot Matrix Method
Print Head 24 Pin
Dot Wire Diameter 0.2 mm
Print Direction Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution Max. 360(H) x 360(V) dpi
Print Speed Utility : 260 cps, Letter Quality : 87 cps
Line Feed Pitch 4.23mm (1/6 “), 3.18mm (1/8 “), n x 0.42mm(n/60 “) (n=0-127), n x 0.35mm(n/72 “) (n=1-85), n x 0.14mm(n/180 “) (n=0-255), n x 0.12mm(n/216 “) (n=0-255), n x 0.07mm(n/360 “) (n=0-255)
Feed Speed 4.5 inches per second
Feed Rate 4.23mm(1/6”) line feed: Approx. 46 milliseconds
Paper Route Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand
Character Pitch Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width 80 characters/line at ANK 10 cpi
Interface IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)
Emulation ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation
Supported OS (Click here for latest OS) Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer Max. 128KB
Resident Font Utility, LQ Gothic, LQ Roman, LQ Courier, LQ Swiss, LQ Prestige, LQ Orator, LQ Swiss Bold, Scalable Roman, Scalable Courier, Scalable Swiss
Font Style Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
1-D Barcode UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
Paper Type Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment Manual
Paper Size Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Single part paper: Width 99.1-216.0mm x Length 99.1-356.0mm
Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight Continuous paper : 45 – 90 gsm
Single part paper : 45 – 90 gsm
Multi part paper : 35 – 40 gsm
Copy Capability Normal print mode: original + 4sheets(Total Thickness < 0.36mm)
Dimensions(WxDxH) 398 x 345 x 147 mm
Operating Environment Operating: 5 – 35 °C, 20 – 80 %RH
Storage: -10 – 50 °C, 5 – 95 %RH
No condensation
Power Source Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 35W)
Power Save: < 1.7W
Noise Level Operating :Approx. 57 dBA

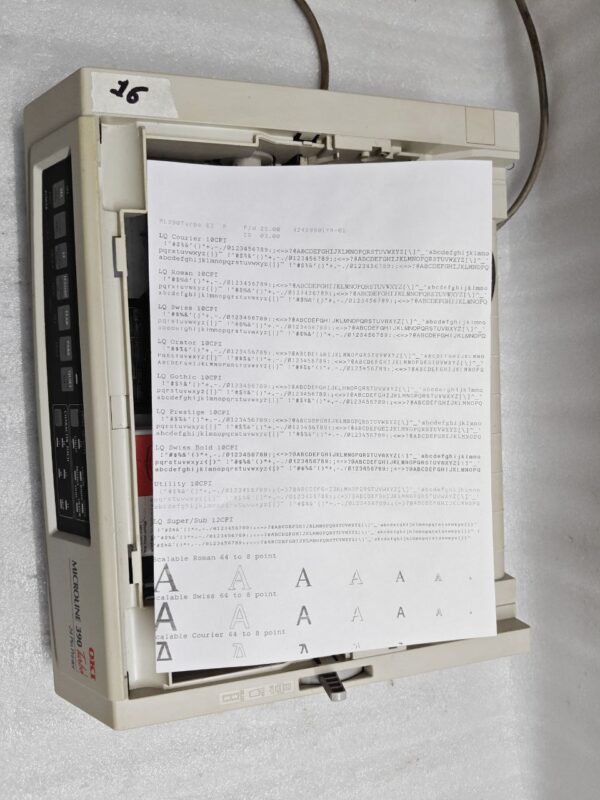

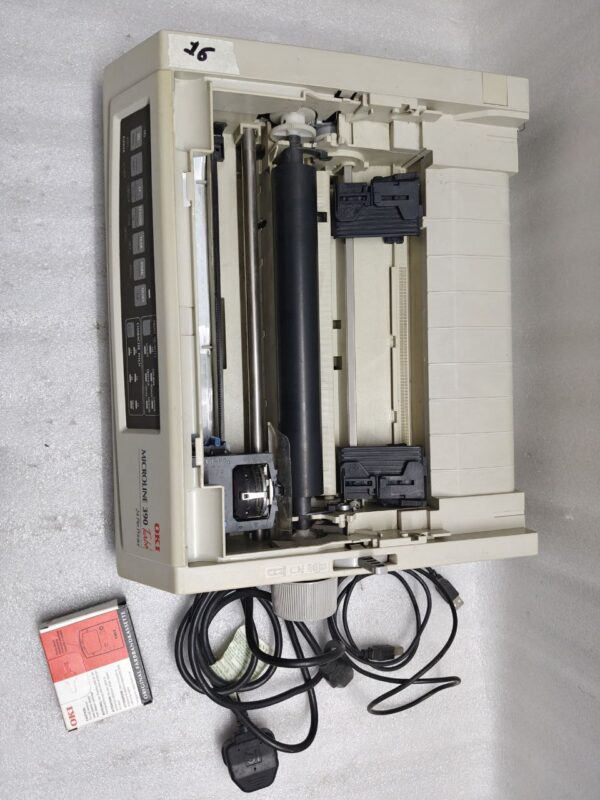

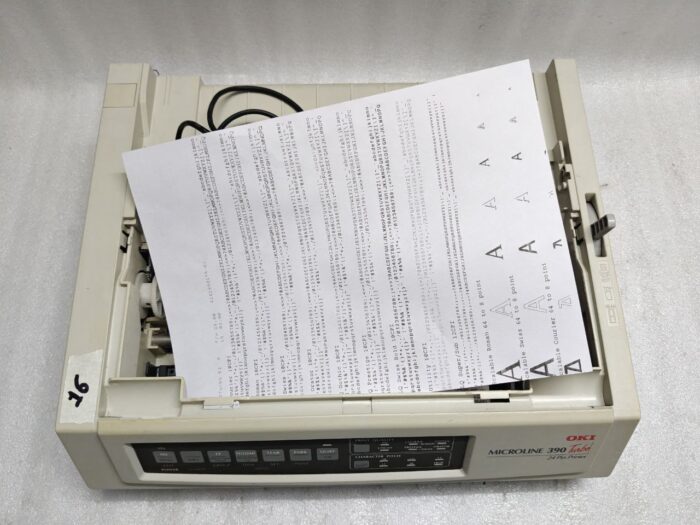

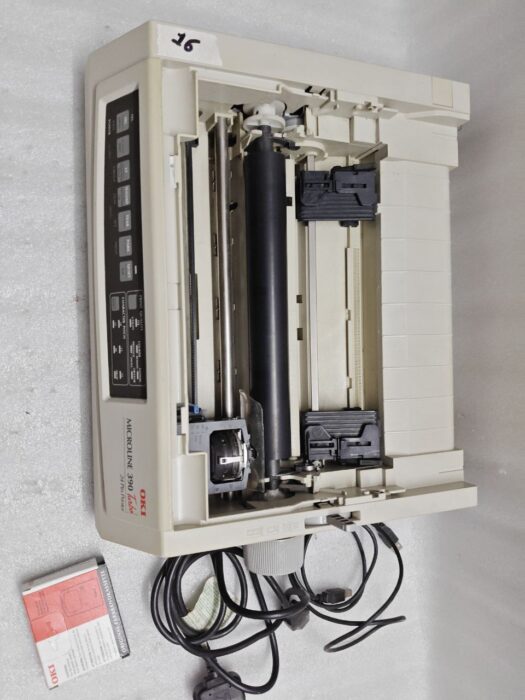

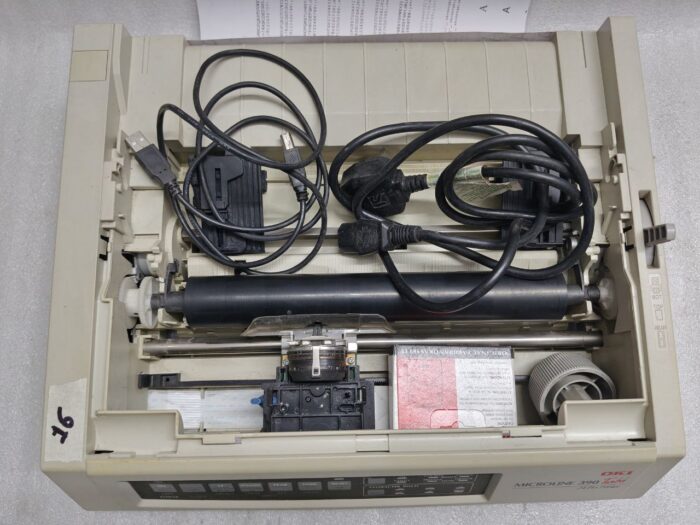

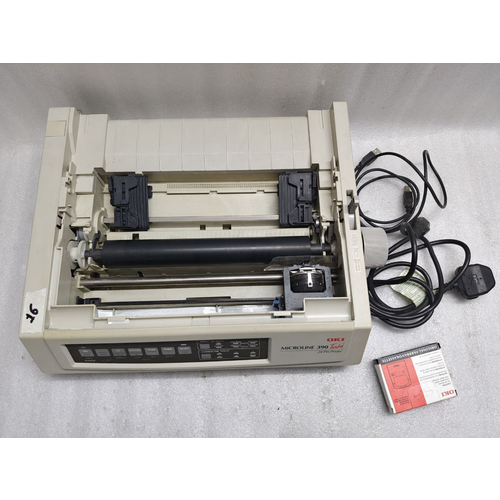

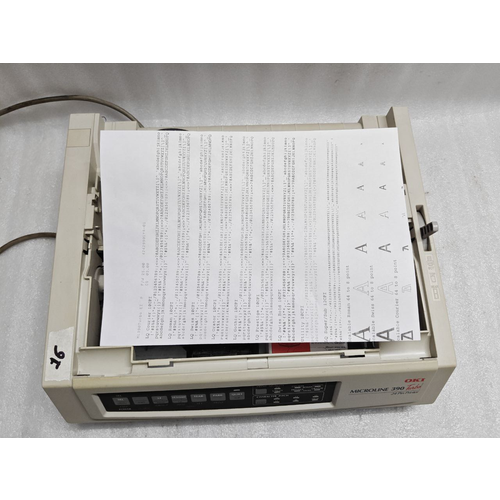

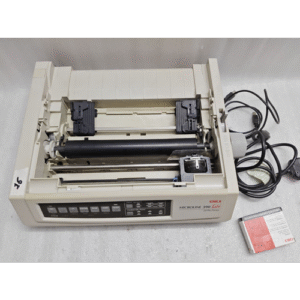

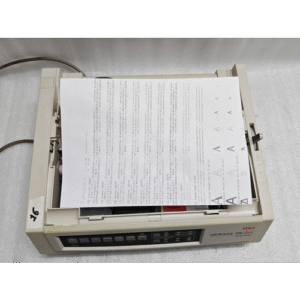

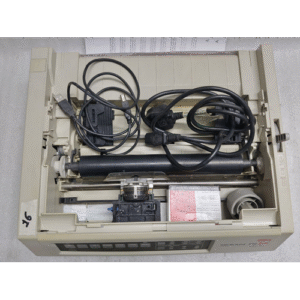

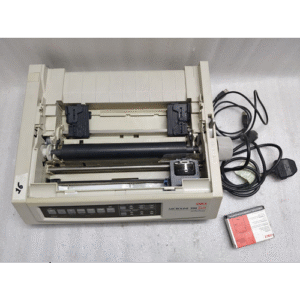

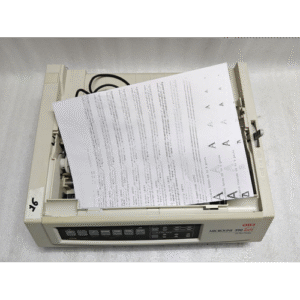

The Oki MICROLINE 390 TURBO is a robust and reliable 24-pin dot matrix printer built for high-volume, continuous business printing. Engineered for durability and exceptional value, this workhorse printer delivers crisp, carbon-copy documents with lightning-fast speed. It is the ideal solution for data logging, multi-part forms, invoices, and other demanding business applications where impact printing is essential. Designed for 220V power systems.
Key Features & Selling Points
-
High-Speed 24-Pin Printing: Achieves superior print quality at high speeds, significantly boosting productivity for data-intensive tasks.
-
Exceptional Reliability: Built with Oki’s renowned durability to withstand the rigors of all-day, high-volume printing with minimal downtime.
-
Perfect for Multi-Part Forms: Effortlessly prints through up to 6 copies (Original + 5 carbon copies), making it ideal for invoices, purchase orders, and shipping manifests.
-
Tractor & Friction Feed: Versatile paper handling supports continuous fan-fold paper via the tractor feed and single sheets with the friction feed, ensuring compatibility with all your business stationery.
-
Wide Carriage Compatibility (Optional): Available in both standard and wide carriage versions to accommodate various paper sizes, from standard documents to large spreadsheets.
-
220V Operation: Designed for regions with 220V electrical standards, ensuring safe and optimal performance.
Detailed Technical Specifications
-
Print Method: 24-wire dot matrix impact printing
-
Print Speed: High-speed operation (exact CPS will vary by mode)
-
Print Direction: Logic Seeking Bi-Directional printing
-
Paper Handling:
-
Tractor Feed: For continuous fan-fold paper.
-
Friction Feed: For single-sheet cut paper.
-
Paper Width: Standard carriage; wide carriage model available.
-
Copy Capability: Original + 5 copies
-
Interface: Standard Centronics parallel interface
-
Character Sets: Multiple international character sets
-
Fonts: Built-in resident fonts
-
Voltage: 220V
-
Emulations: IBM Proprinter III, Epson LQ-1050 (ensures broad software compatibility)
