Printing Method Serial Impact Dot Matrix Method
Print Head 24 Pin
Dot Wire Diameter 0.2 mm
Print Direction Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution Max. 360(H) x 360(V) dpi
Print Speed Utility : 260 cps, Letter Quality : 87 cps
Line Feed Pitch 4.23mm (1/6 “), 3.18mm (1/8 “), n x 0.42mm(n/60 “) (n=0-127), n x 0.35mm(n/72 “) (n=1-85), n x 0.14mm(n/180 “) (n=0-255), n x 0.12mm(n/216 “) (n=0-255), n x 0.07mm(n/360 “) (n=0-255)
Feed Speed 4.5 inches per second
Feed Rate 4.23mm(1/6”) line feed: Approx. 46 milliseconds
Paper Route Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand
Character Pitch Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width 80 characters/line at ANK 10 cpi
Interface IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)
Emulation ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation
Supported OS (Click here for latest OS) Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer Max. 128KB
Resident Font Utility, LQ Gothic, LQ Roman, LQ Courier, LQ Swiss, LQ Prestige, LQ Orator, LQ Swiss Bold, Scalable Roman, Scalable Courier, Scalable Swiss
Font Style Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
1-D Barcode UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
Paper Type Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment Manual
Paper Size Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Single part paper: Width 99.1-216.0mm x Length 99.1-356.0mm
Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight Continuous paper : 45 – 90 gsm
Single part paper : 45 – 90 gsm
Multi part paper : 35 – 40 gsm
Copy Capability Normal print mode: original + 4sheets(Total Thickness < 0.36mm)
Dimensions(WxDxH) 398 x 345 x 147 mm
Operating Environment Operating: 5 – 35 °C, 20 – 80 %RH
Storage: -10 – 50 °C, 5 – 95 %RH
No condensation
Power Source Single phase 220 – 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 35W)
Power Save: < 1.7W
Noise Level Operating :Approx. 57 dBA

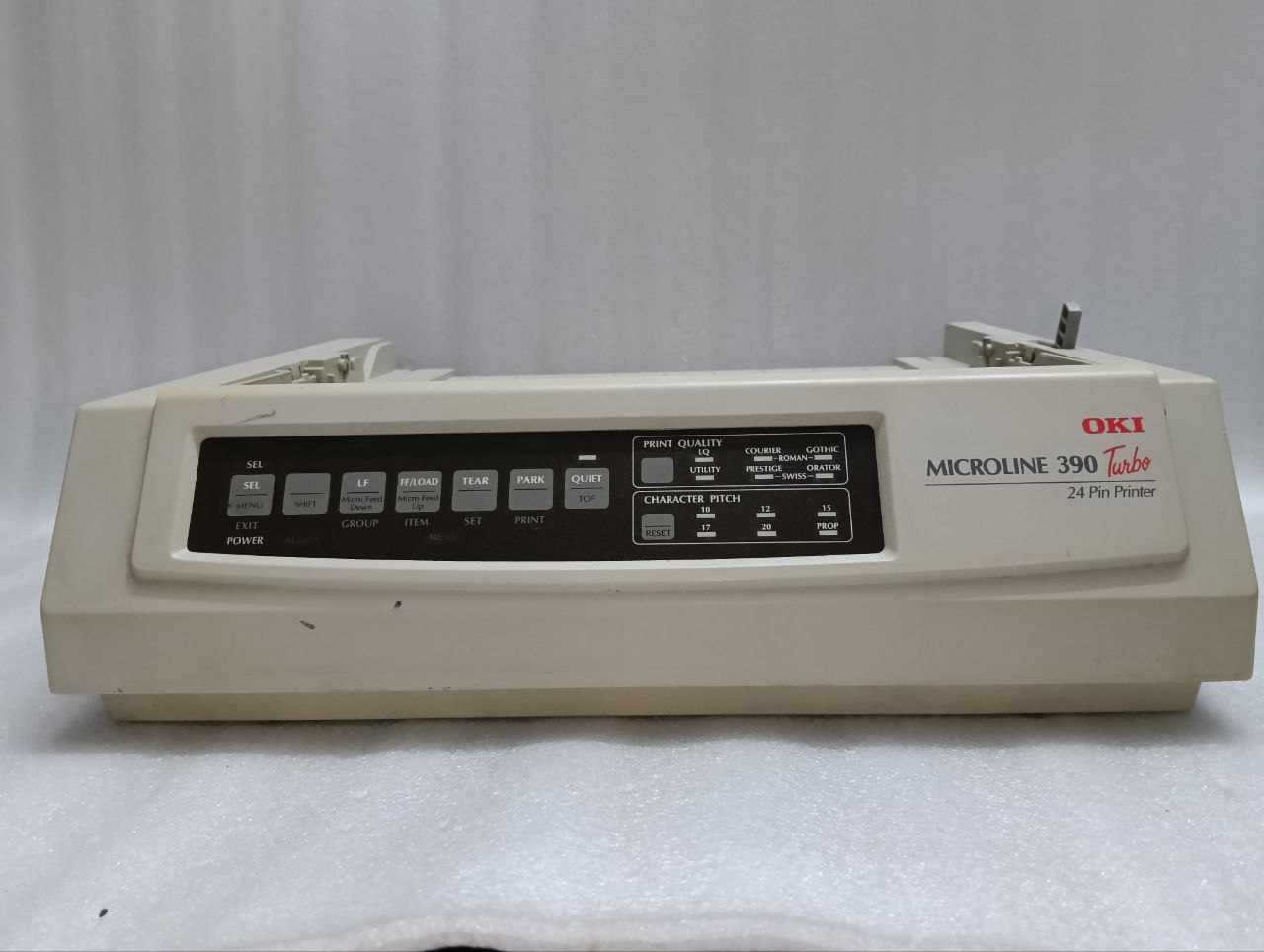

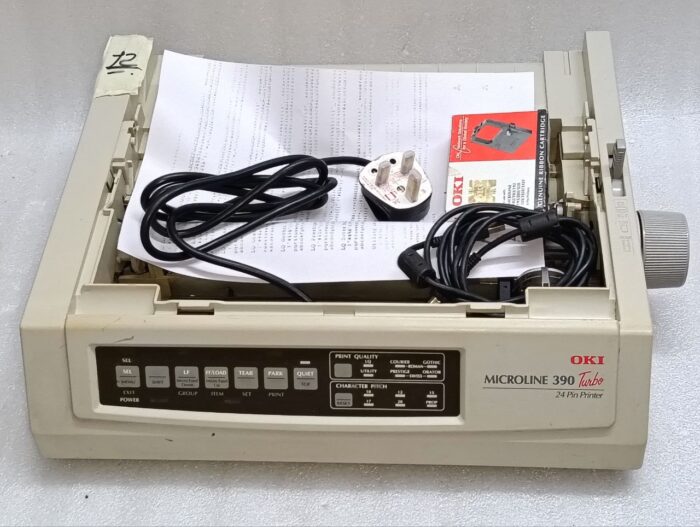

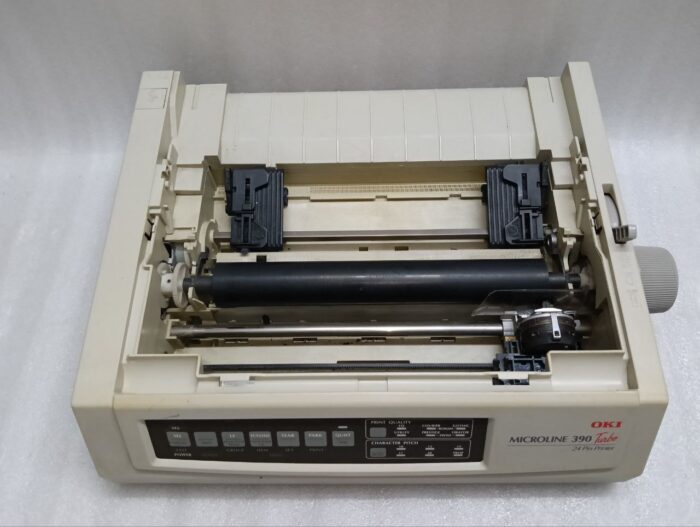

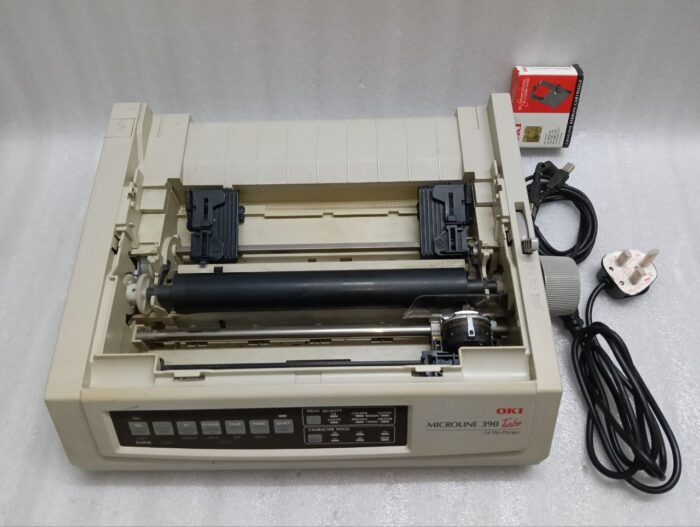

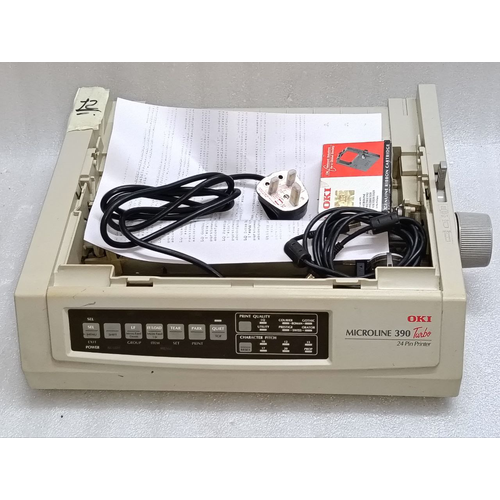

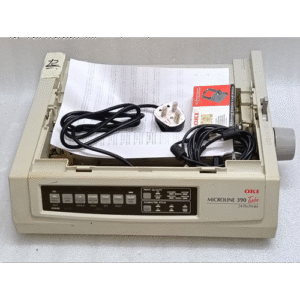

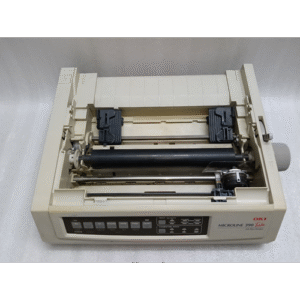

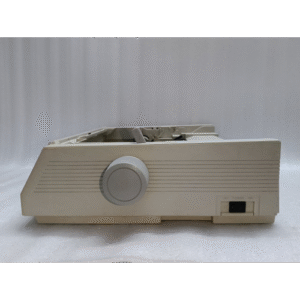

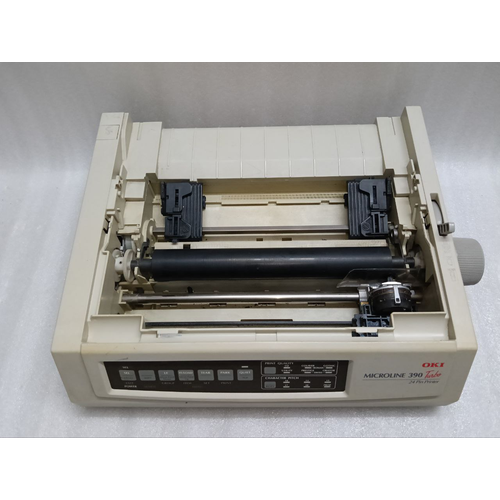

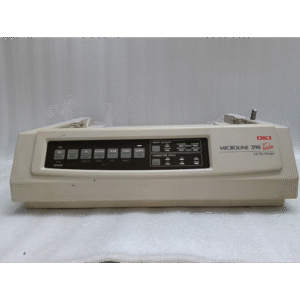

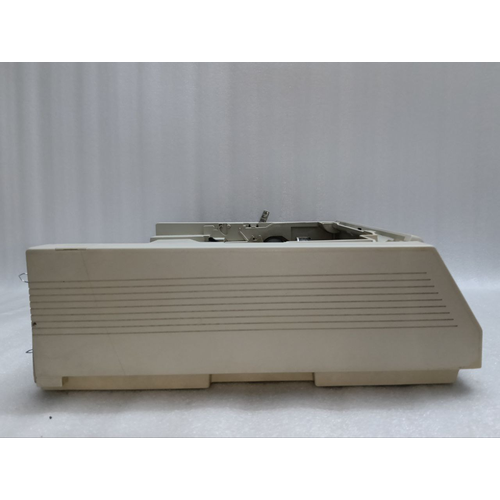

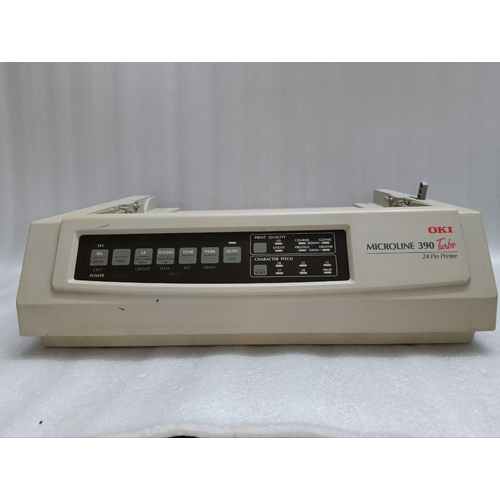

The Oki MICROLINE 390 TURBO is a classic 24-pin dot matrix printer engineered for businesses where dependability is non-negotiable. This 220V workhorse is built to excel in environments that require continuous operation, high-volume output, and the unique ability to print on multi-part forms, invoices, and labels. If your business relies on logistics, warehousing, accounting, or manufacturing, the MICROLINE 390 TURBO is your trusted partner for mission-critical document printing.
Power Through High-Volume Jobs with Ease

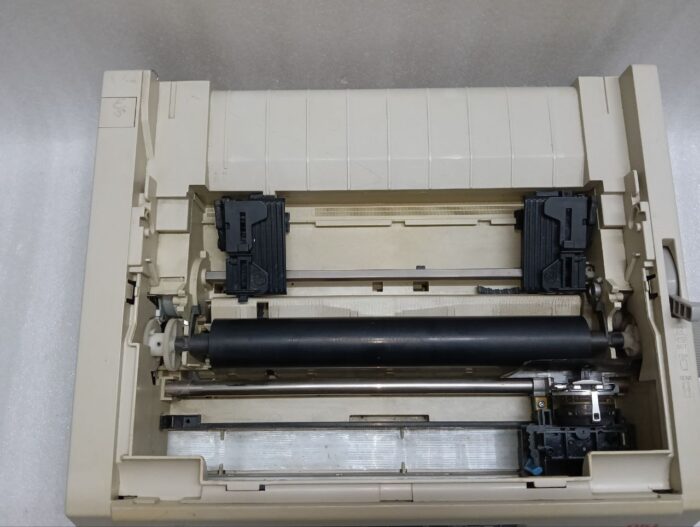

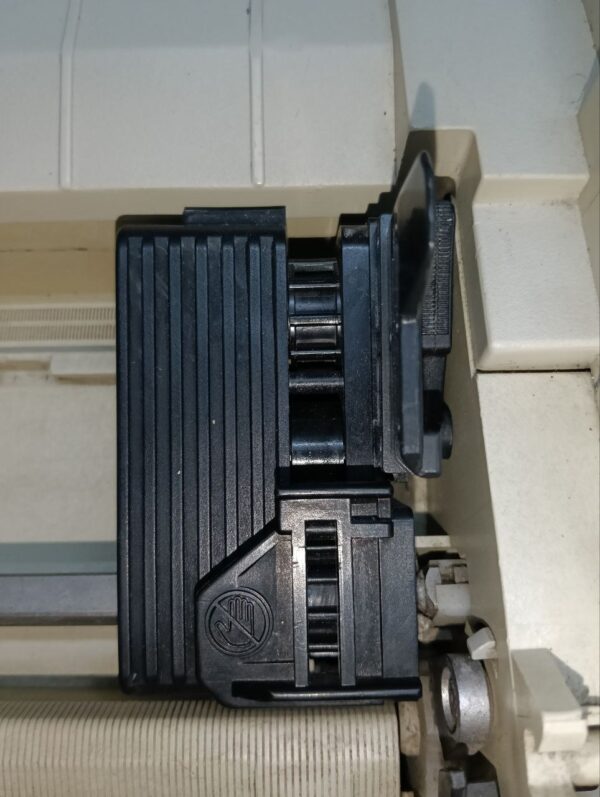

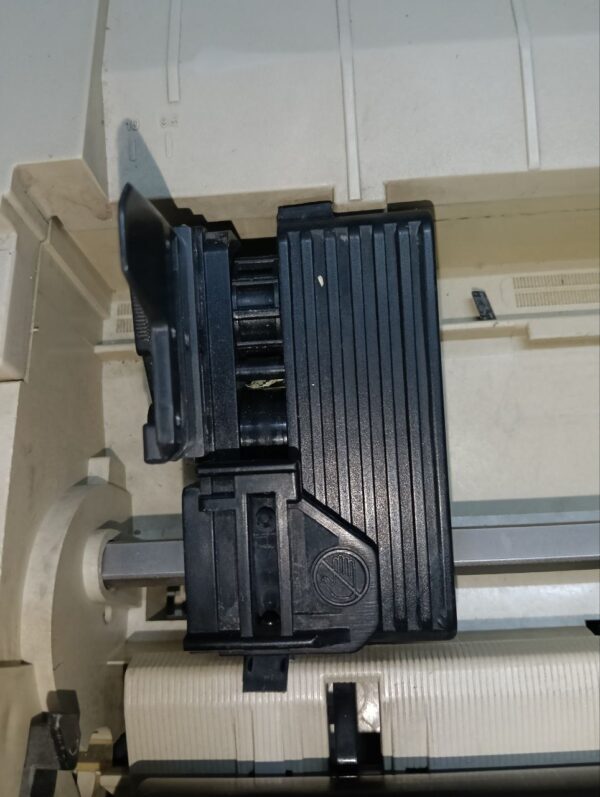

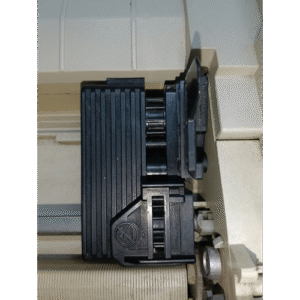

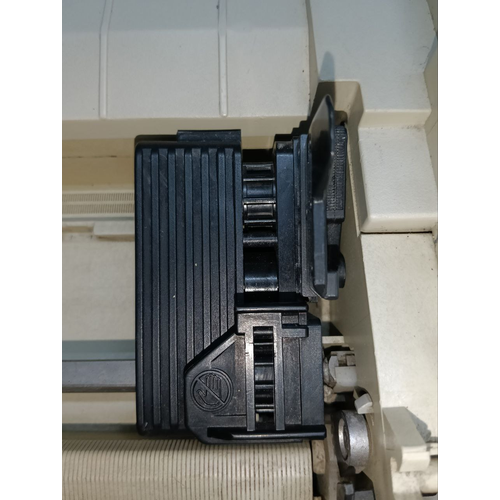

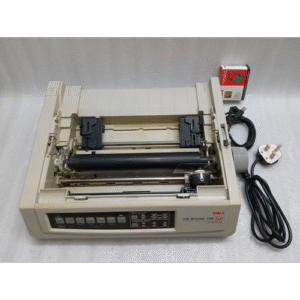

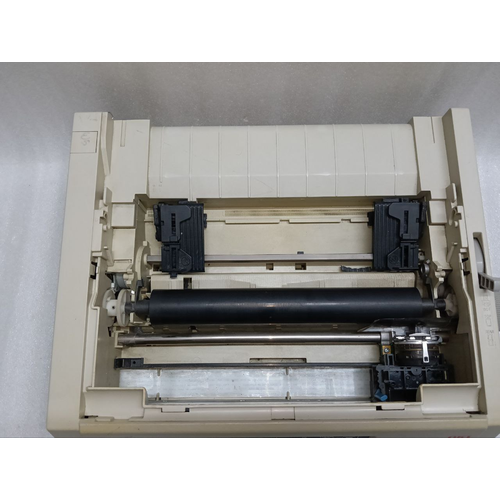

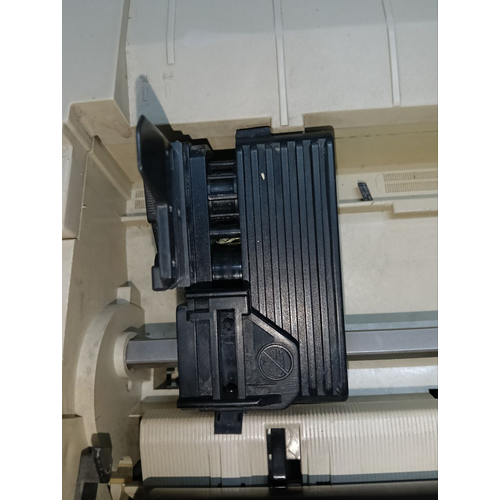

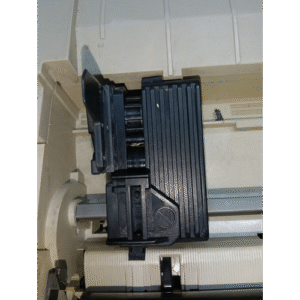

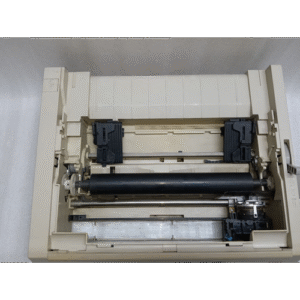

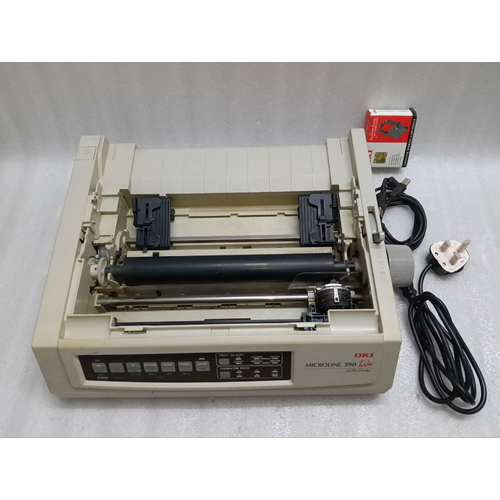

At the heart of the MICROLINE 390 TURBO is a high-performance 24-pin print head, designed for both speed and clarity. Switch between draft mode for rapid internal documents and NLQ (Near Letter Quality) mode for professional-looking reports and customer-facing documents. Its heavy-duty tractor feed mechanism grips continuous paper securely, eliminating misalignment and jams, while the built-in push/pull tractor allows for quick and easy paper loading.
Built to Last with a Legacy of Durability
Oki’s reputation for building indestructible printers is embodied in the MICROLINE 390. Constructed with a robust metal chassis and powered by a reliable 220V motor, this printer is designed to withstand the rigors of daily, high-demand use. Its simple, straightforward design means fewer points of failure and years of consistent, trouble-free service, providing an exceptionally low total cost of ownership.
Ideal for a Wide Range of Applications:
-
Warehouse & Shipping: Invoices, packing slips, and bills of lading.
-
Accounting & Finance: Multi-part checks, financial reports, and audit trails.
-
Manufacturing & Logistics: Production orders, inventory sheets, and delivery notes.
-
Back-Office Operations: Data processing, continuous reports, and forms handling.
Technical Specifications
-
Printer Type: 24-Pin Impact Dot Matrix
-
Print Speed: High-Speed Turbo Mode for draft and standard printing.
-
Paper Handling:
-
Interfaces: Standard Centronics Parallel Port
-
Voltage: 220V
-
Emulations: Oki proprietary mode, with high compatibility for legacy systems.
