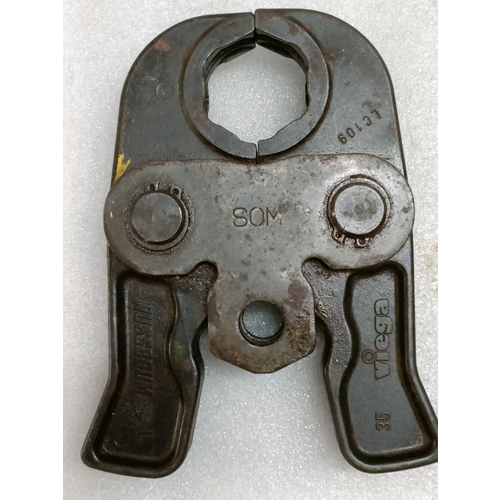

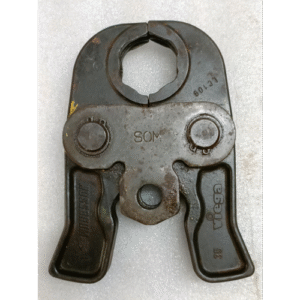

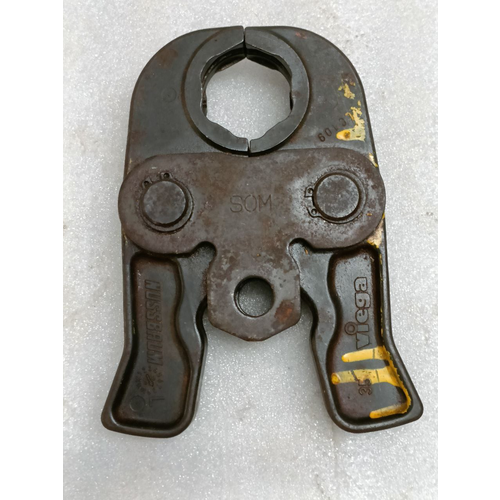

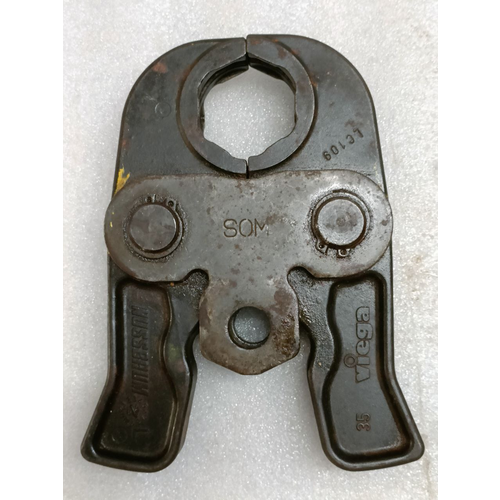

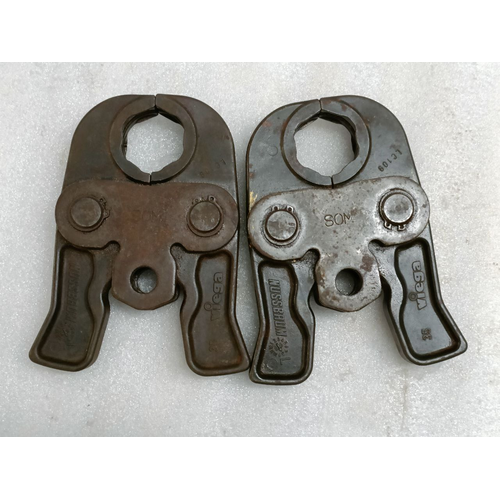

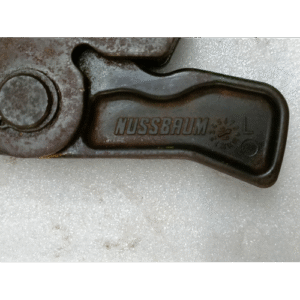

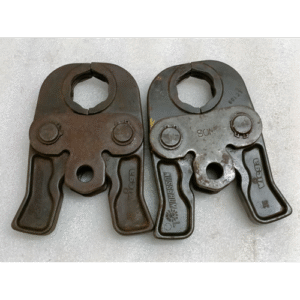

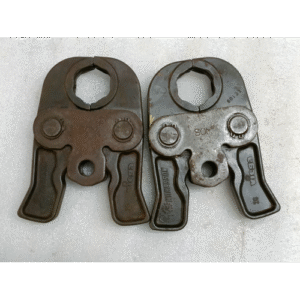

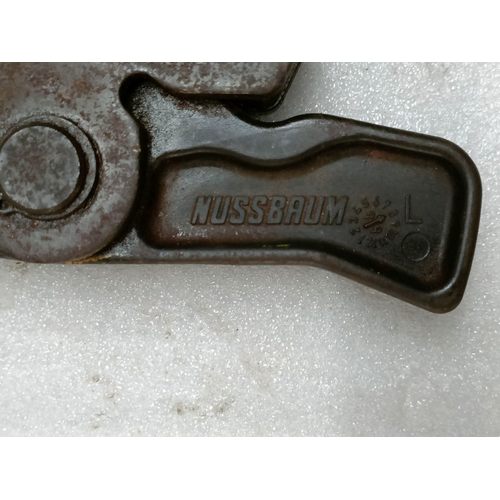

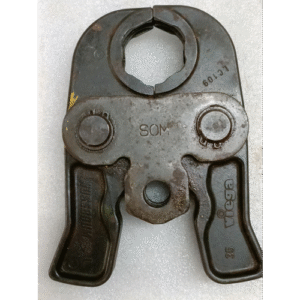

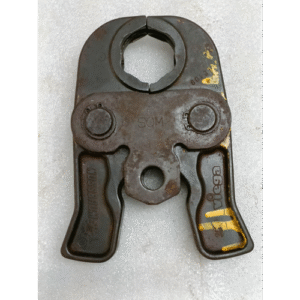

NUSSBAUM Viega press jaw 461935 SOM 35 mm, phosphated steel

Viega press jaw 461935

• for metal press connector systems
• recommended for Pressgun 6 Plus
• Pressgun 6B
• Pressgun 5
• Pressgun 4B and 4E
• Press machines PT3-H/EH
• PT3-AH and Type 2 (PT2)
• Cordless pressing machines from the manufacturer Holger Clasen
• Geberit / Mepla press machines type PWH 75
• Type N 230 V and Type N battery
• Geberit /Mapress press machines type EFPII
• ACO 2000
• ECO 2000
• ACO 201
• ECO 201
• AFP201
• EFP201
• ACO 202 and ECO 202
• Ridgid press machines RP 10-S
• RP 10-B
• RP 330C/330B
• RP340

The Viega Press Jaw 461935 is a specialized, replaceable jaw cartridge designed for use with Viega’s SOM 35 pressing tools. It is a critical consumable component for professionals installing Viega’s press-fit plumbing and piping systems.

Key Product Details:

• Manufacturer: Viega

• Part Number: 461935

• Product Name: Press Jaw

• Model / Compatibility: SOM 35

• Jaw Size: 35 mm

• Material: High-Strength Steel

• Coating / Finish: Phosphated

Detailed Breakdown

1. Function & Application:
This press jaw is used with a compatible Viega pressing tool (like the Viega SanPress Inox or similar SOM 35 model) to permanently connect Viega press fittings to pipes. The jaw applies a uniform, calibrated pressure around the fitting, creating a secure, leak-proof seal in seconds without the need for soldering, welding, or threading.

2. Compatibility:

• Tool Model: Specifically designed for the Viega SOM 35 press tool head.

• Fitting/Pipe Size: Designed for pressing 35 mm Viega press fittings. It is crucial to match the jaw size to the fitting size for a proper connection.

• System Compatibility: Used with Viega’s press systems for various applications, including:

  • Sanitary (SanPress) for copper and stainless steel

  • Plumbing (PureFlow) for PEX

  • Heating (Climate Panel)

3. Material & Finish:

• Phosphated Steel: The jaw is made from durable, high-strength steel and treated with a phosphating coating. This process:

  • Reduces Friction: Allows for a smoother pressing operation.

  • Prevents Galling & Wear: Protects the jaw and the fitting surface from damage during the press cycle.

  • Provides Corrosion Resistance: Extends the life of the jaw by protecting it from rust and moisture in the work environment.

4. Design & Features:

• Precision Engineered: Manufactured to exact tolerances to ensure a perfect, reliable press every time, which is required to maintain Viega’s system warranty.

• Replaceable Cartridge: Designed as a simple drop-in cartridge for easy and quick replacement when jaws become worn or when changing sizes.

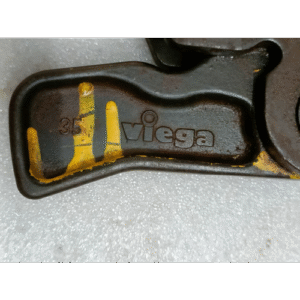

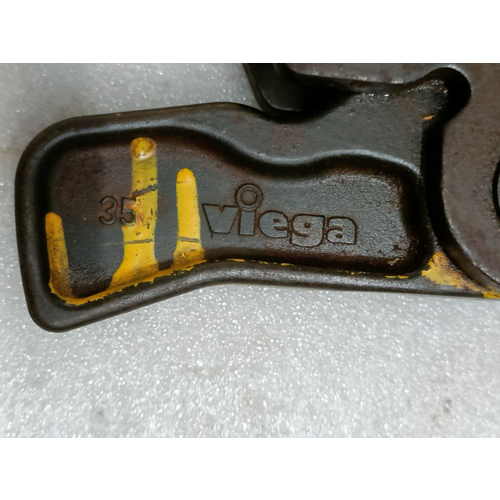

• Safety & Identification: Typically color-coded or marked for easy size identification (35 mm) to prevent misapplication.
