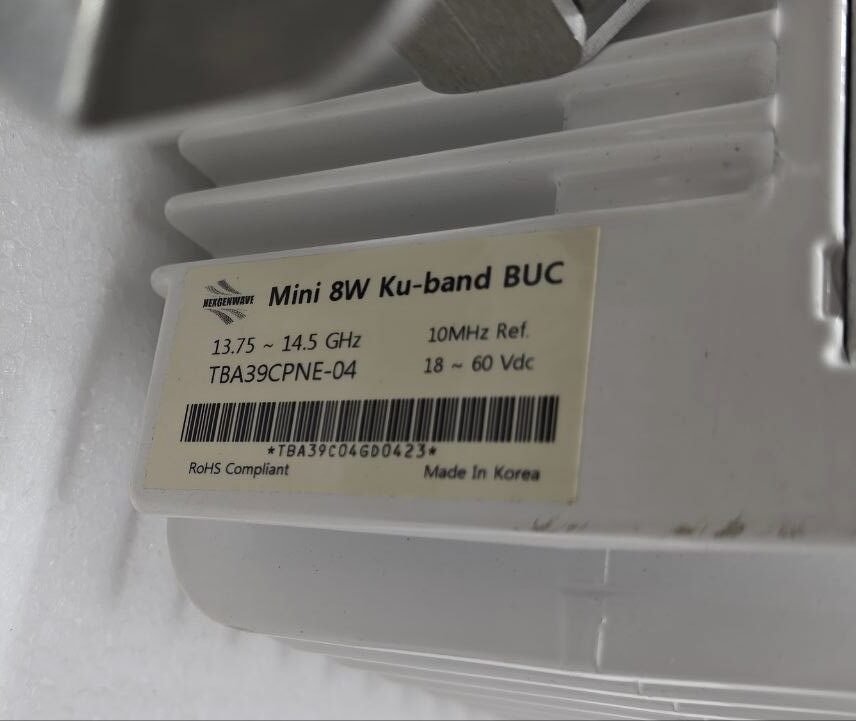

| The NEXGENWAVE MINI 8W is a high-performance, compact, and efficient Ka/Ku-Band Block Upconverter designed for reliable satellite communication in fixed and mobile deployments. Its small form factor and robust construction make it ideal for VSAT applications, news gathering (SNG), maritime, and enterprise networks where space and power efficiency are critical.
This unit converts an L-Band intermediate frequency (IF) signal to a precise Ku-Band radio frequency (RF) output within the standard 13.75 to 14.5 GHz band, amplifying it to a solid 8W (39 dBm) of saturated power to ensure a clear uplink to the satellite. |
Key Features
- High Power Output: 8 Watts (39 dBm) saturated power, ensuring a strong uplink signal.
- Full Ku-Band Uplink Coverage: Output frequency range of 13.75 – 14.5 GHz.
- Compact “MINI” Design: Extremely small footprint for easy integration into space-constrained antenna feeds and radomes.
- High Efficiency: Optimized power consumption, reducing thermal load and operational costs.
- External 10 MHz Reference Input: Allows for synchronization with a master reference clock (e.g., from a companion LNB or modem) for superior phase noise performance in advanced systems.
- Robust Construction: Typically features an aluminum alloy chassis for excellent heat dissipation and environmental protection.
- Wide IF Input Range: Standard L-Band input (e.g., 950-2150 MHz or similar), compatible with most satellite modems.
- Low Phase Noise: Critical for maintaining signal integrity and supporting higher-order modulations (like 16APSK, 32APSK).
|
Technical Specifications
| Parameter |
Specification |
| Model |
BUCTBA39CPNE 04 |
| Output Frequency Range |
13.75 – 14.5 GHz |
| Output Power (Sat.) |
8 W (39 dBm) minimum |
| Input Frequency Range (IF) |
Typically 950 – 1750 MHz (or 950-2150 MHz)* |
| Input Power Level (Drive) |
Typically -20 to 0 dBm |
| Gain (Fixed) |
~ 55 dB (typical, adjustable via attenuation) |
| Gain Flatness |
±1.5 dB over band (typical) |
| 1 dB Compression Point |
≥ 39 dBm |
| Phase Noise |
Excellent, e.g., -75 dBc/Hz @ 1 kHz offset (typ.) |
| Spurious & Harmonics |
≤ -60 dBc (typical) |
| Local Oscillator Stability |
±1.0 ppm standard (optional high-stability ovens available) |
| External Reference |
10 MHz, 0 to +10 dBm |
| DC Input Voltage & Current |
+24 VDC (or 18-32 V range), ~3.5 A max at 8W output |
| RF Connectors |
Input: Type-F female (or SMA). Output: CPR-137G (or WR-75) flange. |
| Control Interface |
Monitoring & Control: Built-in SNMP or Telnet/RS-485 for remote management. Frequency/Attenuation: Set via 10-pin circular connector (I2C, analog voltage, or dipswitch variants exist). |
| Operating Temperature |
-30°C to +55°C (extended ranges possible) |
| Ingress Protection |
IP67 (Dust tight and protected against temporary immersion) |
|
Control & Monitoring (Interpretation of Model Code)
The model suffix CPNE typically indicates the control package:
- C: Likely indicates a 10-Pin Circular Connector for power, control, and monitor.
- P: Potentially for Plug-and-Play compatibility with common modem/antenna systems.
- NE: May indicate Network Enabled features, such as a built-in web server or SNMP for integration into network management systems (NMS), allowing remote monitoring of status, temperature, power, and alarms.
Typical Applications
- Enterprise VSAT Hubs and Remotes
- Flyaway & Mobile SNG Terminals
- Maritime and Land-Mobile Satellite Communications
- Cellular Backhaul (SCPC/TDMA)
- Government & Defense Comms-on-the-Move
- Teleport Uplink Racks (as a compact driver stage)
