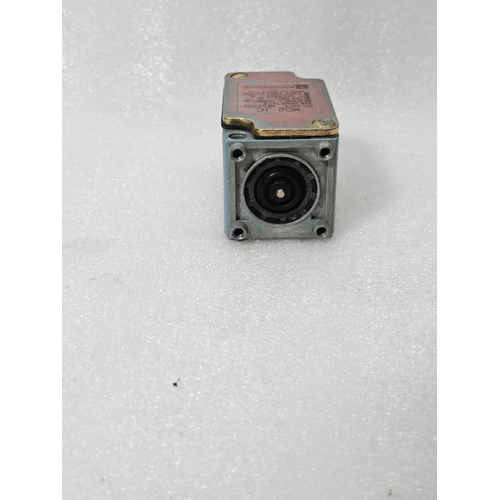

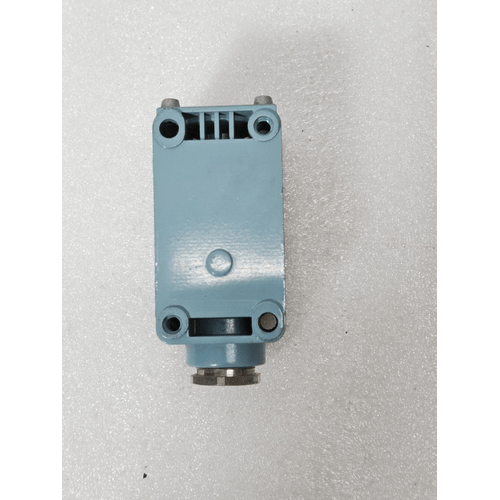

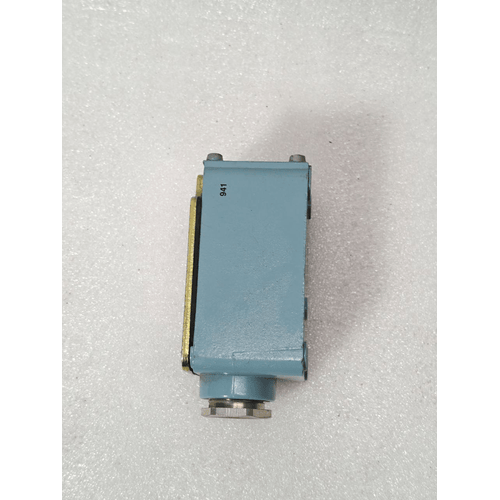

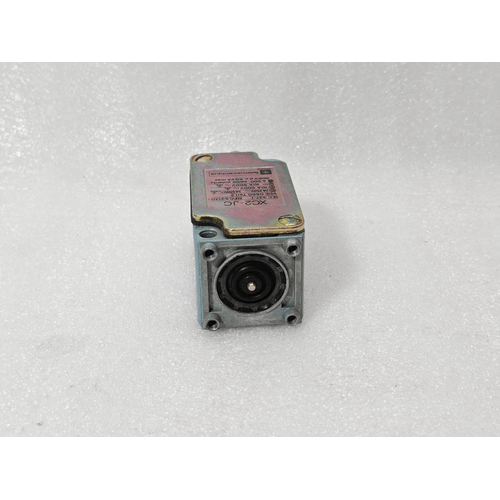

NEW TELEMECANIQUE XC2-JC LIMIT BODY SWITCH XC2JC 337-1 NFC 63140 VDE 660 16:42

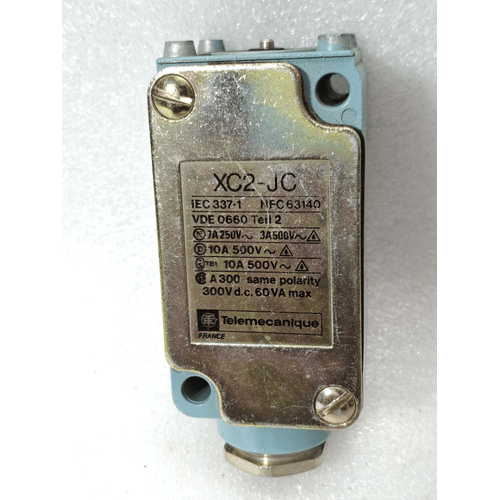

BRAND: TELEMECANIQUE
MODEL: XC2-JC
LIMIT BODY SWITCH
IEC 337-1
NFC 63140
VDE 0660 TeiL 2
7A 250V
3A 500V
10A 500V
A300, SAME POLARITY
300 V.d.C, 60VA MAX
MADE IN FRANCE

The Telemecanique XC2-JC is a robust and versatile industrial limit switch body designed for precise position detection and control in demanding environments. Known for its reliability, safety certifications, and modular design, it is a cornerstone of industrial automation systems. The code XC2JC337-1 specifies a specific configuration with a rotary lever actuator.

Key Features & Benefits:

• High Mechanical Durability: Built with a strong metal housing and designed for millions of operational cycles, ensuring long-term reliability even in harsh conditions.

• Safety Certified: Features the VDE 660 certification, indicating it meets stringent German safety standards for electrical and mechanical components. The NFC mark confirms compliance with relevant French and European norms.

• Modular & Flexible: The XC2-J is a modular system. This “body only” (XC2-JC) design allows you to choose from a wide range of separate actuator heads and bases to perfectly match your application needs (e.g., roller levers, plungers, adjustable levers).

• Positive Break (Snap-Action) Contact Mechanism: Provides quick and reliable switching, minimizing arcing and ensuring a clear on/off signal. This is crucial for safety and precision control applications.

• Clear Status Indication: Equipped with a visual position indicator to show the contact status (NO/NC) at a glance, simplifying installation, troubleshooting, and maintenance.

• Sealed Construction: Offers a high degree of protection (typically IP65) against dust and water jets, making it suitable for use in washdown and dusty industrial environments.

Technical Specifications:

• Manufacturer Brand: Telemecanique (now part of the Schneider Electric brand portfolio).

• Product Type: Limit Switch Body (Enclosed).

• Full Product Code: XC2-JC

• Detailed Ordering Code: XC2JC337-1

  • This code decodes to a specific model: Likely an XC2-JC body with a rotary lever actuator and a specific shaft type.

• Contact Configuration: Typically 1 NO (Normally Open) + 1 NC (Normally Closed) snap-action contacts. (Confirm based on exact code).

• Rated Operational Current: Up to 10A for standard applications.

• Rated Insulation Voltage: Typically 660V AC.

• Safety Standards: VDE 0660, NFC, and other international standards (UL, CSA, etc.).

• Protection Rating: IP65 (Ingress Protection – Dust tight and protected against water jets).

Applications:

This limit switch is ideal for a wide range of industrial automation and control applications, including:

• Machine Tooling: Position control on lathes, milling machines, and presses.

• Material Handling: Detecting the position of pallets, trolleys, and cranes.

• Packaging Machinery: Controlling the cycle and position of packaging equipment.

• Automated Assembly Lines: Ensuring components are in the correct position for assembly.

• Door and Gate Control: Interlocking and position sensing for safety doors and automated gates.

Why Choose This Product?

• Proven Reliability: From Telemecanique, a legendary name in industrial controls known for quality and durability.

• Compliance & Safety: The VDE 660 and NFC 63140 certifications provide assurance of a safe and compliant component for your machinery.

• Cost-Effective Maintenance: The modular design means you can replace just the actuator or base if damaged, without replacing the entire switch body.

• Global Standard: Widely used and recognized, ensuring easy sourcing and compatibility.
