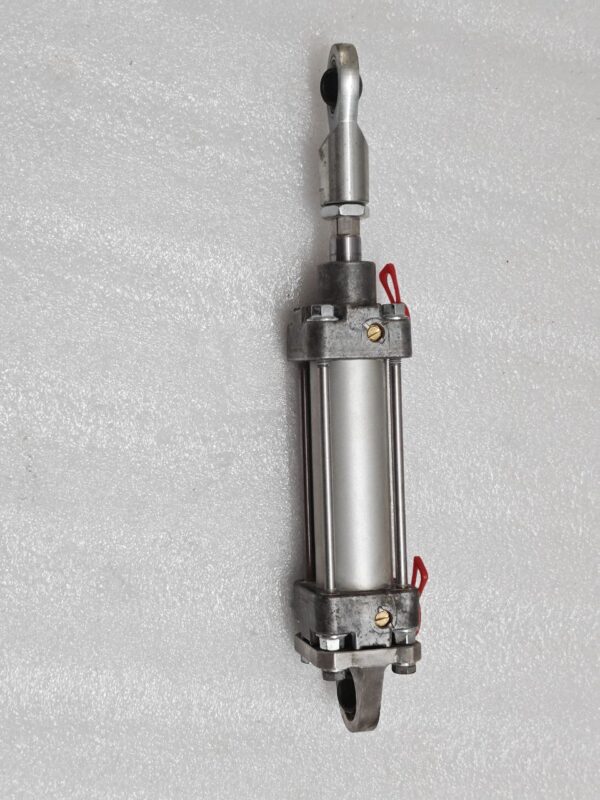

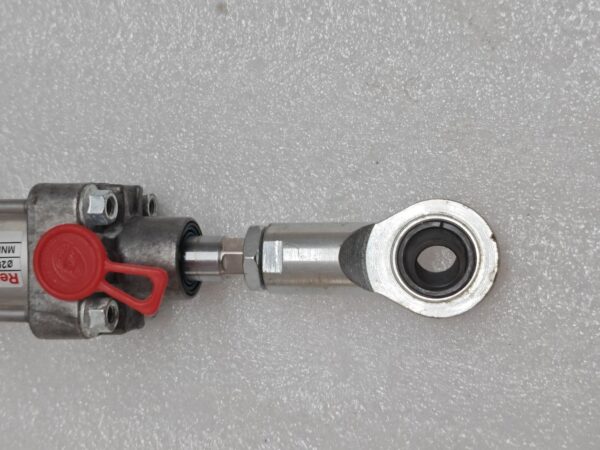

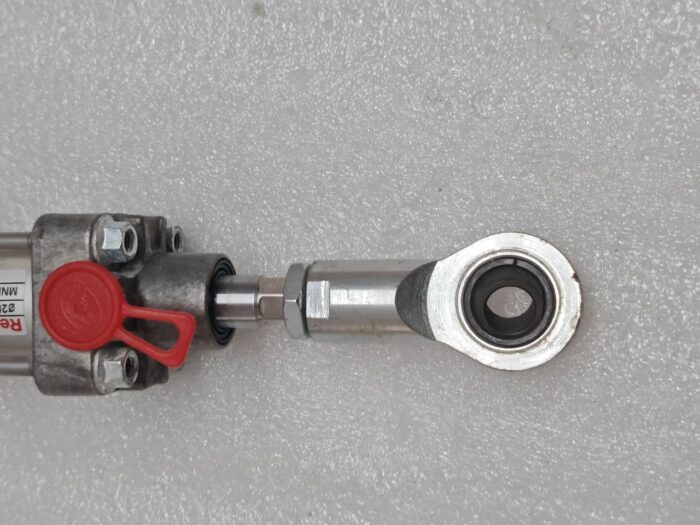

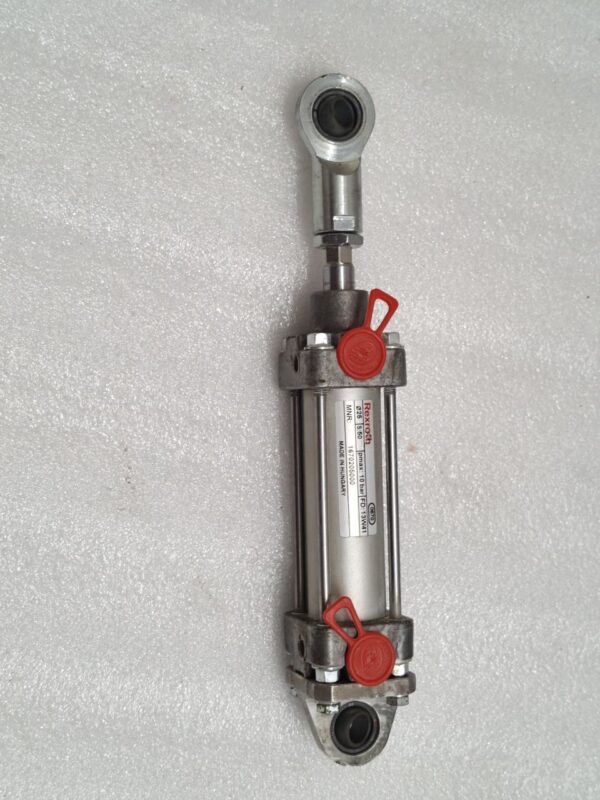

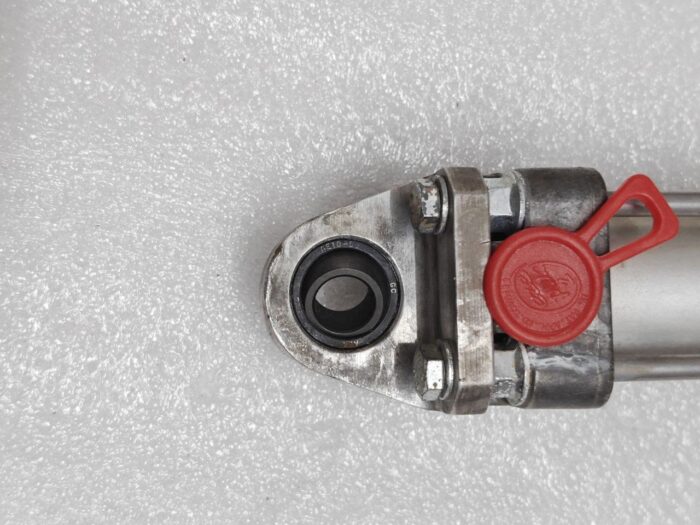

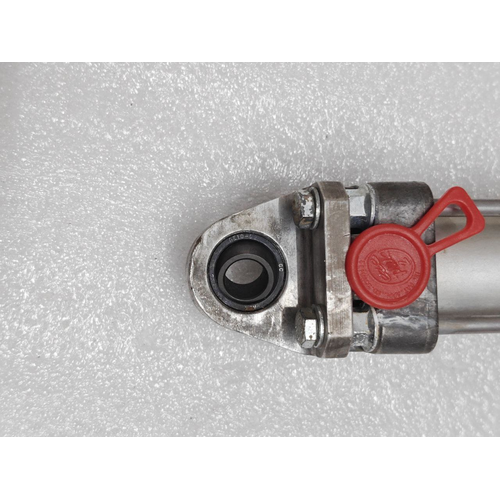

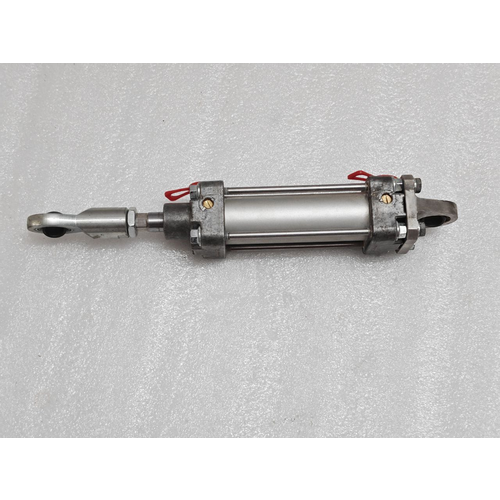

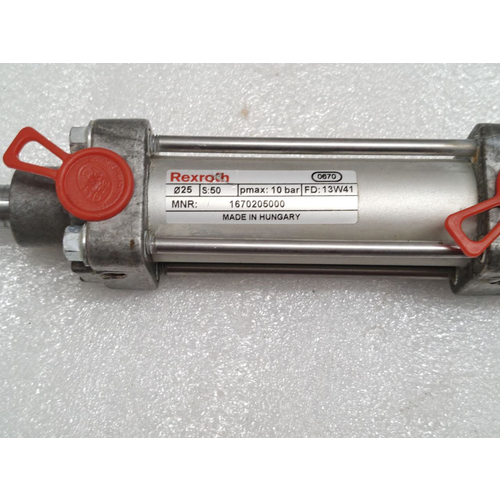

Rexroth 1670205000 Pneumatic Cylinder 10 BAR 0670 S: 50 FD 13W41
The Rexroth 1670205000 is a high-quality, ISO 6432 standard pneumatic cylinder from the renowned Bosch Rexroth 0670 series. This compact, non-repairable cylinder is designed for reliable performance in a wide range of industrial automation applications. Its robust construction and efficient design make it ideal for tasks requiring precise linear motion, such as clamping, ejecting, lifting, and pressing.
The key identifier 0670 S 50 FD 13W41 decodes the cylinder’s specific features, as detailed below.
Key Features & Specifications
-
Manufacturer / Series: Bosch Rexroth | 0670 Series
-
Full Part Number: 1670205000
-

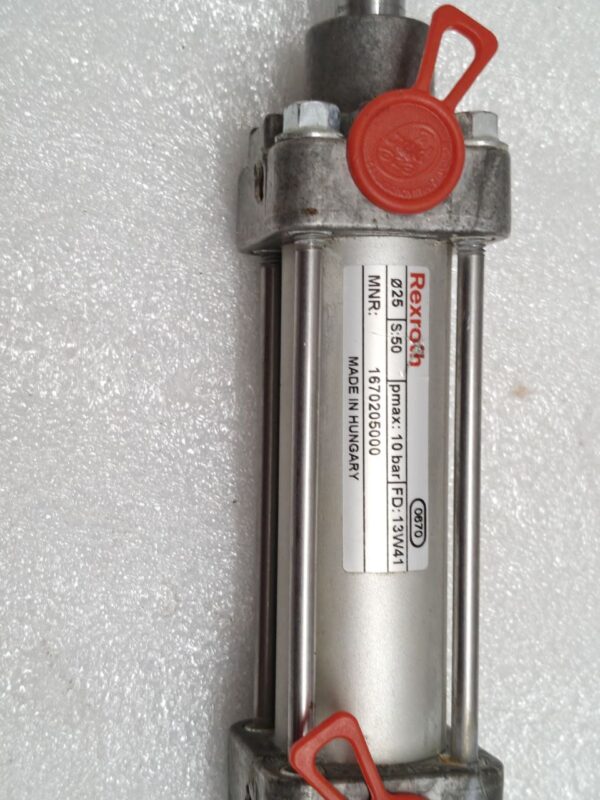

Rexroth Order Code: 0670 S 50 FD 13W41
Decoding the Order Code (0670 S 50 FD 13W41):
-
0670: The base series designation for this type of compact, non-repairable pneumatic cylinder.
-
S: Signifies the Piston Rod version (in this case, a single-acting cylinder with spring return).
-
50: Indicates the Stroke Length of the cylinder. 50 mm.
-
FD: Represents the Variant / Options. “FD” typically specifies a specific set of features, which in the 0670 series often includes built-in flow control valves (cushioning) on both sides for smooth deceleration at the end of the stroke.
-
13W41: This is a Sealing and Lubrication Code. “13W” indicates the standard seal material (NBR), suitable for use with lubricated or non-lubricated compressed air. “41” is a version code for the specific kit of seals and wipers used.
Technical Specifications:
-
Bore Diameter: ø 25 mm
-
Piston Rod Thread: M10x1.25 (standard for this bore size)
-
Operating Pressure: 10 BAR (Maximum)
-
Cushioning: Integrated adjustable flow control valves (as indicated by the “FD” code) for precise speed control and shock absorption.
-
Mounting Style: Typically, this series features front flange mounting with a tapped hole on the piston rod end, but other mounting options may be available. Please check the detailed datasheet for the exact configuration of this part number.
-
Media: Compressed air, lubricated or non-lubricated.
-
Temperature Range: Standard range is -10 °C to +80 °C.
-
Material:
-
Cylinder Barrel: Anodized aluminum
-
Piston Rod: Stainless steel
-
End Covers: Aluminum alloy
-
Applications
This versatile cylinder is suitable for numerous automation tasks across various industries, including:
-
Packaging Machinery
-
Food and Beverage Processing
-
Automotive Assembly
-
Material Handling Systems
-
Special Purpose Machines (SPMs)
-
Clamping and Ejection Fixtures
