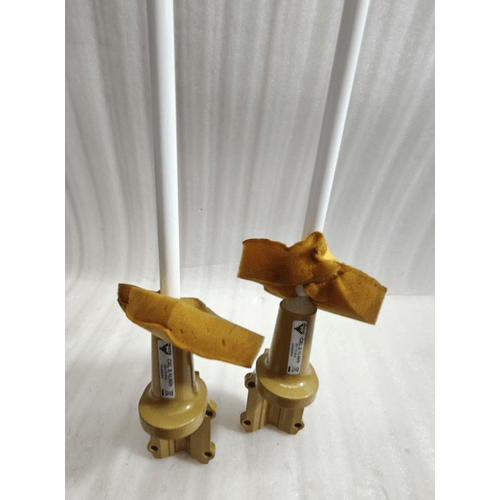

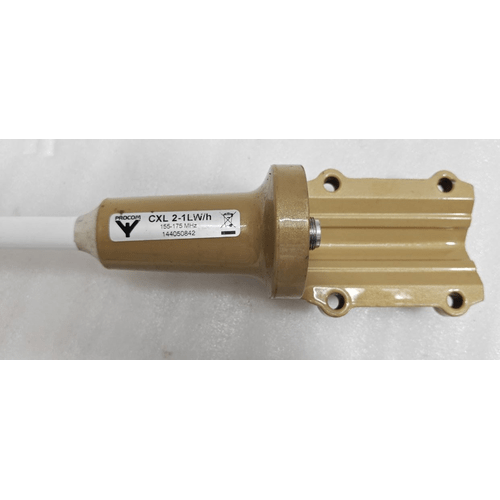

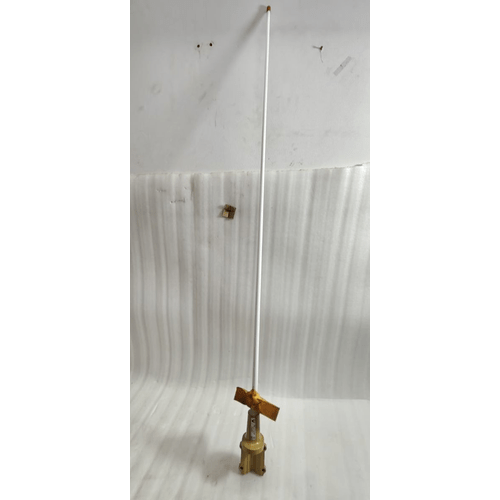

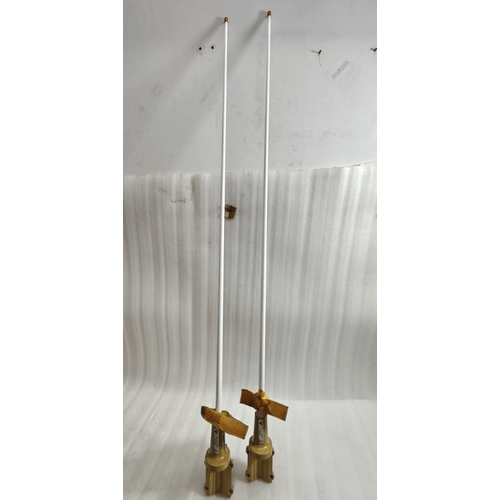

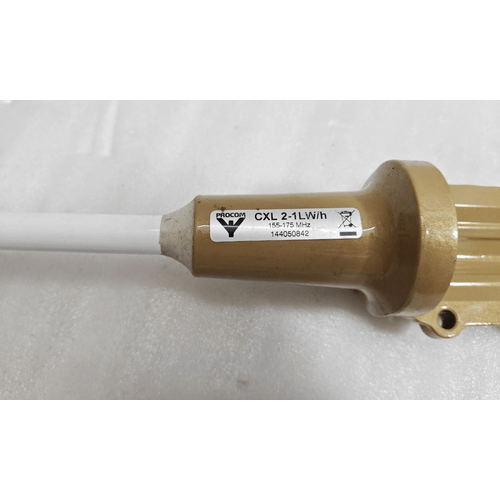

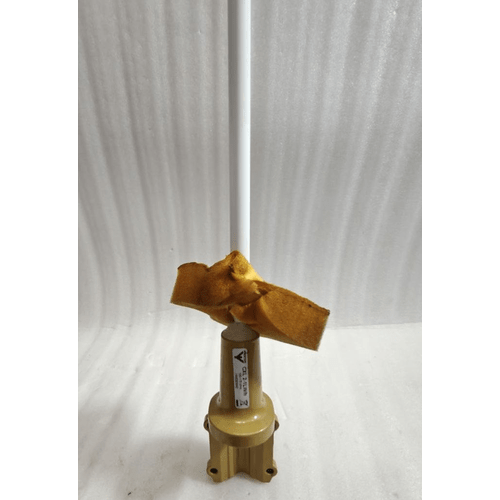

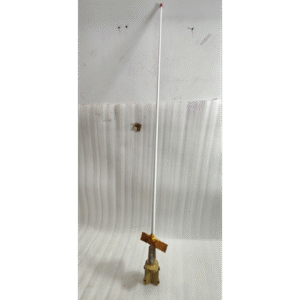

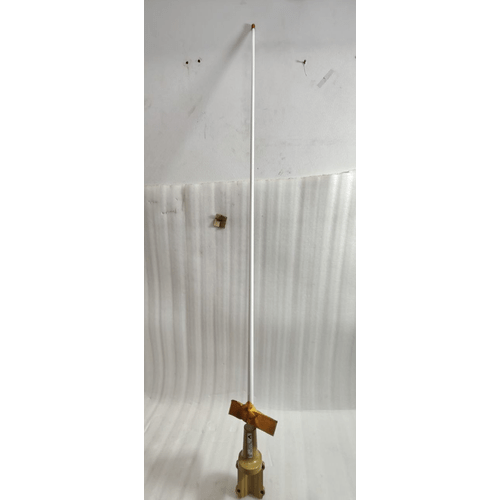

NEW PROCOM CXL 2-1L W/H ANTENNA 155-175 MHZ 144050842 18:41

The Procom CXL 2-1L W/H is a professional-grade, omnidirectional VHF marine antenna designed for reliable communication on the primary marine VHF band. Its “Low Profile” (L) whip design makes it a robust and practical choice for a wide range of vessels.

Key Features & Specifications

• Manufacturer: Procom (a reputable brand under Amphenol, known for durable marine communication products).

• Model: CXL 2-1L W/H

• Frequency Range: 155 – 175 MHz. This perfectly covers the critical Marine VHF Band (156 – 174 MHz), including:

  • Channel 16 (156.8 MHz) – The international hailing and distress frequency.

  • All standard ship-to-ship and ship-to-shore working channels.

  • Public Correspondence channels (Marine Operator).

  • Port operations and ship movement services.

• Gain: 0 dBd (typically stated as 3 dBi). This is the standard “Unity” or “1/4-wave” gain for a true omnidirectional antenna. It provides a perfect “doughnut” shaped radiation pattern, ensuring excellent all-around coverage without dead zones, which is essential for safety at sea.

• Power Handling: 50 Watts (Max.). This handles the full legal output power of any fixed-mount marine VHF radio, which typically transmits at 25W or 1W.

• Polarization: Vertical. This is mandatory for marine VHF communications to ensure compatibility with all other antennas and coast stations.

• Impedance: 50 Ohms. The standard for marine radio equipment.

• Radiation Pattern: Omnidirectional.

• Connection: Almost certainly includes an integrated low-loss coaxial cable (like RG-8X or RG-58) with a PL-259 (UHF) connector, ready to plug into the back of a VHF radio.

• Construction:

  • Radiator: A flexible, corrosion-resistant stainless steel whip. The “Low Profile” (L) means it is shorter and sturdier than a full 8-foot antenna, reducing the risk of damage from bridges, trees, or rigging.

  • Base & Coil: Built with marine-grade materials (e.g., brass, stainless steel, high-impact plastic) and finished with a protective coating (e.g., chrome) to resist saltwater corrosion and UV damage.

• Mounting: Designed for permanent installation on a flat surface using a ¼-wave mount. It requires a hole to be drilled for the cable to pass through.

Who is this antenna for? (Ideal User)

This antenna is an excellent all-rounder suitable for virtually any vessel that uses a fixed-mount VHF radio:

• Recreational Boaters: Sailboats and powerboats of all sizes.

• Fishing Vessels: Commercial and recreational.

• Workboats: Tugs, pilot boats, ferries (for auxiliary comms).

• Any mariner who values a durable, low-profile antenna that performs reliably on the standard marine VHF band.
