440-470MHz

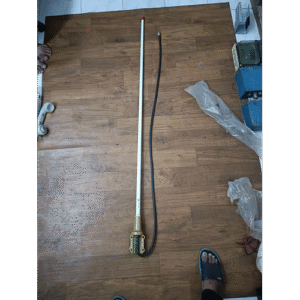

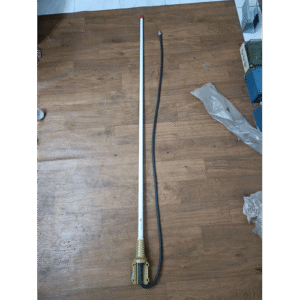

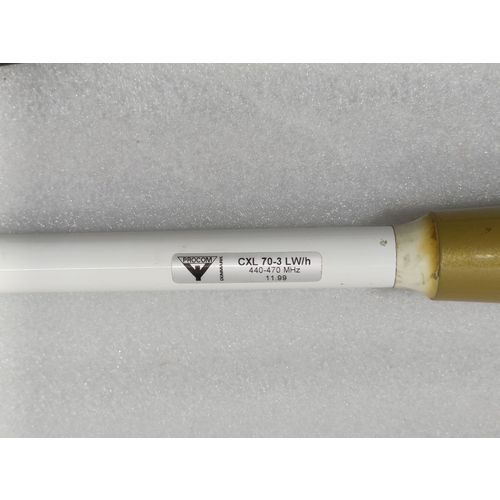

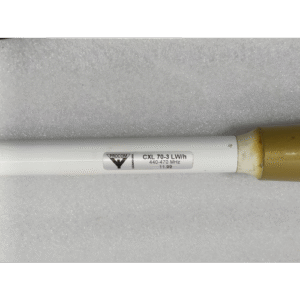

Omni Antennas CXL 70-3LW/...
Lightweight, Medium Duty, 3 dBd Base Station and Marine Antenna for the 450 MHz Band

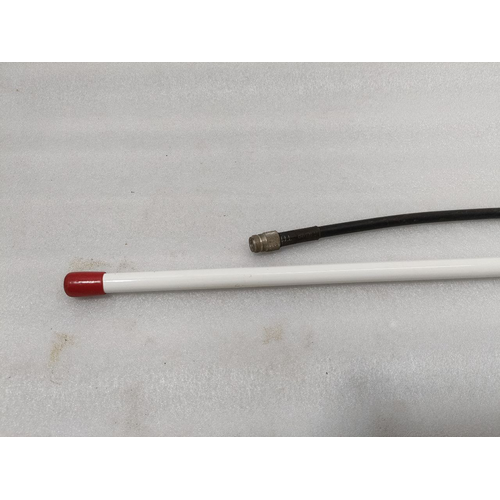

CXL 70-3LW/… is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the UHF band in 4 models with up to 10 MHz overlap.

The antenna meets the demand for a medium duty, cost-effective antenna to be chosen, when the exceptional mechanical capabilities of our extremely rugged heavy-duty model CXL 70-3C/… are not needed.

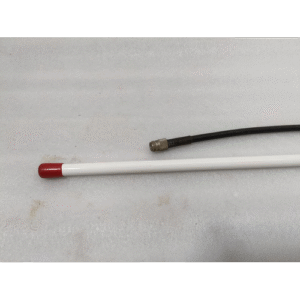

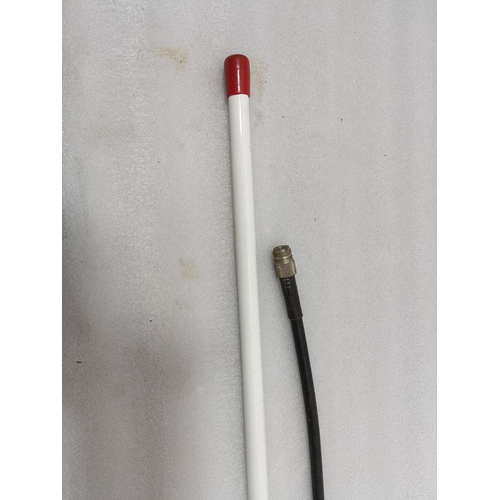

The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.

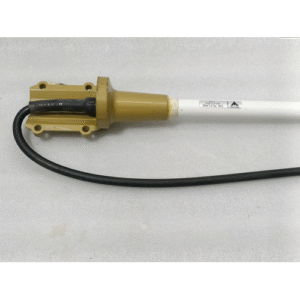

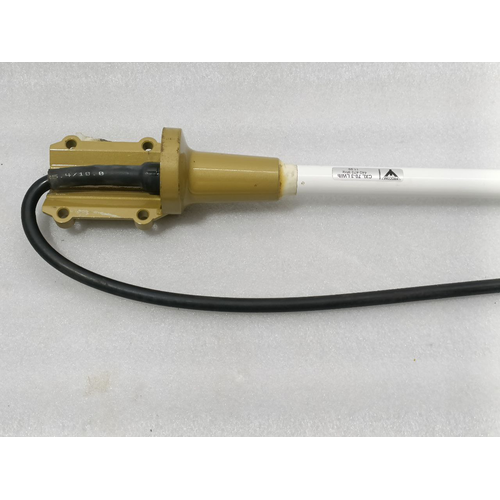

Provided with the sturdy "LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.

The accompanying U-bolts and fittings are made of stainless steel.

To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.

The cable can be led either on the outside or along the inside of the mast tube.

Large bandwidth with respect to both VSWR and gain.

To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

The CXL 70-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
