NEW BEKA BA484DF- F FOUNDATION FIELDBUS DISPLAY 16:37

• Intrinsic safety certification
• FISCO compliant
• High contrast 86.5mm x 45mm display with backlight
• Up to 8 fieldbus variables
• PROFIBUS PA protocol
• Bus powered
• Six optional alarm outputs
• Push buttons may be used to send operator commands to the fieldbus host.

Product details

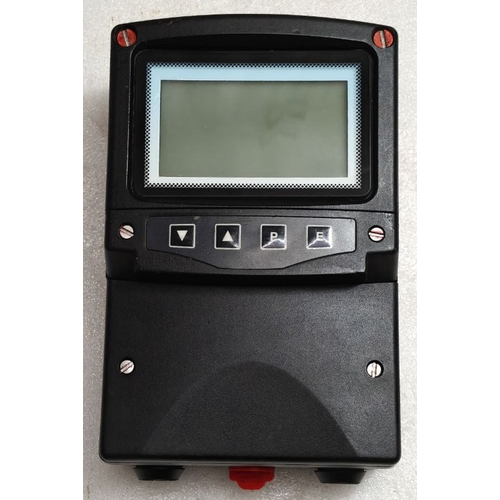

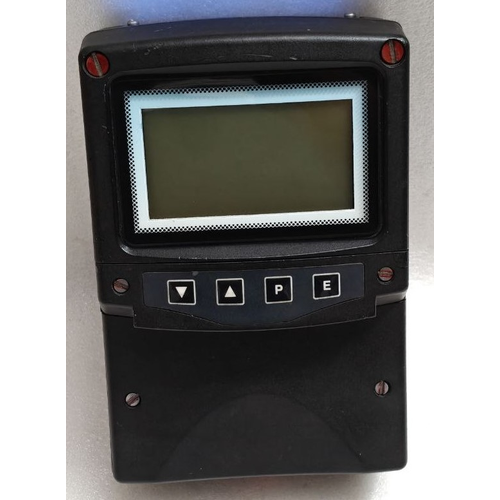

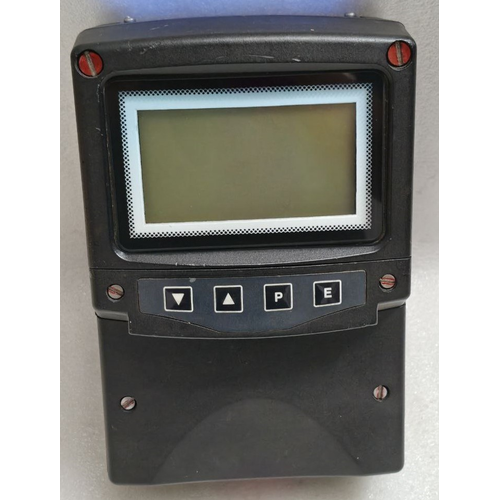

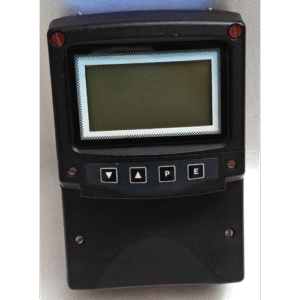

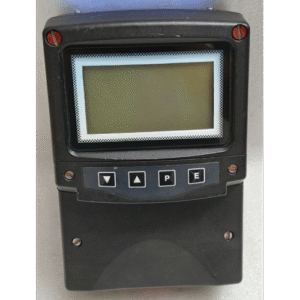

• This BA484DF-P PROFIBUS PA display instrument can display up to eight fieldbus process variables on a 86.5mm x 45mm screen.
• Up to eight fieldbus variables may be displayed at the same time on one of eleven standard display screen formats, together with units of measurement and tag information. The operator can select the displayed screen via the front panel push-buttons, or these buttons may be disabled.
• The fieldbus display push buttons may also be used for returning operator commands to the fieldbus host. If large industrial push buttons are required for operator inputs, external push buttons or switches may be connected to the instrument.

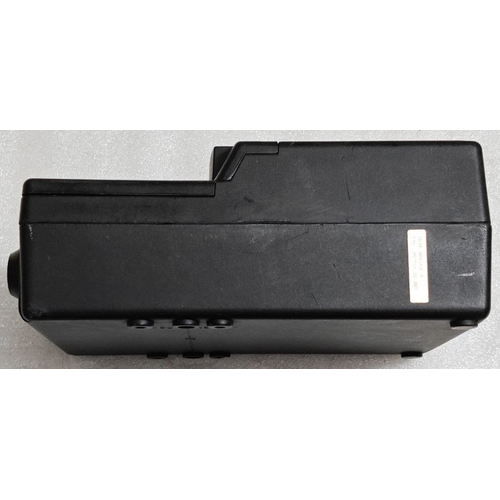

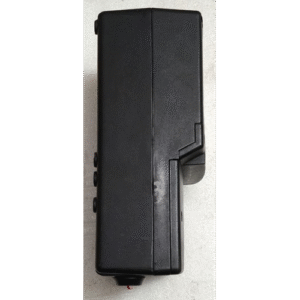

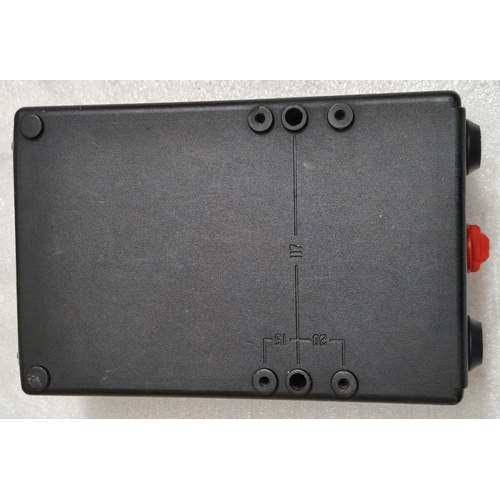

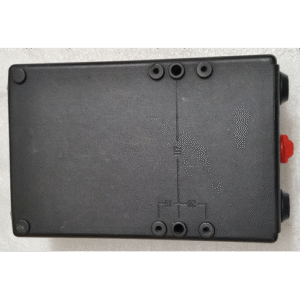

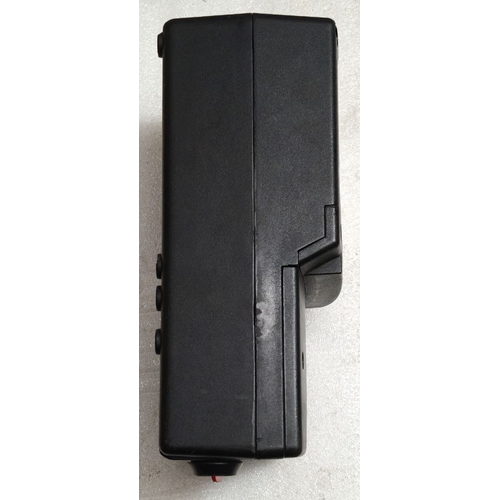

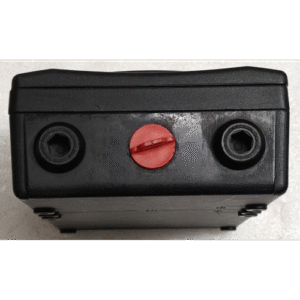

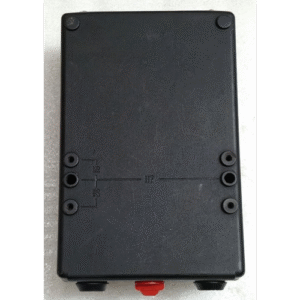

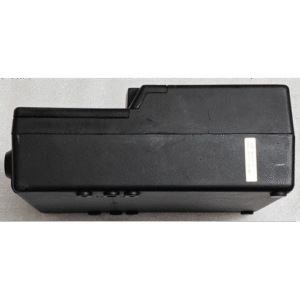

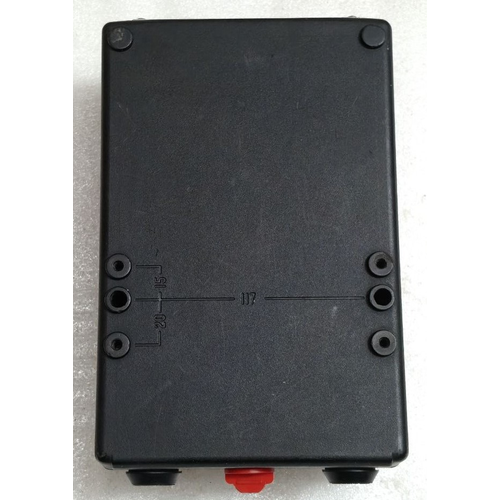

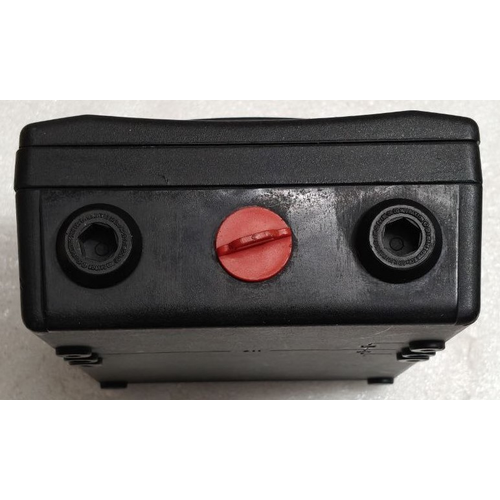

• This field mounting model is housed in a robust IP66 glass reinforced polyester (GRP) enclosure with a toughened glass window that may be surface mounted, or pipe mounted using one of the accessory kits.
• The fieldbus display can be supplied with six isolated alarm outputs, each of which may be linked to any of the displayed fieldbus variables. Alarm setpoints can be entered via the front panel push-buttons which may be protected by a security code.

Other PROFIBUS PA displays in our range include:

• Intrinsically safe panel mountingGeneral purpose field mountingGeneral purpose panel mounting To select the options for your application please refer to the following table.

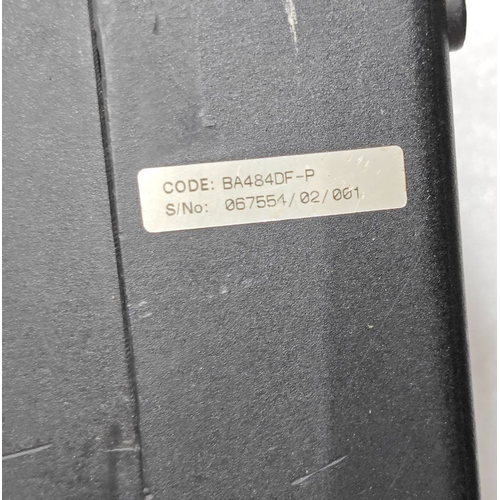

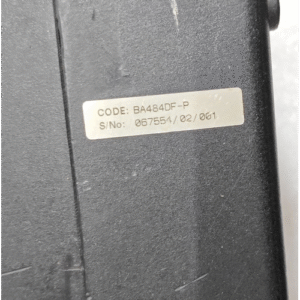

Model  BA484DF-P
BA484DF-P
Protocol
PROFIBUS PA
Mounting  Field
Protection  IP66
Display High contrast 86.5mm x 45mm with backlight, up to 8 fieldbus variables
Operator push buttons 4 Connections for remote operator push buttons 6

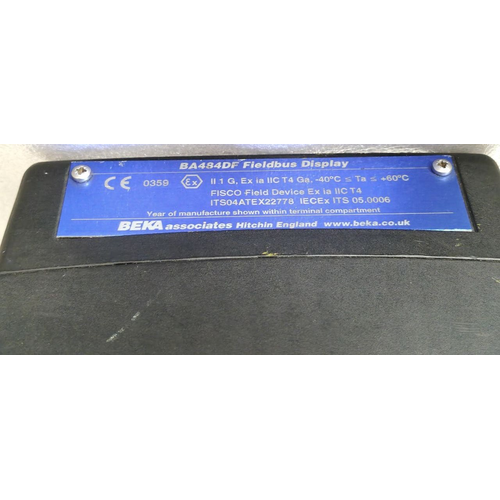

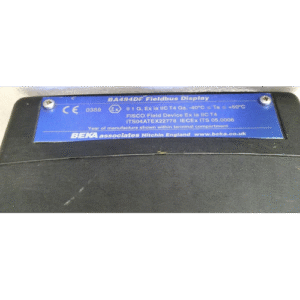

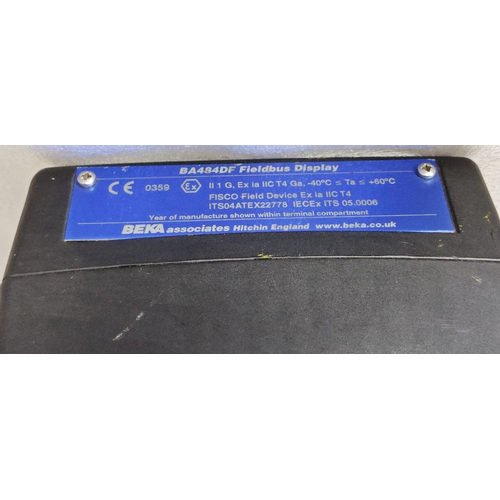

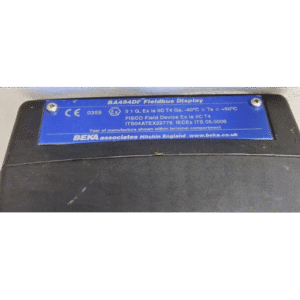

Certification

• International IECEx
• Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
• Europe ATEX  ATEX Group II Category 1G
• Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
• UK UKEX  ATEX Group II Category 1G
• Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
• India CCOE/PESO
• Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
• Optional Alarm outputs 6
• USA FM Certification
• 3610 Entity CL I, II, III Div. 1
• Gp A, B, C, D, E, F & G T4 Ta = +60°C
• 3611 Nonincendive CL I, II, III Div. 2
• Gp A, B, C, D, E, F & G T4 Ta = +60°C
• International IECEx Dust certification
• Ex ia IIIC T125°C Db IP66
• -40°C ≤ Ta ≤ +60°C
• Europe ATEX Dust certification
• Group II Category 2D
• Ex ia IIIC T125°C Db IP66
• -40°C ≤ Ta ≤ +60°C
