The CTG-294S-3A-7001 is a compact, serial-interface magnetic stripe card reader terminal manufactured by NEURON CORP, a Japanese electronics company known for its reliable data entry and identification systems. This device is a classic example of Japanese industrial design, prioritizing durability, simplicity, and seamless integration into custom embedded systems.
Key Features
-
Magnetic Stripe Reading: Capable of reading all standard tracks (Track 1, 2, and 3) on ISO-compliant magnetic stripe cards, such as credit cards, ATM cards, membership cards, and access control cards.
-
Serial Interface (RS-232C): Connects via a standard RS-232 serial port, ensuring simple and reliable integration with a wide range of Point-of-Sale (POS) systems, industrial PCs, access control panels, and other host equipment.
-
Integrated Keypad: Features a numeric keypad (typically 12-16 keys) allowing for dual-factor authentication (e.g., card swipe + PIN entry) or standalone data entry.
-
Compact and Durable Housing: Designed for countertop or embedded installation in various environments, from retail kiosks to factory floors.
-
12V DC Power Operation: Requires an external 12V DC power adapter, making it versatile for different installations.
-
Backlit Display: Equipped with a character-based LCD (e.g., 2×16 or 2×20) with a backlight for clear visibility in low-light conditions.
-
Audible Feedback: Includes a built-in buzzer for user confirmation (e.g., a successful card read or keypress).
Technical Specifications
| Category | Specification |
|---|---|
| Manufacturer | NEURON CORP (Japan) |
| Model Number | CTG-294S-3A-7001 |
| Main Function | Magnetic Stripe Card Reading & Data Entry |
| Card Type | ISO 7810/7811 Magnetic Stripe Cards |
| Readable Tracks | Track 1, Track 2, Track 3 (often configurable) |

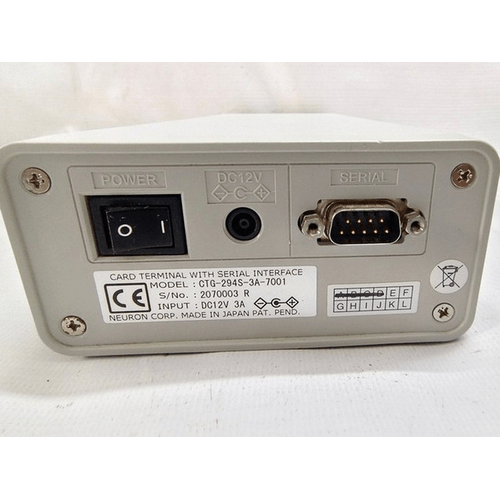

| Interface | Serial RS-232C (DB-9 or Terminal Block connector) |
| Power Supply | 12V DC (External Power Adapter) |
| Display | Monochrome Character LCD (e.g., 2 lines x 16 characters) |
| Keypad | Numeric (0-9), Function Keys (e.g., Enter, Clear, Cancel) |

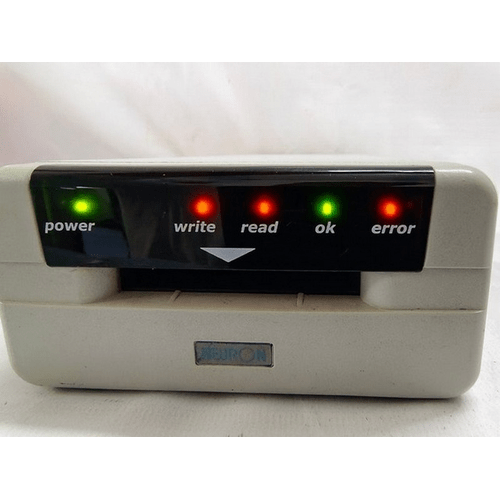

| Indicators | LED Status Lights, LCD Backlight |
| Audible Alert | Piezoelectric Buzzer |
| Typical Applications | POS Systems, Access Control, Time & Attendance, Vending Kiosks, Membership Systems |
