NAGMAN ETC-600 TEMPERATURE CALIBRATOR RANGE 50*C TO 600*C 230V AC/50Hz ETC600 11:10

NAGMAN ETC-600 TEMPERATURE CALIBRATOR RANGE 50*C TO 600*C 230V ETC600 Specifications Standard Delivery Optionals Resolution Display Accuracy Stability Temperature Readout Well – Immersion Depth Well Dia Interchangeable Thermowells Switch Test Facility / Supply Power Supply / Consumption Instrument Weight Dimension (W x L x H ) 50°C to 600°C ETC 600 18 Minutes (approx.) ETC 600-2 40 Minutes (approx.) 1°C Digital Display, 3½ Digit LED ETC 600 ±0.1%F.S. + 1digit ETC 600-2 ±0.15%F.S. + 1digit ±0.05°C °C/°F Switchable ETC 600 120 mm ETC 600-2 200 mm ETC 600 270 x 124 x 240 mm ETC 600-2 270 x 124 x 306 mm 25 mm ¼ & ½ Bore Dia (Standard*) Provided / 7 VDC Nominal 230 VAC / 50 Hz / 1200 Watts (Maximum) ETC 600 7 Kgs ETC 600-2 9 Kgs Heating Time (Typical Ambient to 600°C) Cooling Time (600°C to 100°C) Analog Output (F.S.) 10 mV / °C ¦ Basic Instrument ¦ ¦ Mains Cable ¦ Insertion Tubes (to suit ¼” & ½” probes) ¦ Tool for Insertion Tube ¦ Traceable Calibration Certificate ¦ Instruction Manual Cable for Thermostat Switch Test ¦ Carrying Case Standard Size to suit 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 7/8” & 3,4,5,6,7,8,10,12,19,21mm probes Multi-Hole (Typical) : 1 x 6 + 1 x 8, 3 x 6, 1 x 10 + 1 x 4 mm ¦ 115 V AC / 60Hz Power Supply ¦ Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 – Laborator

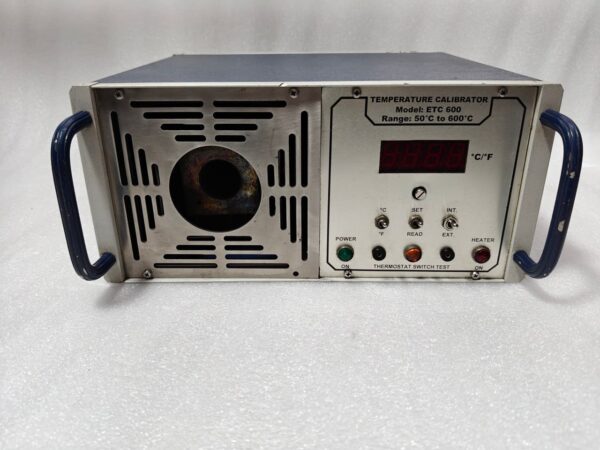

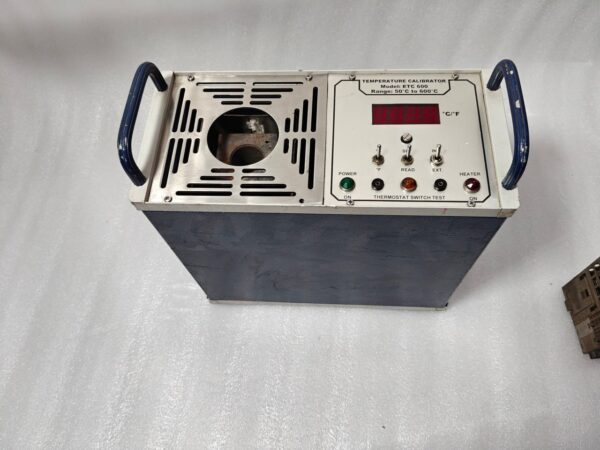

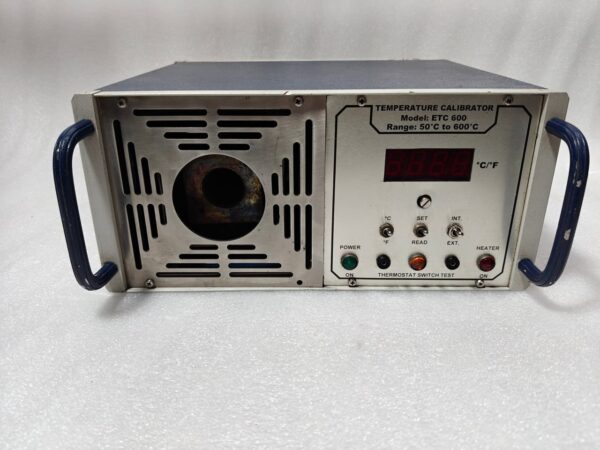

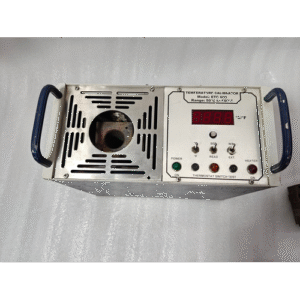

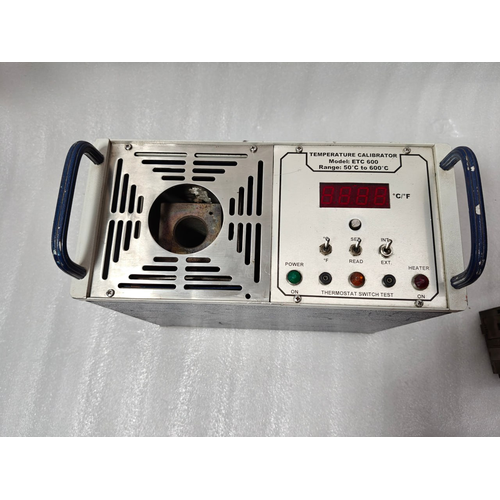

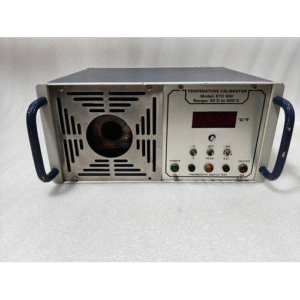

The NAGMAN ETC-600 is a robust and highly accurate dry-block temperature calibrator designed for testing, calibrating, and maintaining a wide range of temperature sensors in industrial and laboratory settings. With an extensive operating range from 50°C to 600°C, this calibrator is an indispensable tool for technicians working with thermocouples, RTDs, thermistors, and temperature switches.

Engineered for performance and reliability, the ETC-600 ensures your temperature-sensitive instruments and processes maintain peak accuracy, reducing downtime and ensuring quality control.

---

Key Features & Benefits

• Wide Temperature Range (50°C to 600°C): Covers a broad spectrum of high-temperature applications, making it ideal for calibrating sensors used in manufacturing, HVAC, automotive, and process industries.

• High Accuracy and Stability: Features excellent temperature uniformity and stability within the insert, providing reliable and repeatable calibration results you can trust.

• Rapid Heating and Cooling: Advanced heating technology allows for fast heat-up times, while the efficient cooling system minimizes waiting periods between calibration cycles, boosting productivity.

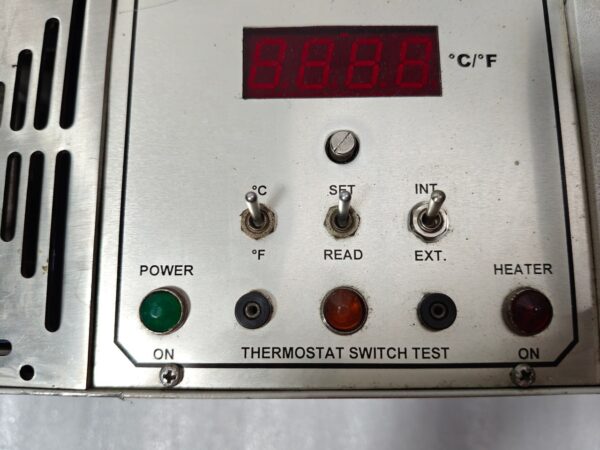

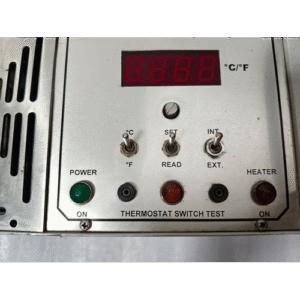

• Durable and User-Friendly Design: Built with a high-quality aluminum block and a clear, intuitive interface for easy operation. The unit is designed for long-term use in demanding environments.

• Versatile Insert System: Accommodates various sensor diameters with a selection of different-sized inserts (sold separately or as a kit), ensuring a proper fit for optimal thermal contact.

• Safety and Protection: Includes built-in safety features such as over-temperature protection to safeguard both the operator and the equipment during operation.

---

Technical Specifications

---

Applications

The NAGMAN ETC-600 is perfect for a wide array of calibration tasks across multiple industries:

• Process Industries: Calibrate sensors used in chemical plants, refineries, and power generation.

• Manufacturing: Ensure the accuracy of sensors in plastics, food & beverage, and pharmaceutical production.

• HVAC & Building Management: Test and validate temperature probes and controllers.

• Laboratories & R&D: Provide precise temperature references for experiments and quality assurance.

• Service and Repair: An essential tool for instrument technicians and calibration service providers.
