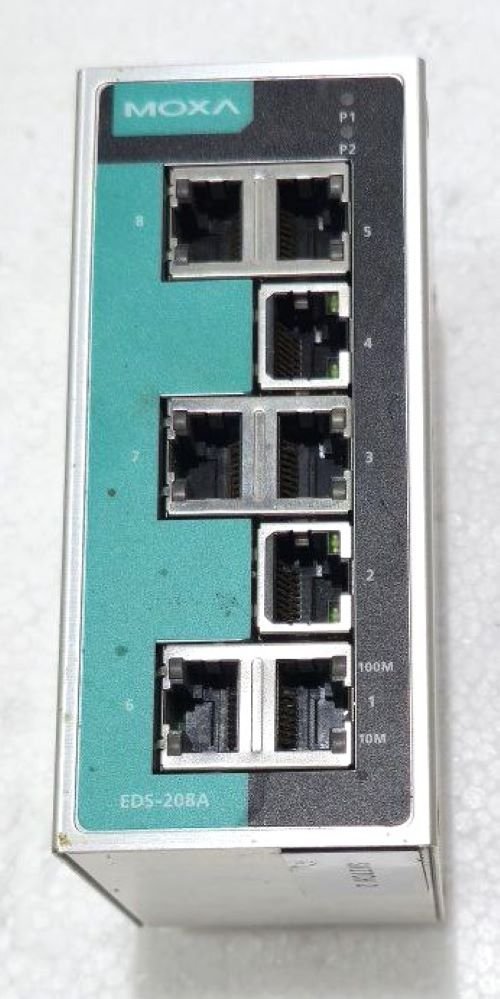

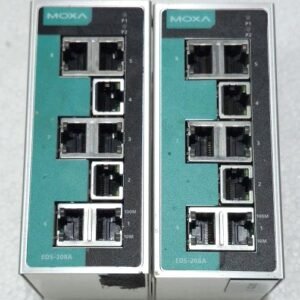

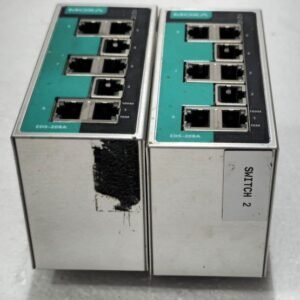

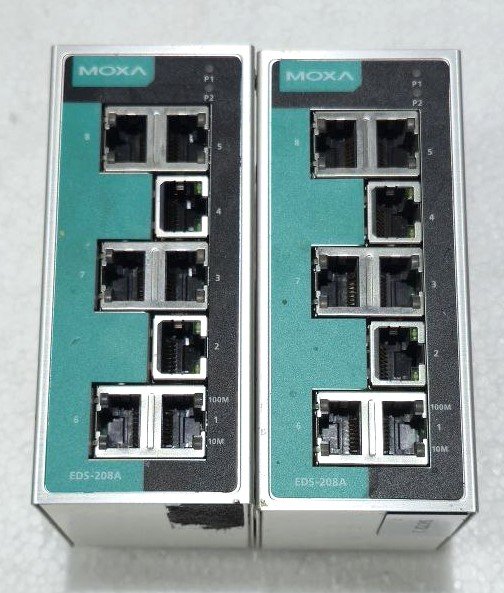

The MOXA EDS-208A-326 is a high-performance, 8-port industrial unmanaged Ethernet switch engineered for reliability in the most demanding conditions. Part of Moxa’s renowned EDS-200A series, this compact switch provides seamless, plug-and-play connectivity for industrial automation, ITS, railway, and power utility networks. Its robust design, wide temperature tolerance, and versatile 12/24/48 VDC power input ensure continuous operation where commercial-grade switches would fail.
Key Features & Benefits
-
Ultra-Rugged & Reliable: Built to withstand extreme temperatures (-40 to 75°C), high vibration, and shock. Perfect for uncontrolled environments like factory floors, roadside cabinets, and rolling stock.
-
Plug-and-Play Simplicity: As an unmanaged switch, it requires zero configuration. Install it, and it immediately provides robust network connectivity, saving time and eliminating complexity.
-

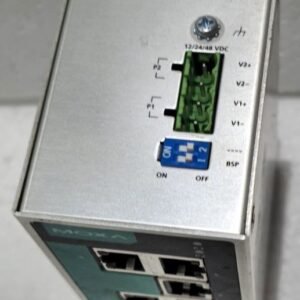

Wide-Range Dual Power Inputs: Supports 12 to 48 VDC with redundant, reversible plug-in terminal blocks. This ensures compatibility with virtually any industrial power supply (12V, 24V, 48V) and provides backup for critical applications.
-

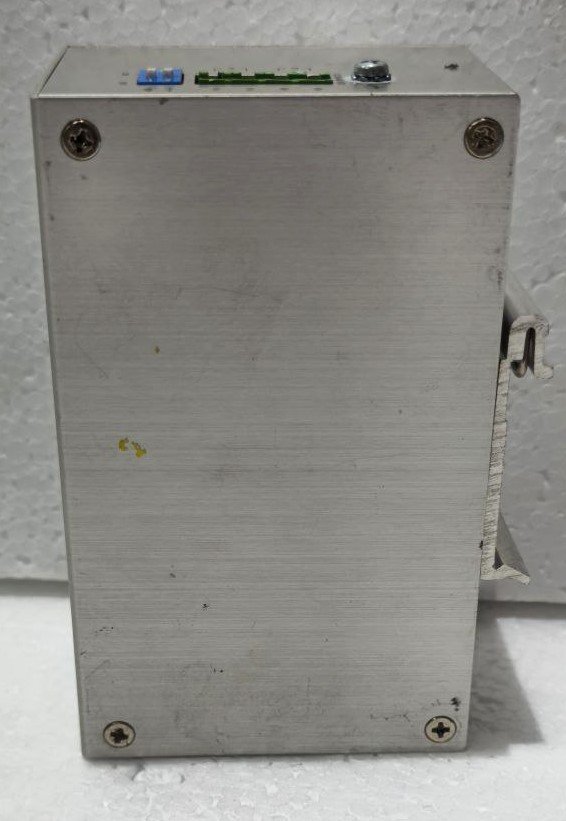

Compact & Easy to Install: Slim housing with standard DIN-rail mounting allows for flexible and space-efficient deployment in control cabinets and electrical panels.
-
Industrial-Grade Components: High MTBF (Mean Time Between Failures) ensures long-term, maintenance-free operation, reducing total cost of ownership.
-

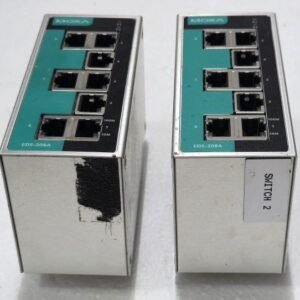

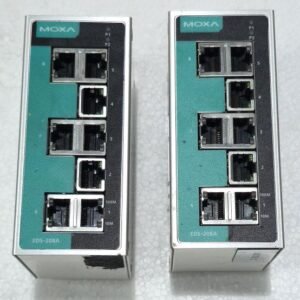

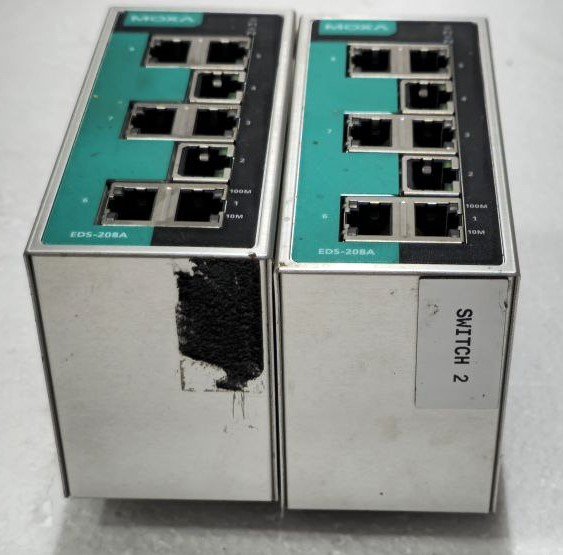

8 10/100BaseT(X) Ports: Delivers fast and reliable data transmission for connecting PLCs, HMIs, IP cameras, sensors, and other Ethernet devices.
Technical Specifications
-
Standards: IEEE 802.3, 802.3u for 10/100BaseT(X)
-
Ethernet Ports: 8 x 10/100BaseT(X) RJ45, auto MDI/MDI-X, auto-negotiation
-
Switching Bandwidth: 1.6 Gbps
-
Enclosure: IP30-rated metal housing
-

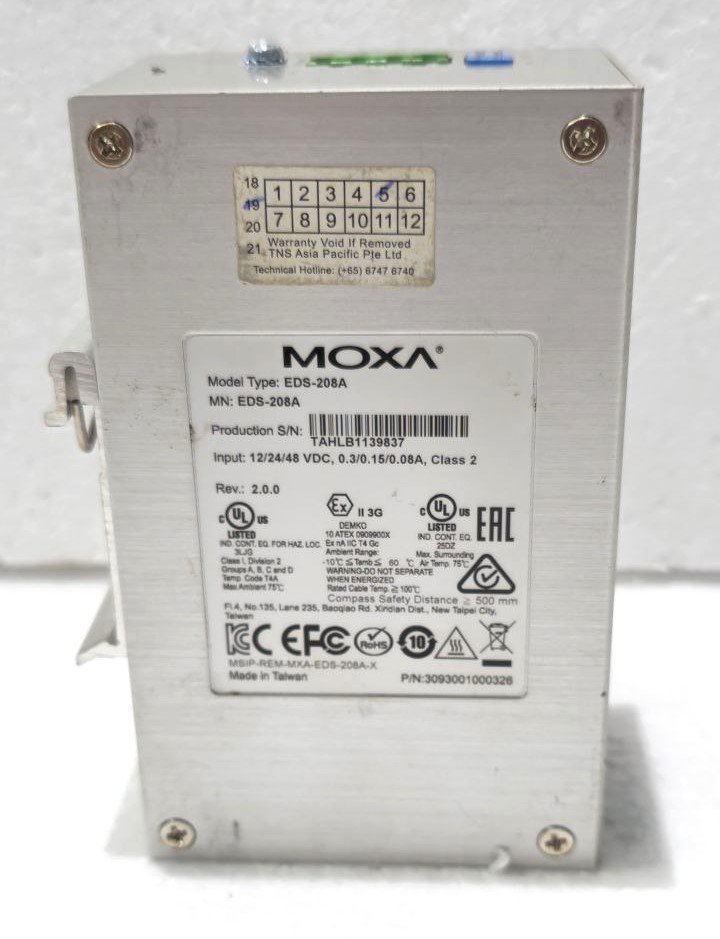

Power Supply Input: 12 to 48 VDC, redundant polarity-protected inputs
-
Power Consumption: 2.5 Watts (max)
-
Operating Temperature: -40 to 75°C (-40 to 167°F)
-

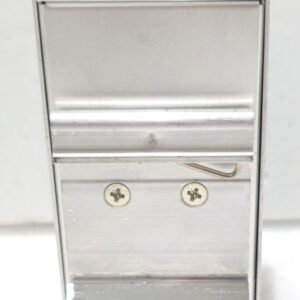

Mounting: DIN-rail (standard 35mm)
-
Approvals: CE, UL, Class I Division 2 (Hazardous Location), DNV GL, EN 50121-4 (Railway), EN 50155 (Railway) (Note: Specific certifications should be verified with the latest datasheet)
Ideal Applications
This industrial switch is the perfect connectivity solution for:
-
Factory Automation: Connecting machines, controllers, and devices on the shop floor.
-
Intelligent Transportation Systems (ITS): Traffic control, variable message signs, and roadside monitoring.
-
Railway & Mass Transit: On-board passenger information systems and trackside communications.
-
Power & Renewable Energy: Substation automation, wind turbine control, and solar farm monitoring.
-
Marine & Offshore: Shipboard networks and offshore platform control systems.
-
Any harsh environment requiring a simple, dependable Ethernet backbone.
Why Choose the MOXA EDS-208A-326?
Choose the EDS-208A-326 for a cost-effective, zero-configuration industrial networking solution that doesn’t compromise on durability. Moxa’s decades of expertise in industrial communications guarantee a product trusted by engineers worldwide. Its wide voltage input eliminates power compatibility issues, while its extended temperature range future-proofs your investment against environmental challenges.
