| Range | MasterPact |
|---|---|
| Range of produc | MasterPact NW |
| Product or component type | Control unit |
| Trip unit name | MicroLogic 5.0 P |
| Trip unit technology | Electronic |
| Range compatibility | Masterpact NW08…40 Masterpact NW40b…63 Masterpact NW H10 Masterpact NW H2 corrosion protection |
| Device application | Distribution |
| Number of poles | 3P 4P |
| Protected poles description | 4t 3t 3t + N/2 |
| Trip unit protection functions | Selective protection |
| Protection type | for short time short-circuit protection for overload protection (long time) for instantaneous short-circuit protection |
| Trip unit rating | 800 A at 50 °C 1000 A at 50 °C 1250 A at 50 °C 1600 A at 50 °C 2000 A at 50 °C 2500 A at 50 °C 3200 A at 50 °C 4000 A at 50 °C 5000 A at 50 °C 6300 A at 50 °C |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Drawout |
The Micrologic 5.0P is a high-performance control unit that provides advanced protection, monitoring, and measurement for electrical circuits in low voltage power distribution systems. It is engineered for applications where detailed knowledge of power consumption and electrical parameters is crucial for energy management and operational efficiency.
Key Features & Core Functionality
-
Comprehensive Protection:
-
Long-Time Delay:Â Protects against sustained overloads.
-
Short-Time Delay:Â Protects against medium-level short-circuit currents.
-
Instantaneous:Â Protects against high-level short-circuit currents.
-
Ground-Fault Protection (5.0P):Â This is the defining feature. It detects current leakage to ground, which is critical for protecting equipment and personnel from ground faults. The “G” setting is adjustable.
-
-
Power & Energy Monitoring (The “P” in 5.0P):
-
Measurement:Â Provides real-time measurement of key electrical parameters, including:
-
Current (A)
-
Voltage (V)
-
Power (kW, kVA)
-
Power Factor (PF)
-
Frequency (Hz)
-
Energy (kWh)
-
-

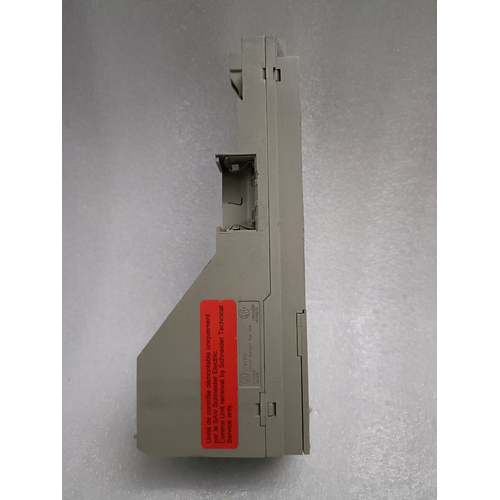

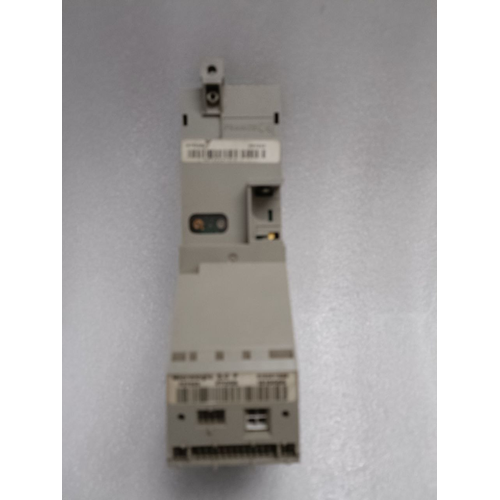

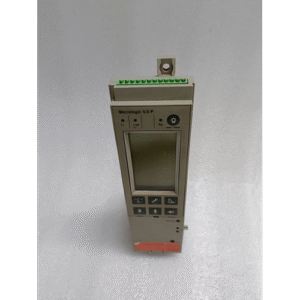

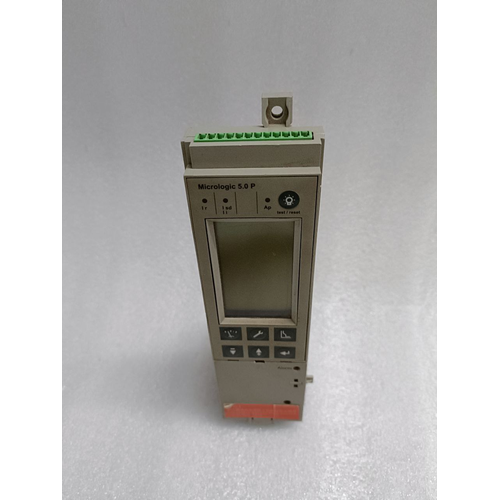

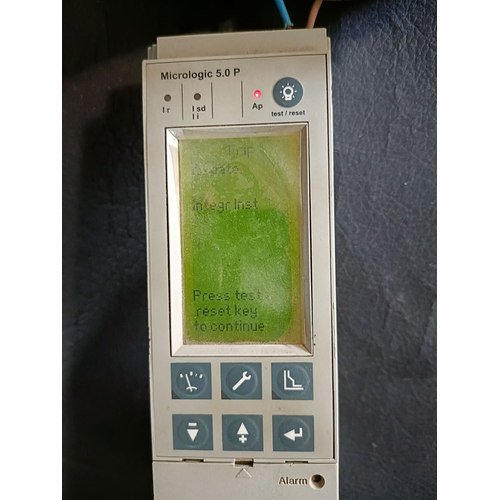

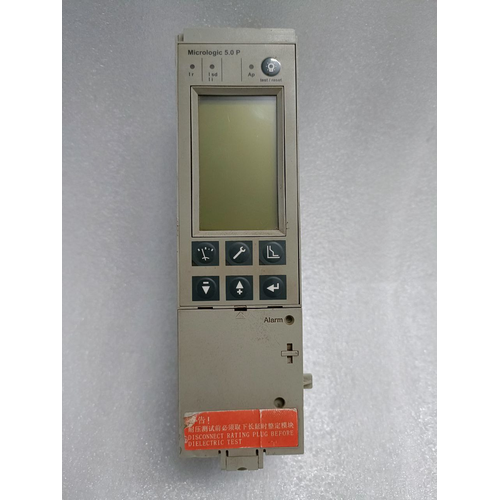

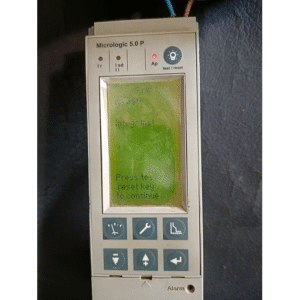

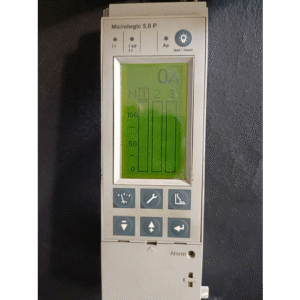

Display:Â Features a clear, backlit LCD screen to display all measured values, setpoints, and alarm information.
-
-
Communication Ready:
-
Comes equipped with a built-in communication port (typically for FDM121 display or a communication module).
-
Can be easily integrated into Building Management Systems (BMS) or SCADA systems using protocols like Modbus, Profibus, or Ethernet via Schneider Electric’s communication boards (e.g., COM-100, COM-150).
-
-
Event Recording & Logging:
-
Records the last several trips with detailed information (date, time, current value, type of fault), which is invaluable for troubleshooting and root cause analysis.
-
-
Load Shedding & Control:
-
Can be programmed to issue alarms or trip commands based on power thresholds, enabling demand control and load shedding to avoid peak demand charges.
-
Technical Specifications
-
Manufacturer:Â Schneider Electric
-
Brand Line:Â Originally Merlin Gerin, now unified under Schneider Electric.
-
Product Type:Â Electronic Trip Unit / Control Unit
-

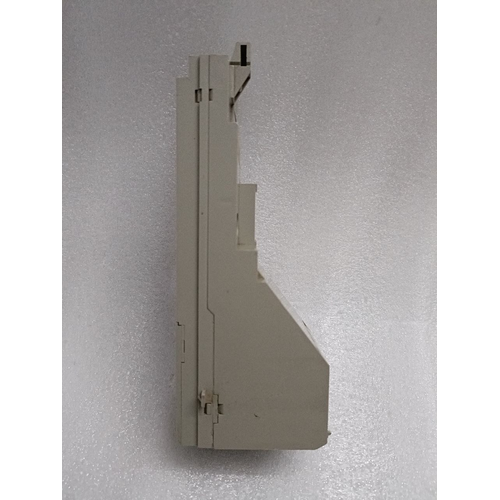

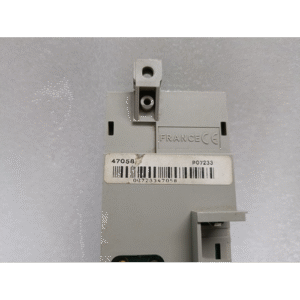

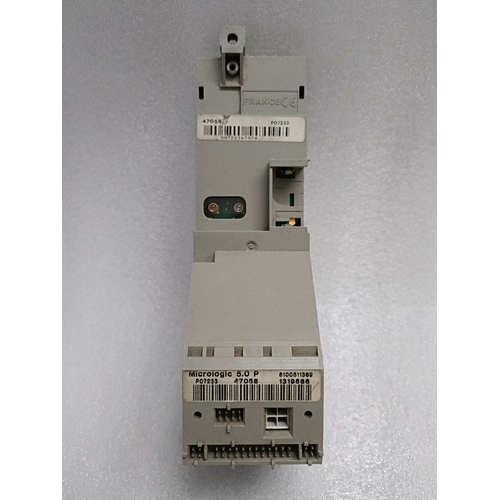

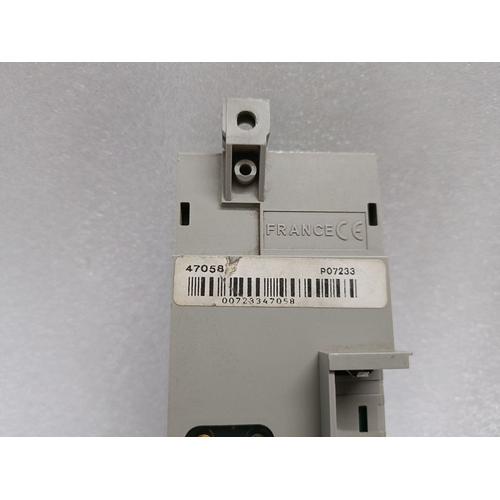

Part Numbers: 47058, 5100511369
-
Model:Â Micrologic 5.0P
-
Range:Â Designed for MasterPact MT circuit breakers.
-
Protection Functions:Â Long-time, Short-time, Instantaneous, Ground Fault.
-
Measurement Capabilities:Â Current, Voltage, Power, Energy, Power Factor, Frequency.
-
Display:Â Backlit LCD with navigation buttons.
Typical Applications
The Micrologic 5.0P is ideal for critical power distribution environments where both safety and energy data are paramount:
-
Main Power Distribution Boards / Switchboards
-
Industrial Plants & Manufacturing Facilities
-
Large Commercial Buildings (Office Towers, Shopping Malls)
-
Data Centers
-
Hospitals and Healthcare Facilities
-
Infrastructure Projects (Airports, Railway Stations)
