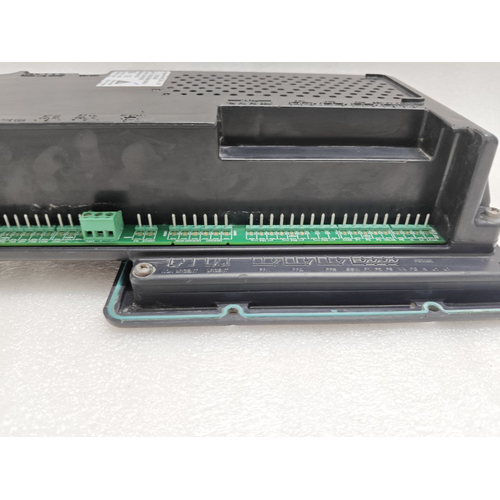

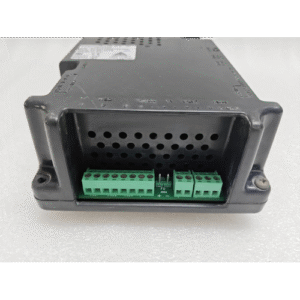

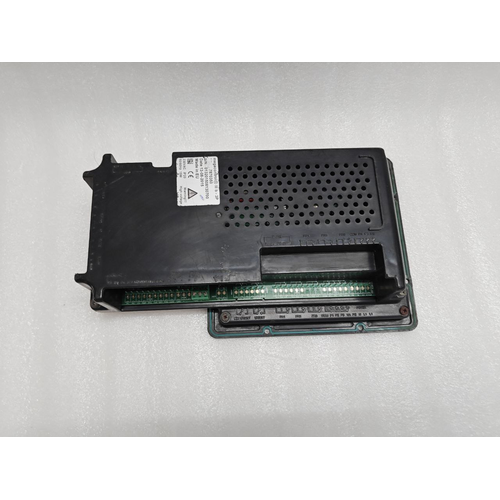

MEGACONTROL III B – 3P 7870350 EU DUIJVELLAR POMPEN DP PUMPS 8130700 13:21

• BRAND: DP PUMPS
• MODEL: MEGACONTROL III B – 3P
• MPN: 7870350
• S/N: 013201508130700
• MADE IN UK
• DUIJVELLAR POMPEN
• DP PUMPS
• 8130700
• 230 VAC, IP 20
• 50/60 HZ, 15W
• MFG DATE: 13-08-2015

Product Description: MEGACONTROL III B Pump Unit

The MEGACONTROL III B – 3P 7870350 is a sophisticated, pre-configured pumping system that combines a high-performance DUIJVELAR pump with an advanced MEGACONTROL control panel. This unit is designed for reliability, efficiency, and ease of use in heavy-duty applications.

Overall System Breakdown:

1. The Control Panel: MEGACONTROL III B – 3P 7870350 EU
This is the “brain” of the system, an electrical control panel that manages and protects the pump motor.

• MEGACONTROL III B: Indicates this is the third generation (III) of the MEGACONTROL series, in a specific “B” configuration (likely for pump control). It signifies an integrated system with motor starters, protection devices, and control logic.

• 3P: Stands for 3-Phase. This unit is designed to operate with a 3-phase electrical power supply, which is standard for industrial motors due to its efficiency and ability to handle high power loads.

• 7870350: This is the specific Model/Part Number or order code for the control panel itself.

• EU: Confirms the unit is manufactured to and complies with European Union electrical standards and directives (e.g., CE marking).

2. The Pump: DUIJVELAR POMPEN DP PUMPS 8130700
This is the mechanical heart of the system, a robust pump designed to move fluid.

• DUIJVELAR POMPEN: This is the manufacturer’s name. Duijvelar is a well-known Dutch manufacturer of high-quality pumps.

• DP PUMPS: Likely stands for “Duijvelar Pumps” and may refer to a specific product line.

• 8130700: This is the specific Model/Part Number for the pump end (the hydraulic part). This number defines the pump’s physical characteristics like its size, impeller type, and connection ports.

3. The Motor: SEO
This is the power source that drives the pump.

• SEO: This is a brand of high-efficiency, industrial-grade electric motors. SEO motors are known for their reliability and are commonly paired with pumps and other machinery.

Key Features & Capabilities (Inferred from Components):

• Complete Plug-and-Play Unit: The system is supplied as a matched set, with the pump, motor, and control panel pre-wired and tested, reducing installation time and complexity.

• Motor Protection: The MEGACONTROL panel provides essential protection against:

  • Overload: Prevents motor burnout from excessive current.

  • Short Circuit: Protects against electrical faults.

  • Phase Failure: Protects the motor if one phase of the 3-phase power is lost.

• Control Functions: The panel likely includes:

  • Start/Stop controls (manual or automatic).

  • Status indicators (Power On, Run, Fault).

  • Possibly a Variable Frequency Drive (VFD) for speed control, though this is not explicitly stated by the “III B” designation.

• Heavy-Duty Construction: The combination of Duijvelar pumps and SEO motors indicates a product built for continuous operation in demanding environments like:

  • Water Supply and Boosting

  • Irrigation Systems

  • Industrial Cooling Circuits

  • Pressure Boosting in Buildings

• EU Compliance: The entire system is designed to meet strict European safety and EMC (Electromagnetic Compatibility) standards.

Potential Applications:

• Boosting water pressure in high-rise buildings or industrial facilities.

• Transferring water in agricultural and irrigation systems.

• Circulating water in industrial cooling and process systems.

• General water supply and distribution from tanks or reservoirs.

To Get More Specific Information:

To get technical details like flow rate, pressure (head), power rating (kW), voltage, and physical dimensions, you would need to look up the specific datasheets using the part numbers:

• Pump Performance: Search for “Duijvelar 8130700 datasheet”.

• Control Panel Details: Search for “MEGACONTROL 7870350 manual”.

• Motor Specifications: The motor rating (kW, RPM, IP rating) would typically be found on the pump’s datasheet or the motor’s nameplate.
