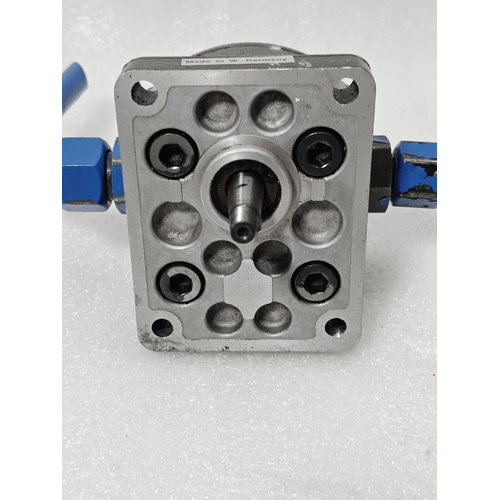

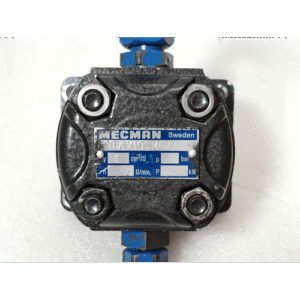

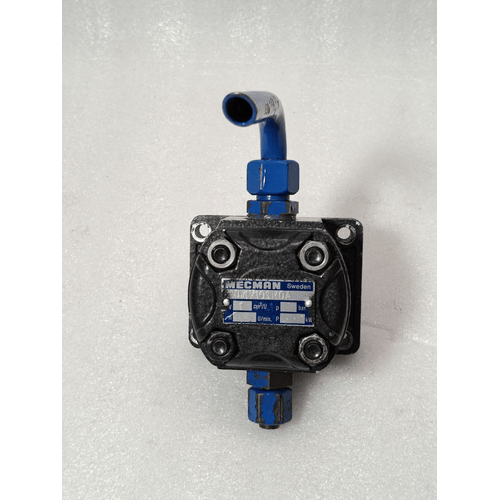

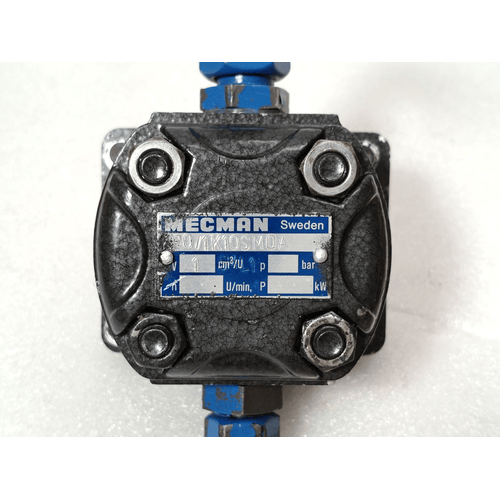

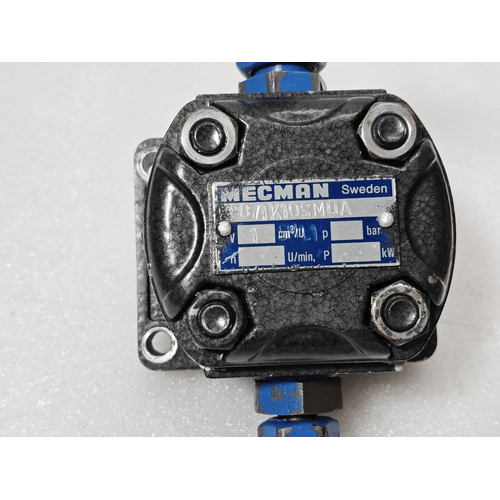

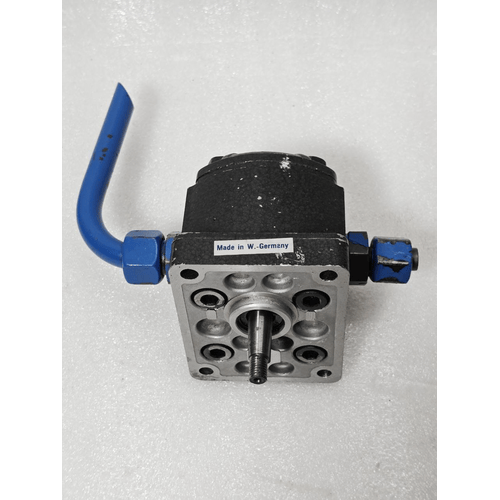

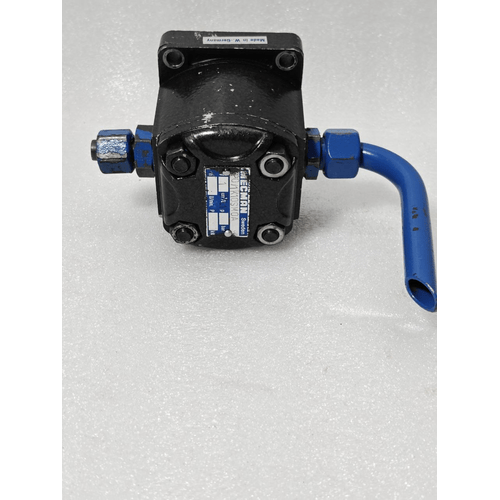

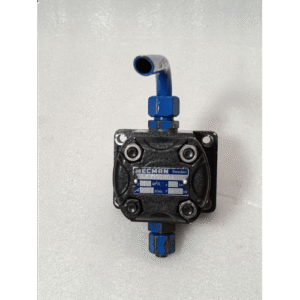

MECMAN SWEDAN KP0 / 1K10 SM 0A GEAR PUMP 18:01

• BRAND: MECMAN SWEDAN
• MODEL: KP0 / 1K10 SM 0A
• GEAR PUMP
• MADE IN GERMNAY

Product Description: Mecman Swedan KP0-1K10-SM-0A Hydraulic Gear Pump

The Mecman Swedan KP0-1K10-SM-0A is a high-performance, robust hydraulic gear pump designed for demanding mobile and industrial applications. As part of Mecman’s renowned Swedan KP0 series, this pump is engineered for reliability, efficiency, and long service life in compact spaces.

This model is a 1-section (single pump) unit with a displacement of 10 cm³/rev (approximately 0.61 in³/rev). The “SM” designation indicates a submersible mounting option, making it ideal for integrated tank designs where space optimization is critical. It features a standard rotation direction and is designed for a nominal pressure of 250 bar (3625 psi), with peak pressure capabilities up to 315 bar (4570 psi).

Built with high-quality materials, including sintered iron gears and a precision-machined body, the KP0-1K10-SM-0A delivers consistent hydraulic power for a wide range of machinery, from compact agricultural equipment and material handlers to construction machinery and utility vehicles.

Key Features & Benefits

• Robust Swedan KP0 Design: Proven in countless applications for its durability and resistance to harsh operating conditions. The compact KP0 platform offers high power density.

• Submersible Mounting (SM): Allows for direct installation inside the hydraulic tank, saving space, simplifying system design, and reducing potential leak points. Perfect for compact machinery.

• High Efficiency: Optimized internal geometry minimizes internal leakage, ensuring high volumetric and overall efficiency, which leads to better fuel economy and lower operating costs.

• Long Service Life: Precision-engineered gears and wide-bearing surfaces ensure excellent load capacity and long-term reliability, even under continuous operation.

• Versatile Porting Options: Features SAE straight thread ports (4x M14x1.5), which are compatible with common global standards, making integration straightforward.

• Wide Operating Range: Suitable for use with various hydraulic fluids, including mineral-based, biodegradable, and synthetic oils, within a temperature range of -40°C to +100°C (-40°F to +212°F).

Technical Specifications

• Manufacturer / Series: Mecman Swedan KP0

• Model: KP0-1K10-SM-0A

• Type: Single Hydraulic Gear Pump

• Displacement: 10 cm³/rev (0.61 in³/rev)

• Nominal Pressure: 250 bar (3625 psi)

• Peak Pressure: 315 bar (4570 psi)

• Rotation: Standard (Clockwise, viewed from the shaft end)

• Shaft: 1″ x 1/4″ Involute Spline (Standard SAE)

• Mounting: Submersible (for installation inside the tank)

• Port Size: 4x M14x1.5 (SAE straight thread)

• Speed Range: 600 – 3000 RPM (Recommended)

Applications

This pump is ideal for powering hydraulic systems in:

• Compact Tractors & Agricultural Machinery

• Municipal & Utility Vehicles

• Material Handling Equipment

• Construction Machinery (e.g., mini-excavators, rollers)

• Forestry Equipment

• Mobile Hydraulic Power Units
