Lif-O-Gen® Oxygen Regulator Fixed Flow 6 LPM 0302 31 80 0420
0-1500 PSI
| McKesson # | 945297 |
|---|---|
| Manufacturer # | 31-80-0505 |
| Brand | Lif-O-Gen® |
| Manufacturer | Allied Healthcare |
| Country of Origin | Unknown |
| Application | Oxygen Regulator |
| Flow Control Type | Fixed Flow |
| Flow Rate | 6 LPM |
| UNSPSC Code | 42271707 |
The LIF-O-GEN Oxygen Regulator is a precise, durable, and user-friendly medical device designed to safely control and deliver oxygen from a high-pressure cylinder to a patient. Its fixed flow setting makes it ideal for situations requiring a consistent, reliable oxygen supply without the need for adjustment.
Key Features & Specifications:
-
Fixed Flow Rate: 6 Liters Per Minute (LPM). This preset flow rate is a common therapeutic dosage, ensuring consistent delivery without the risk of accidental adjustment. It is ideal for long-term oxygen therapy (LTOT) where a specific, unchanging flow is prescribed.
-

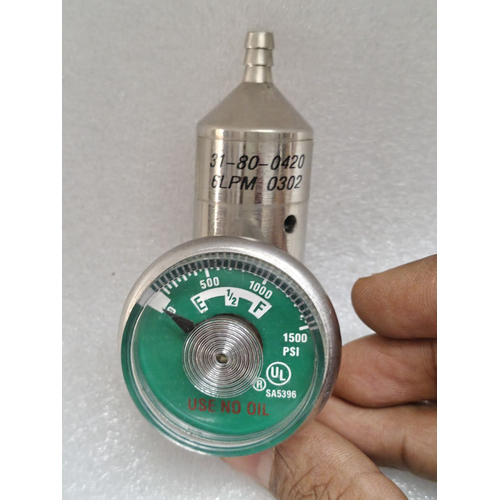

High-Pressure Gauge: Measures the pressure inside the oxygen cylinder.
-
Range: 0 – 1500 PSI (Pounds per Square Inch).
-
Purpose: Allows the user to monitor the remaining oxygen supply in the cylinder. As oxygen is used, the needle on this gauge will drop, providing a clear visual indication of when the tank needs to be replaced or refilled.
-
-
Outlet Connection: The regulator is equipped with a DISSS (Diameter Index Safety System) 30mm outlet (Pin Index 2-5). This is a standard, safety-oriented connection port for medical oxygen equipment, ensuring a secure and leak-free attachment to oxygen tubing or other devices.
-
Inlet Connection: Designed with a CGA 870 (Compressed Gas Association) Pin Index system. This is the standard connection for medical oxygen cylinders in the United States. The specific pin configuration (Pin Index 2-5) is a safety feature that prevents the regulator from being accidentally connected to the wrong type of gas cylinder.
-
Intended Use: Primarily used for medical oxygen therapy in home care, emergency response, ambulances, and clinical settings. It is suitable for use with standard large “H” or “K” cylinders, as well as smaller “E” or “D” cylinders for portability.
-
Safety & Compliance: As a medical device (indicated by part numbers like 0302 31 80 0420), it is manufactured to meet specific safety and performance standards for oxygen service. This includes being clean and free of contaminants (oxygen-clean) to prevent fire hazards.
