KRK MULTI RANGE ASYMMETRICAL FLICKER SZR-M2 OMRON TURKEY 17:11
$85.00
1 in stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
KRK MULTI RANGE ASYMMETRICAL FLICKER SZR-M2 OMRON TURKEY
| TYPE | SZR M2 |
| ORDER CODE | SZR M2: 60010 00687 |

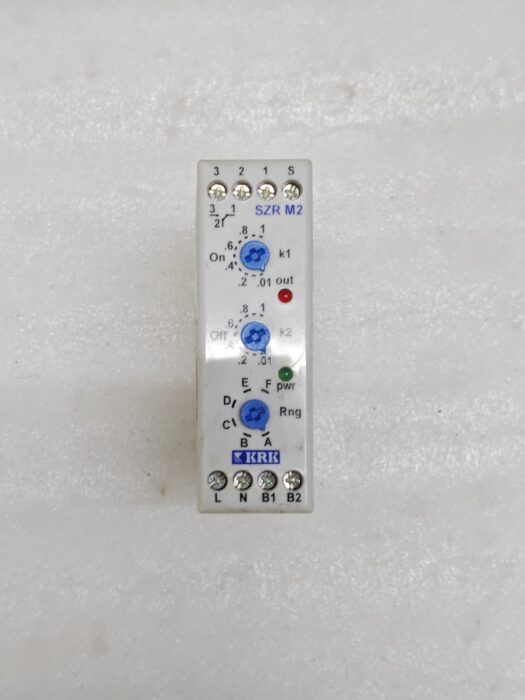

| GENERAL SPECIFICATIONS | Multi Range * 6 time Ranges covering from 0,6 sec till 10 hours – Knob Adjustable OFF time, ON time and range functions a. OFF Time knob: Multiplier that adjust time within setted time range b. ON Time knob: Multiplier that adjust time within setted time range c. Range: Time range that is for more precise setting. (shown below) – Led displays that shows the Supply is On. |
| TIME RANGES | A: 60 s / 60 s B: 10 m / 60 s C: 60 m / 60 s D: 10 m / 10 m E: 60 m / 60 m F: 10 s / 10 s |
| SETTING ACCURACY | %2 of whole scale |
| OUTPUT CONTACT | SPDT Relay (1 inversör) 10A / 250 Vac(Omron) (Resistive Load) |
| SUPPLY VOLTAGE | 230 Vac ± %20 (L – N), 50 / 60 Hz 24 Vac ± %10 (B1 – B2) 24 Vdc ± %10 (B1: + B2: 0) * Please indicate Voltage ratings at order. 110V AC is also available upon request. |
| POWER CONSUMPTION | < 7 VA (230 Vac) <1,3 VA (24 Vac) <1 VA (24 Vdc) |
| OPERATING TEMPERATURE | -5°C…+55 °C |
| ELECTRICAL CONNECTION | PCB Connector |
| ELECTRICAL LIFE | 100.000 ON / OFF (Resistive Load ) |
| MOUNTING TYPE | For Mounting on DIN Rail or Inside Panel |
| PROTECTION CLASS | IP 20 |
Additional information
| Product Conditioned | NEW |
|---|---|
| BRAND | KRK |
| MODEL | SZR-M2 |
| MPN | SZR-M2 |
| TYPE | MULTI RANGE ASYMMETRICAL FLICKER |
| Country/Region of Manufacture | Türkiye |
