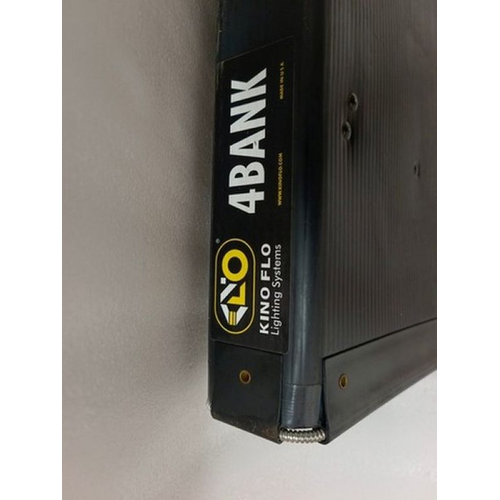

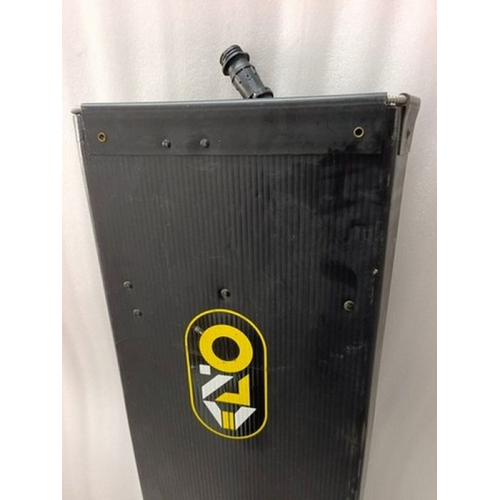

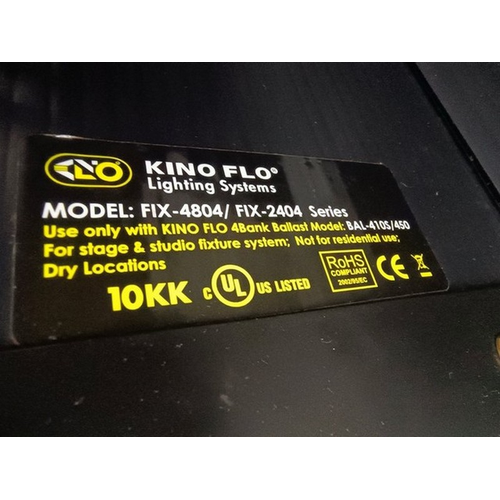

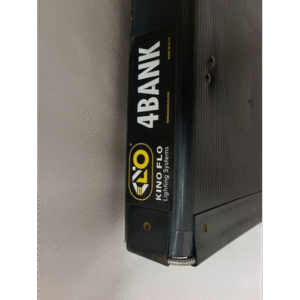

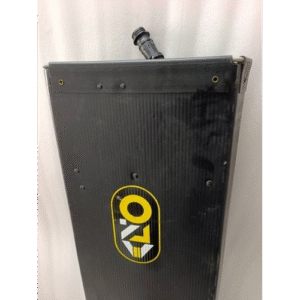

FIX-4804 4ft 4Bank Fixture Shell
Award-winning 4ft 4Bank portable lighting systems have changed the way professionals light everything from feature films to television productions to video and still photography.
Why? Because it is the most versatile softlight on the market. The 4Bank is similar to a 1,000 Watt softlight, but uses 1/2 the power. Color temperature doesn’t shift when the light levels change. Lamps are long lived and operate outside the fixture. The fixtures are lightweight enough to tape to a wall. Here are some 4Bank Basics:
The 4-Lamp Fixture

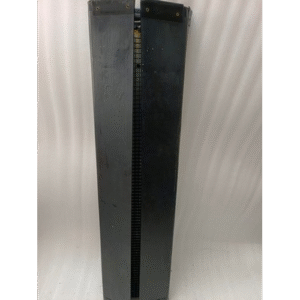

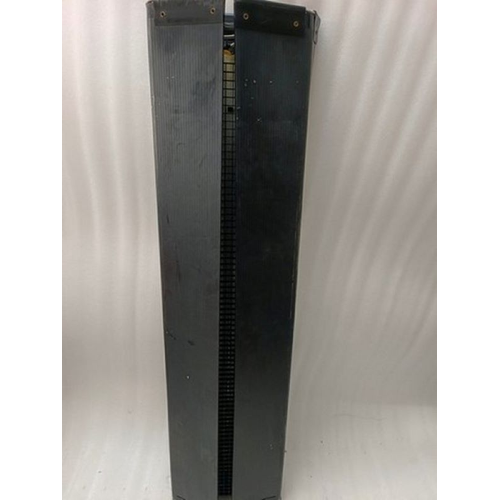

• Built-in Barndoors
• Removable Lamp Harness, Reflector and Louver

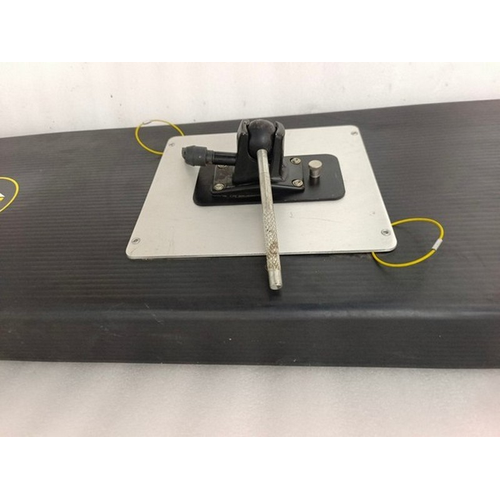

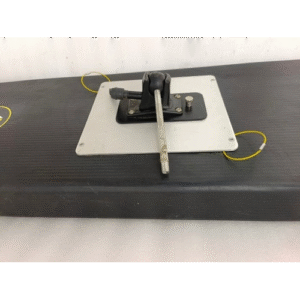

• Twist-on, locking Center Mount
• True Match® daylight and tungsten lamps
| 4Bank System Highlights
• 4-Lamp remote fixture w/ built-in barndoors |
 | |

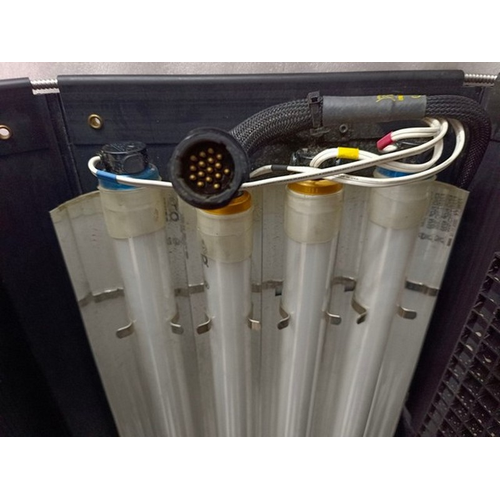

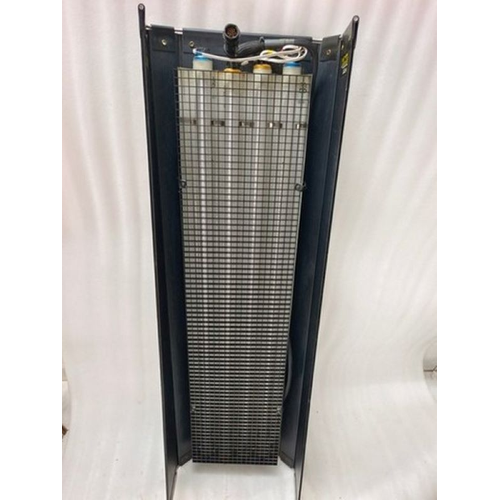

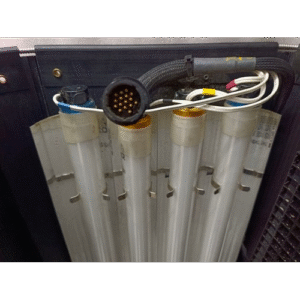

The 4Bank Fixture houses the lamps and is comprised of a removable Louver, Reflector, and Lamp Harness. The Louver and Reflector are held in place with Velcro fasteners. There is a strain relief on the Lamp Harness to ensure the connectors don’t pull off the lamps during operation. To get the harness away from the fixture, turn the ¼ turn fastener and rotate counter-clockwise to release.
Fixture can be used in several configurations:
1) Complete fixture with all components combined.
2) “Harness Only” – The wiring harness is removed from the fixture so that the user can build a softbox, hide behind Plexiglass or rig into tight locations. The wiring harness uses Kino Flo designed lamp connectors that grab the lamp pins so lamps can be operated independently of the fixture.
3) “Harness + Reflector” – Same as above, but may want to use the reflector to give more punch and direction to the light.
4) Can use Louver to give direction to the light or remove louver to give broad coverage over an area, such as lighting blue and green screens etc.
The fixtures can take a variety of lamps. They can be used as a daylight source by using Kino Flo KF55 lamps or a tungsten source using Kino Flo KF32 or KF29 lamps. A variety of visual effects for blue and green screen as well as designer colors are available.
Kino Flo lamps are color-correct and safety-sleeved. The lamps are safety-sleeved because they can operate inside the fixture or independently with only the wiring harness. Additionally, on a production set the lamps are often changed out. The safety-sleeving offers protection during lamp changes for the user as well as the talent on the set.
