Johnson Controls MS MIG 3120 0 Industrial Control System RY 10406 REV T

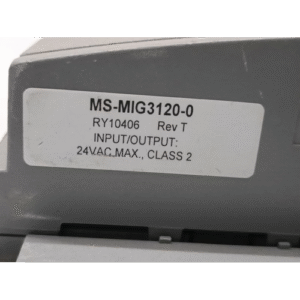

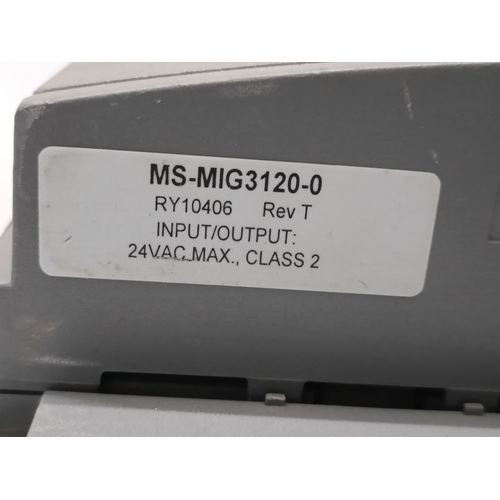

Johnson Controls MS MIG 3120 0 Industrial Control System INPUT OUTPUT

The Johnson Controls MS-MIG-3120-0 is a critical component within the renowned Metasys® ecosystem, designed as a powerful and reliable Integration Gateway. Carrying the product code RY 10406 REV T, this module serves as a universal communication bridge, enabling seamless connectivity between third-party or legacy industrial control systems and the centralized Metasys Building Automation System (BAS).

By integrating disparate systems—such as HVAC, lighting, power, or security from other manufacturers—the MIG-3120-0 provides a unified interface for data visualization, trend analysis, alarm management, and operational control. This empowers facility managers to achieve enhanced efficiency, reduced energy consumption, and simplified system-wide management from a single pane of glass.

Key Features & Benefits

• Seamless System Integration: Acts as a protocol translator, allowing non-Metasys equipment and subsystems to communicate effectively on the Metasys Network (N2/LON), preventing data silos.

• Centralized Monitoring & Control: Provides a single, unified view of your entire building’s operations within the Metasys UI, improving situational awareness and response times.

• Industrial-Grade Reliability: Engineered for demanding industrial and commercial environments, ensuring stable and continuous operation critical for facility management.

• Alarm & Event Management: Consolidates alarms from integrated systems, ensuring critical notifications are never missed and enabling proactive maintenance.

• Data Logging & Trend Analysis: Collects and logs data from connected devices, allowing for in-depth performance analysis, reporting, and optimization of building systems.

• Simplified Troubleshooting: By bringing all system data to one platform, it drastically reduces the time and complexity involved in diagnosing issues across multiple systems.

Technical Specifications

• Model Number: MS-MIG-3120-0

• Product Code / Revision: RY 10406 REV T

• Product Type: Metasys Integration Gateway (MIG)

• Primary Function: Protocol Gateway / Network Integration Engine

• Compatibility: Designed for integration with the Johnson Controls Metasys Building Automation System.

• Typical Applications: Used to connect third-party BACnet, LonWorks, Modbus, or other proprietary protocol devices to the Metasys N2 or LON bus.

Common Applications & Use Cases

The Johnson Controls MS-MIG-3120-0 is indispensable in complex facilities where equipment from multiple vendors is present. Its typical applications include:

• Integrating standalone HVAC units (chillers, boilers, RTUs) from other manufacturers.

• Connecting power monitoring systems and electrical meters.

• Bringing legacy industrial control systems under modern BAS management.

• Unifying lighting control systems and fire alarm panels for global building control strategies.

• Retrofit Projects where new Metasys controls are installed alongside existing equipment.
