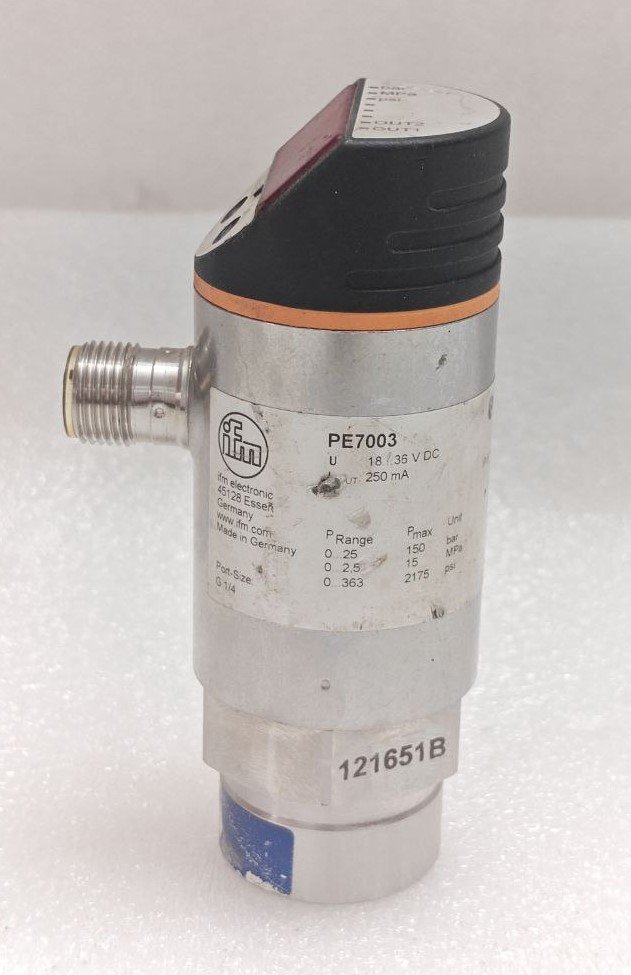

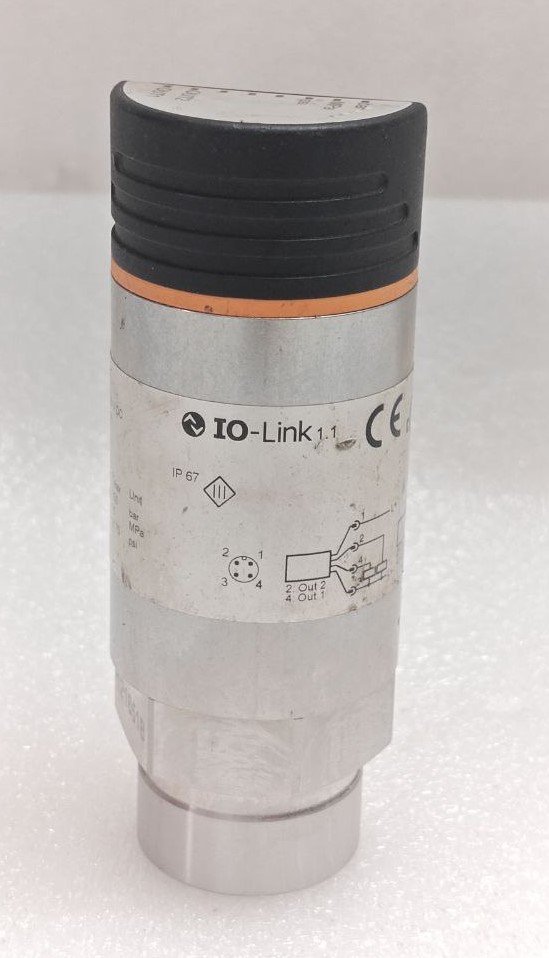

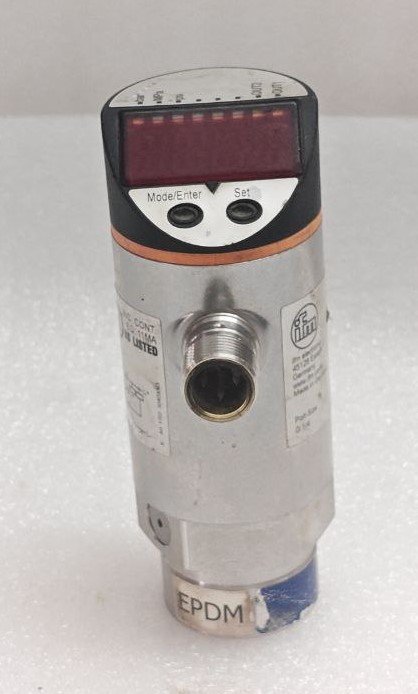

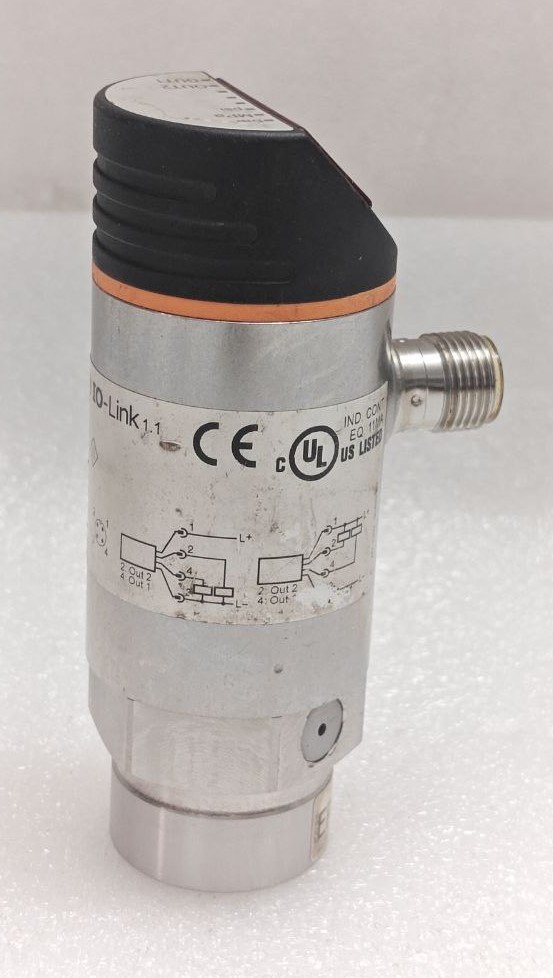

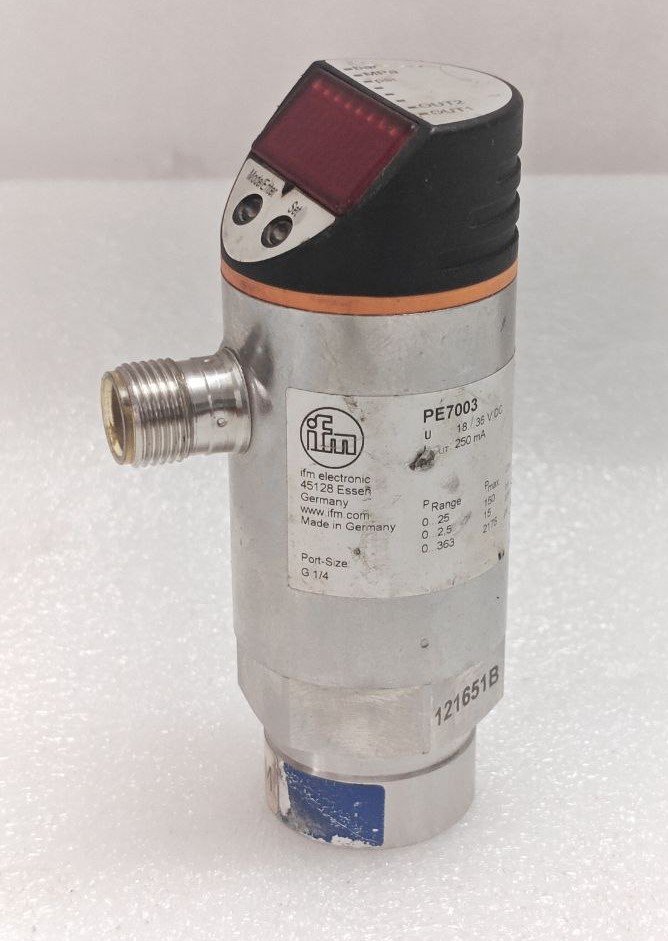

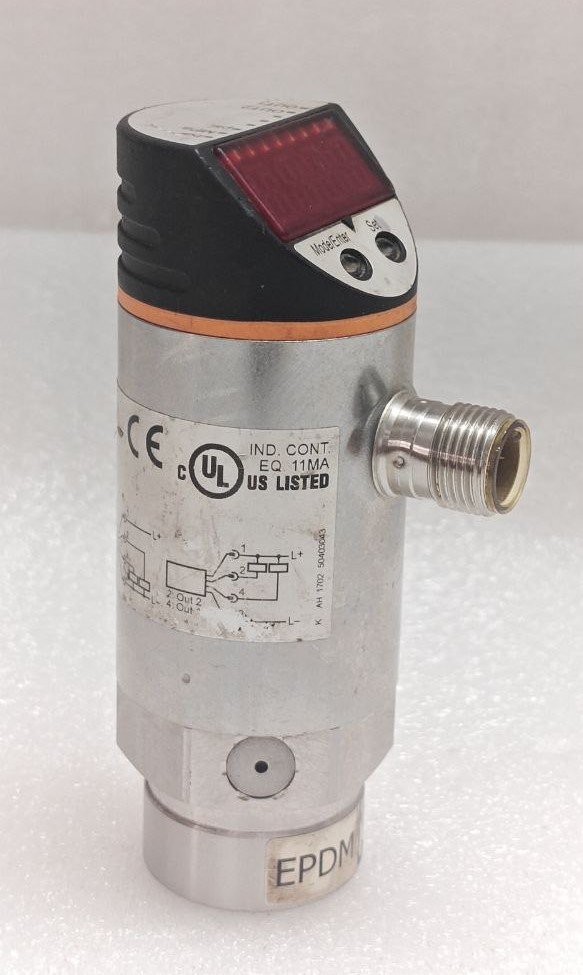

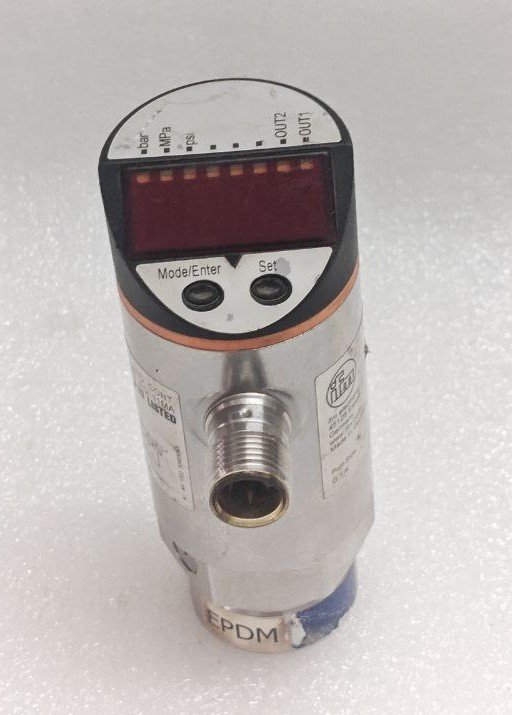

This device converts the physical pressure of a medium (liquid or gas) into a standardized electrical signal. The “Digital” and “G” designation indicates it features a IO-Link communication interface, making it a key component for Industry 4.0 and smart factory applications, in addition to its standard analog output.
Typical Applications
The PE 7003 G 14 is versatile and used across many industries, including:
-
Industrial Automation & Machinery:Â Hydraulic and pneumatic pressure monitoring on machines, presses, and injection molding equipment.
-
Mobile Equipment:Â Monitoring hydraulic systems in construction and agricultural machinery.
-
Process Engineering:Â Monitoring filter clogging, pump pressure, and tank levels (via level calculation).
-
Coolant & Lubrication Systems:Â Ensuring proper pressure in cooling circuits.
Key Features & Specifications
| Feature | Specification |
|---|---|
| Model | PE 7003 |
| Part Number | 121651B |
| Product Type | Digital Pressure Transmitter / Sensor |
| Pressure Type | Gauge Pressure (G)Â – Measures pressure relative to atmospheric pressure. |
| Measuring Range | 0…16 bar (0…232 psi) – This is a common range for this variant. |
| Electrical Connection | M12 x 1 connector, 4-pin. This is a standard, robust industrial connector. |
| Process Connection | G ¼ (external thread). This is a common thread type for pneumatic and hydraulic systems. |
| Output Signal | Dual Output:Â IO-Link 1.1Â +Â Switch/Analog (4-20 mA). This is its primary feature, allowing for both simple analog control and advanced digital communication. |
| Accuracy | Typically ≤ ±0.5% Full Scale (including non-linearity, hysteresis, and repeatability). |
| Media | Compatible with gases and liquids that do not attack stainless steel (1.4305 / 303) and FKM (Viton) seals. |
| Housing Material | Stainless Steel (typically 1.4305 / 303) |
| Pressure Port Material | Stainless Steel |
| Seal Material | FKM (Viton) – offering good chemical resistance. |
| Protection Class | IP67Â – Dust-tight and protected against temporary immersion in water. |
| Operating Voltage | Typically 10…30 V DC |
