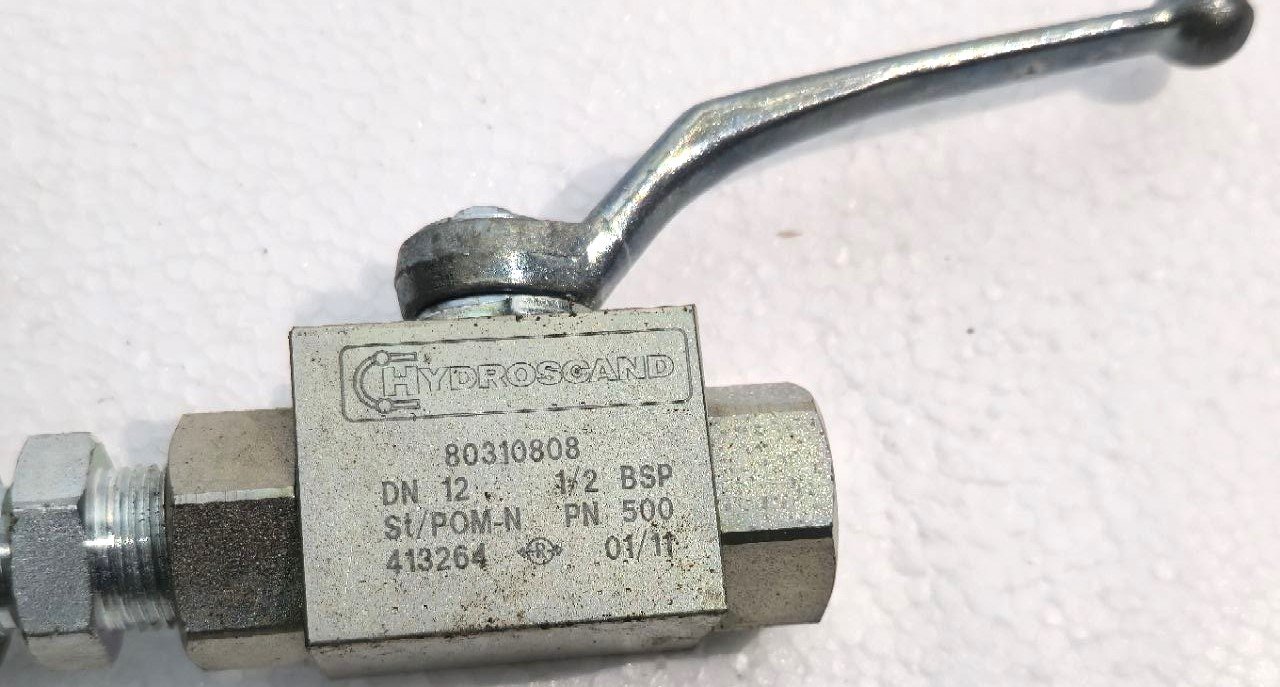

HYDROSCAND 80310808 SHUT OFF VALVE NC DN12 1/2 BSP PN 500

HYDROSCAND 80310808 – 2/2-Way Shut-Off Valve, Normally Closed (NC), DN12, 1/2″ BSP, PN 500 Bar

Full Technical Breakdown:

• Brand: HYDROSCAND – A leading manufacturer and supplier of hydraulic components, hose assemblies, and coupling systems.

• Product Type: Shut-Off Valve (also called an isolation or stop valve). It is used to completely block fluid flow in a hydraulic line for safety, maintenance, or system isolation.

• Function: NC (Normally Closed) – The valve’s default position is closed. It requires manual actuation (e.g., lever operation) to open and allow flow. When released, it springs back to the closed position.

• Size: DN12 – The nominal diameter is 12 mm, indicating the size of the flow path.

• Port Thread: 1/2″ BSP – The connection port uses a 1/2 inch British Standard Pipe thread. This is a very common thread type in European hydraulics.

• Pressure Rating: PN 500 – The valve is rated for a maximum working pressure of 500 bar (approx. 7,250 psi), indicating it’s for high-pressure hydraulic systems.

• Model/Article Number: 80310808 – This is HYDROSCAND’s unique identifier for this exact valve configuration.

• 413264, 01/11

Key Features & Typical Use Case:

• 2/2-Way Design: Two ports (inlet and outlet), two positions (Open/Closed).

• Manual Operation: Typically operated by a lever or handle.

• Spring-Return: Automatically closes when the operator is released (fail-safe).

• Application: Used in industrial machinery, mobile hydraulics (construction, agriculture), and marine systems where a secure, high-pressure shut-off is required for service or safety.
