6 Pump Laundry Dispenser

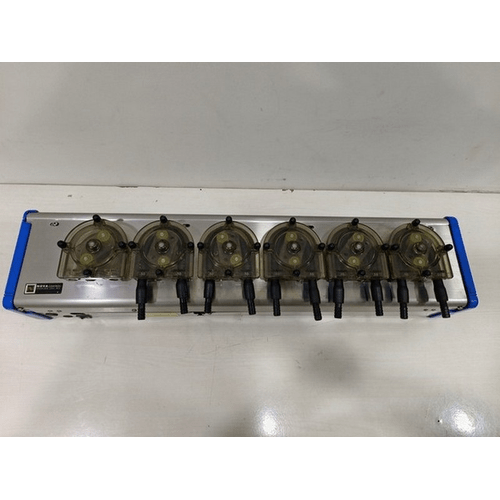

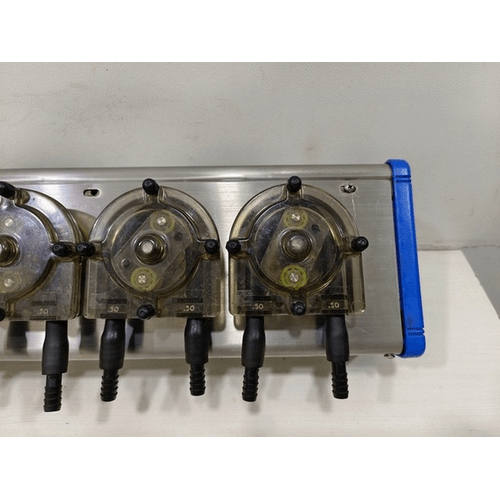

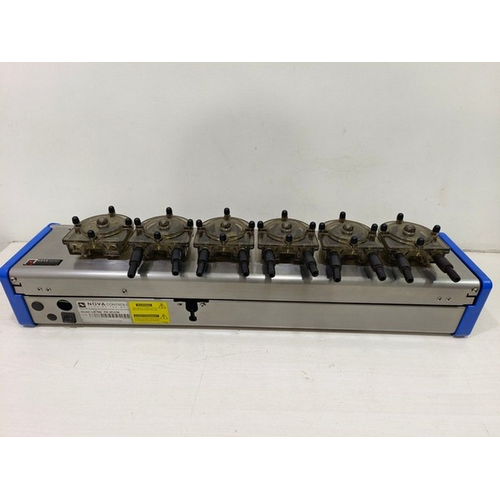

Hydro Systems Orion LM-160 laundry chemical dispenser is equipped with 6 pumps that handle 6 laundry chemicals. This unit includes a Total Eclipse Controller for programing the dispenser with password protection. Accurately transfers laundry chemicals from containers to washers for customer use. Compatible with 115/60 AC electrical connections.

Specifications:

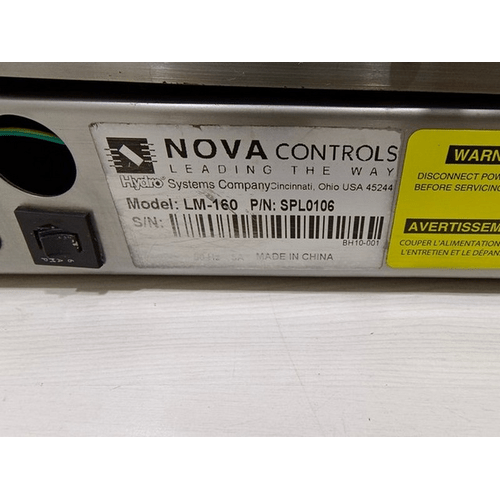

• Model #: Orion LM-160
• Voltage: 115/60 AC
• Number of Pumps: 6
• Controller: Total Eclipse
• Application: On-Premise Laundry Chemical Dispensing


Total Eclipse Controller

• The Total Eclipse Controller features the latest in laundry controller technology. The Total Eclipse Controller has 20 formula capacity and features auto formula select. A – B – C chemical quantities for each of the 8 pumps available in each formula. The Total Eclipse is backwards compatible to the LM-100, LM-200, & LL-6000 pump stands. Large LCD display features formula names, as well as trigger and pump diagnostics. Low voltage “plug-n-play” connections for quick installation. Download production and consumption reports, and upload formulas via USB memory stick.


Features:

• 6 pumps
• Quiet, heavy duty AC motors
• Fast dosing, up to 18 oz. (540 ml) per minute
• Timesaving plug together installation
• External, resettable circuit breaker
• Quick pump tube change
• Robust stainless-steel enclosure
• Fast installation
• Formula flexibility
• Sensible programming
• Safe wiring
• Easy setup
• Heavy-duty pumps
• Quick pump tube change
