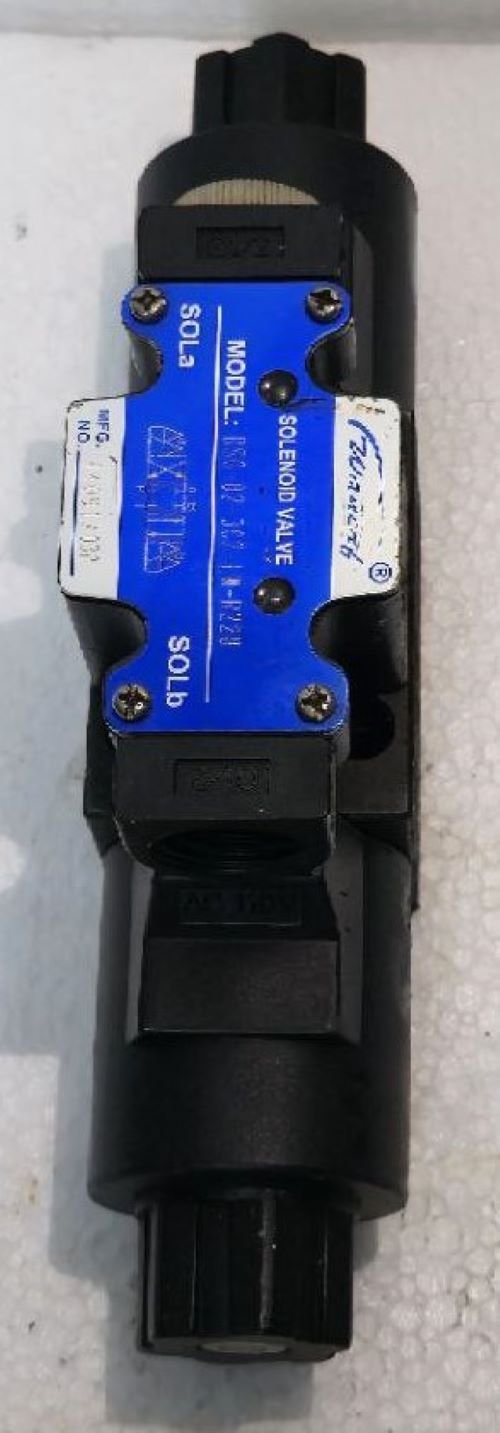

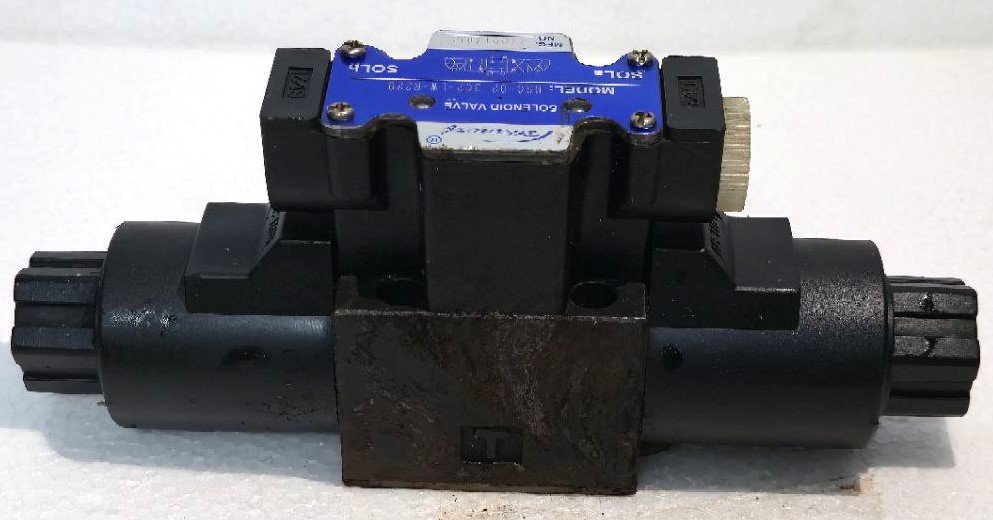

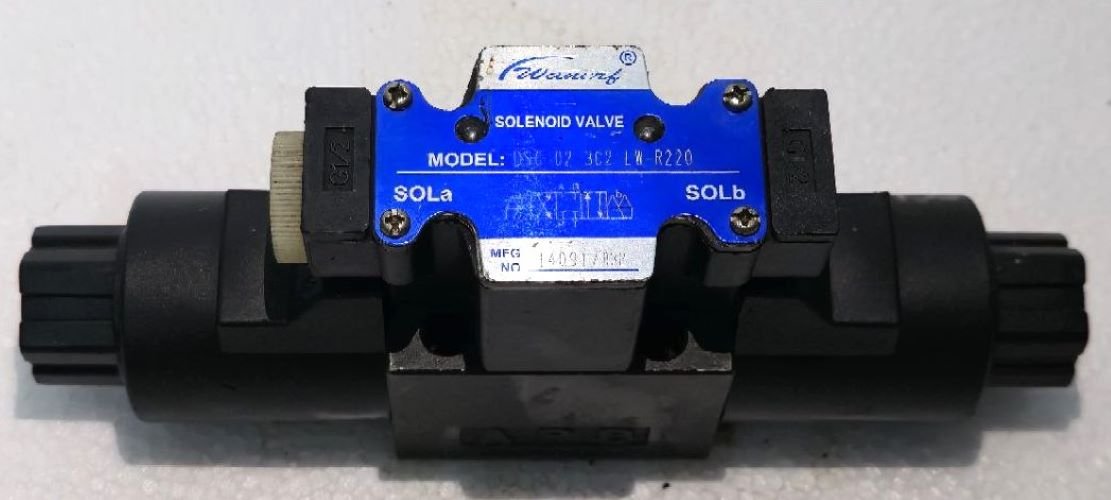

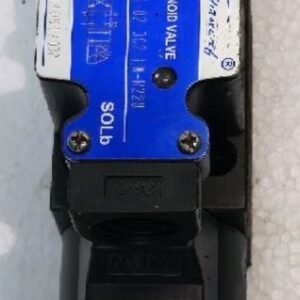

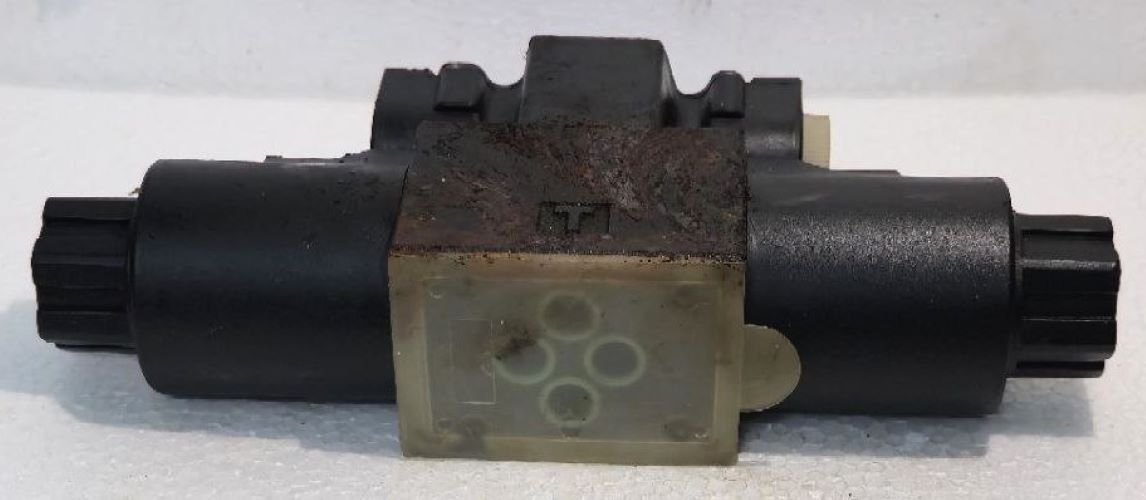

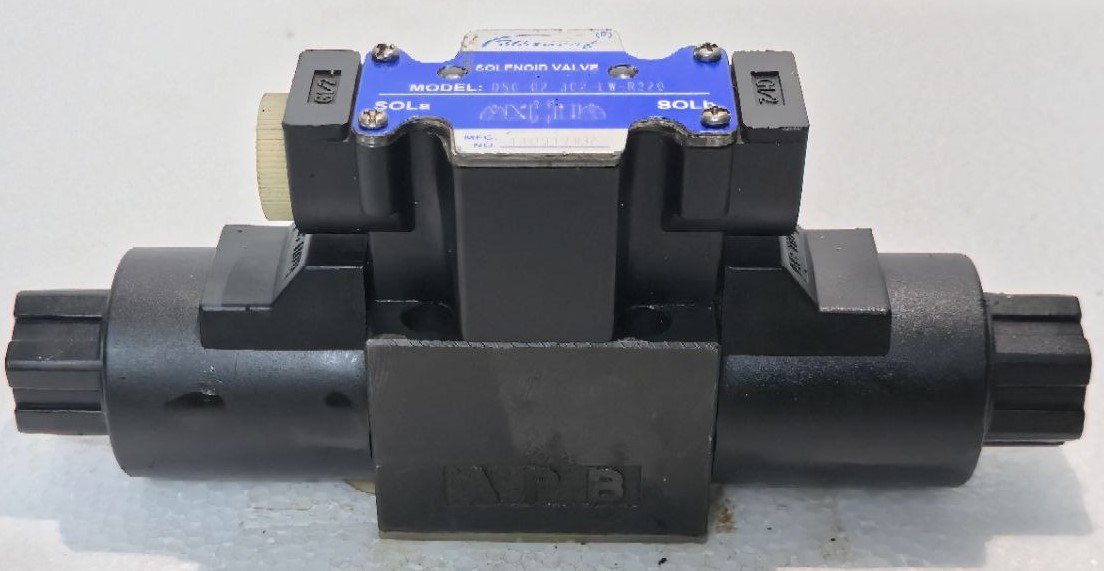

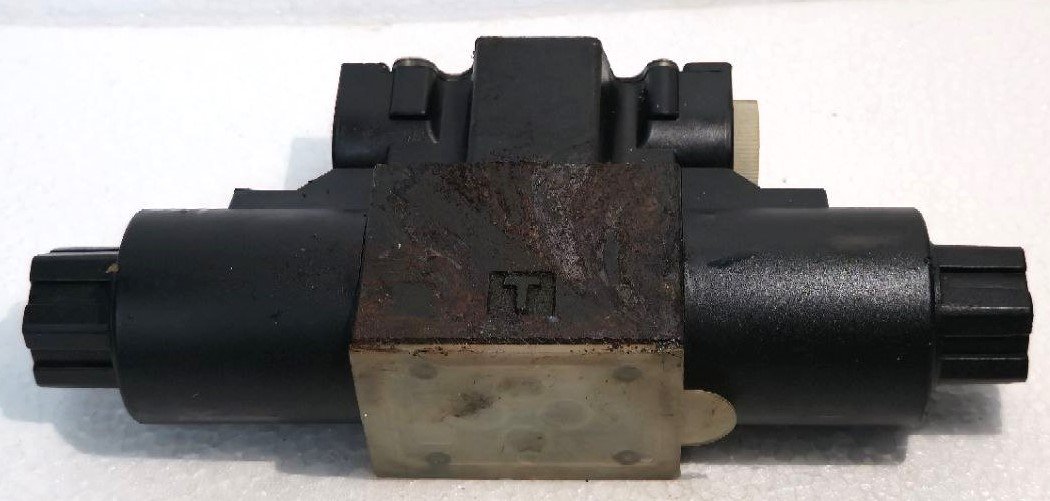

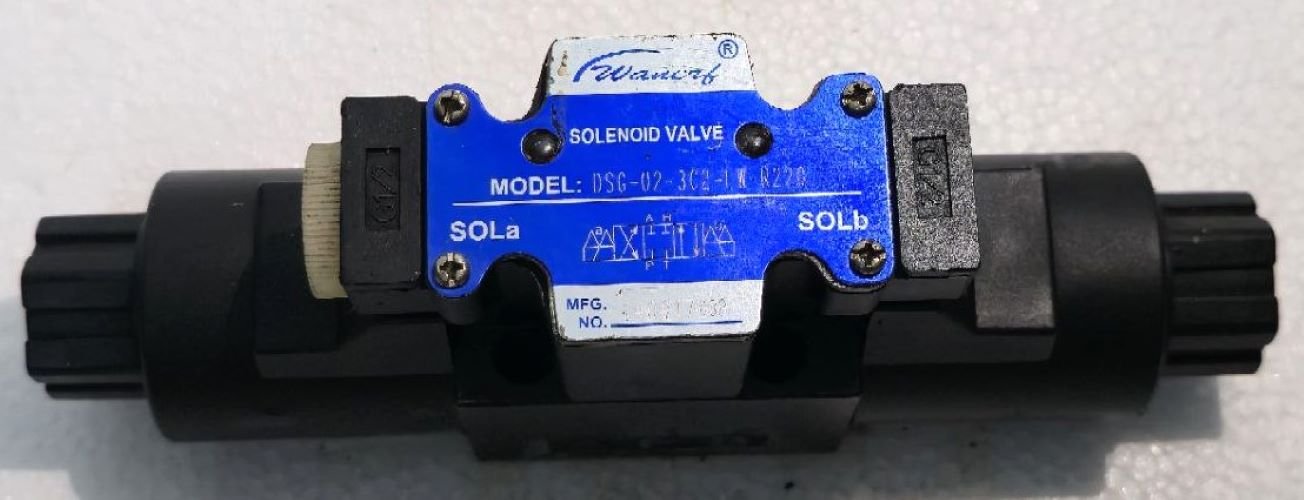

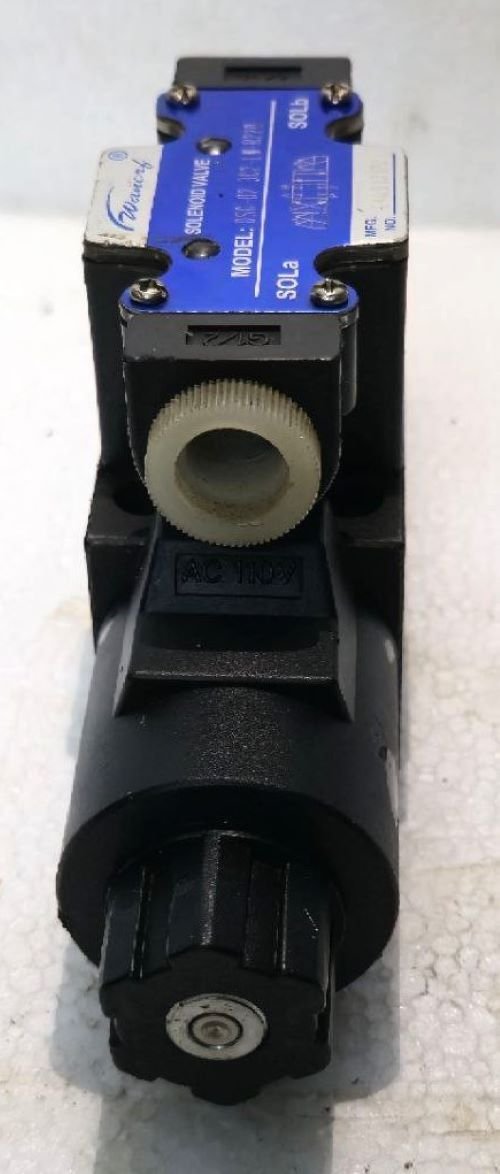

The DSG-02-3C2-1W-R220 is a high-performance, solenoid-operated directional control valve designed for precise and reliable operation in industrial hydraulic systems. This 4-way, 3-position valve features a “Closed Center” (3C2) spool configuration and is actuated by a powerful 110VAC (R220) single solenoid.
Part of the renowned DSG series, this compact and robust valve is engineered for durability in demanding environments. Its wet-pin AC solenoid design ensures cooler operation, longer service life, and excellent resistance to shock and vibration. The valve is ideal for applications requiring automatic control of double-acting hydraulic cylinders or motors.
Key Features & Benefits
-
Precise Directional Control: 4 ports (P, T, A, B) and 3 positions allow for advanced control of hydraulic flow, enabling extend, hold (center closed), and retract functions.
-
Closed Center Spool (3C2): In the neutral position, all ports (P, T, A, B) are blocked. This design traps fluid in the actuator, holding the load stationary without drifting, and unloads the pump.
-

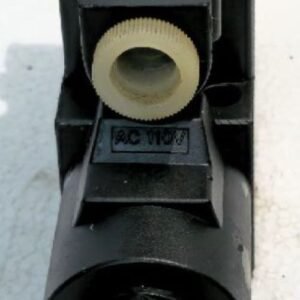

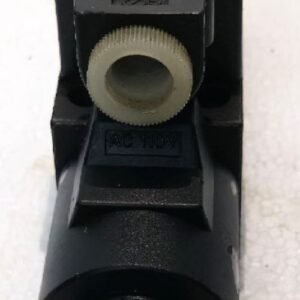

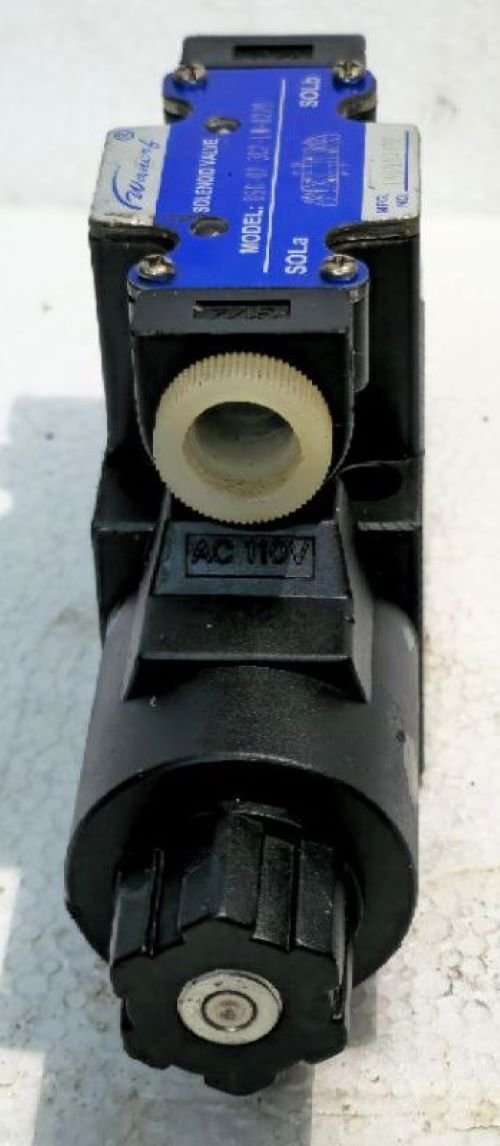

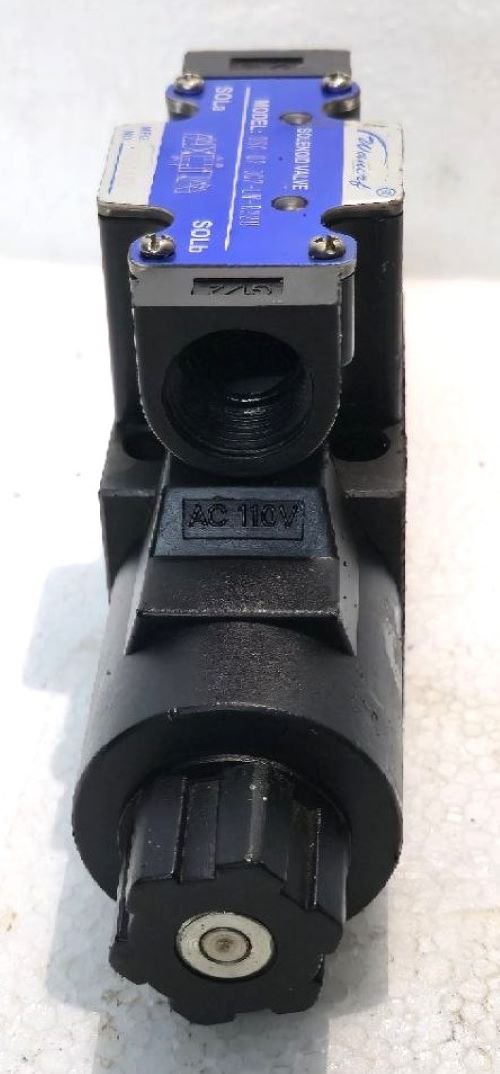

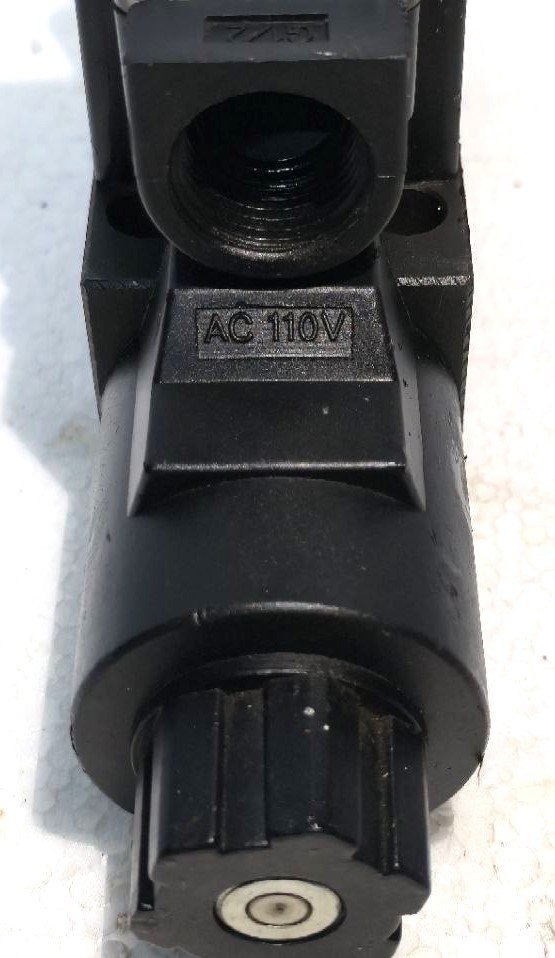

110VAC Coil (R220): Standard industrial voltage coil for easy integration into existing control panels and machinery.
-
Single Solenoid, Spring Return (1W): The valve shifts when the solenoid is energized and automatically returns to the neutral center position when de-energized, providing fail-safe operation.
-
Wet Armature Construction: The moving solenoid parts operate in hydraulic oil, leading to reduced wear, quieter operation, and superior heat dissipation compared to dry designs.
-
Compact & Durable Design: The DSG-02 size is suitable for a wide range of flow capacities. Built with high-grade materials for long-term reliability.
Technical Specifications
| Attribute | Specification | |
|---|---|---|

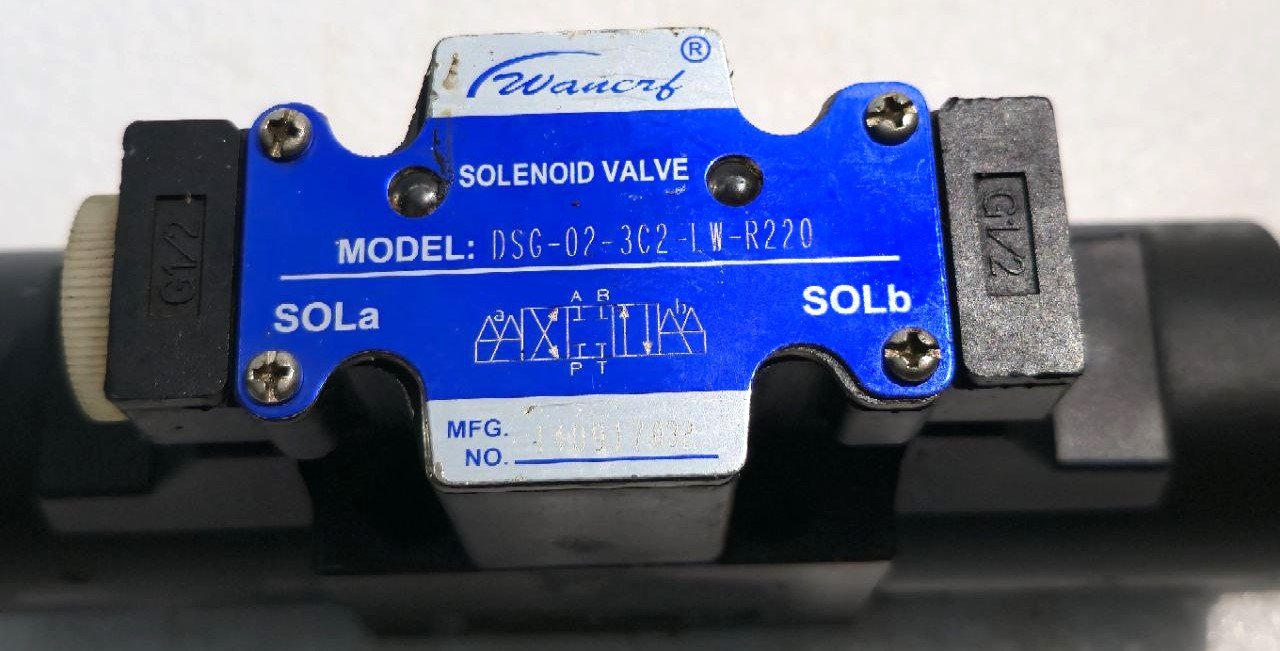

| Model Code | DSG-02-3C2-1W-R220 | |
| Valve Type | Solenoid Operated Directional Valve | |
| Port Size | ISO 4401-02 (CETOP 3) | 1/4″ NPT or G1/4 |
| Positions/Ports | 4-Way, 3-Position | |
| Spool Type | Closed Center (All Ports Blocked in Neutral) | |
| Actuation | Single Solenoid, Spring Return | |
| Coil Voltage | 110 Volts AC (50/60Hz) | |
| Coil Code | R220 | |
| Max Operating Pressure | Typically up to 350 bar (5,000 psi) – Confirm with datasheet | |
| Flow Capacity | Up to approximately 15 L/min (4 GPM) – Confirm with datasheet | |
| Fluid Compatibility | Mineral-based hydraulic oils to ISO 32-68 | |
| Seal Material | Standard Nitrile (NBR) – Optional Viton (FKM) available |
Typical Applications
This valve is perfect for automation and control in:
-
Industrial machine tools
-
Material handling equipment
-
Presses and forming machines
-
Plastic injection molding machines
-
Agricultural and construction machinery
-
Automated assembly lines
